help ID a crank Lockwood racing motor is this a 094 crank stock

[joe1]

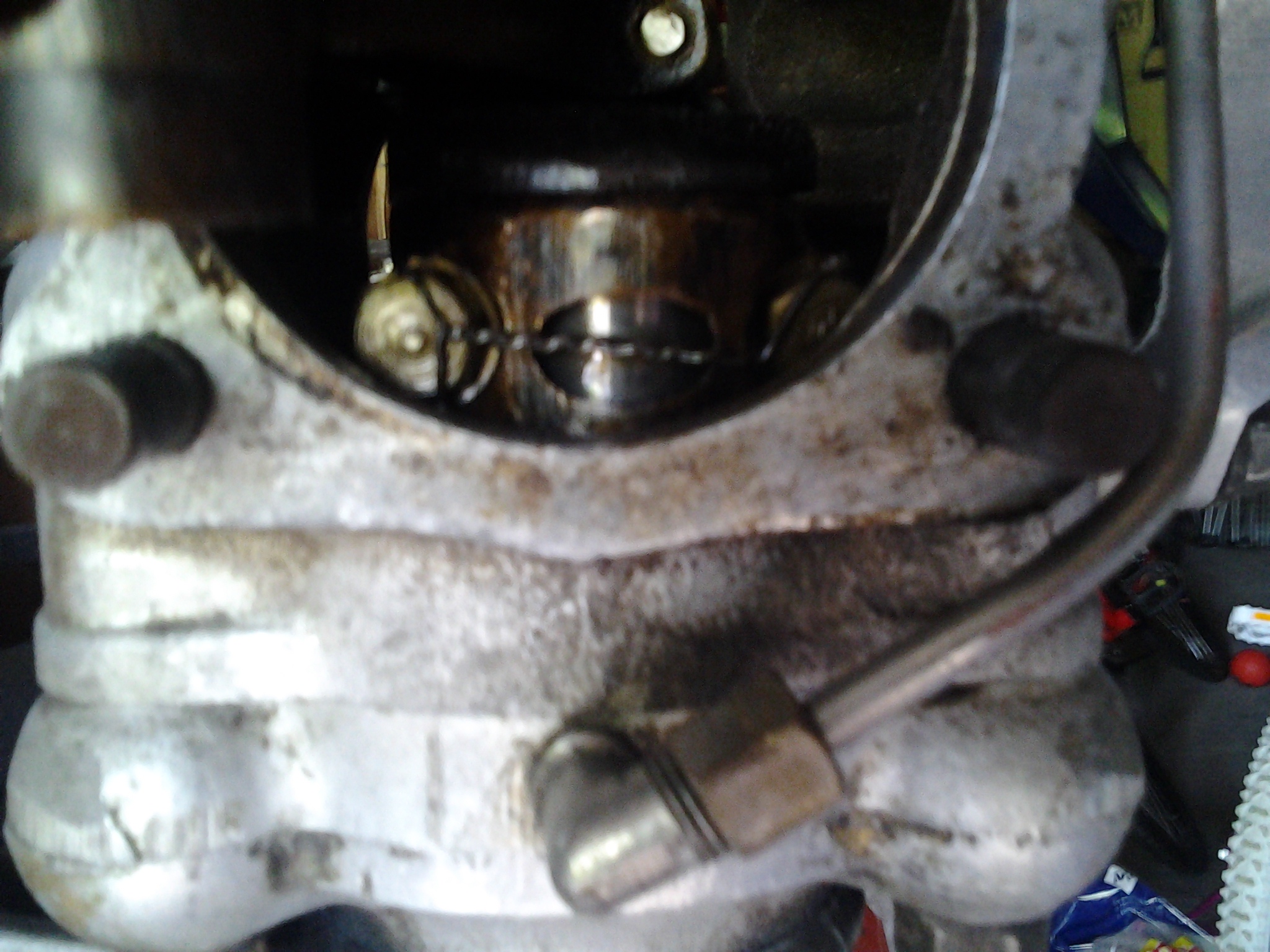

Here’s my picture thanks for any help I have the 094 o60 over Pistons and bronze connecting rods I need to know if the crank is a stock 094

[hotrod]

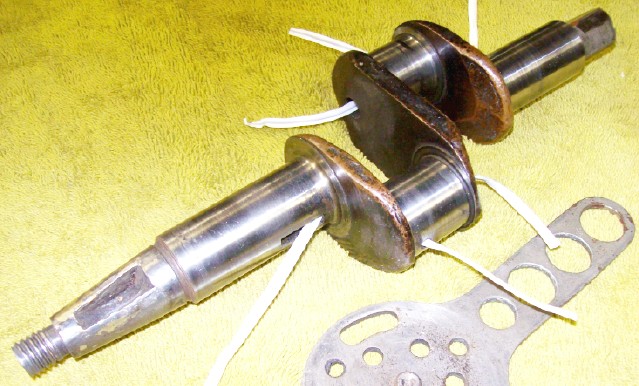

This photo shows a Lockwood Chief crankshaft that has been drilled for oiling the big ends of the rods. The white wire ties show the oil holes. I believe it is for a racing Chief. Ignore the threads for the flywheel nut since they should be 1/2-20 and not the 1/2-13 repaired threads shown. This keyway is also damaged wider than it should be. The number 20227AA is on the Chief cranks but not always readable. Chief keyways are occasionally cracked in the corner or stretched wider from a loose flywheel pounding it. Always remove all traces of lube/oil/dirt from the tapered flywheel hole, and key, and keyway, and the crank taper before assembly (use solvent).

[joe1]

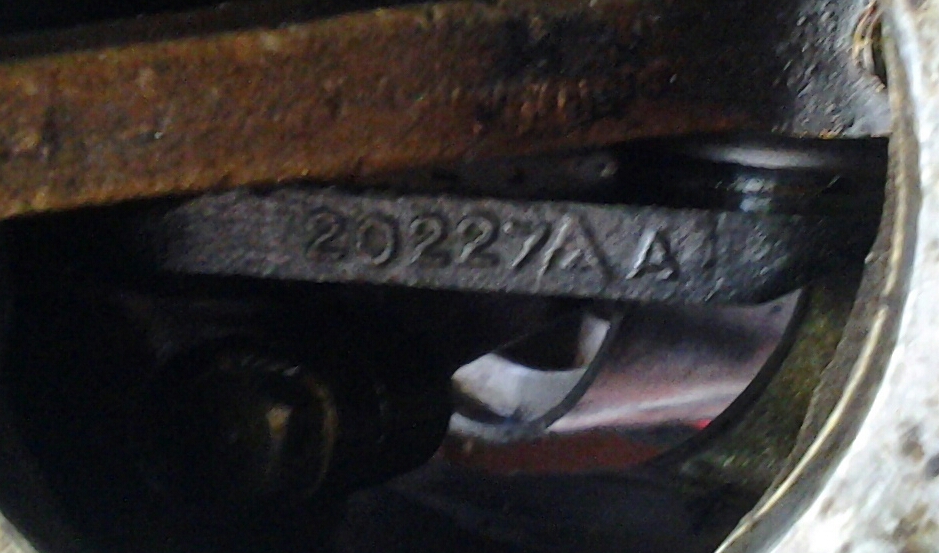

Thanks for your response So I get if the crank numbers are 20227AA its the Right crank in the page u sent me it Says The crank has been drilled So that is not stock It was done by a machine shop afterwards to improve oiling . So do u have picture of raceing Bronze rodsIs there a difference Between The way they cut the Oilers ive ben told that the raceing motor had Aluminum rod stock So I don’t get it .but Everything I can read from newspaper articles in books Makes me believe that they were bronze rods

[hotrod]

The crank picture I posted is a Lockwood Chief factory made crank. It has not been modified or drilled by an after-market machine shop except for the threads. Some Chief cranks have not been drilled at the factory.

[joe1]

Thanks there is so little out there on these motors mine is a 1928 but scream’s 29 Throttle handle’ Silent exhaust And 29 carbs Coils to. All matching numbers on case 2. Serial number 10673 .an assuming this model number is 82 B an not Standing for 3 .1928 ( 094 pistonsb And bronze rodsThink it was first edition of racing versionThanks Joe

[PM T2]

82B would indeed be a 1928 model.

I’ve not really seen anything posted that confirms the serial number, unless thats the 10673 that you’re referring to. The fact that that number is there leads me to believe that it was not originally built as a Racing Chief. The BR’s never had any letter designation on the rope sheave, and the only number stamped on the crankcase was usually behind the carburetor just below the magneto plate, and these were almost always a three-digit number.

For what its worth, there’s no record of the Racing Chief being available in 1928, in any way, shape or form. Obviously, it would be possible for somebody to acquire the necessary internal parts to make an 82B into a BR, as its simply a matter of plugging the race parts into the service crankcase. I’m not sure if the Racing Chief crank used larger diameter bearings than the service Chief, but Jim Ross would know that.

And a Racing Chief would NOT have that big flywheel and armature on it. Lockwood instead used a variety of the Ace flywheel that was balanced differently for the Racing Chief. They also therefore had to use the Ace rope plate, which had no spaces provided for model or serial numbers. There’s also nothing to support the notion that a Racing Chief would leave the factory without being equipped with the round cylindrical tank, dual carbs and linkage, and drip oiler(s). I can see somebody exchanging the dual carbs for the single, but why get rid of the oilers and round tank? Because they wouldn’t…….

There are a number of circumstances that could explain this motor. If it is indeed a 1928 motor and has racing motor parts in it, I would bet that they most likely would have been installed by somebody trying to hop the motor up from a standard fishing motor to something faster. Lockwood sold a kit for converting the 82B to a 92B with underwater exhaust, you had to change the lower unit assembly and add the exhaust T-pipe. The only things left to swap would be the intake manifold, carb, and throttle handle; if those were upgraded to the newer version, in short order you’d have an 82B with all 1929 features. I’m sure a person could also buy the Racing Chief parts to build up (or rebuild/repair) their own motor if they wanted to spend the money.

It all hinges on whether or not the numbers stamped into the crankcase match the ones on the rope sheave.

WRT the aluminum rods versus bronze – I do not think there was such a thing a "racing bronze rod". There may have been bronze rods that were modified by racers, but I don’t recall seeing any listing in the Lockwood parts books for bronze racing connecting rods. The Racing Chief was supplied with aluminum rods from the factory. These were not very durable and them letting go during race conditions most often is the reason for so many scars and weld repairs being visible on surviving 92BR’s today. The aluminum rods that didn’t break were usually replaced with the service bronze rods for reasons of added strength with the penalty of added weight to the reciprocating assembly.

Disclaimer – if you talk to Jim Ross, and he tells you anything different from what I’ve written here, go with what he says, because he knows way more about the Racing Chief stuff than I do.

Hope this helps.

Best,
PM T2

He's livin' in his own private Idaho..... I hope to go out quietly in my sleep, like my grand-dad did..... and not screaming, like the passengers in his car...

[joe1]

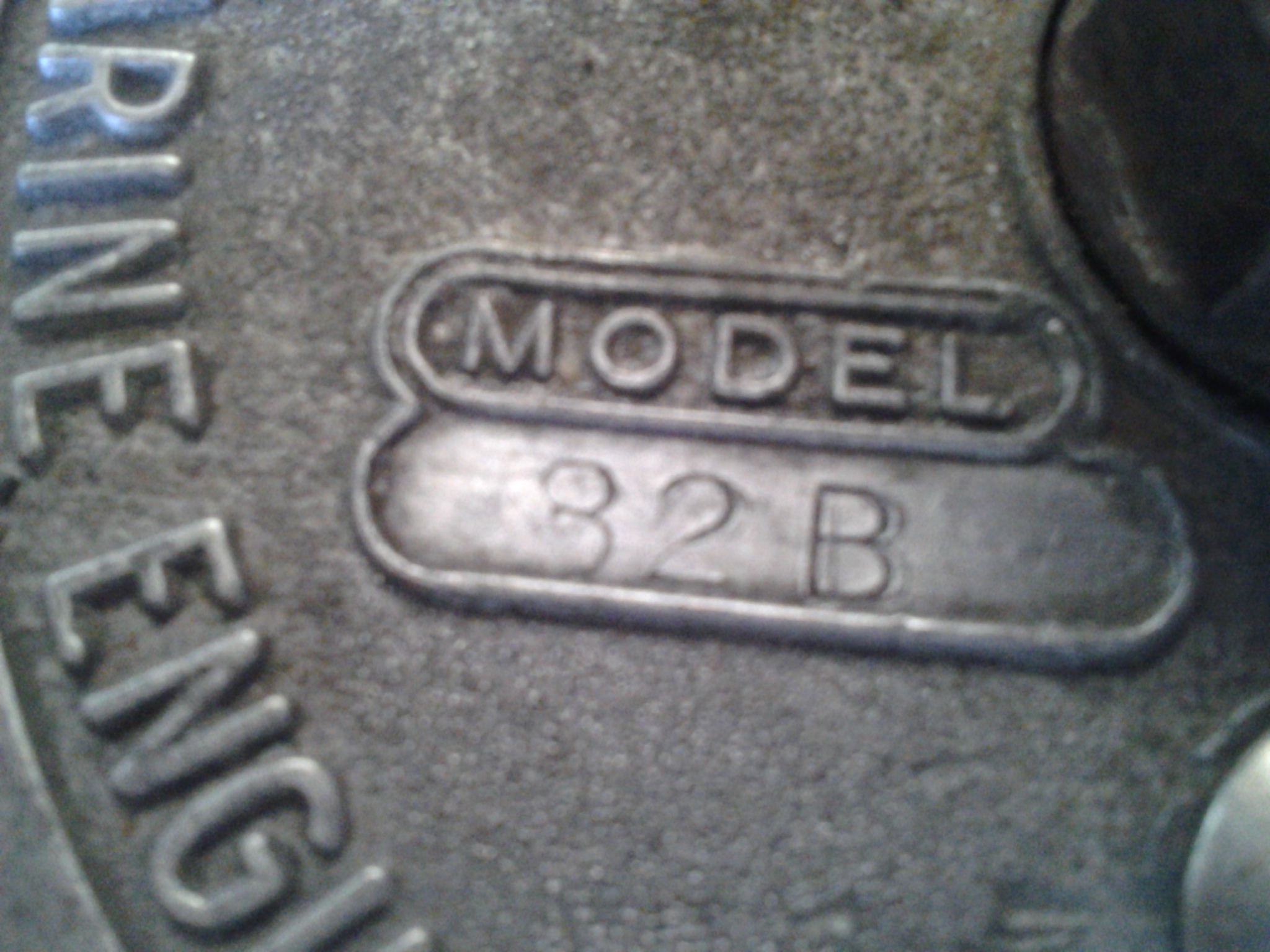

Thanks here’s one for any one out there could my motor be a 32 that where sold with Leftover parts Because the more I look at the stamping on the flywheel .the more it looks like a 32 stamped in it an not an 8 . Joe1

[garry-in-michigan]

It looks like an 8 to me. To confuse the issue, I have seen rope plates for sale at meets taken scrapped motors . . . 😕

[PM T2]

it is an "8" albeit poorly stamped.

Any Lockwood Chiefs build after 1930 were sold to Montgomery Ward to be labeled as "Sea Kings". I am sure that OMC would have been more or less contractually bound to not market any additional Chief motors after 1930, as that would have put them in direct competition with their own customer.

Best,
PM T2

He's livin' in his own private Idaho..... I hope to go out quietly in my sleep, like my grand-dad did..... and not screaming, like the passengers in his car...

[joe1]

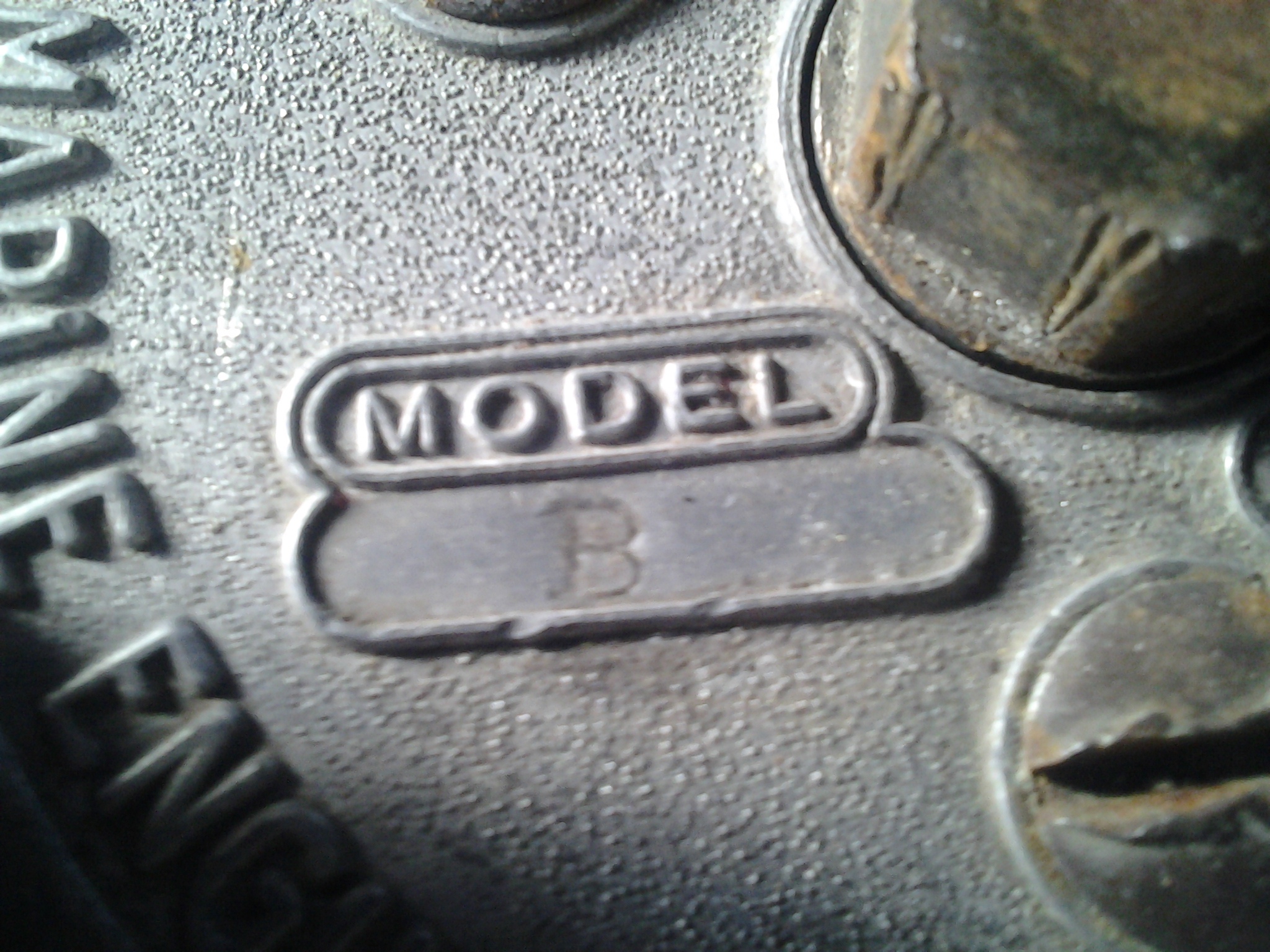

So im happy I’m getting so many responses from everybody And it does mean a lot .so mines 28 chief thats ben up dated with a kit makes me happy so it not the 11 hp its now a 14hp turned in a raceing one .so i have a Another Question I Bought two of these motors The other one Stamp model B What dose that stand for thanks joe1 . We hope to run these motors on a Hydroplane just for the fun at the lake. 92br raceing. 82b cheife. B WHAT DOSE IT STAND FOR
