I need a parts manual Scott McCulloch 12 or 14HP 1960

[seakaye12]

Hello there….

Can anyone help with a Parts manual for the Scott McCulloch Model A3FB. 1960. I think the 14HP models of the same vintage are pretty much the same engine so they would be OK as well….

In particular I am looking for the part numbers/dimensions for the upper and lower crankshaft seals…..

Thanks, Chuck

[garry-in-michigan]

The closest I come in my Dropbox site is the 1960 9 horse . . . 🙁

[keny]

[seakaye12]

Thanks keny for uploading that.

I am still in need of a parts manual though; I am looking to find part numbers for the crankshaft seals. It looks like there is a double seal of some sort at the bottom; maybe someone here who has had it apart can help with pictures and/or dimensions?

Thanks Chuck

[retiredoz]

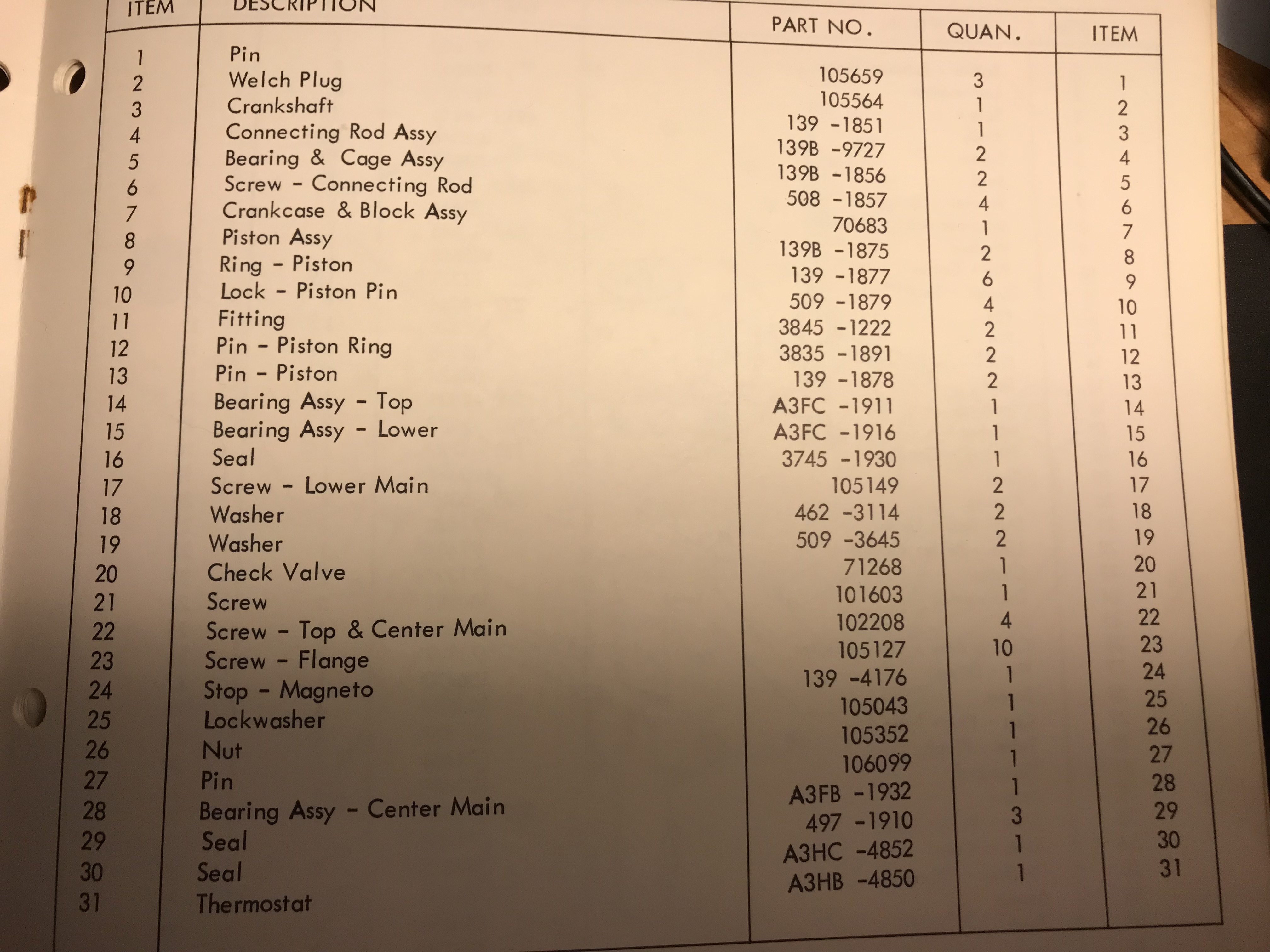

Closest I can get is a ’62 14 Scott. On that one the top crank seal is 3745-1930 (goes back to early 5-hp Bail-o-matic) and the top and bottom seal is 497-1910, apparently close to universal. I’ll upload some pics soon.

[retiredoz]

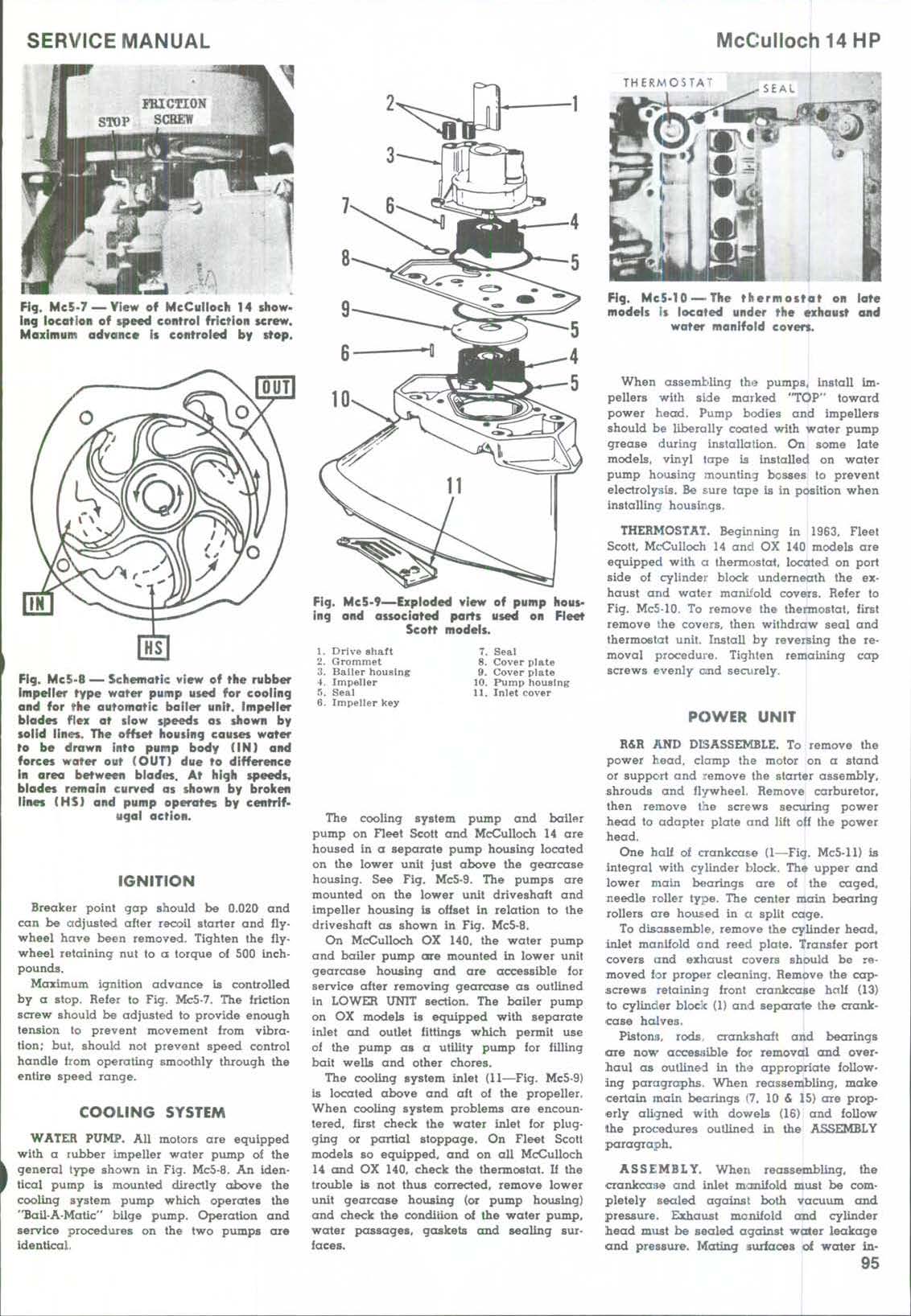

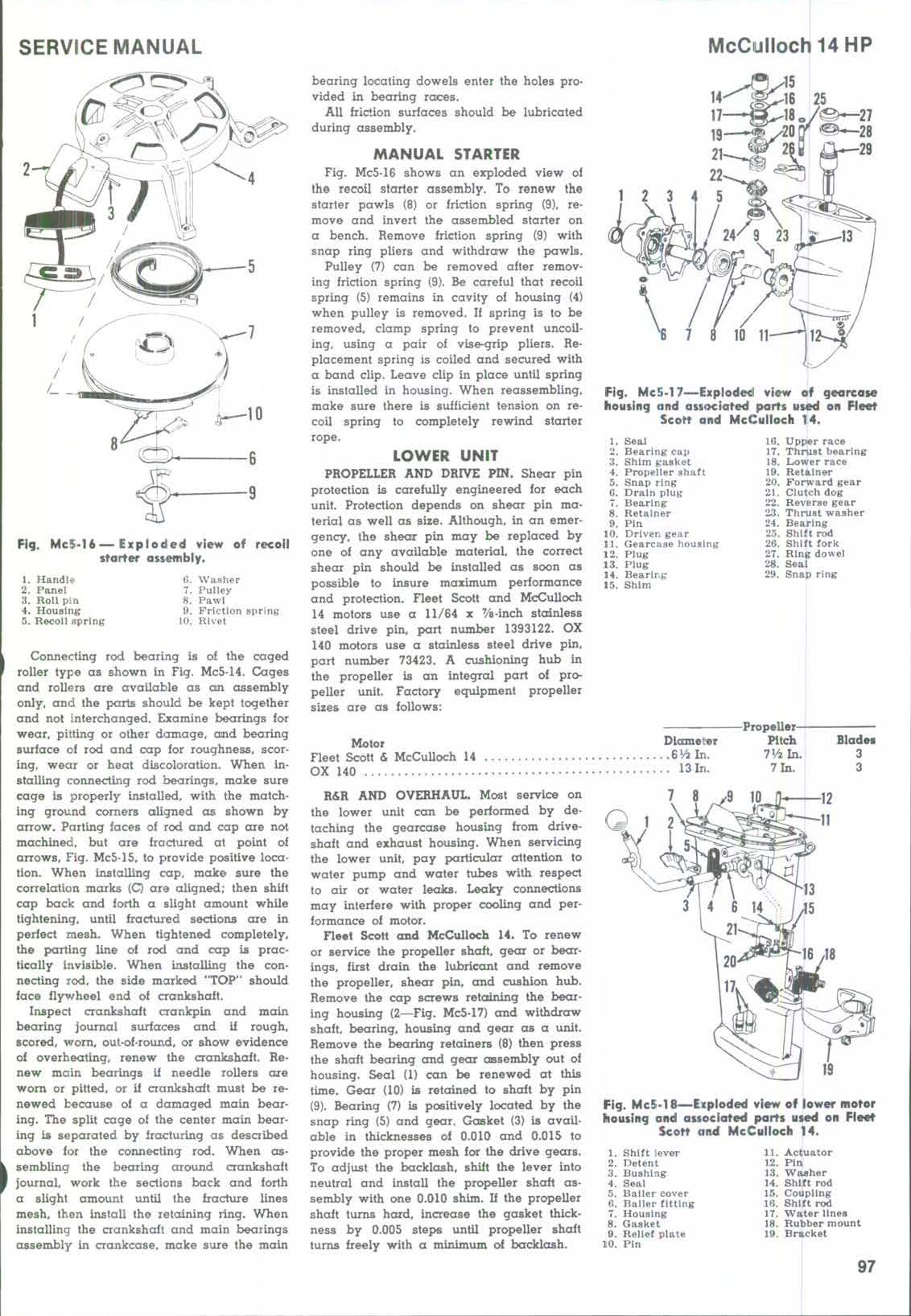

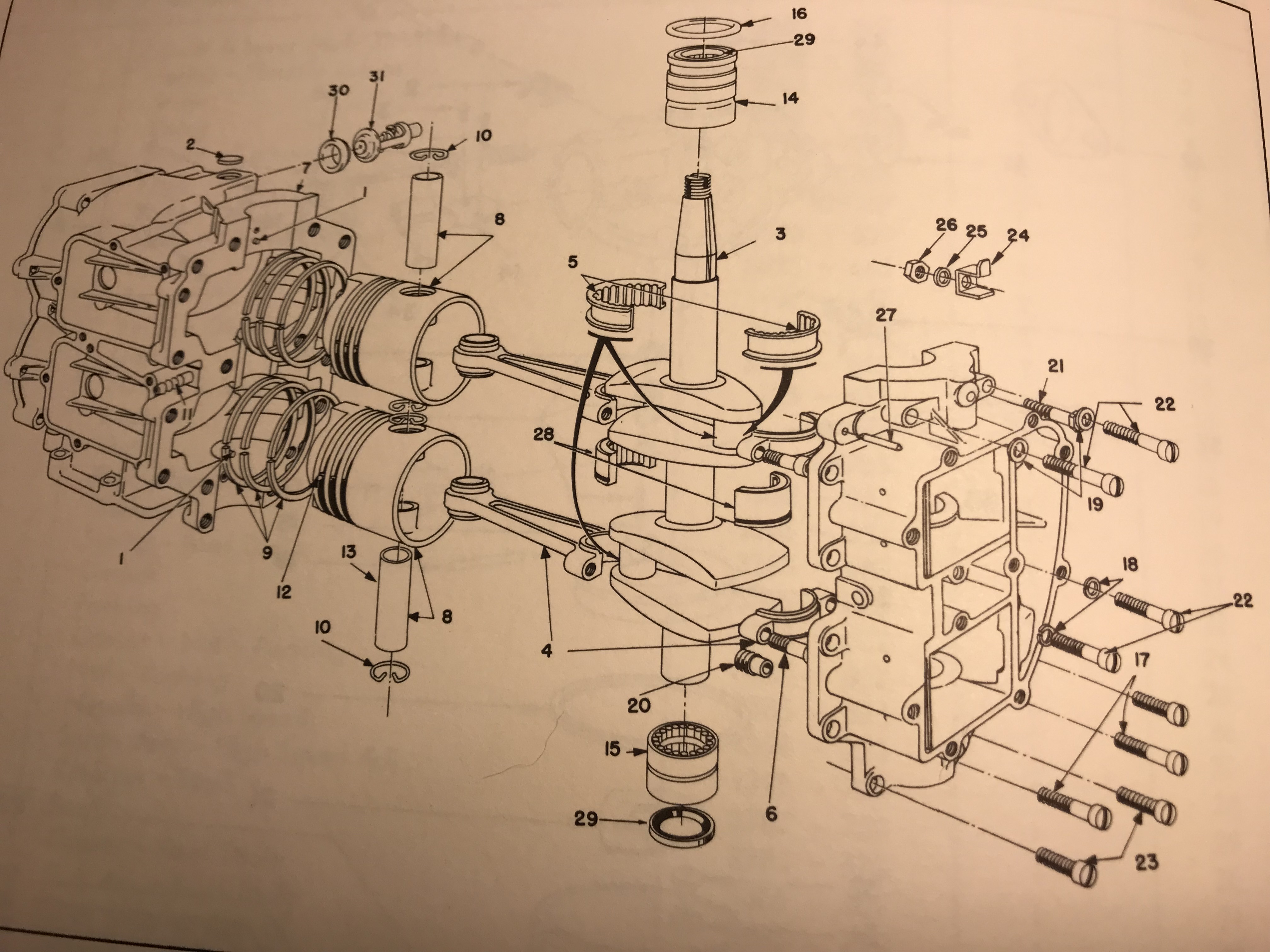

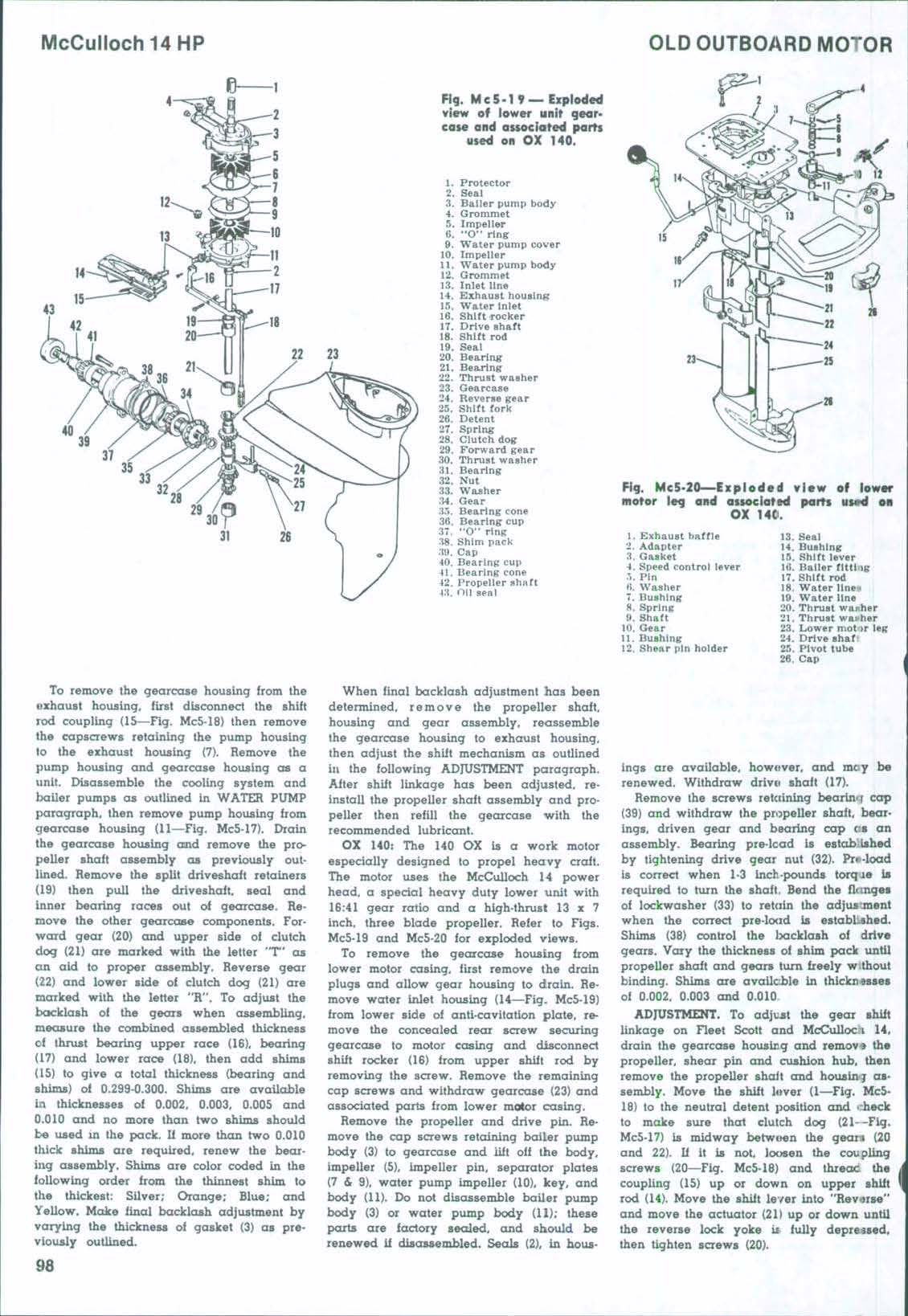

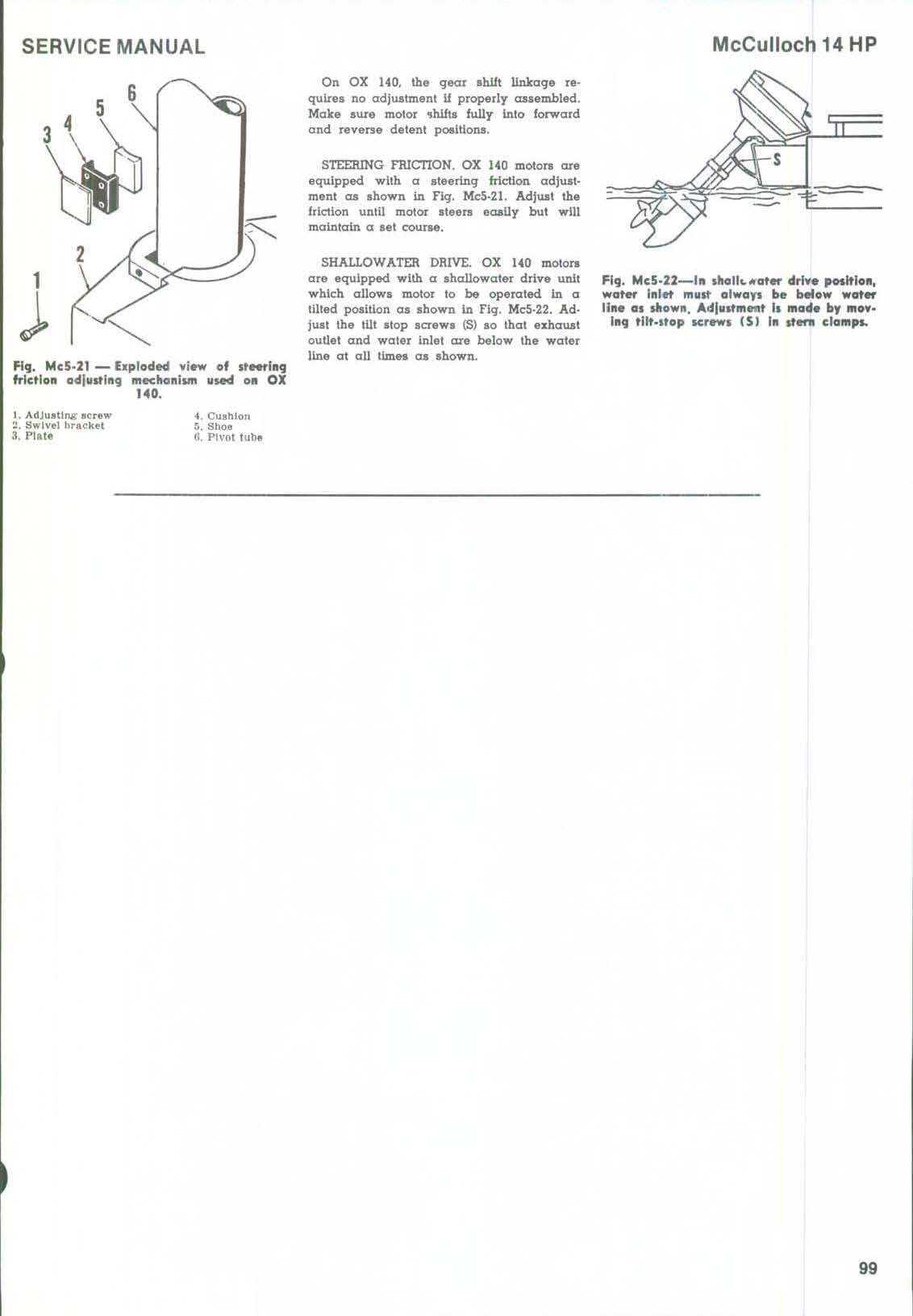

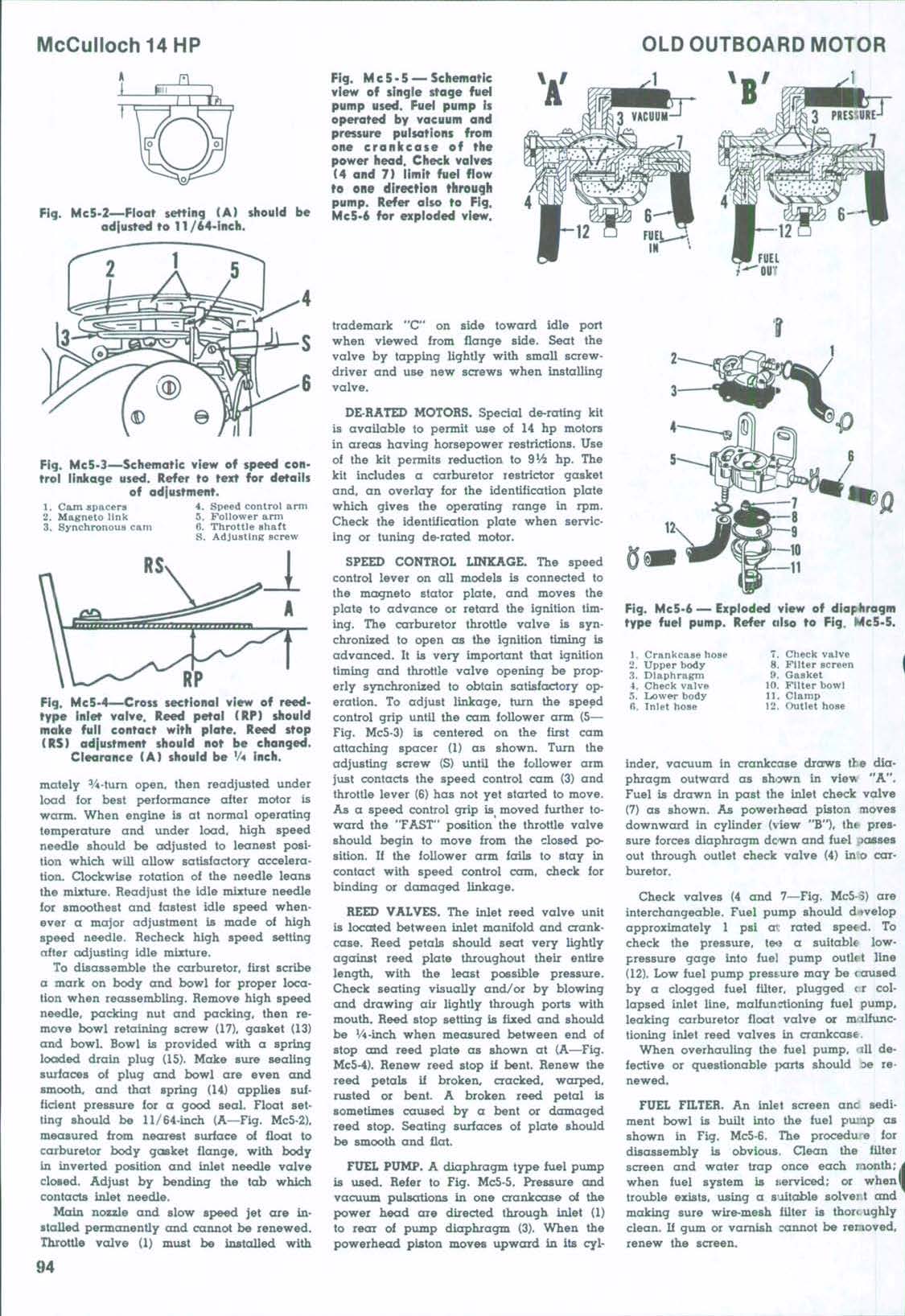

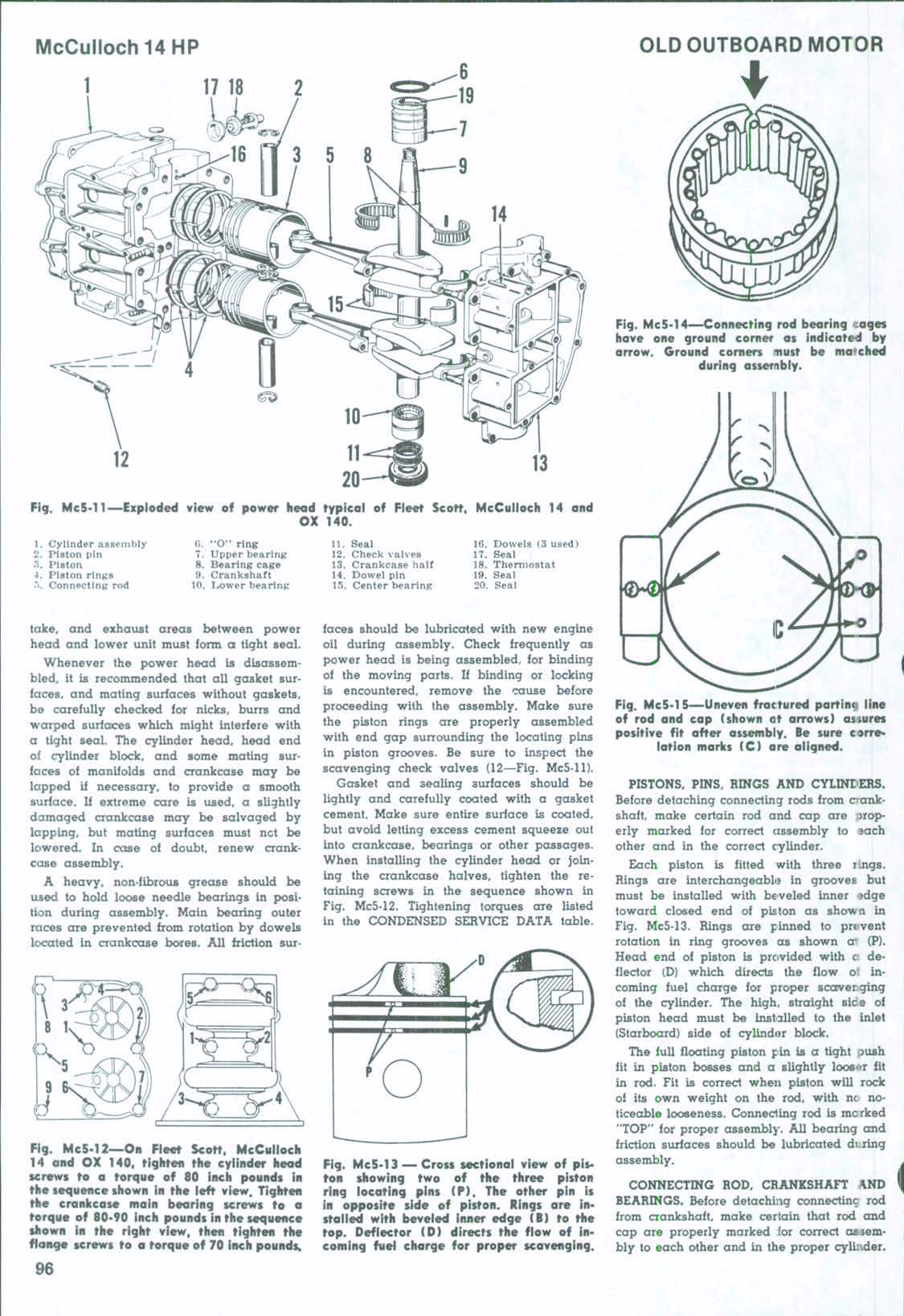

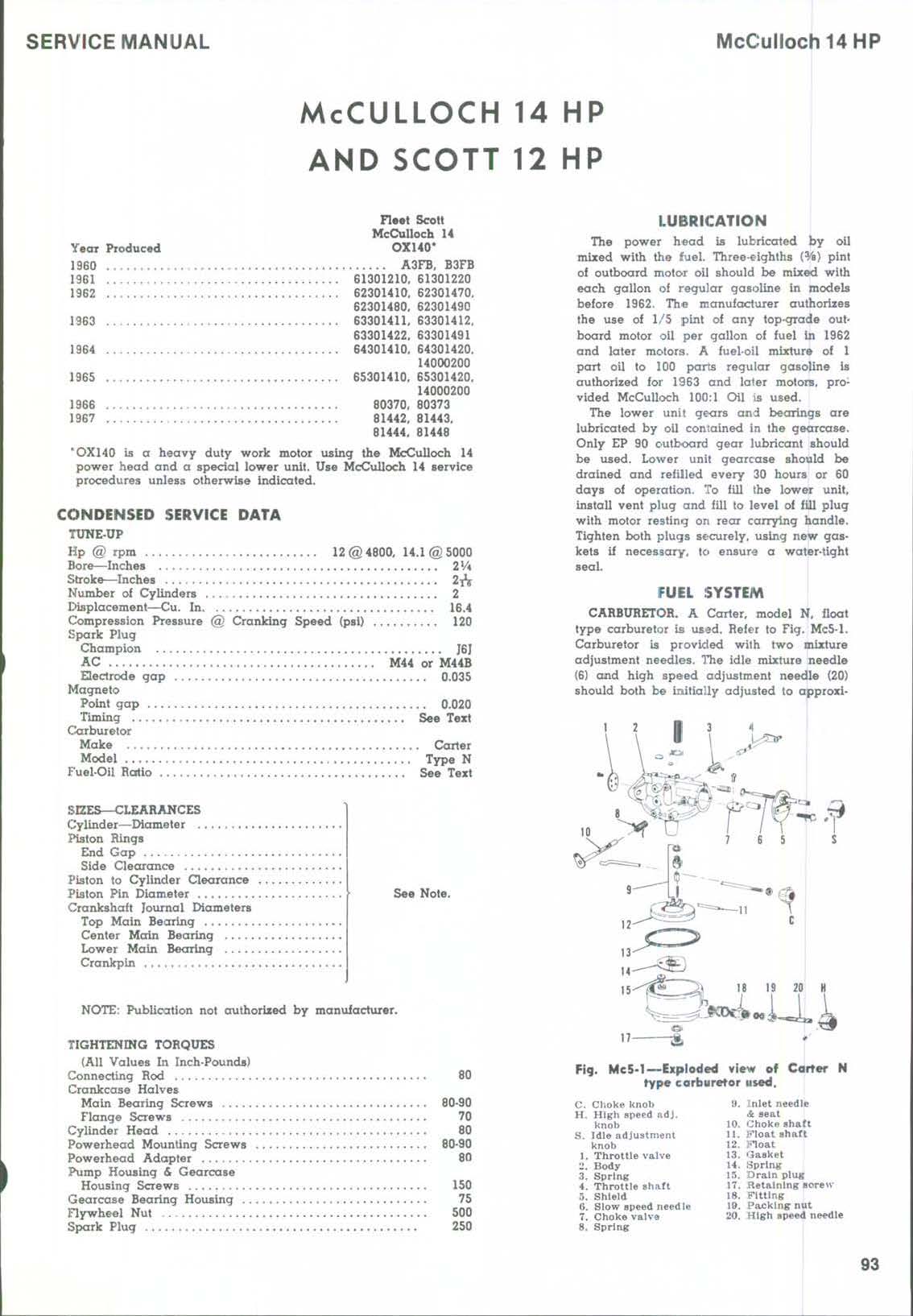

Pics from my manual. Oddly enough this does not show the double seal at the bottom of the crank, maybe an early-model thing ?

[seakaye12]

quote retiredoz:

Closest I can get is a ’62 14 Scott. On that one the top crank seal is 3745-1930 (goes back to early 5-hp Bail-o-matic) and the top and bottom seal is 497-1910, apparently close to universal. I’ll upload some pics soon.

Thanks retiredoz…..that is odd that the double seal is used on some and not on others.

I wonder what to do now; I have the Scott P/N….but I still have no cross reference to something that is actually available. When you say "close to universal"….what do you mean?

Anyone know the dimensions of a Scott seal #497-1910?

Thanks, Chuck

[garry-in-michigan]

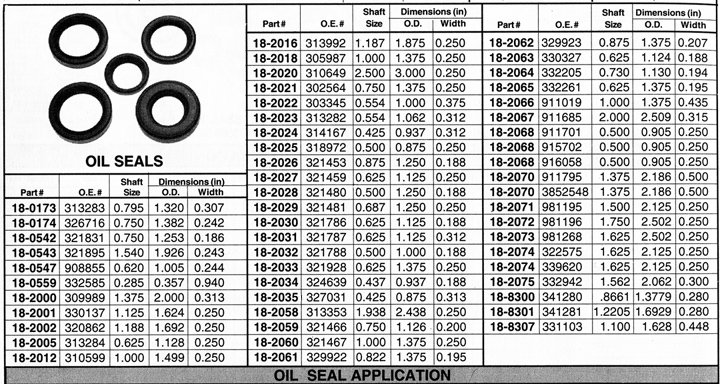

Do any of these come close to what you have? ? ? 🙄
