Johnson 4.5 HP model AA 37 help

This topic has 2 replies, 3 voices, and was last updated 9 years, 6 months ago by kees.

Viewing 3 posts - 1 through 3 (of 3 total)

Author

Posts
July 5, 2016 at 5:49 pm #4669
cheezer
Participant
I recently picked up a AA 37 Johnson motor, looks complete but it’s seized up. I soaked the cylinders with PB blaster and oil for a few day’s, and started removing parts searching for a problem. So before i go too far and screw something up, i thought i would check here for guidance / advise and also if someone has a motor breakdown diagram so i can see how this thing works?
Thanks.
Dave
July 6, 2016 at 7:53 pm #39721
garry-in-michigan
Participant
Lifetime Member
I go back to 1939 – if that will help ❓

https://www.dropbox.com/s/hl9rhyu6zpsm5v4/1939-40%20Johnson%205%20hp%20%28LT%2CAT%2CDT%29%20-%20Parts%20Manual.pdf?dl=0
July 6, 2016 at 9:04 pm #39728
kees
Participant
International Member
.

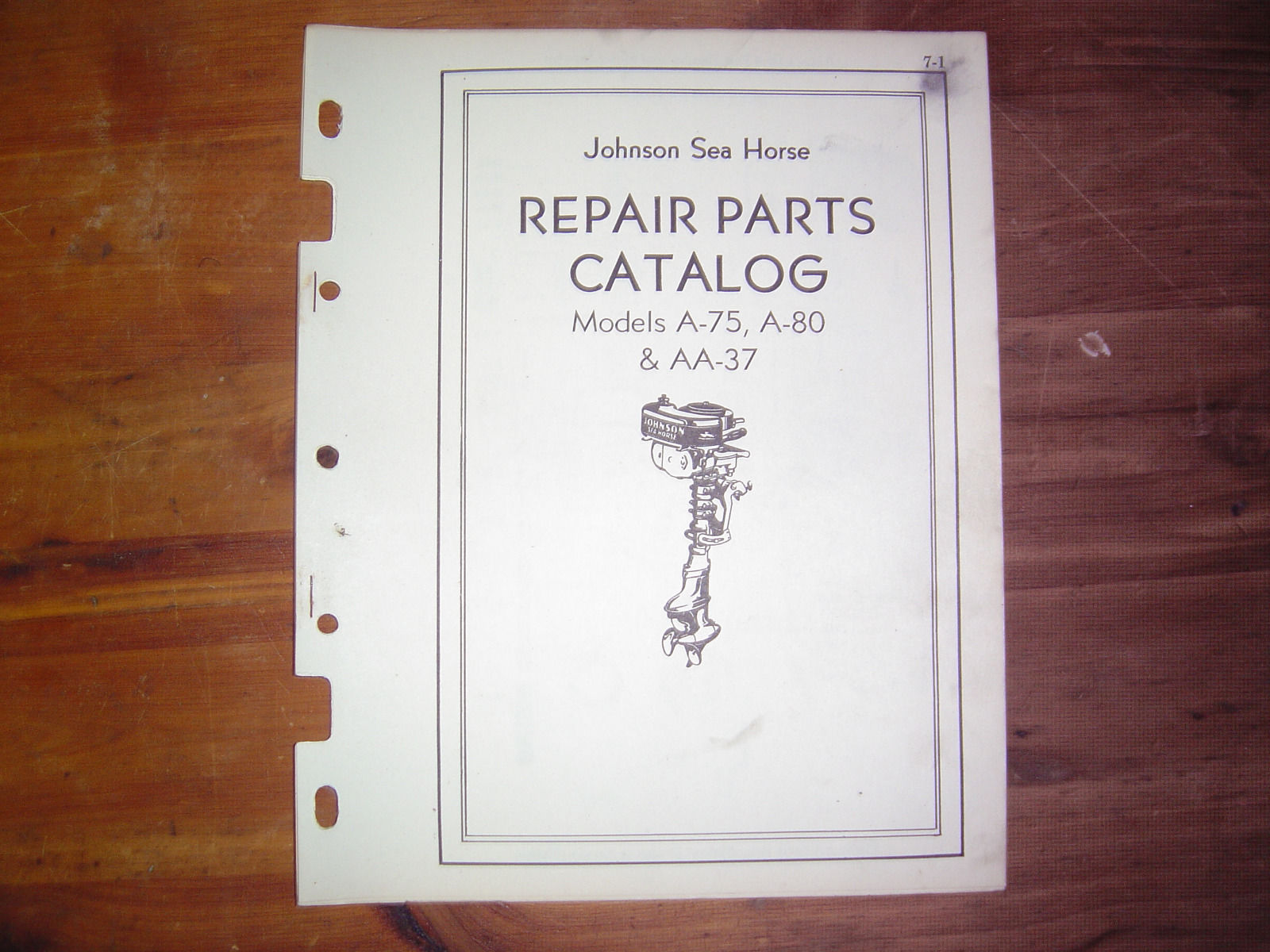

you talk about this model ?

on Ebay
http://www.ebay.com/itm/1935-1936-1937- … SwEK9TuZKH

then you have something to start with
carb, ignition, lower unit
