      old question…

      does the base ring holding the magneto plate go taper up or down.

      10hp 1956 parts PDF shows taper UP but I think it goes taper down ???

      Joining AOMCI has priviledges 🙂

      December 8, 2020 at 6:03 pm #224656
      frankr
      Participant

        US MEMBER PAY BY CHECK

        Flat side up, taper side down.

        December 8, 2020 at 8:32 pm #224672
        crosbyman
        Participant

          Canada Member

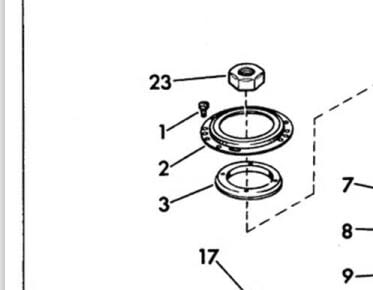

          great see picture of a 10hp 1956 evinrude ring is upside down !!!

          mag-ring

          Joining AOMCI has priviledges 🙂

          December 9, 2020 at 9:06 am #224711
          frankr
          Participant

            US MEMBER PAY BY CHECK

            Actually, the picture shows the ring as used in other models that used a wave washer (such as 3 hp). It has a step around the edge for the wave washer. The draftsman was too lazy to re-draw it for models w/o the wave washer, figuring nobody would notice. But you and I and others noticed.

            wave-washer
