Oil slingers…ooops no it is not :(

[RICHARD A. WHITE]

Love them little buggers…..
1953 Evinrude Super Fastwin 15 hp, model # 15012

Parts list I have says part should be.. 301857

I have one with part number 307576…..

It fits the crank, but is it right?

Thanks

http://www.richardsoutboardtools.com
classicomctools@gmail.com

[chris-p]

PN 301857 is not an oil slinger, that is just the washer which contains the spring on its top side.

Also, the model 15012 Fastwin doesn’t use a slinger, it has a carbon seal and o ring assemble on the top of the crank. All the ones that I have seen anyways, perhaps im wrong and there is a variation of the 15012 with a slinger that I haven’t seen before?

Then a 302594 washer sits on top of the carbon seal assembly, then the 203250 spring, then the 301857 washer, then the points cam on top of that.

[RICHARD A. WHITE]

So the carbon seal is under that bottom washer?Ok I see the Carbon seal…I had oil on the points…now to get the carbon seal out without breaking that fragile housing…grrr

http://www.richardsoutboardtools.com
classicomctools@gmail.com

[chris-p]

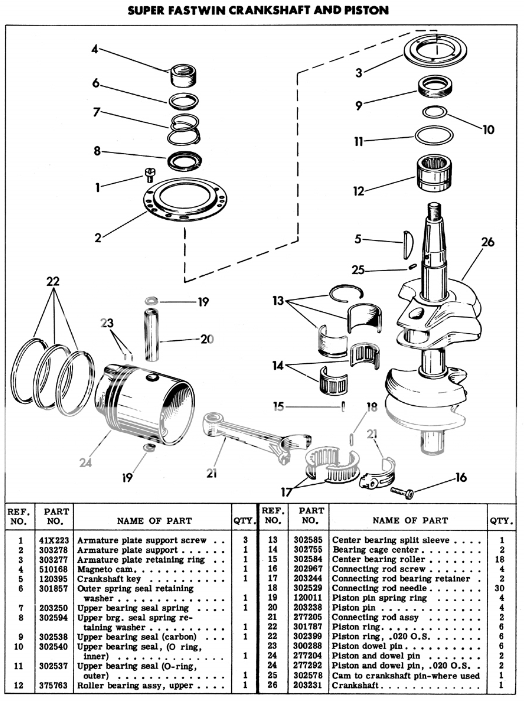

Correct. This should help.

[RICHARD A. WHITE]

I got that, apparently I must read THE WHOLE DANG PAGE…LOL

http://www.richardsoutboardtools.com
classicomctools@gmail.com

[RICHARD A. WHITE]

That shows 2 o-rings?????

http://www.richardsoutboardtools.com
classicomctools@gmail.com

[oltimer]

quote Richard A. White:

That shows 2 o-rings?????

Richard, that is correct; but one goes around the bearing. Every one that I had to split the casing open before because of excessive oil going by that o-ring; was cracked. You might have to go in there and do it too?
Jer

[chris-p]

Yeah as jer stated, that larger #11 o ring goes around the bearing. You can see the groove for it at the bottom of the bearing in the pic. The #10 o ring seals the inside ID, and goes in the carbon seal. I don’t think there is anyway to do it without splitting the cases sorry.
