Pictures of Johnson RDE / RDEL 17 1955 Parts

[mmatheny]

Hello, I’m trying to find some parts for a craigslist Johnson RDEL-17 1955 with some missing pieces and am being asked to provide pictures and product numbers to some salvage yards around. I have the part numbers now from a prior forum post (thanks!) and found the air silencer shell on ebay, found replacement spark plug leads, but am still missing what looks like all the electric starter parts, I was wondering if anyone had some pictures of the electric starter group pieces?
Thanks very much!
Michael

• This topic was modified 4 years, 9 months ago by Mumbles.

[Buccaneer]

This is for a 1955 Evinrude Big Twin. I would think it would be the same starter?

Prepare to be boarded!

[Buccaneer]

Prepare to be boarded!

[mmatheny]

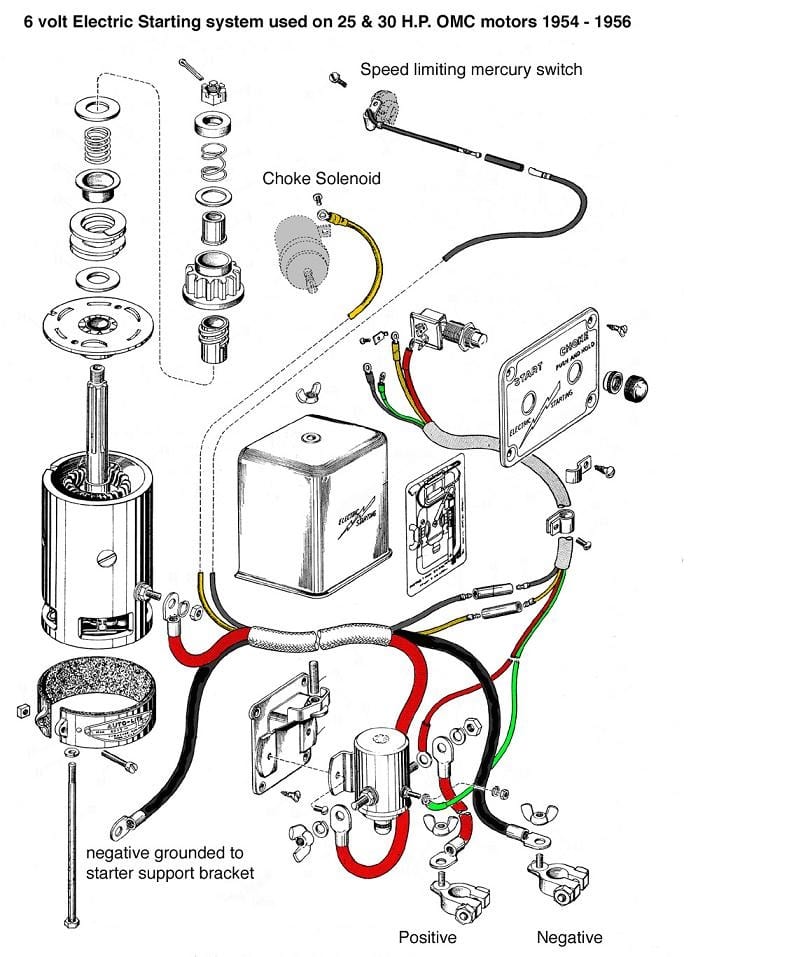

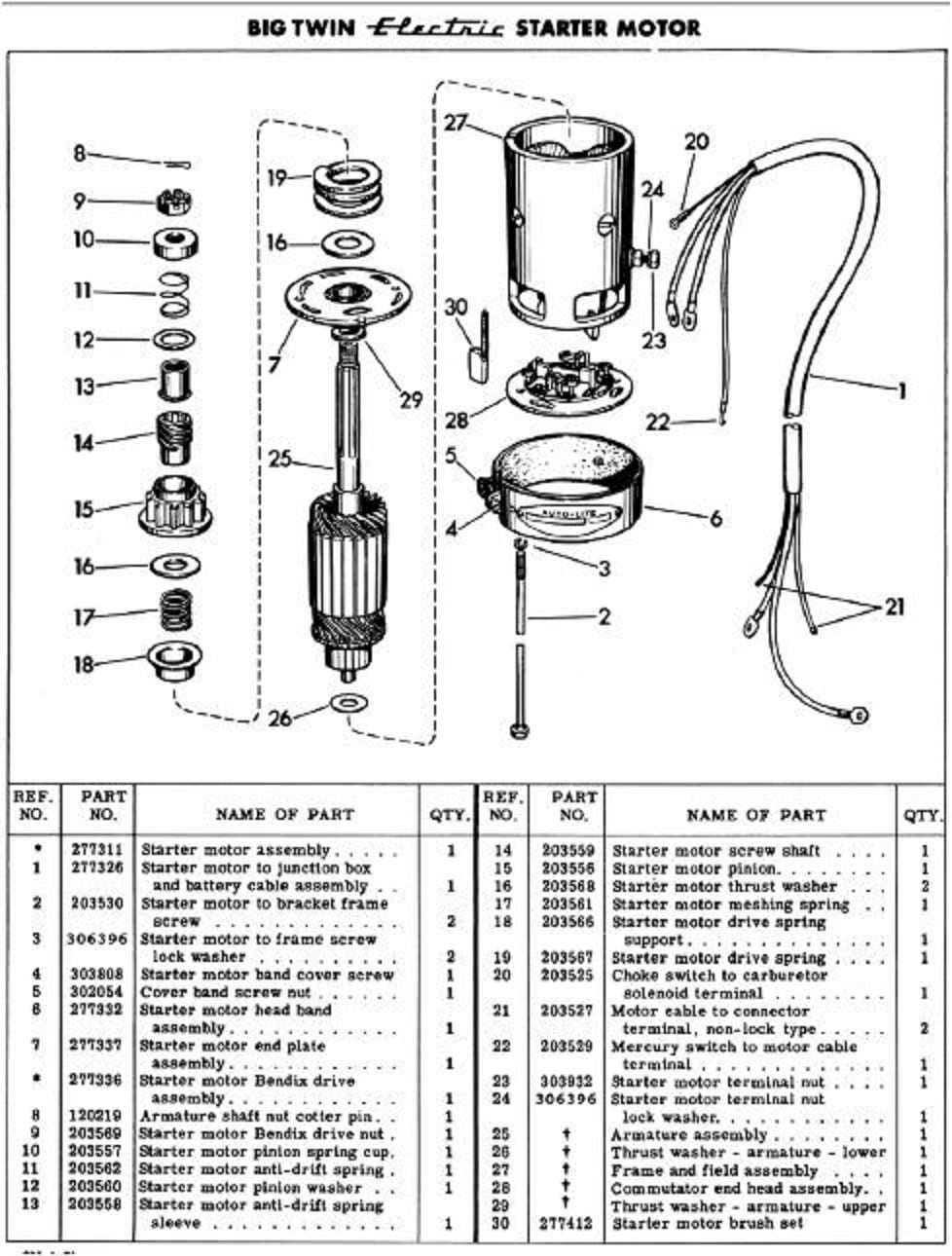

Thanks, and my apologies for my ambiguity, I needed a real picture of it not the diagram, another post provided me the parts book, but I think I found one on craigslist and unfortunately so far no one has one, thank you very much for your responses!

[mmatheny]

BTW, the color coding on that is spectacular!

[Buccaneer]

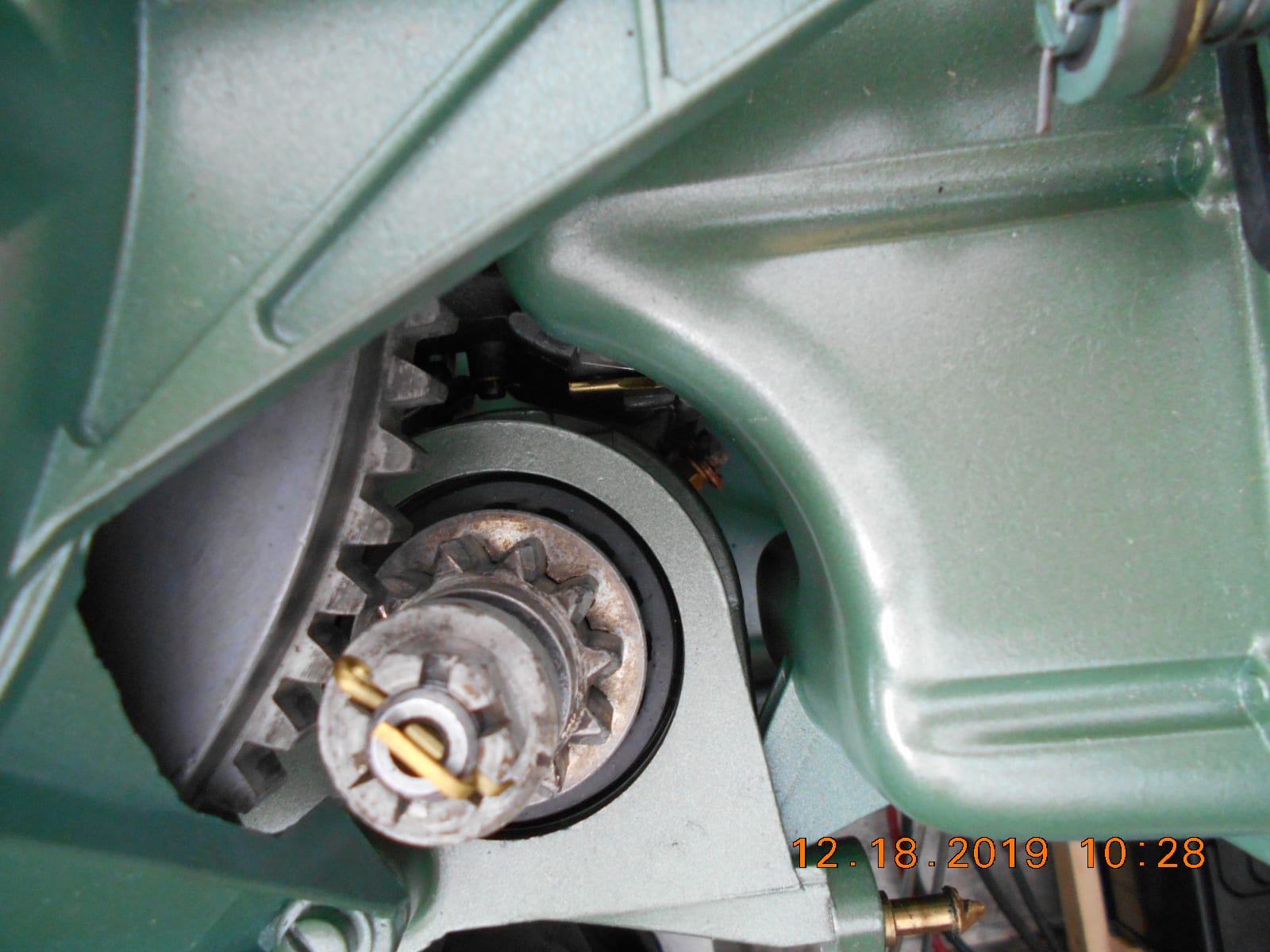

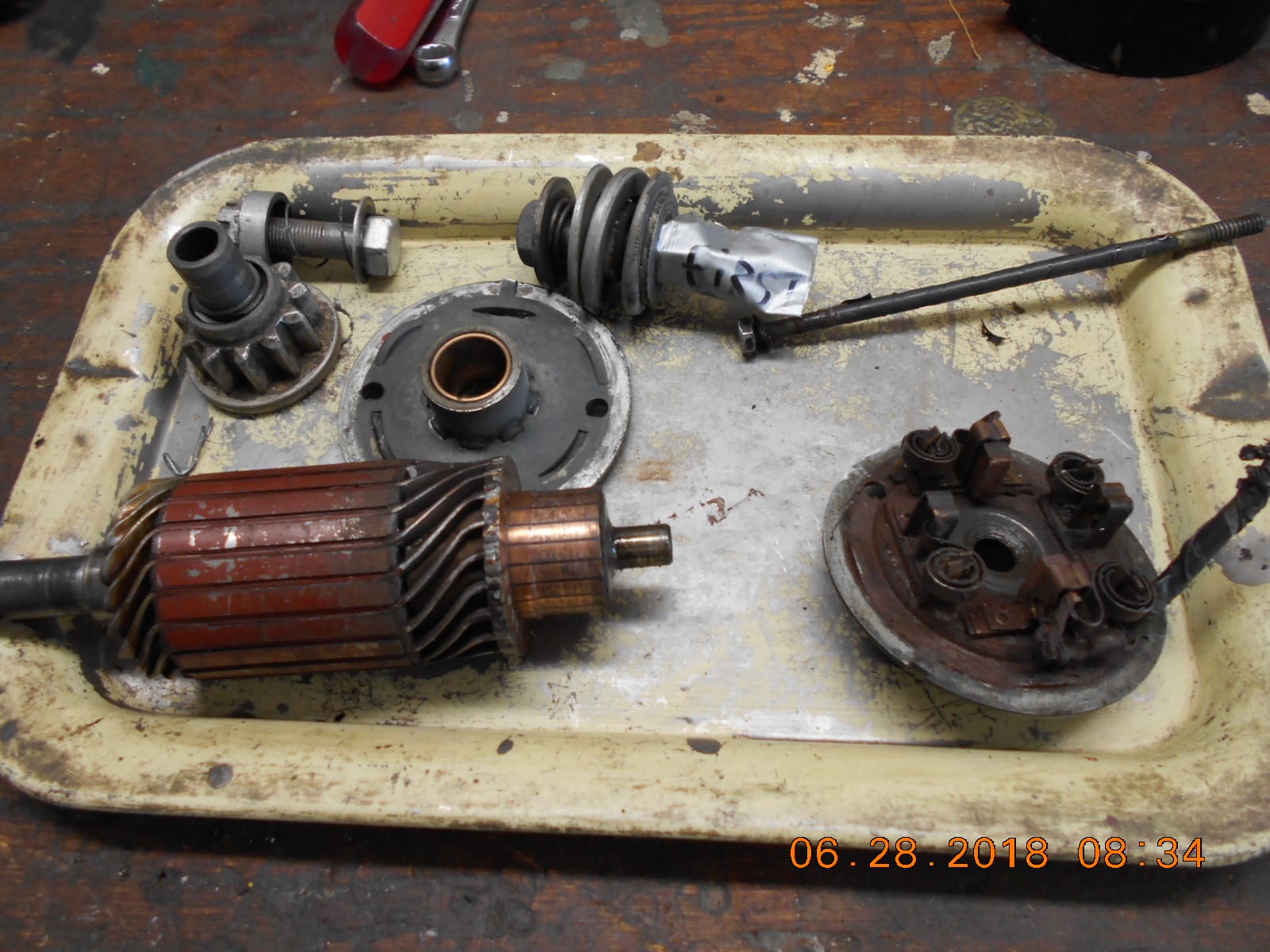

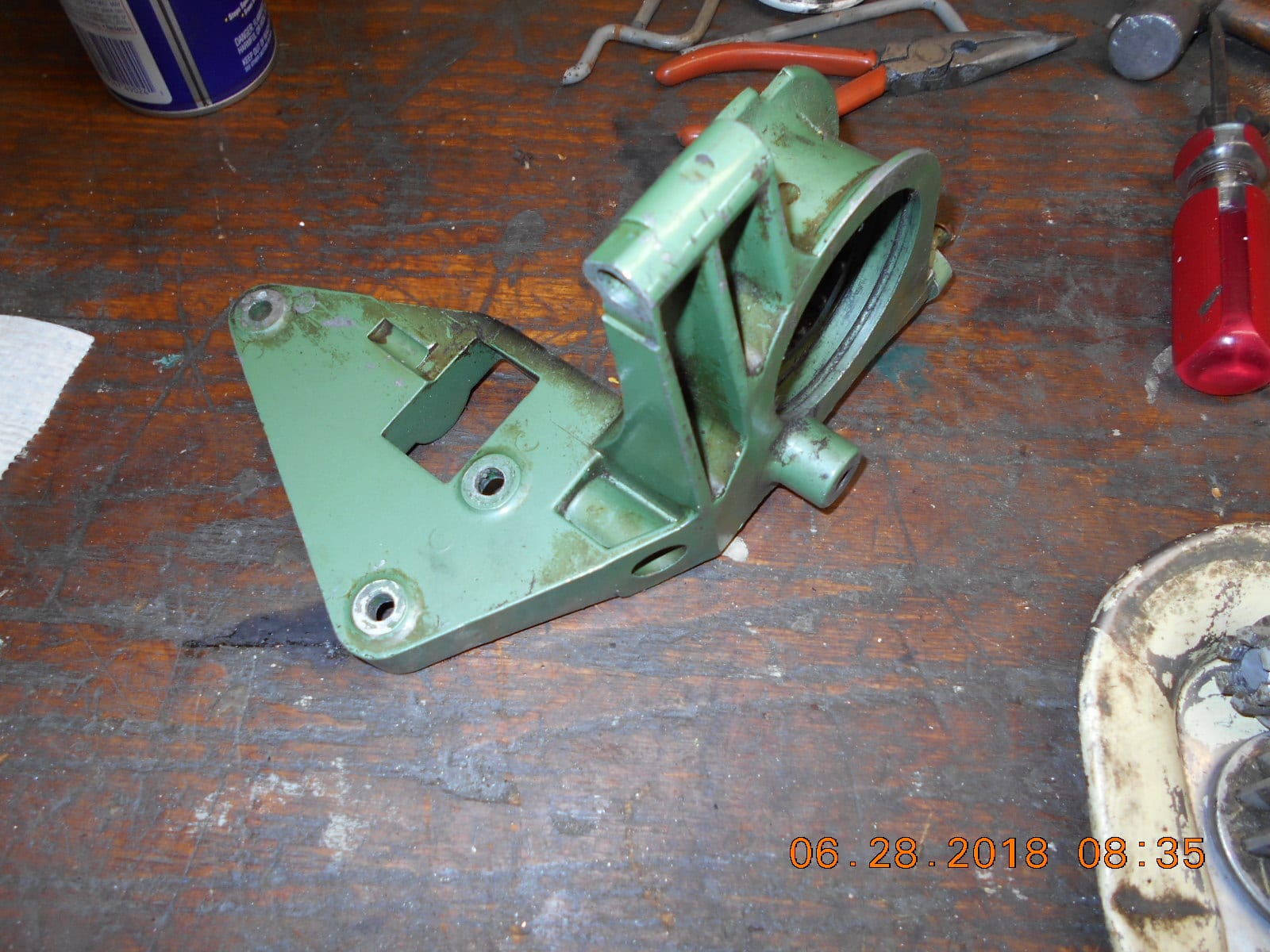

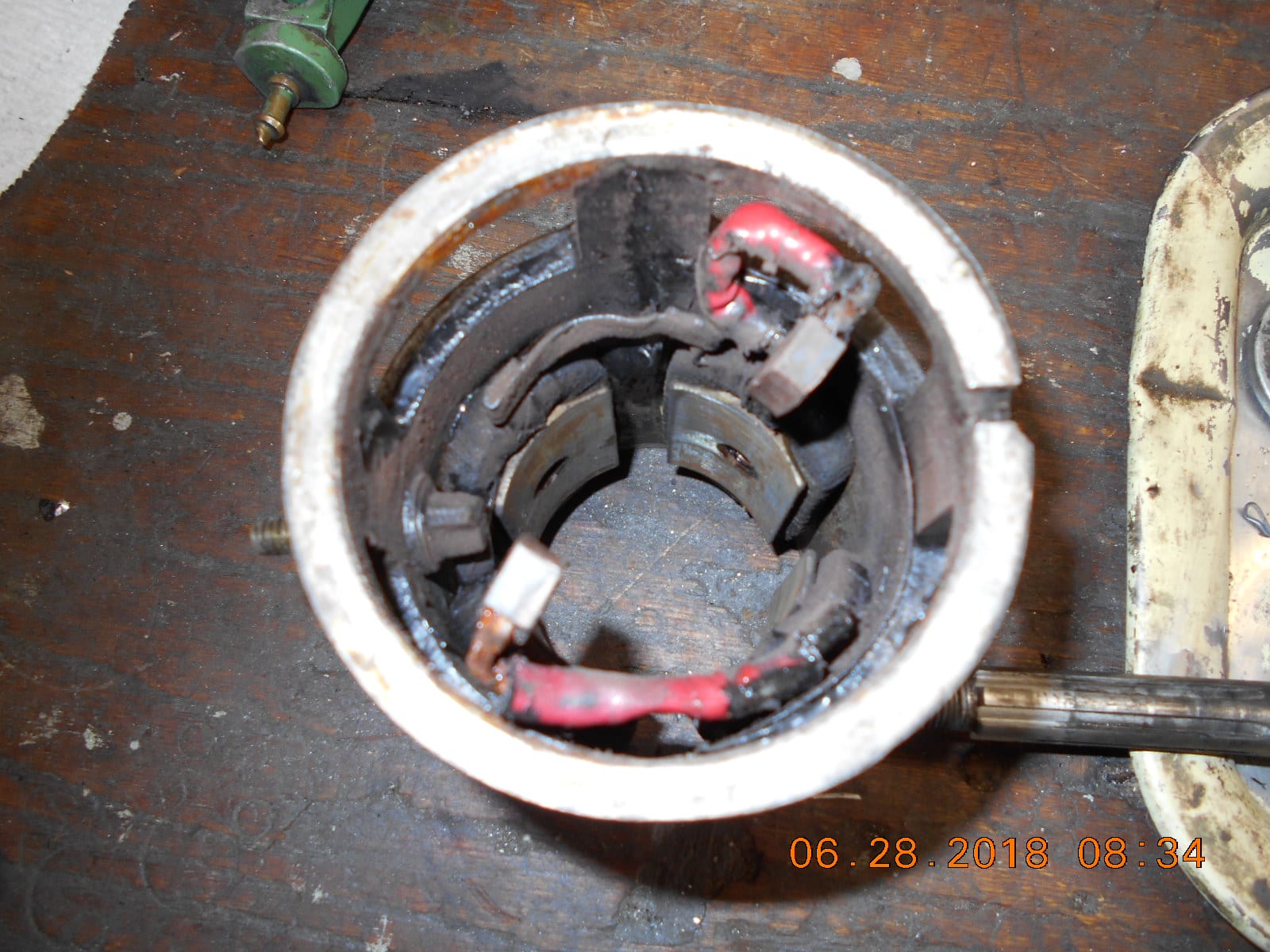

Here’s the photos of my RDE-17 starter torn apart, if that’s any help.

Prepare to be boarded!

[mmatheny]

THANK YOU VERY MUCH!
