Home Forum Ask A Member Pictures of RDE-19

Viewing 10 posts - 1 through 10 (of 11 total)
  • Author
    Posts
  • #6626
    fastjohn
    Participant

      US MEMBER PAY BY CHECK

      Could someone send me under-hood pictures of the wiring for a Johnson RDE-19, or post them hear? Thanks

      #55026
      garry-in-michigan
      Participant

        Lifetime Member

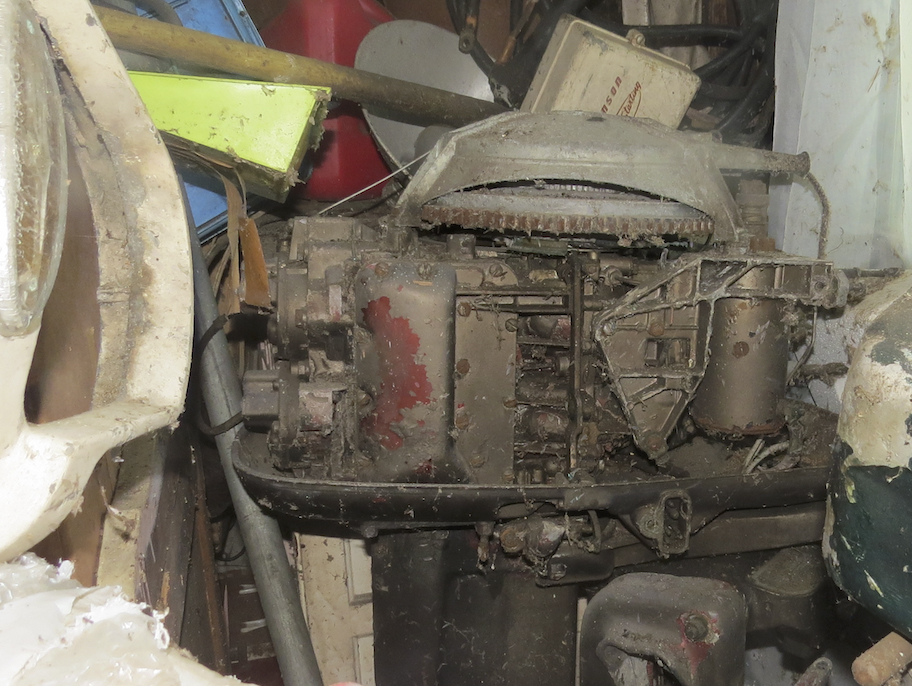

        I will have to "dig out" my ’57 Johnson to take a picture. I may have to knock out the garage wall. . .
        🙄

        #55030
        garry-in-michigan
        Participant

          Lifetime Member


          Not Much help . . .
          🙄

          #55033
          crosbyman
          Participant

            Canada Member

            some pics are in this book around page 314 and up maybe that will help
            http://boatinfo.no/lib/johnson/manuals/ … on.html#/0

            Joining AOMCI has priviledges 🙂

            #55035
            johnny-infl
            Participant

              John – what part of the wires do you want to see ?
              post your email and I can send you several of what I have for a ’58 RDE-19C

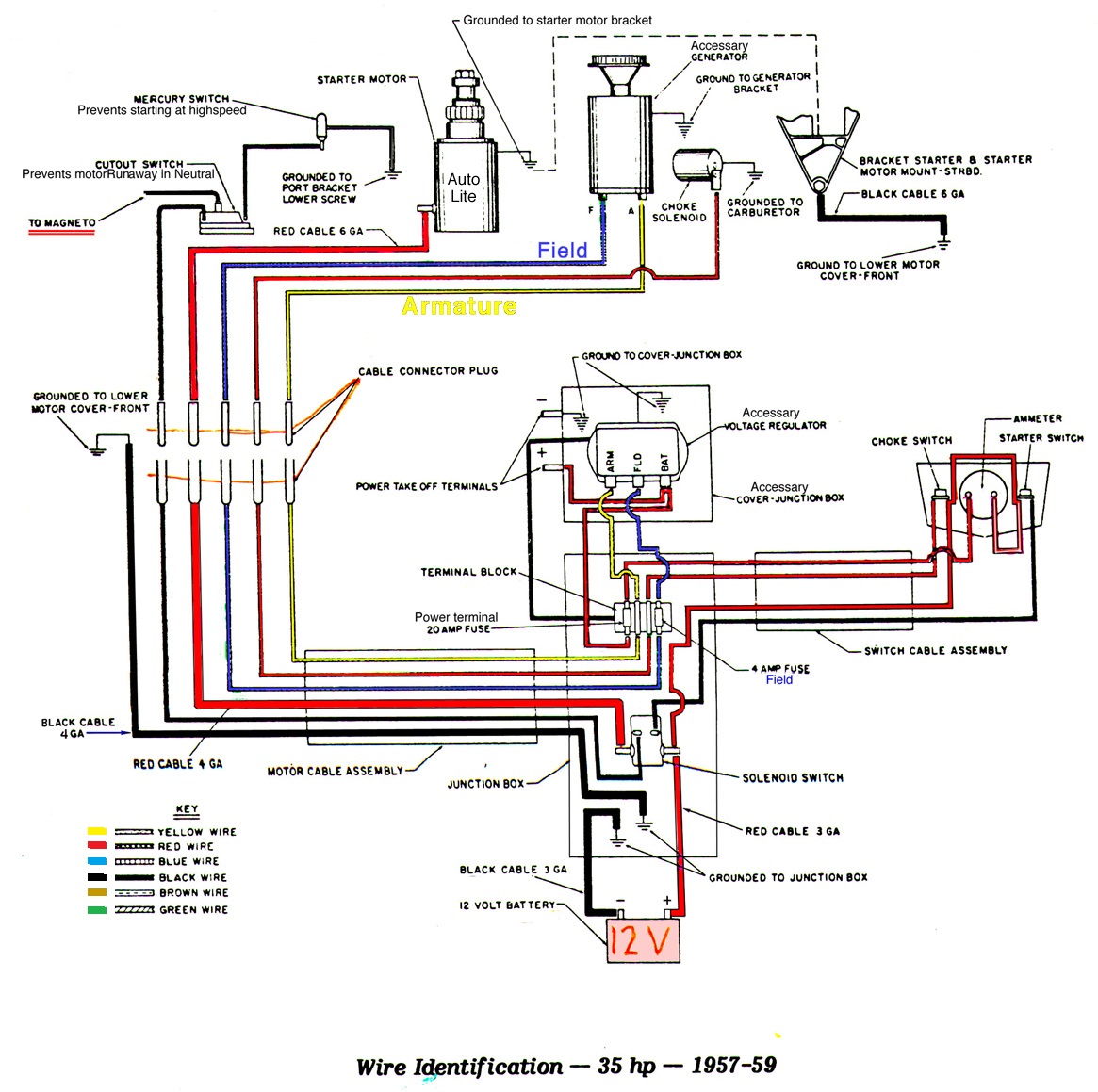

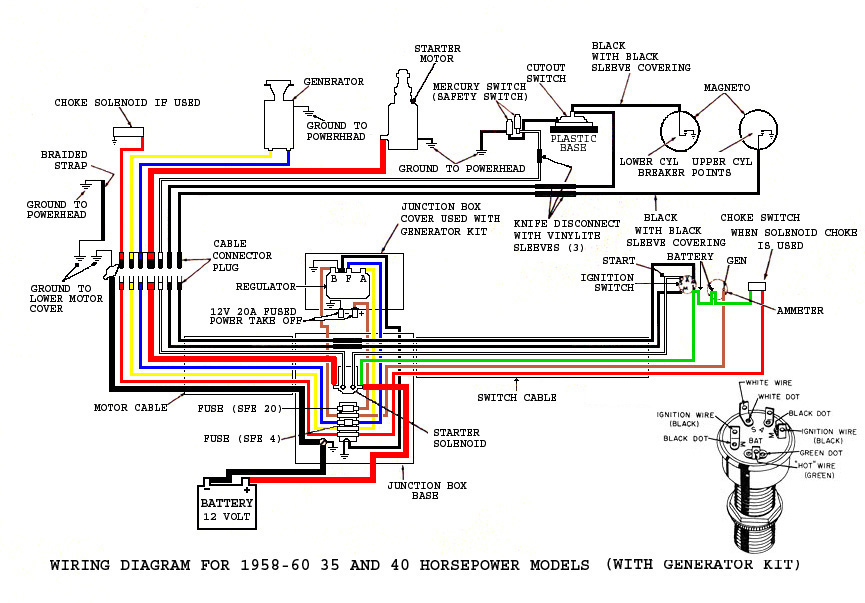

              the wiring diagram for the starter and solenoid is on page 335 of BoatInfo.
              but is very vague as to the colors and what goes to what.
              http://boatinfo.no/lib/johnson/manuals/ … .html#/334

              .

              #55107
              fastjohn
              Participant

                US MEMBER PAY BY CHECK

                Johnny_inFL you have a PM.

                #55108
                Tubs
                Participant


                  Not Much help . . .
                  🙄


                  Garry-
                  The other day you said I made you laugh.
                  Now were even!!!!!

                  A "Boathouse Repair" is one thats done without having tools or the skills to do it properly.

                  #55144
                  1946zephyr
                  Participant
                    quote Tubs:

                    quote Garry in Tampa:


                    Not Much help . . .
                    🙄


                    Garry-
                    The other day you said I made you laugh.
                    Now were even!!!!!

                    Damn……now BOTH of you guys made me laugh. Kinda looks like that motor was dipped in mud LOL 😀 😀

                    #55157
                    garry-in-michigan
                    Participant

                      Lifetime Member

                      Hey – A couple coils and a coat of paint and it will be worth a couple thousand dollars on Ebay.
                      It ran the last time it was used . . .
                      😆

                      #55159
                      johnny-infl
                      Participant

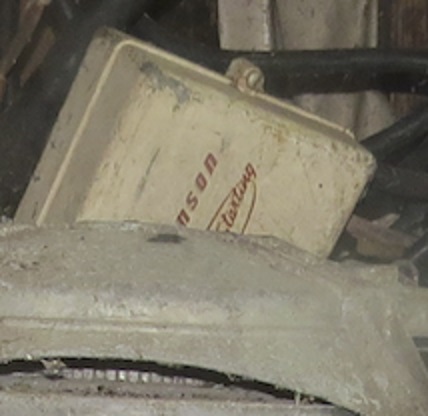

                        Hey Garry – what are your plans for the electric control box
                        behind the flywheel ?? is that a Johnson box ?

                        .

                      Viewing 10 posts - 1 through 10 (of 11 total)
