December 31, 2016 at 1:39 pm #5998
Buccaneer
Participant
US Member
The auction has already ended, but I’m just wondering if this
type of tester would suffice for outboard coil testing, condensers, etc.,
or is it better suited for automotive work?
Also, any idea what the complete model number is of this tester?
Part of the label is gone.
Thanks, and Happy New Year’s Eve Day!

http://www.ebay.com/itm/STEVENS-EXPERIM … 7675.l2557

Prepare to be boarded!
December 31, 2016 at 2:29 pm #50005
chris-p
Participant
Looks like it would have all that you need on it. I personally have not tried that exact one, but have other stevens testers.

Strange that they are selling for Northern Lakes Marine LLS, I have bought a lot from them on ebay before.
December 31, 2016 at 3:06 pm #50009
frankr
Participant
US MEMBER PAY BY CHECK
That is the "New" Stevens tester shown in OMC service manuals. "New" as in the 1950’s that is.

screenshot
December 31, 2016 at 4:23 pm #50013
Buccaneer
Participant
US Member
Thanks for the replies.
Frank, does it show the whole model number anywhere on your literature?

I have an "old" Sun Automotive tester on a cabinet from the 1950’s, back
when 6 volt auto’s were the rage. It operates on 12 volts though, so that’s
a plus. I bought it years ago from a co-worker for $75. Some of the meters
worked "fair", but I don’t remember having much luck testing coils on it.
I should buy a big can of electrical cleaner and go to town on the meters
and see what happens. It even has an "exhaust gas" analyzer …… but
not sure that’s needed for outboards. 🙂

Prepare to be boarded!
December 31, 2016 at 5:44 pm #50017
frankr
Participant
US MEMBER PAY BY CHECK
Sorry, I’ve looked through several manuals and all they specify are the "Old" and "New" Stevens testers. Sometimes called the New Magneto Analyzer. It’s probably listed in the old Stevens catalog if anybody has a copy.
December 31, 2016 at 5:54 pm #50018
frankr
Participant
US MEMBER PAY BY CHECK
Ah, seek and ye shall find. I found a better picture and it is a MA-7? The ? probably is a 5. When I blow it up big enough to read it, it loses too much detail.
December 31, 2016 at 10:33 pm #50046
Buccaneer
Participant
US Member
Thanks Frank! I’ll try to study up on that model in case another one
passes by.

Prepare to be boarded!
December 31, 2016 at 11:00 pm #50054
jerry-ahrens
Participant
US Member

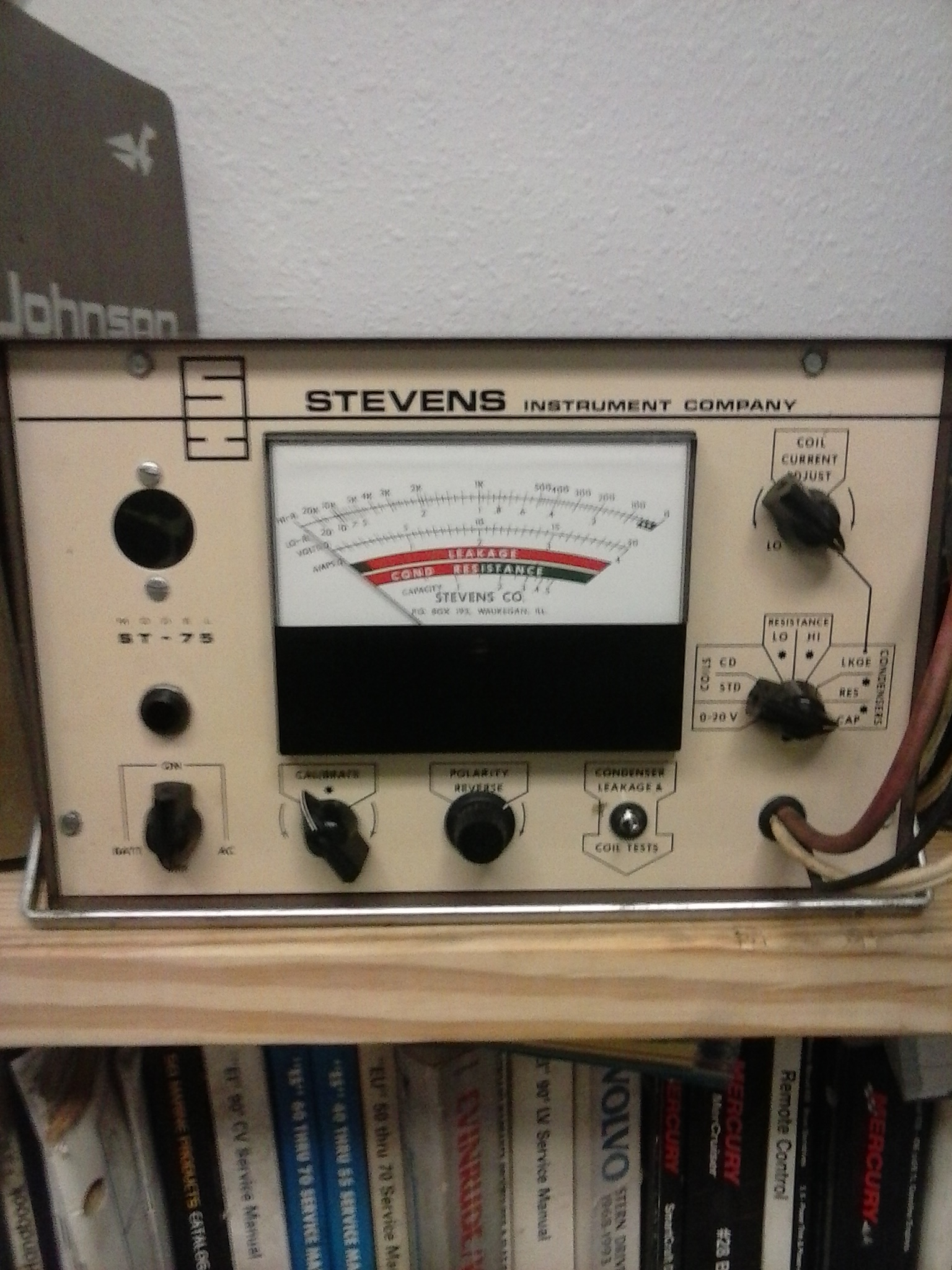

Here is the one I have. A great machine for the stuff we work on. Works off 110 V or D cell batteries.

Attachments:
January 1, 2017 at 12:21 am #50058
dave-bernard
Participant
US Member
I have the same one. and a merc-o-tronic 98.
January 2, 2017 at 7:57 am #50135
Mumbles
Participant
quote Jerry Ahrens:

Works off 110 V or D cell batteries.

So using the D cell power you can take it with you out in the field or to the ramp for service work? Sweet!
