      I thought I had a magic decoder ring to figure out Firestone
      data plates, but if so, I can’t find it.
      I’m guessing it’s close to 1950. Anyone know for sure what year?

      The facts…

      19?? Firestone 5 hp
      Stock # 10-A-73
      Code # 133-3-1735
      Serial # 1735-4924

      Also, I’m not finding a parts manual, surprisingly, as I went through a
      very similar model a few years ago.
      Anyone have a digital manual for this model?

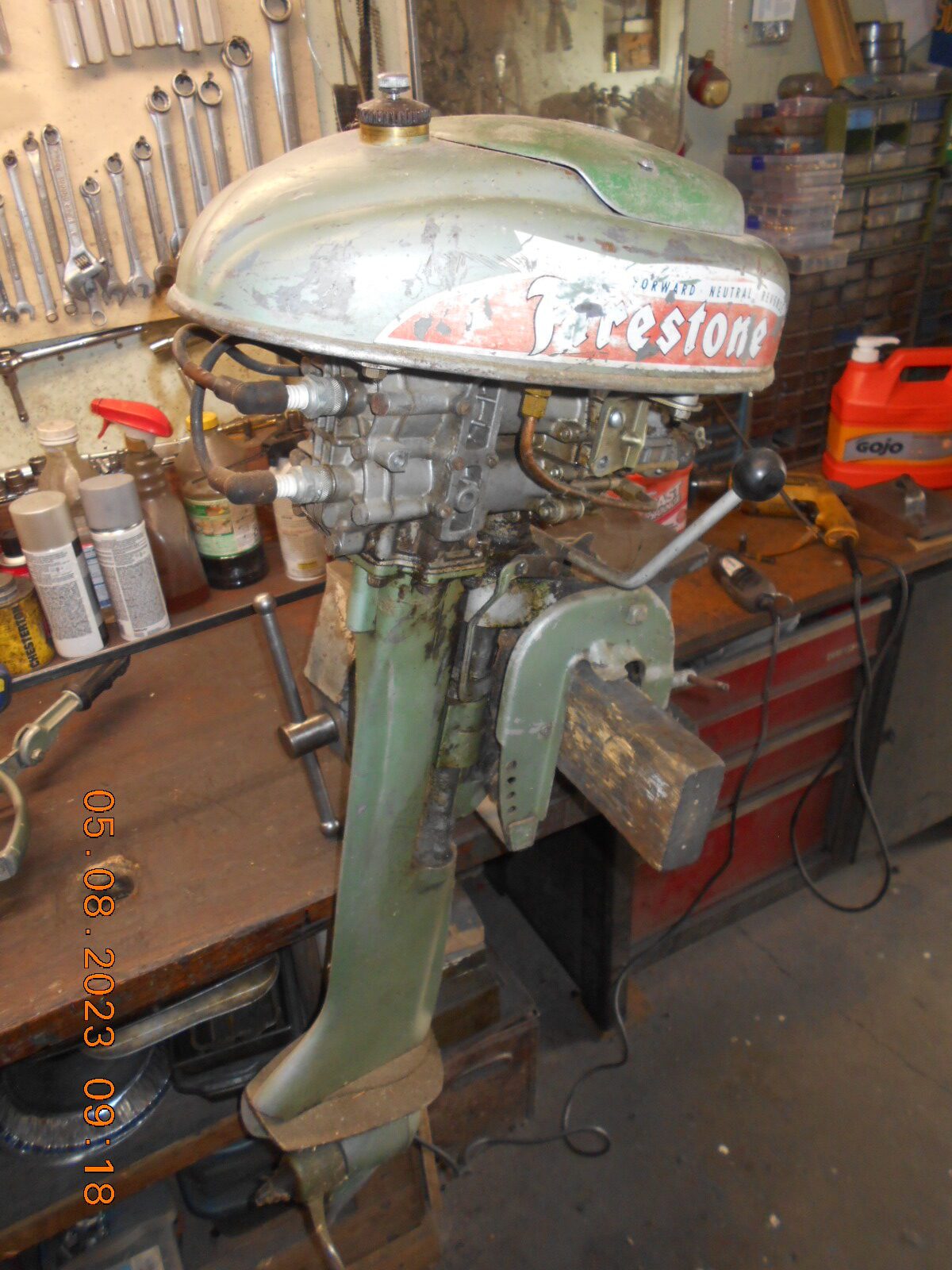

      DSCN6899
      Thanks!

      Prepare to be boarded!

      #276059
      frankr
      Participant

        US MEMBER PAY BY CHECK

        1735 = 1953

        #276060
        Buccaneer
        Participant

          US Member

          1735 = 1953

          Thanks Frank, it’s a little newer than I thought!



          Prepare to be boarded!

          #276061
          Mumbles
          Participant



            Firestones are Scott-Atwaters in disguise.





            #276073
            Buccaneer
            Participant

              US Member



              Firestones are Scott-Atwaters in disguise.





              Yes, and I went through my harddrive’s “Scott folder” and
              didn’t find what I wanted either, lol



              Prepare to be boarded!

              #276085
              frankr
              Participant

                US MEMBER PAY BY CHECK



                Firestones are Scott-Atwaters in disguise.





                Often “Last Year’s Models”.

                #276095
                jeff-register
                Participant

                  US Member - 2 Years

                  I used the leg & gearcase for a 3.5hp one lunger to make a “shift” motor. I think I still have it. Been iver a year since I’ve been in my storage, I’llness you know. Cool lightweight fishing motors. I used blood pressure cuff tubing to seal the shift shaft, They were a little short on gearcase seals, hope your gears arn’t rusty.If you ever install a driveshaft seal, to get to it heat the stainless impeller housing as it’s glued to the gearcase aluminum + removing the shif shaft guide ( aluminum tubr) there is an O-ring under for a shift shaft seal. A 53 7.6hp Firestone was my first motor over 35 years ago. Use red locktite on the three gearcase cover screws & watch for high spots around the threads. They pull out a little after years of tightening. Still have my 1947 Firestone 10hp. Weird driveshaft. twisted stock inside a guide tube.

                  #276104
                  gschnelzer
                  Participant

                    Buc- you can download the Scott manuals from our chapter website

                    https://wrcoutboards.org/technical-info/

                    #276106
                    Buccaneer
                    Participant

                      US Member

                      Jeff, I haven’t opened up the gear case yet, but did research a little about what impeller
                      to use. I’m hoping the gear and bearing are okay as well. One I worked on a few years
                      ago was a mess, and had to replace the Torrington needle bearing and the ball bearing.
                      Thanks.

                      G Shnelzer, thanks! I’ll check out the link!

                      Prepare to be boarded!
