  • August 19, 2018 at 2:30 pm #81451
    parker
    Participant

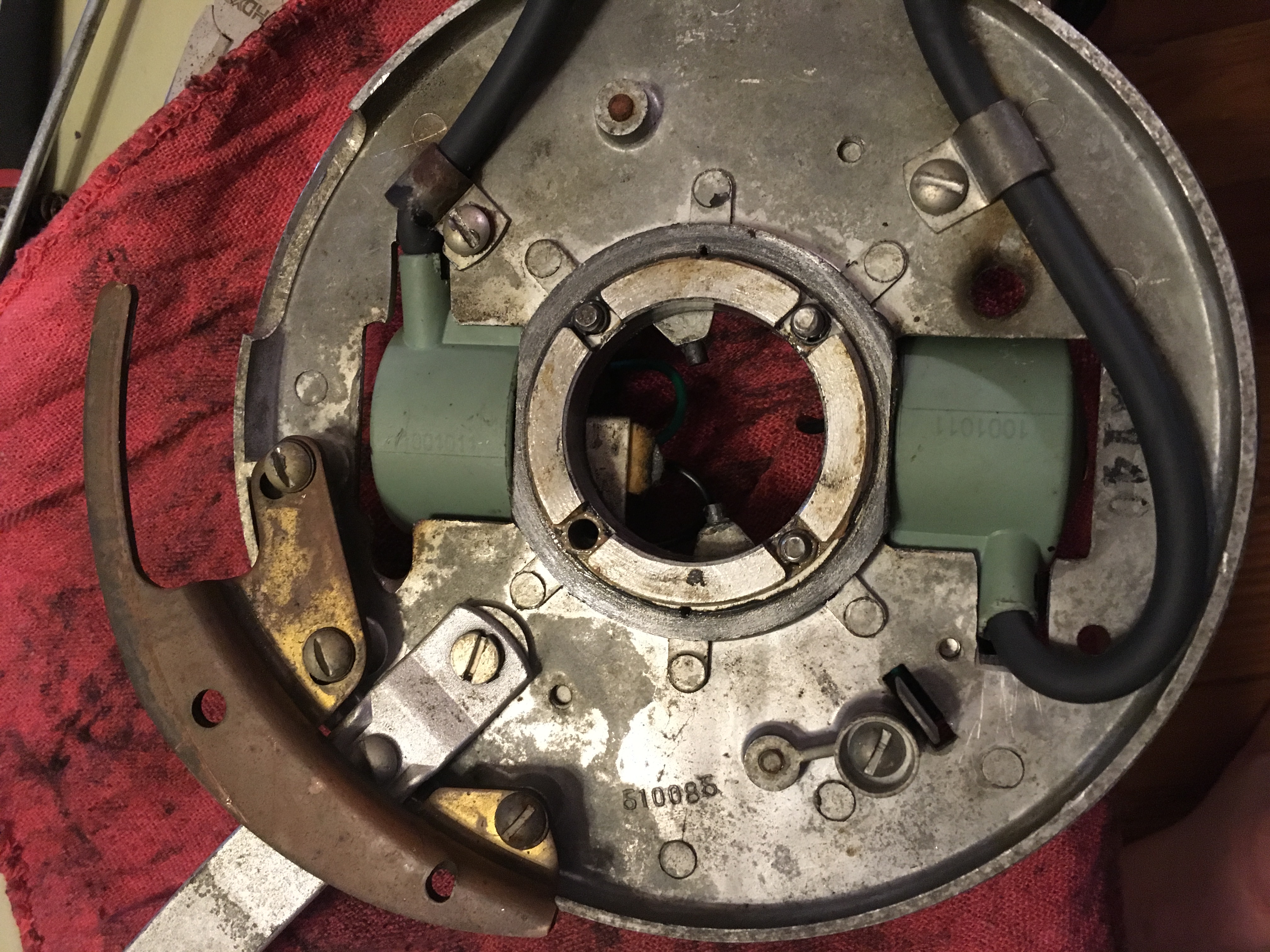

      Wanted to post a picture of what the underside of the coil plate looked like with my modifications if anyone was curious. The PDF I found didn’t have a clear picture. You can see the slots I had to file in to make the modified coils fit since the connection to the spark plug lead is on the other side.

      Also, good news everyone! I got it to run yesterday! At least for a while. Now time to get into the carb.

      December 30, 2025 at 11:38 pm #302845
      Bryan/Aidan
      Participant

        US MEMBER PAY BY CHECK

        1949. 2.5 HP HD 25
        LOOKING FOR THE RIGHT GAP BETWEEN COIL AND MAG PLATE ? I SET IT AT .012 BUT GETING NOT SPARK AT ALL ON BOTH PLUGS.

        /Users/bryparrish/bry-parrish-home inspec logo-small-1.jpg

        December 31, 2025 at 12:01 am #302848
        crosbyman
        Participant

          Canada Member

          this is a 7 year old  QD post  you should open a new topic!!!

          see Johnson manual  on HDs

          coil shoes to mag rotor .012″ is ok  per the book

          clean the points  and adj for the usal .020 should do at TDC  checkcondenser



          see page 26



          Joining AOMCI has priviledges 🙂
