  • June 7, 2017 at 6:41 pm #7267
    russ
    Participant

      This motor was a little hard to pull over. Waiting for gasket for my CD12. So I pulled the flywheel of of this evinrude.WOW. Never seen this before.The collar inside the flywheel was being held on by black electrical tape.On the shaft was a spring and a retaining washer. The key way was laying under neath all of this. The shaft where the key way goes is a little chewed up.I have another magneto cam so I just need the two retaining washers and a spring. Marine Engine lists the parts but does not show any images of them. Was wondering if anyone has ever ordered these parts from them before.Thanks for your time. Russ..

      June 7, 2017 at 9:16 pm #59218
      frankr
      Participant

        The crankshaft seal consists of parts 6 through 10. I haven’t ordered those specific parts, but I have purchased parts from marineengine several times. In fact, I need to order something right now.

        June 8, 2017 at 7:59 pm #59283
        russ
        Participant

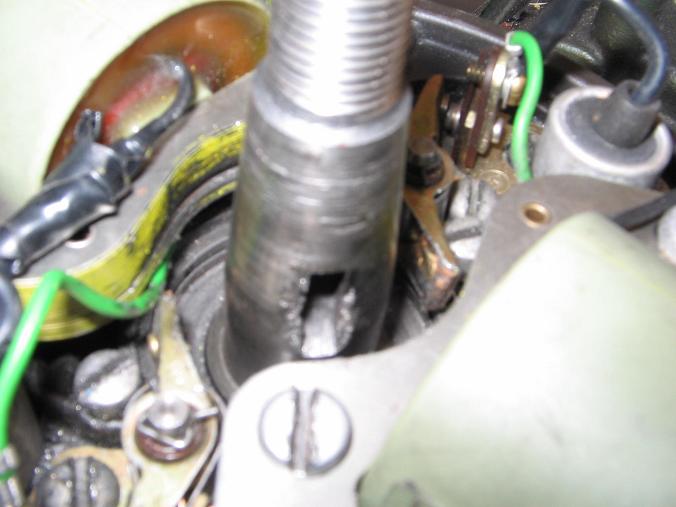

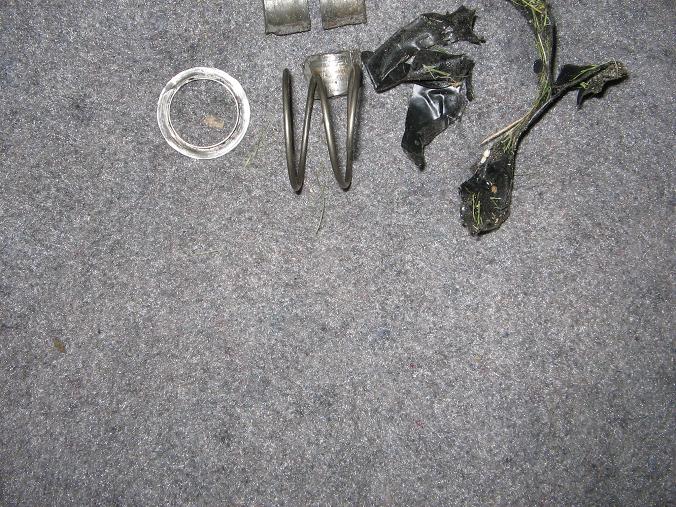

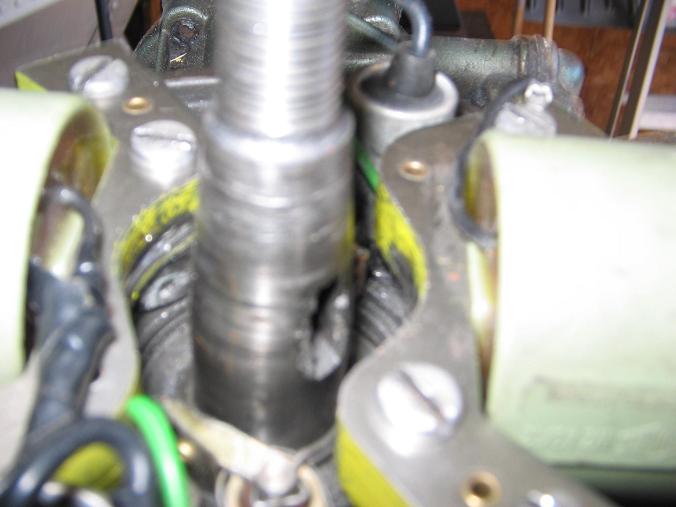

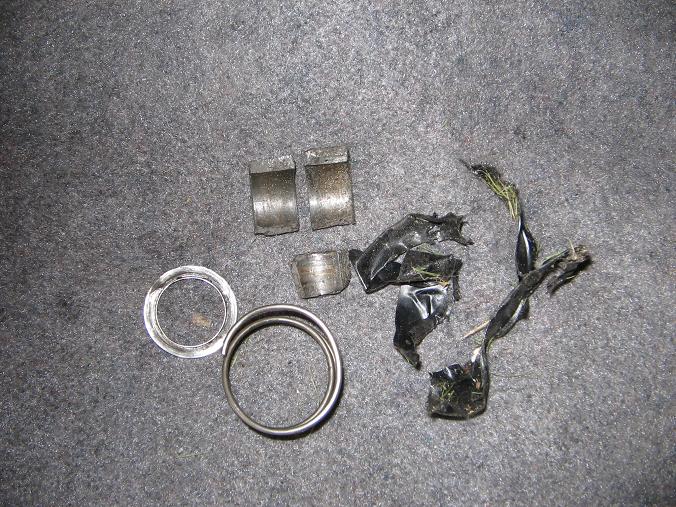

          Here are a few pics of what I found under the flywheel.The spring is an inch and a half O.D.The washer that was there with it is an inch O.D. The spring looks to big.All that was there were just the two pieces.Does the outer retaining washer, spring and upper spring retaining washer all fit under the magneto cam? I do not know if this is fixable or not.The crankshaft is a little beat up but maybe some T.L.C.will help bring it back to life.Still has spark on one cylinder. Thanks for your time. Russ.

          Attachments:

          June 9, 2017 at 12:42 am #59306
          david-bartlett
          Participant

            Russ,

            That flywheel is toast. Where are you located?

            I have a flywheel you could have for shipping cost. I have all the other parts Frank highlighted as well. I even have a crank if you need it.

            You cover shipping and its yours.

            David

            June 9, 2017 at 1:10 am #59308
            jeff-register
            Participant

              US Member

              Cool David!

              June 9, 2017 at 1:33 am #59309
              russ
              Participant

                Thanks David. Ihave another flywheel and looking at some other parts that I have in the shed. Going to try and buff the crank up so I can put it back together. Thanks again for the offer but I think I have the parts..Russ…

                June 9, 2017 at 2:23 am #59313
                david-bartlett
                Participant

                  Good deal! Shipping to Canada is prohibitive anyway. Let me know if you need any small stuff.
