1955 Fleetwin Exhaust Cover and Baffle

Home › Forum › Ask A Member › 1955 Fleetwin Exhaust Cover and Baffle

Viewing 10 posts - 1 through 10 (of 22 total)
1 2 3
  • Author
    Posts
  • December 30, 2015 at 9:32 pm #3297
    aquasonic
    Participant

      US Member

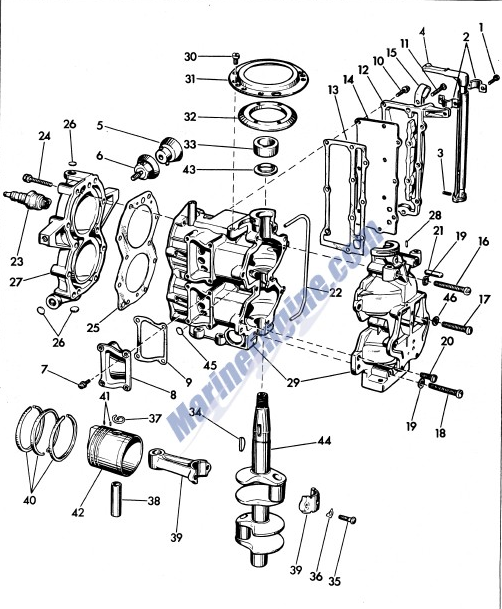

      This is the first time that I’ve had one of these exhaust covers with the baffle plate apart. I was a little surprised that there is no gasket between part no. 12 the exhaust cover and part no. 14 the baffle plate. It looked like there was some sealer on there however. http://www.marineengine.com/parts/vinta … 000001.htm

      What kind of sealer should be used here? Would OMC Gasket Sealer work, or is something else preferred?

      Improvise-Adapt-Overcome

      December 30, 2015 at 9:35 pm #29401
      1946zephyr
      Participant

        3M 847 should work good. How does the inner plate look?

        December 30, 2015 at 9:45 pm #29406
        aquasonic
        Participant

          US Member

          Thanks Zephyr. The plate looks good, but before I cleaned it up, there were powdery rusty color deposits on the exhaust cover side. I suspect that it was from the rusty red primer that OMC used all over on the power heads. Like many of the motors I work on, this is a mixed use motor with both saltwater and freshwater use.

          Improvise-Adapt-Overcome

          December 30, 2015 at 11:03 pm #29408
          1946zephyr
          Participant

            That is common. Pin holes in the little plate are common too, so check it over really good. The pin holes can allow water to squirt into the exhaust ports too and drive mechanics nuts.

            December 30, 2015 at 11:04 pm #29409
            wedgie
            Participant

              I put a gasket on both sides

              December 31, 2015 at 2:47 am #29433
              jeff-register
              Participant

                US Member

                Where is Don? This is very close to his 58 Fleetwin favorite motor. Bet he has a E start too! 😛

                December 31, 2015 at 3:24 am #29434
                1946zephyr
                Participant
                  quote Wedgie:

                  I put a gasket on both sides

                  Yes, there is two gaskets. Good point Wedgie. They will both be different too..

                  December 31, 2015 at 3:26 am #29435
                  1946zephyr
                  Participant
                    quote Jeff Register:

                    Where is Don? This is very close to his 58 Fleetwin favorite motor. Bet he has a E start too! 😛

                    Yes, the ’55 and ’58 will be the same. Infact, I believe that they are the same from ’51 on.

                    December 31, 2015 at 4:17 am #29436
                    wedgie
                    Participant
                      quote 1946Zephyr:

                      quote Wedgie:

                      I put a gasket on both sides

                      Yes, there is two gaskets. Good point Wedgie. They will both be different too..

                      Hey Zeph ! parts diagram and list shows only one gasket there. It’s 13 on the diagram,( part #202580.) At Mumbles recommendation I put an extra gasket between 12 and 14 . Are you still selling the plates Zeph? How about the cap screw lock washers?

                      December 31, 2015 at 5:06 am #29437
                      fleetwin
                      Participant

                        US Member

                        yeah, I think the parts breakdown shows only one gasket, don’t know why though, adding another gasket seems like a good idea.
