1956 Johnson RD18 30 HP Recoil Starter Question

Home › Forum › Ask A Member › 1956 Johnson RD18 30 HP Recoil Starter Question

Viewing 5 posts - 1 through 5 (of 5 total)
  • Author
    Posts
  • November 21, 2019 at 9:57 am #187718
    outboardnut
    Participant

      US Member

      I’m pretty sure the recoil is from 1956 Johnson RD18 30 HP.
      The reason I say that is- that the recoil does not have a slot for a compression relief system.
      My question is – Did a 1956 Johnson RD18 30 HP Recoil come with a rubber hose protecting the rope?
      The pictures I posted are from a 1956 Johnson RD18 30 HP parts list.

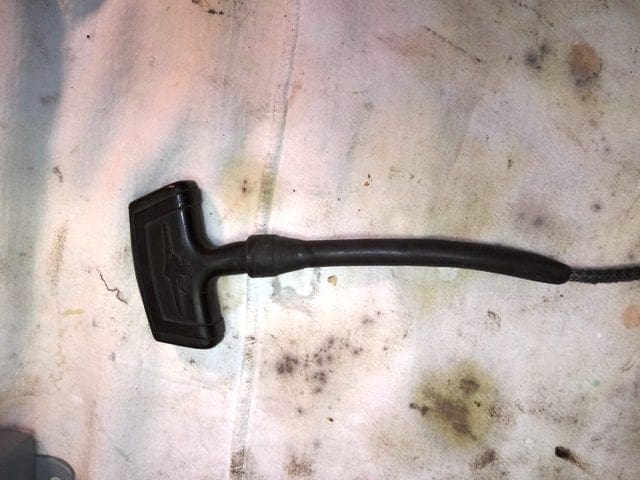

      20191121_065705

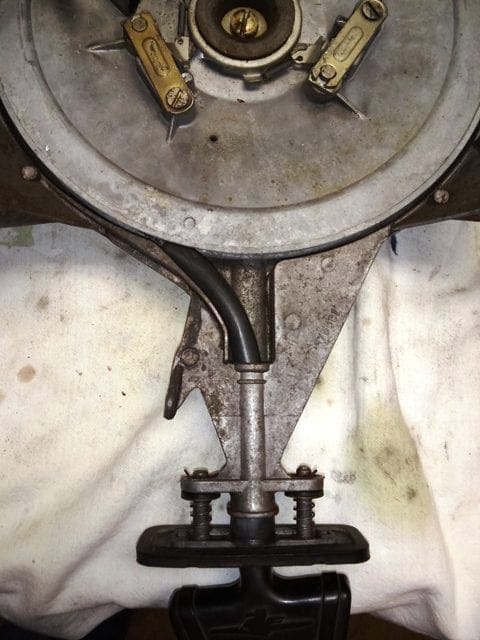

      20191121_065506

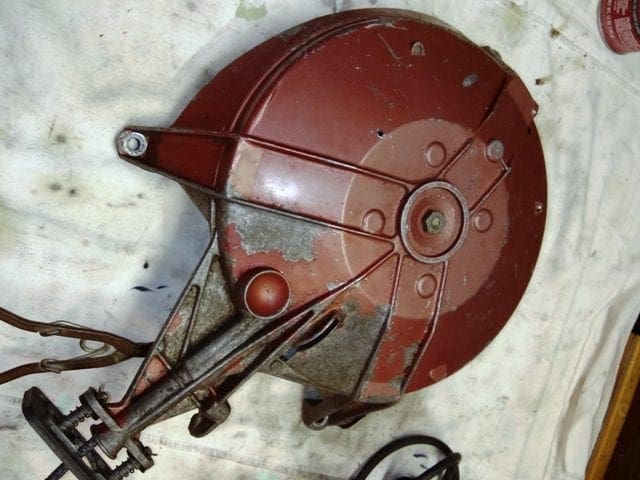

      20191121_065723

      November 21, 2019 at 9:58 am #187724
      outboardnut
      Participant

        US Member

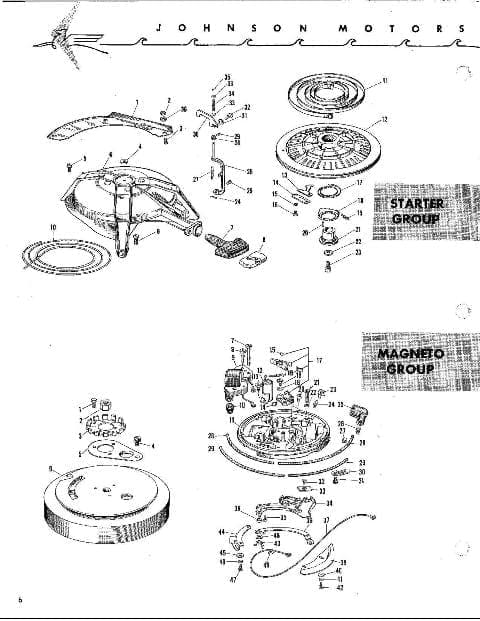

        1956-30-hp-page-6-page-001

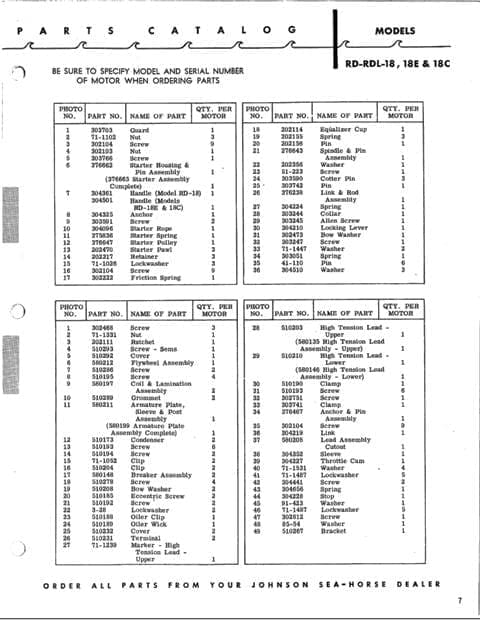

        0001

        November 21, 2019 at 10:12 am #187728
        frankr
        Participant

          US MEMBER PAY BY CHECK

          I don’t know if the ’56 had a long snout on the rope, or not. 1957 did, according to my parts book. Look closely and you will see that end of the snout jams into the slot between the sheave and housing. Purpose is to keep the sheave from vibrating and rattling.

          November 21, 2019 at 10:32 am #187740
          Bob Wight
          Participant

            US Member

            My RD-18 has the short snub nose on the handle, part #304361 as shown in the parts diagram. No long rubber extension into the housing.

            Bob

            1937 Champion D2C Deluxe Lite Twin
            1954 Johnson CD-11
            1955 Johnson QD-16
            1957 Evinrude Fastwin 18
            1958 Johnson QD-19
            1958 Johnson FD-12
            1959 Johnson QD-20

            “Every 20 minute job is only a broken bolt away from a 3-day project.”
            "Every time you remove a broken or seized bolt an angel gets his wings."

            November 21, 2019 at 2:52 pm #187761
            outboardnut
            Participant

              US Member

              I think I will be taking the rubber extension off.The snot on the rubber extension sometimes goes past the hole.
