1956 Sportwin

Home › Forum › Ask A Member › 1956 Sportwin

Viewing 7 posts - 1 through 7 (of 7 total)
  • Author
    Posts
  • March 26, 2021 at 7:11 am #235027
    chuckw
    Participant

      US Member

      What are the initial carb setting for both low and high speed on this Evinrude 10 hp?

      March 26, 2021 at 9:21 am #235030
      Buccaneer
      Participant

        US Member

        Not sure if it would tell in the 10th Edition OMC manual or not,
        but when in doubt, I usually start with about 1-1/4 turn on the HS,
        and 3/4 turn on the low speed.

        Prepare to be boarded!

        March 26, 2021 at 9:47 am #235033
        fleetwin
        Participant

          US Member
          Buccaneer wrote:

          Not sure if it would tell in the 10th Edition OMC manual or not,
          but when in doubt, I usually start with about 1-1/4 turn on the HS,
          and 3/4 turn on the low speed.

          Did you mean the opposite?? 3/4 turn high speed, 1.5 turns low speed??

          March 26, 2021 at 10:34 am #235034
          crosbyman
          Participant

            Canada Member

            basic process on cd and ad’s but tweaking is needed

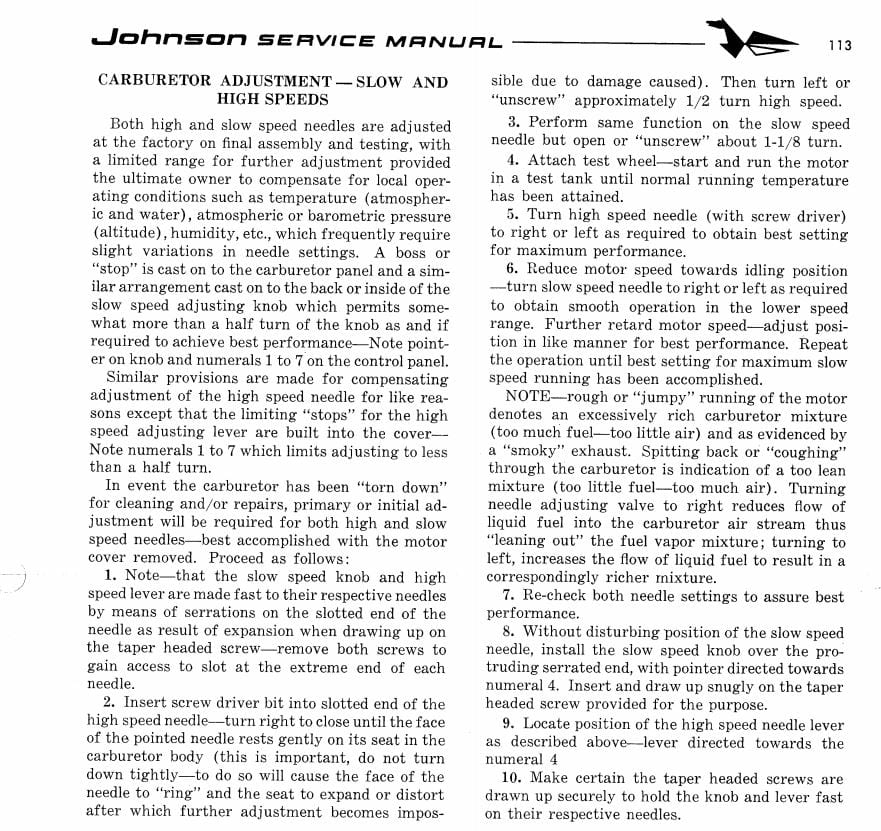

            Adjusting-carb-1

            Joining AOMCI has priviledges 🙂

            • This reply was modified 4 years, 7 months ago by crosbyman.
            • This reply was modified 4 years, 7 months ago by crosbyman.
            March 26, 2021 at 12:14 pm #235042
            fleetwin
            Participant

              US Member

              Interesting indeed. But, I’m wondering just what models this page was meant for…Doesn’t really say. I guess most models (produced back when this was written) conform to these initial settings…

              March 26, 2021 at 9:32 pm #235077
              crosbyman
              Participant

                Canada Member

                ….basic process on cd 5.5hp and ad’s 7.5 hp but tweaking is needed

                Joining AOMCI has priviledges 🙂

                • This reply was modified 4 years, 7 months ago by crosbyman.
                March 27, 2021 at 12:31 am #235079
                JOHN HOLBIK
                Participant

                  On the hundreds of different smaller Johnsons I have ran most needed at least 3/4 on the high.I always start with 1and 1/2 on both.When its cold in the fall you usualy have to open the slow speed needle to get the motor running than adjust after it warms up.
