September 2, 2018 at 10:12 am #11038
billw
Participant
US Member
I went to pull a flywheel off a small, 4 hp Merc, the other day. It seems that I have lost one of the larger diameter, heavy washers. I don’t know how it happened; as I always keep the set in the original box and empty it into a tray, each time I use it!! Anyway, are individual parts available for the puller kit? I don’t think I ever needed them, or ever saw any listed, before. Thanks for any thoughts.

Long live American manufacturing!
September 2, 2018 at 12:46 pm #82155
jerry-ahrens
Participant
US Member
Bill, sent you a PM.
September 2, 2018 at 12:48 pm #82156
frankr
Participant
US MEMBER PAY BY CHECK
Part # 307640
September 2, 2018 at 1:43 pm #82157
squierka39
Participant
US MEMBER PAY BY CHECK
While we are on the subject. I just bought the puller kit. What is the centering tool for and how does it work?
September 2, 2018 at 2:13 pm #82158
PugetSoundBoater
Participant
quote FrankR:

Part # 307640

Where did you get the individual part # ? I didn’t get any list or instructions with my new puller. If you have a PN list please share it
Thanks,Jim

"Some people want to know how a watch works, others just want to know what time it is"
Robbie Robertson
September 2, 2018 at 2:34 pm #82160
billw
Participant
US Member
quote FrankR:

Part # 307640

Thanks very much, Frank! "If it’s on your mind, it’s on eBay," as they say; so I have three on the way.

I never got a parts list with my puller set, either. Does one exist? Is it in a service bulletin?

Thanks again,
Bill

Long live American manufacturing!
September 2, 2018 at 3:01 pm #82162
Steve D
Participant

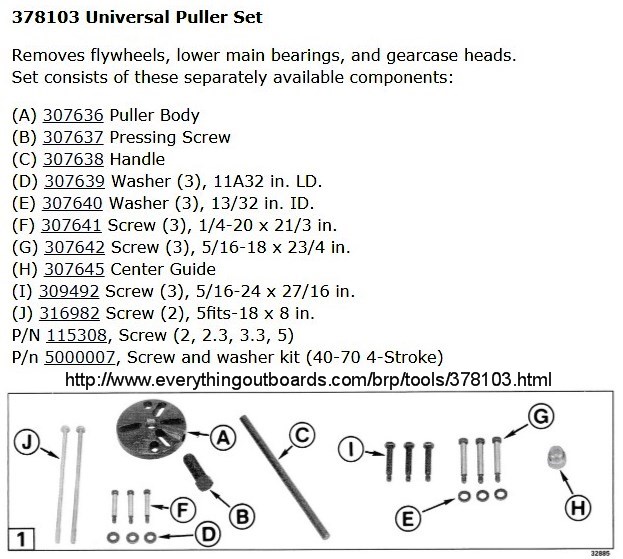

Frank probably has something else but I found one here. http://www.everythingoutboards.com/brp/brpnumbers.html

After you asked for the number I started searching for "OMC Universal Puller 378103" because I’d like to get some spare washers and screws for mine too and I came across this site.

I often see OMC tools on ebay I’m not familiar with but the seller has the part number of the tool. This site has a link to all the numbers with a brief description/application/picture.

Attachments:
September 2, 2018 at 5:06 pm #82171
garry-in-michigan
Participant
Lifetime Member
I just picked up a package of 4 double thickness fender washers at Lowes this week . . . 🙄
September 2, 2018 at 5:18 pm #82173
frankr
Participant
US MEMBER PAY BY CHECK
The illustration posted above is similar to the one I consulted. It is in the OMC Special Tools Catalog.
September 2, 2018 at 5:45 pm #82175
seakaye12
Participant
US MEMBER PAY BY CHECK
quote Steve D:

Frank probably has something else but I found one here. http://www.everythingoutboards.com/brp/brpnumbers.html

That is a really useful site; it appears to be a work in progress; quite the task it’s owner has assigned himself.

Look at all the Service Bulletins he has listed…..and he even offers to scan and post them if asked…..For Free??

Thanks to whoever is working that hard to help us all out.

Chuck
