  • #285322
    DougConrad
    Participant

      Canada Member - 1 Year (includes $3 online payment fee)

      I’m attempting to rebuild my 1956 Evinrude 3 hp. I have a Sierra Tune-up Kit (18-5006). Everything looks pretty straight forward except I can’t figure out where the pads go.

      Any other tips would be appreciated.

      Thanks, Doug

      #285325
      Buccaneer
      Participant

        US Member - 1 Year (includes $3 online payment fee)

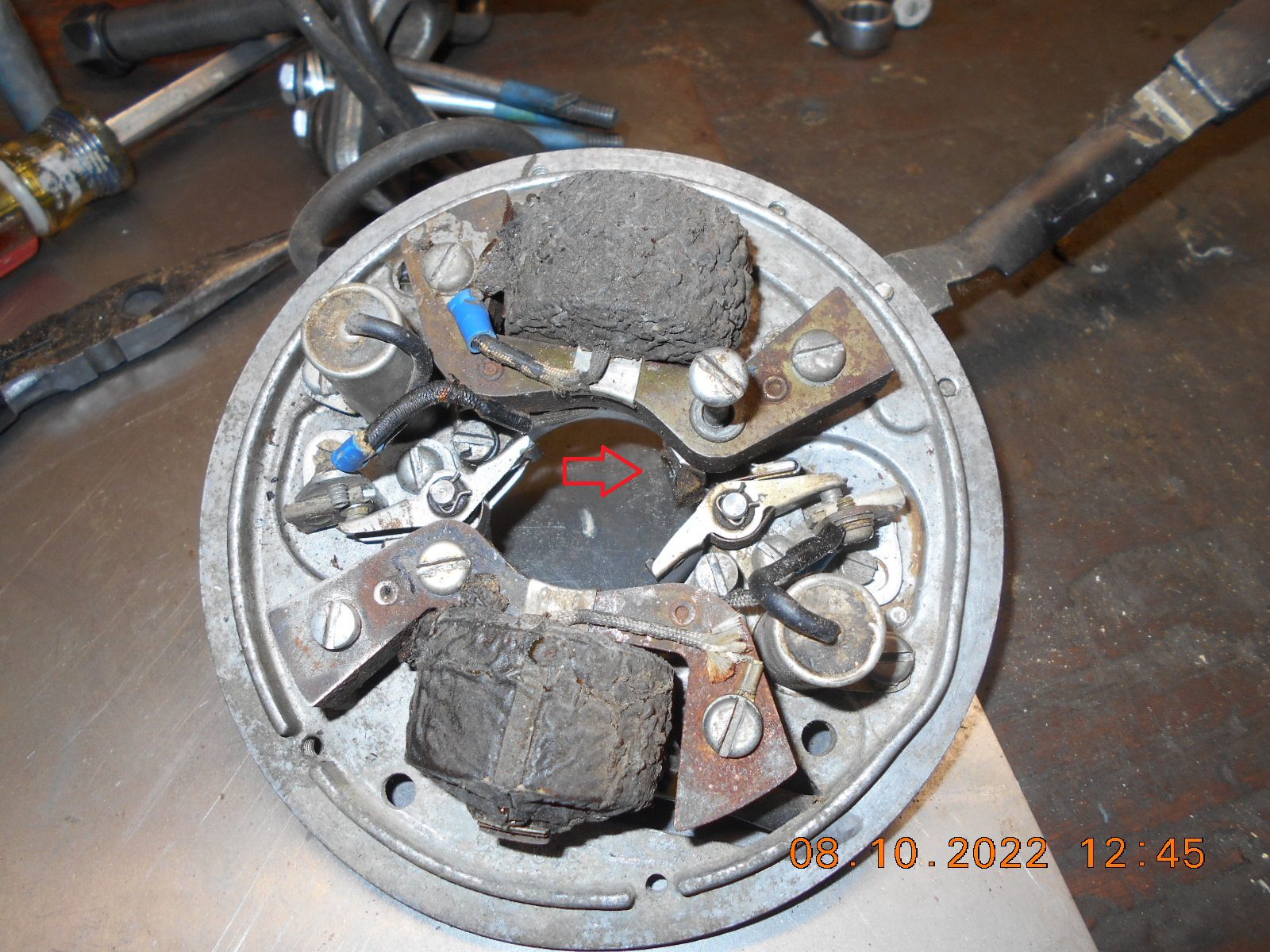

        The wiper felt goes in a clip that sits atop a post, underneath
        the coil laminates.

        DSCN4362

        Prepare to be boarded!

        #285327
        crosbyman
        Participant

          Canada Member - 2 Years

          it is all in the book !!  everything you need on oldies mid 40s and up to 60s



          carbs  magneto  GC  PH  timing etc…   400 + pages   just downloadand print locally

          https://watercraftmanuals.com/outboard/johnson/manuals/johnson-302231.htm







          Joining AOMCI has priviledges 🙂

          #285339
          DougConrad
          Participant

            Canada Member - 1 Year (includes $3 online payment fee)

            Thanks for the replies. There are no clips on this motor. How necessary are the felt wipers? I suppose I could make some.

            I will order the manual.

            Thanks,

            Doug

















































            #285341
            labrador-guy
            Participant

              US Member - 2 Years

              Thanks for the replies. There are no clips on this motor. How necessary are the felt wipers? I suppose I could make some.

              I will order the manual.

              Thanks,

              Doug

















































              Doug, if this motor was mine I would put some grease on the rubbing block of the points and forget about any wipers.  Millions of automobiles on the highways use a little grease on the points rubbing block and it works fine.  As the block wears the grease keeps it lubed.  JMHO

              dale

              #285354
              crosbyman
              Participant

                Canada Member - 2 Years

                well… the oiler pad oils tha cam  which reduces wear on the points rub block.



                the clip is worth crazy money last time I looked …  try to find a used one  they are all the same.   Somebody must have one in a parts bin… 🙂

                the felt can be cut from a sticky felt pads.. install with felt on cam  and  moisten with 2 drops of  oil I use gearcase oil

                Joining AOMCI has priviledges 🙂

                #285357
                The Boat House
                Participant



                  As Dale suggest you want to put some grease
                  on the back side of the rubbing block of the points.
                  Automotive points would come with a little capsule
                  of grease to be placed in this location. As the points
                  ware grease is applied to the point cam, prolonging
                  the life of the points.
                  Tubs
                  .

                  1 user thanked author for this post.
                  #285370
                  crosbyman
                  Participant

                    Canada Member - 2 Years

                    I always assumed the grease was for the pivot point itself… the  oiler pad  takes care of the the rub block but I guess with no oil pad… grease would help… for a while

                    Joining AOMCI has priviledges 🙂

                    #285386
                    Tim
                    Participant

                      US Member - 1 Year (includes $3 online payment fee)

                      Are you sure there’s no clip?

                      Have you already removed the coils, clip is tucked under a coil heal and not easily seen if the wiper is missing.

                      Here’s a pic of the clip and wiper removed, this may help.

                      #285493
                      Tim
                      Participant

                        US Member - 1 Year (includes $3 online payment fee)

                        Replaced all  Mag components on the 67 Ducktwin

                        Pic of felt wiper pad installed.

                        Wiper bracket is included with the new points kit.
