  • #322242
    Tubs
    Participant

      I gap my plugs for these at .025

      A "Boathouse Repair" is one thats done without having tools or the skills to do it properly.

      2 users thanked author for this post.
      #322297

      These valve things on the carburetor should they both move up and down when I rock the flywheel back and forth because only my right one is moving.However the one that is not moving is not stuck because I can move it with my finger.

      #322300
      RICHARD A. WHITE
      Participant

        Lifetime Member

        I have seen the oil left from running cause them to not move efficiently…If that makes sense…
        Remove the mixer, disassemble the entire mixer, clean it and ensure all passageways are clear and clean. Reassemble and install.

        http://www.richardsoutboardtools.com
        classicomctools@gmail.com

        1 user thanked author for this post.
        #322312
        Tubs
        Participant



          I’ve never noticed if one, or both, of the poppet valves lift when rocking the flywheel.  When cleaning, compare the height of the 2 springs. If one is longer than the other, the poppet valve with the least resistance will be the one that lifts. Unless you find something I don’t think you have a problem. Try switching springs and see what happens.

          A "Boathouse Repair" is one thats done without having tools or the skills to do it properly.

          1 user thanked author for this post.
          #322318

          What do you know one of  the springs is longer!

          #322384
          Tubs
          Participant

            Try squeezing the stretched one tightly between your thumb and index finger and sliding your fingers back and forth a little to see if you can get it back closer to the size of the shorter one. I don’t think it will affect running  much. Might affect priming though. Don’t know. I don’t understand why one would think doing that would be a good idea but its not that uncommon . It was helpful to me to see someone start one so here is a link. This was the first time this one had been started in decades. https://youtu.be/hKX0mZji7aA?si=AfZUsBOi9xgBIfL-

            A "Boathouse Repair" is one thats done without having tools or the skills to do it properly.

            1 user thanked author for this post.
            #322790

            I am on the home stretch and about to try and start it!! But before I do I need to put the flywheel on any ideas on toque specs?

            #322800
            Tubs
            Participant

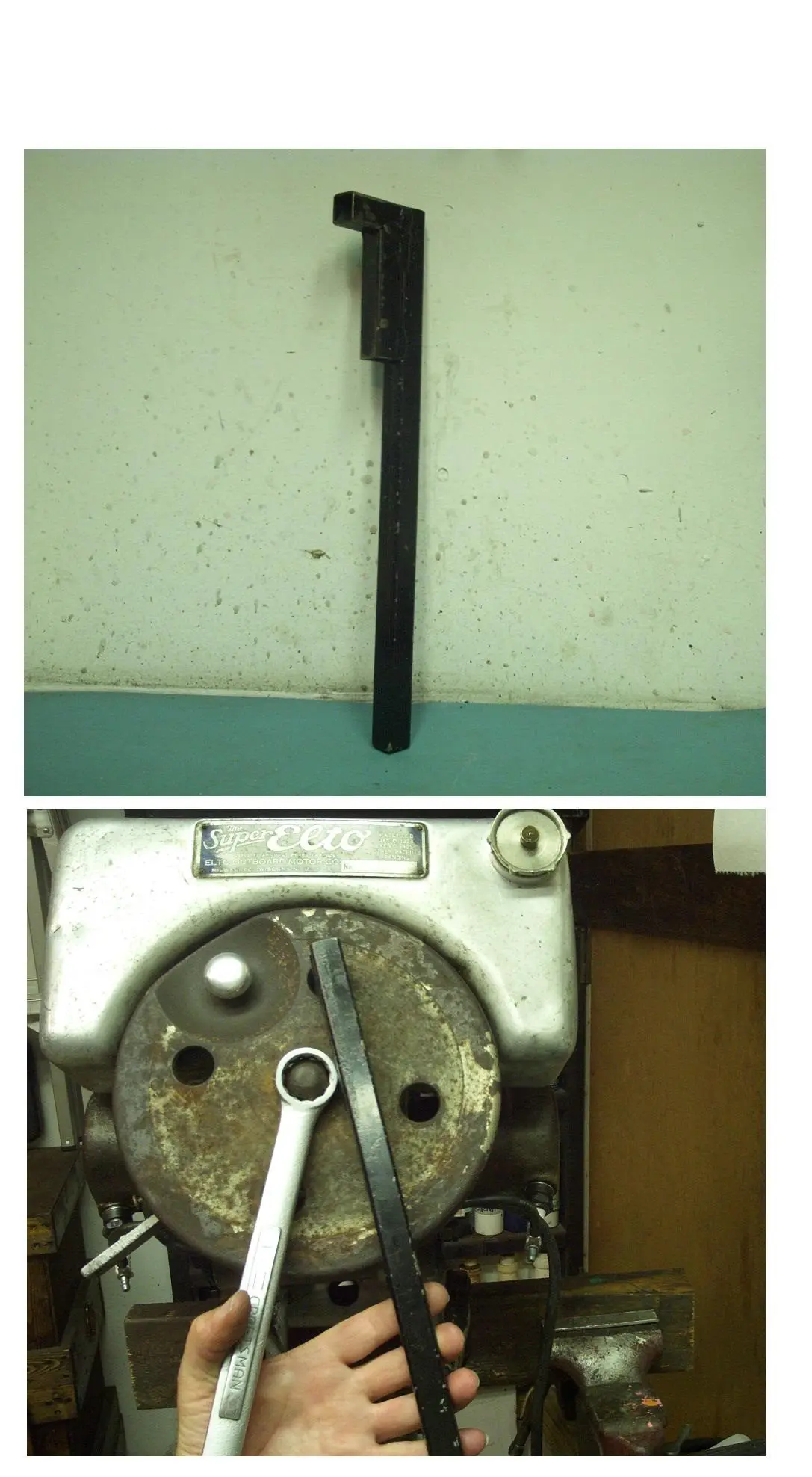

              I believe the factory torque is stamped on the flywheel around the crankshaft hole. Look carefully and I think you’ll find it says “Keep Tight”. If you feel you need a torque value, search for a bolt nut torque chart. It will have a speck for that size and thread pitch. When you have had the flywheel off, after you have run it, you should check the nut to see that it’s still tight or still at the torque spec you used. This is the homemade tool I use.

              Tool-123

              A "Boathouse Repair" is one thats done without having tools or the skills to do it properly.

              #322815

              Do you have a estimate for ft lbs to get me close?



              #322819
              Tubs
              Participant

                Not a clue. I’m 80 years old, self taught, that never had much need or experience using manuals. I tighten something till it feel right. Something like this I would check a few times. “Keep Tight” I suppose if I wanted to have a torque speck of that flywheel nut I might start at 35 lbs. If it felt good to me, I’d try it. If not, I’d up it a bit more. I’d run the motor a bit and check it. If the torque was still 35 lbs. I’d keep checking it each time after I ran it. If it stays a 35 lbs. I figure its tight enough but might add 5 lbs to be sure. If not I’d go up 10 more lbs. until it stayed tight.

                A "Boathouse Repair" is one thats done without having tools or the skills to do it properly.

                1 user thanked author for this post.
