1937 4.7 HP model 4227 evinrude

Home › Forum › Ask A Member › 1937 4.7 HP model 4227 evinrude

Viewing 4 posts - 1 through 4 (of 4 total)
  • Author
    Posts
  • June 19, 2019 at 6:18 pm #177571
    piddler
    Participant

      Punch List???

      Hello
      I have spark ,new plugs, float and primer in carb are clean, gas line working? Pistons look good and move freely?

      Hit one time has not hit since.

      Was curious if I could get a punch list tips or trouble shooting for this old motor?

      Many thanks if you can help or not
      watchmaker here. These parts are quite different from what I am used to. LOL
      Piddler

      June 19, 2019 at 9:44 pm #177601
      pm-t2
      Participant

        Canada Member - 2 Years

        Let carburetor bowl fill with fuel, use primer (if equipped) to depress float pin until fuel drips from the carb. Set mixture needle so its open about 1/2 to 5/8 of a turn. Set the timer lever at about 5 o’clock position. Bounce flywheel between compression, the poppet valve should be burping when you do this. Make sure its not stuck to its seat if it doesn’t make any noise. If the poppet is snorting – Rock the flywheel back and forth several times to prime the crankcase, then one hard pull on the rope should get it going. I have a model 4229 and this procedure makes it a one-pull motor every time.
        Hope this helps.

        Best,
        PM T2

        June 20, 2019 at 10:21 pm #177685
        garry-in-michigan
        Participant

          Lifetime Member

          The fisherman was a main stay for the fishing crowd. It had an option of a weedless drive that would darn near run on wet grass. That model was more expensive and fewer were sold. . .

          37-cover

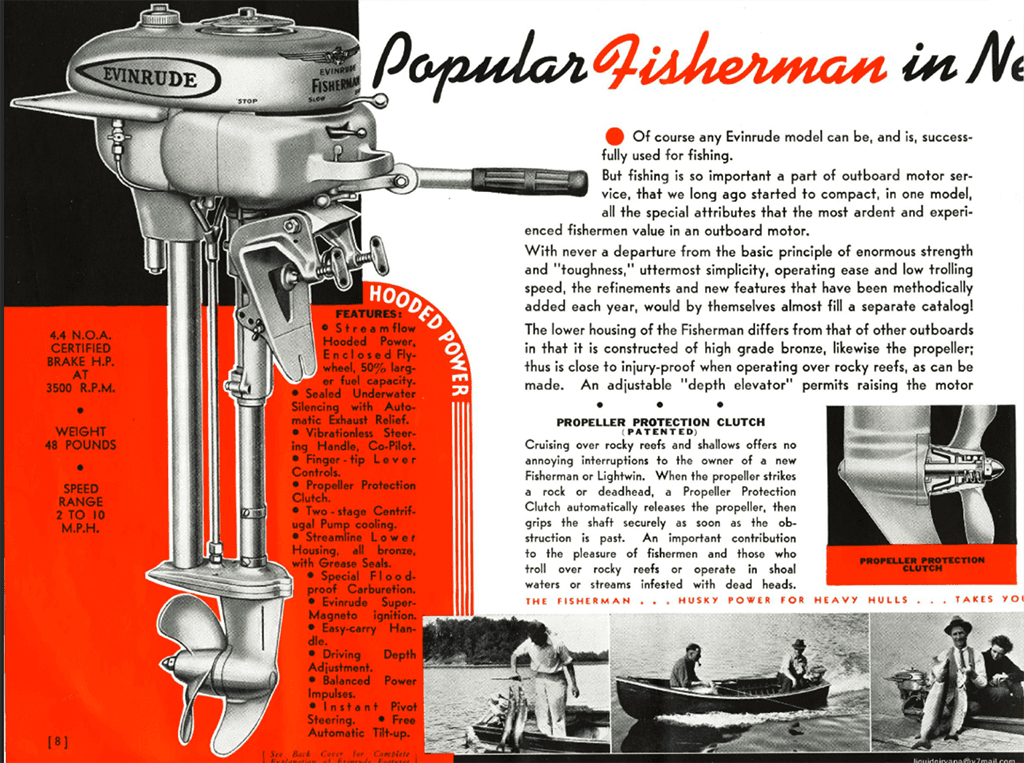

          37-Pg.5

          June 21, 2019 at 8:59 am #177694
          The Boat House
