1938-39 Johnson MD38 or MD39 Parts Manual and Service Manual

Home › Forum › Ask A Member › 1938-39 Johnson MD38 or MD39 Parts Manual and Service Manual

Viewing 6 posts - 1 through 6 (of 6 total)
  • Author
    Posts
  • March 21, 2018 at 12:22 am #9461
    seakaye12
    Participant

      US Member

      Got One in Digital Form?

      Thank You!

      Chuck in Santa Barbara

      March 25, 2018 at 12:31 pm #72989
      seakaye12
      Participant

        US Member

        Can anyone help? I need a parts blow-up of the carburetor specifically. 1938-39 Johnson MD38/MD39
        This is the closest I have come to finding what I need. A good resource but it lacks a parts diagram of the carburetor for a MD38/MD39.

        http://www.austinsailor.net/manuals/20-johnson/ejs.html

        May 31, 2021 at 5:53 pm #239260
        jhelmey
        Participant

          I you have one in digital form?

          May 31, 2021 at 11:35 pm #239306
          opposedtwin
          Participant

            US Member - 2 Years

            Here are the diagrams. Let me know if you need part numbers.

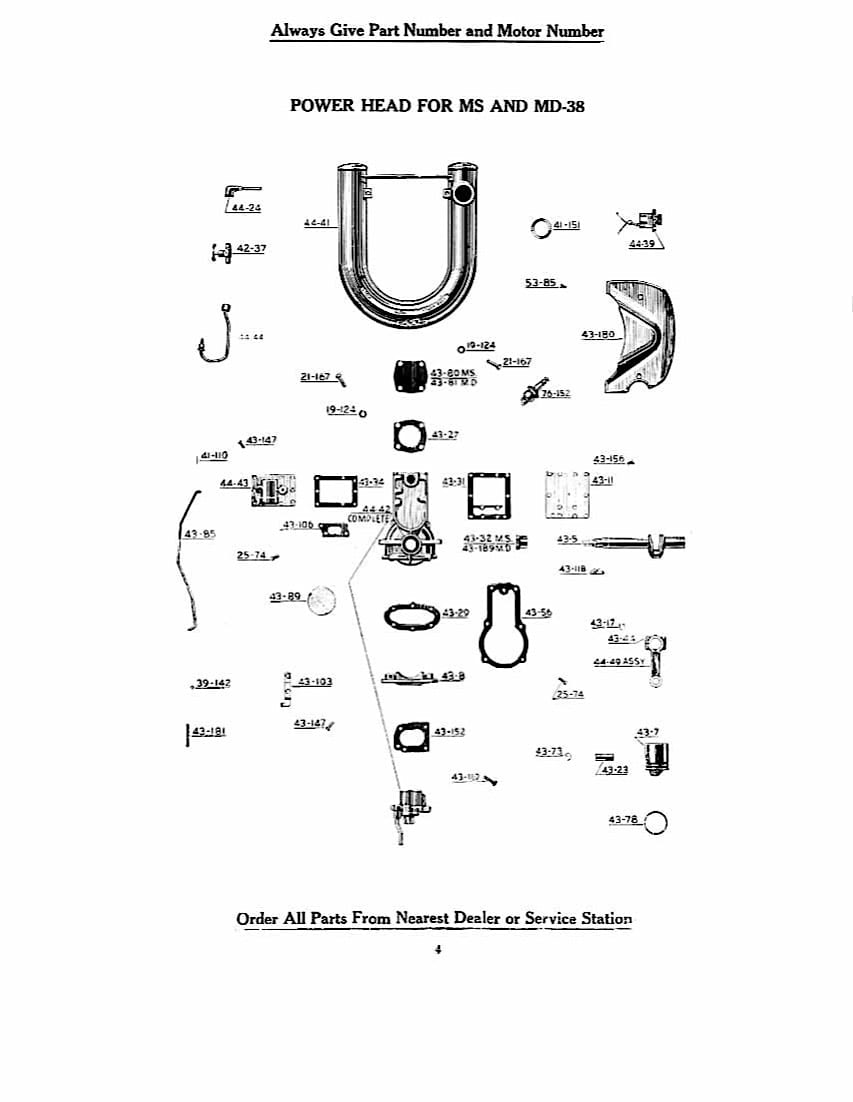

            285C4AFF-77EA-4025-B477-8DC72B161DE4

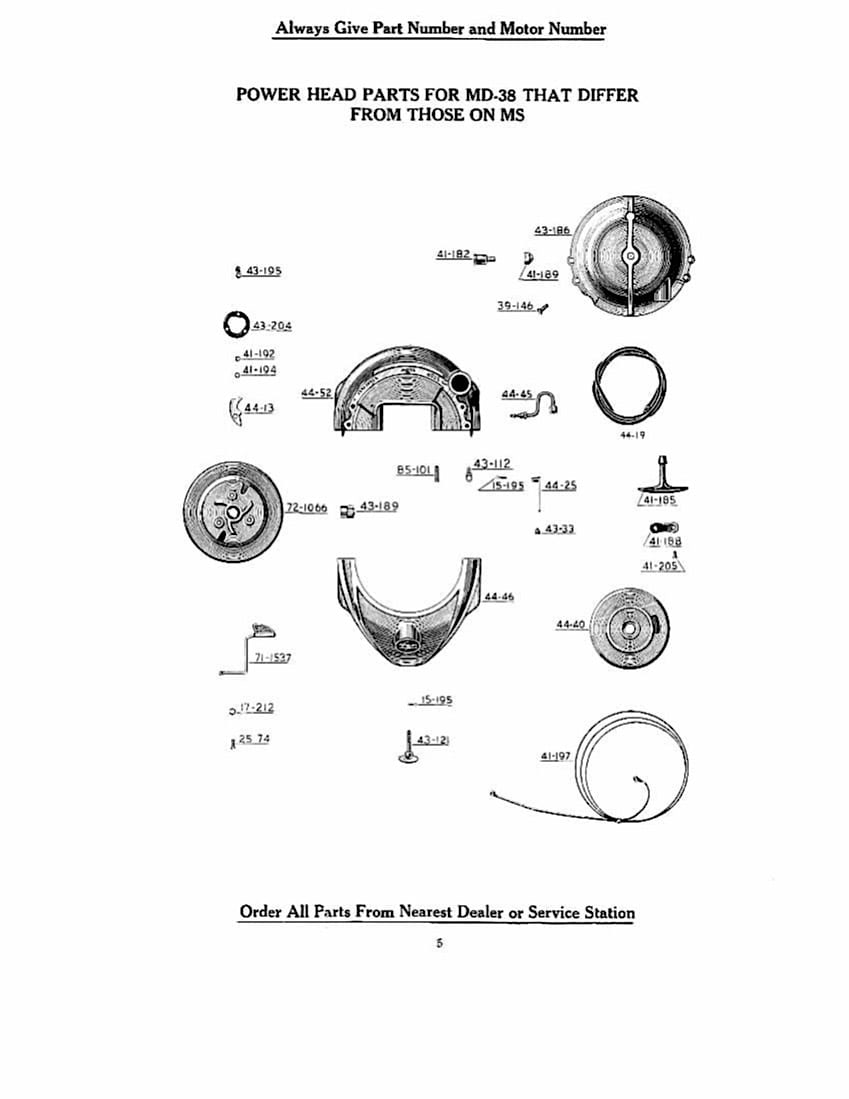

            59F8BAAE-4AC2-4502-896C-E375FE611B50

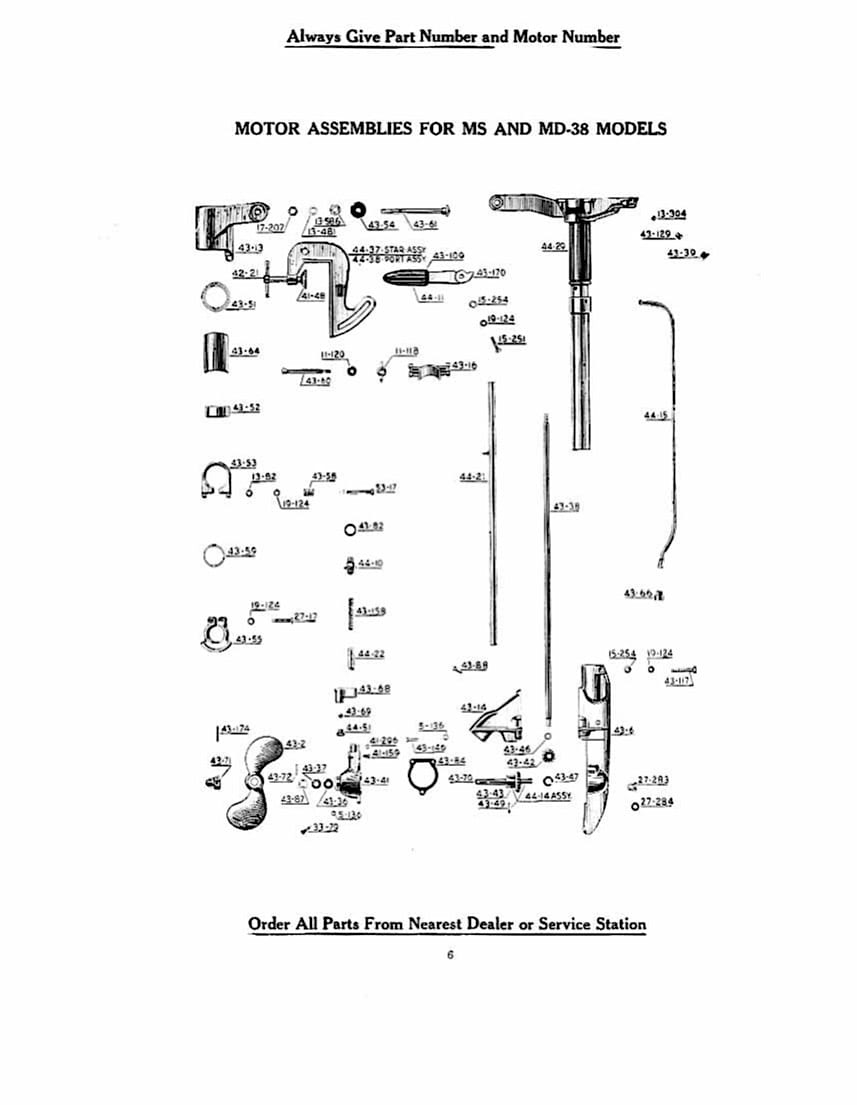

            F7F82E4A-D434-43E8-8C91-428FCB924B2B

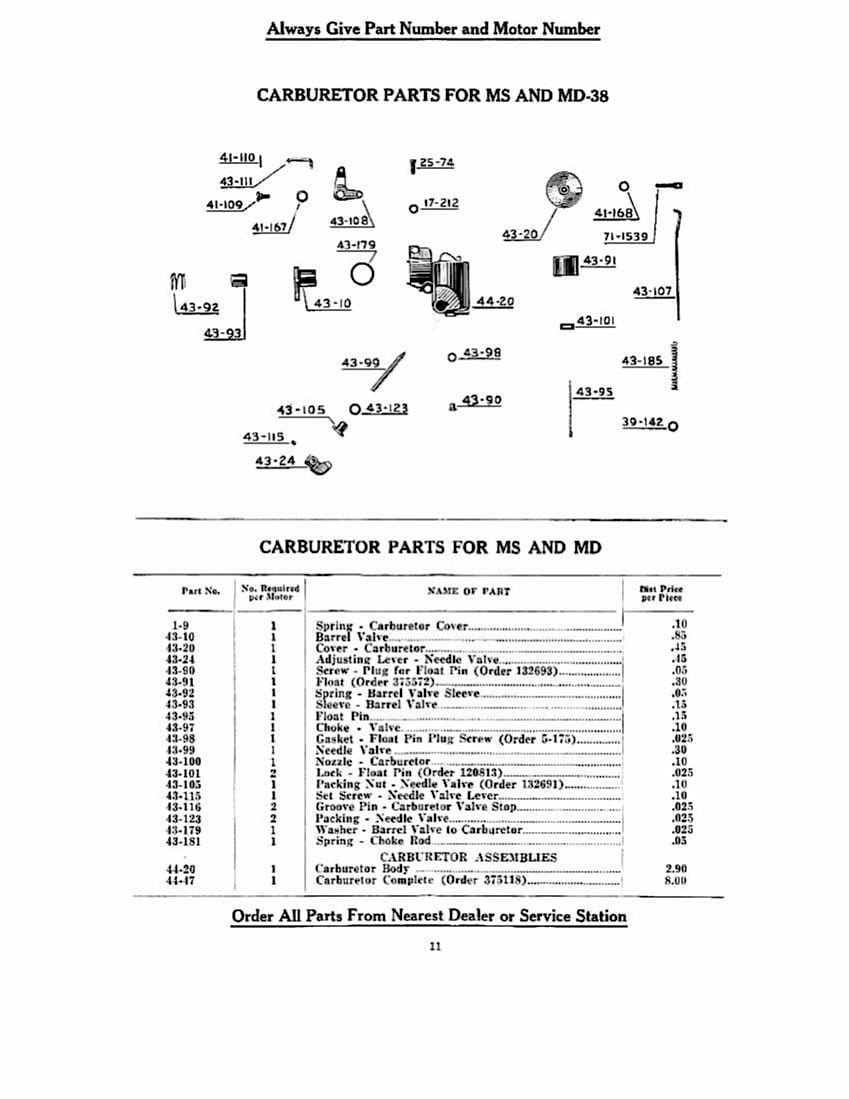

            6D7C1492-3EC2-4B9E-ADD2-AF265B44F79A

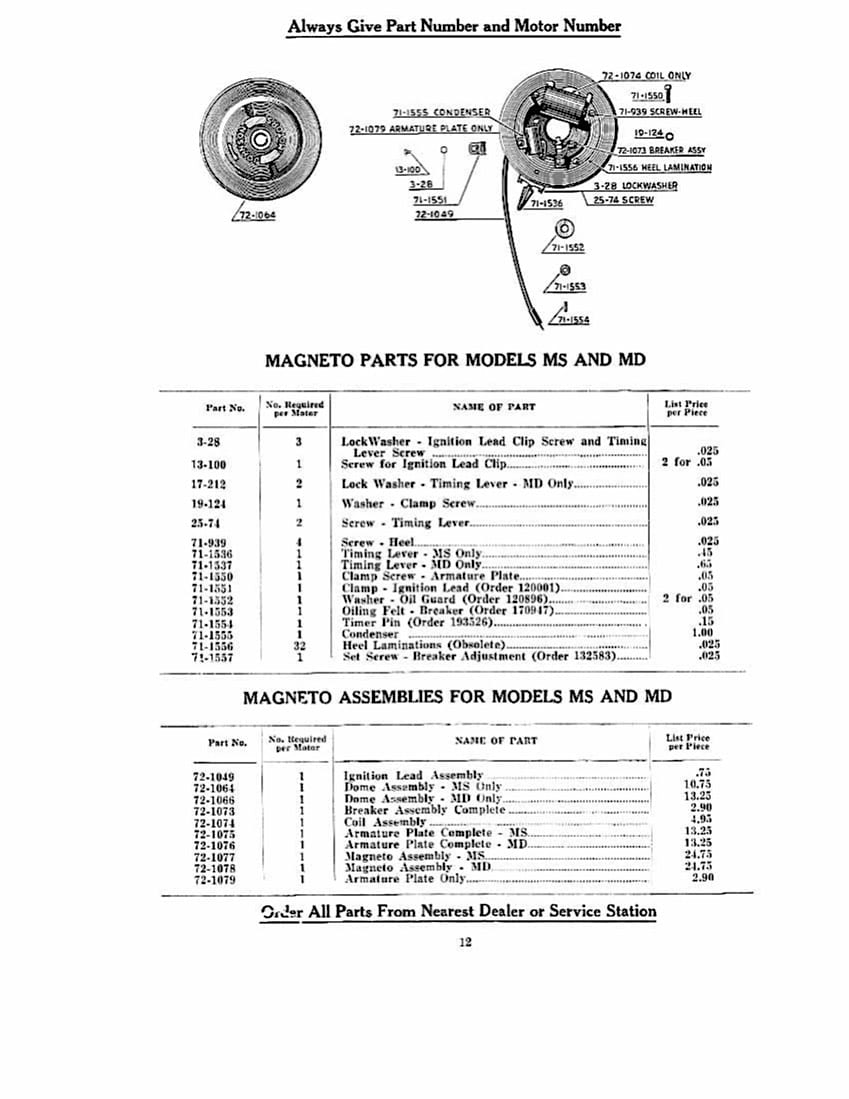

            B440400B-F3CE-44EF-9096-65A013BD31DB

            B440400B-F3CE-44EF-9096-65A013BD31DB

            • This reply was modified 2 years, 11 months ago by opposedtwin.
            • This reply was modified 2 years, 11 months ago by opposedtwin.
            • This reply was modified 2 years, 11 months ago by opposedtwin.
            June 1, 2021 at 11:10 am #239330
            seakaye12
            Participant

              US Member

              Thanks opposedtwin! Great quality scans !

              June 2, 2021 at 8:48 am #239379
              opposedtwin
              Participant

                US Member - 2 Years

                Thanks to Dan Gano in Iowa on those! He supplies OMC parts for many of us and has a link on this site. He sent me those scans when I was going theough one of those motors awhile back.
                Scott
