1941 Mercury KB3 “Paint Scheme” ?

Home Forum Ask A Member 1941 Mercury KB3 “Paint Scheme” ?

Currently, there are 0 users and 1 guest visiting this topic.
Viewing 15 posts - 16 through 30 (of 30 total)

  • Buccaneer

    US Member - 1 Year
    Replies: 6452
    Topics: 958
    #271436

    If convenient , could you take and post photos of front area of lower half of fuel tan and also of area where cowl (carburetor cover) fastens to cylinder, That could give some more information about your KB-3 Thanks Louis

    Louis, I’ll try to remember to take a better photo of the front, lower gas tank area.

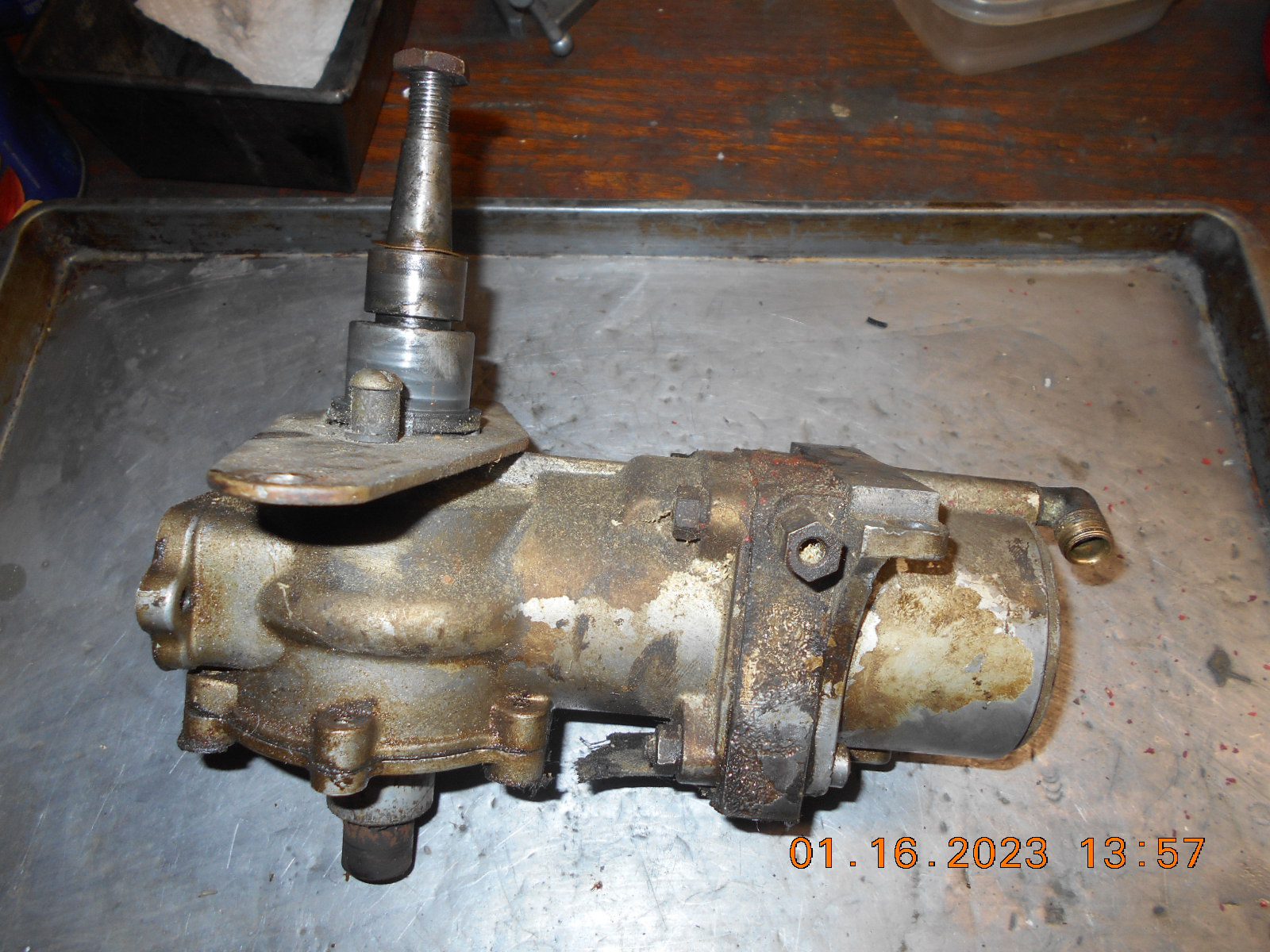

    Here’s the powerhead though, and what I presume to be a cowl mount on
    one side.

    On a side note, I was gifted a KB1A Mercury today, and in looking at the model list,
    it looks like it’s also a 1941, but it the Tillotson carb, and no rewind…… no cowls either,
    but at this point, not sure it’s suppose to have them.
    Confused at this point what the differences are suppose to be in the 3.2 hp Models in 1941.

    DSCN5836

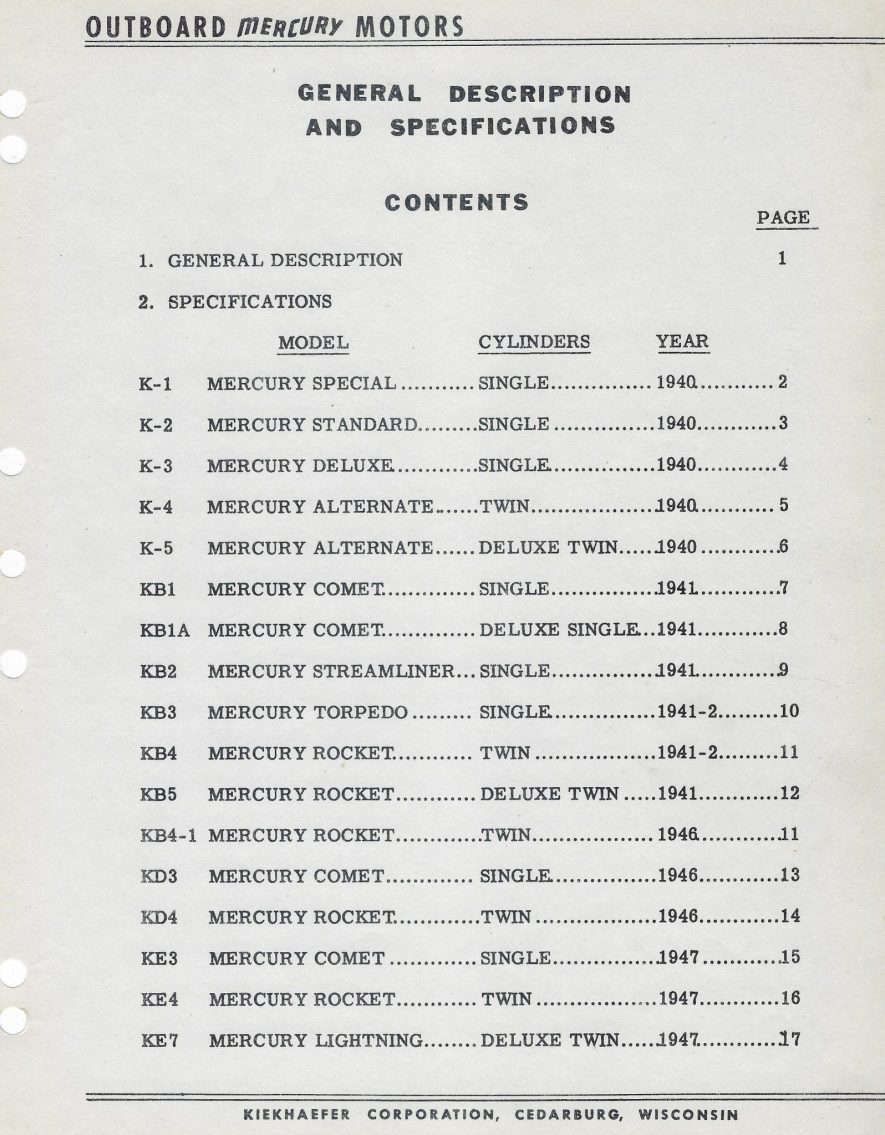

    Mercury-model-list-1940-1942

    Prepare to be boarded!

    Attachments:

    Buccaneer

    US Member - 1 Year
    Replies: 6452
    Topics: 958
    #271445

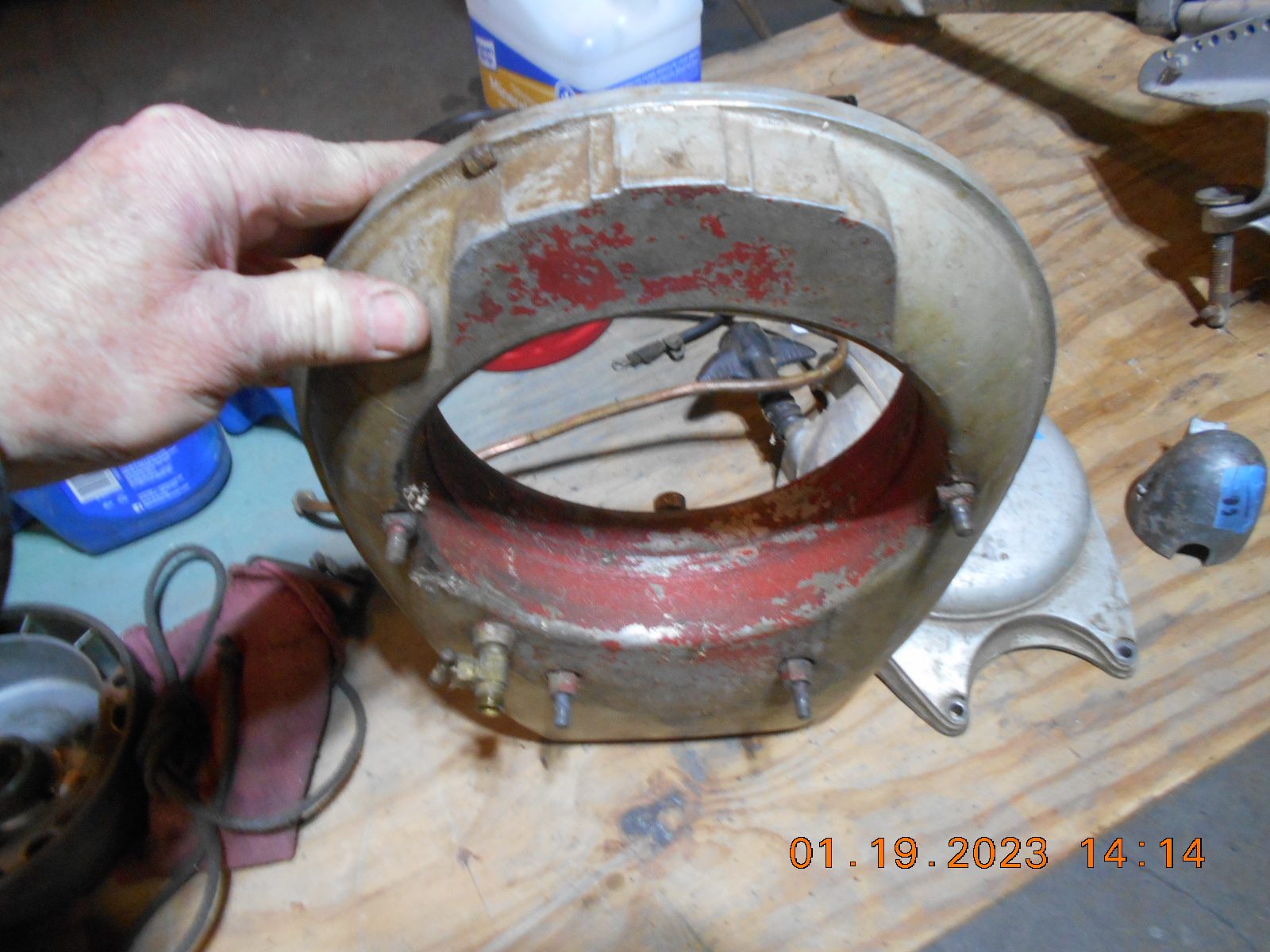

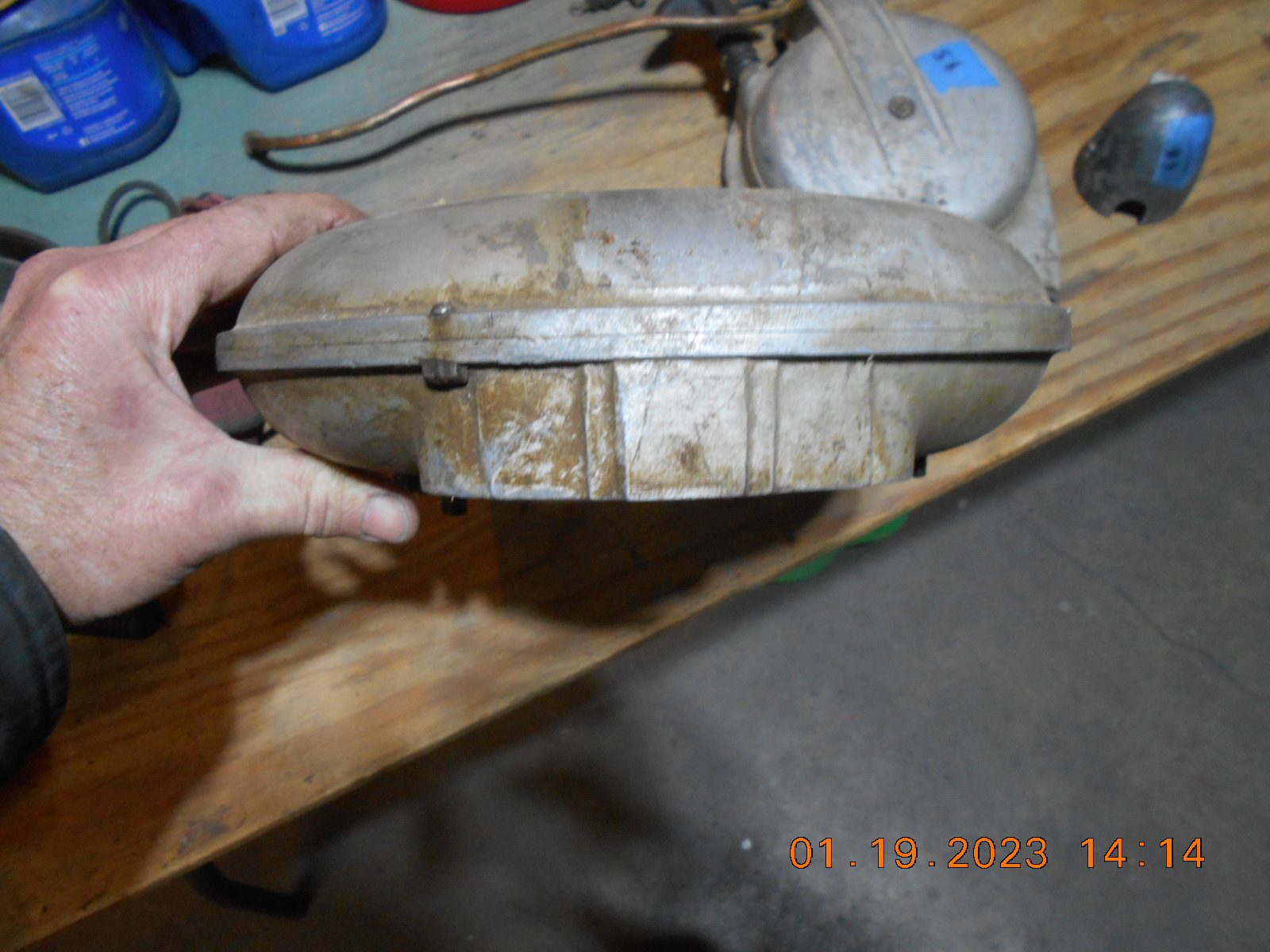

    Louis, Here’s the gas tank……

    DSCN5862

    DSCN5863

    Prepare to be boarded!

    Attachments:

    green-thumbs

    US Member - 2 Years
    Replies: 550
    Topics: 41
    #271471

    KB-1A was the Standard model,,, no frills

    KB-3 was the Deluxe model rewind, cowl, spark plug cover and the rubber wedge between tank and spark plug cover,

    Early in 1941 production there was a KB-1 single with poppet valve, KB-1A had carburetor with cam on magneto plate linking spark advance to throttle opening. KB-1, KB-1A were intended to have the PreWar pattern cast aluminum fuel tanks. By mid summer 1941, restrictions on use of aluminum led to KB-1 model being dropped and KB-A to change to a new pattern stamped steel fuel tank,

    KB-2 Streamline model has steel sheet metal cowling is uncommon and even more so if all the sheet metal is present.

    Your KB-3 has the correct 4 stud fuel tanl and has the hex mounting studs SO I believe it had the extras when it left the factory. A possible explanation for the RED paint is to make it stand our…LOTS outboards were stolen and Mercury provided stolen motors lists to its dealers  in hopes that all motors brought in for service would have its serial numbers would be checked, It is not uncommon to see a deep scratch on an ID plate obscuring the serial numbers. Boat livery might also give their outboards a stand out color to keep the customer honest. It appears that front mounting studs have non original spacers or fasteners. The standard of workmanship outside factory varied…missing, butchered or wrong fasteners indicate low level of skill by mechanic .

    What would I do with your KB-1A and KB-3?  My usual method is to tear down, clean, evaluate  condition of parts, prime, paint and assemble what you have and keep looking for cown, spark plug cover and the rubber wedge. Correct fasteners may not be available, but, there is not much easier than replacing fasteners. I do things this way, because there is not much more depressing that a grungy down on its luck Little Merc. Likewise, a freshly painted and assembled Little Merc is a very compelling reason to find the parts and finish the job. About 80% of job is tear down and cleaning, prime and paint. The rest is FUN. Louis

    • This reply was modified 1 week, 3 days ago by green-thumbs.
    • This reply was modified 1 week, 3 days ago by green-thumbs.
    • This reply was modified 1 week, 3 days ago by green-thumbs.

    Buccaneer

    US Member - 1 Year
    Replies: 6452
    Topics: 958
    #271477

    Louis, thanks for your “in depth” synopsis of these little Mercs.
    I’m saving it to my Merc files for reference.

    I’m not sure what the “rubber wedge” is that you refer to.
    Will see if any such thing appears in parts manuals.

    I do have a plug cover that fits. Whether or not it’s correct
    as it came off of a stripped down parts motor, no ID tag,
    but it had the reed valve block as opposed to my poppet valve
    motor with no reeds.

    I’ll be on the look-out for cowls, but presume they’re
    not many around.
    Thanks!

    Prepare to be boarded!


    green-thumbs

    US Member - 2 Years
    Replies: 550
    Topics: 41
    #271479

    The rubber wedge fills the space between bottom of tank and top of spark plug cover. I believe they are being reproduced.

    KB-1 was entry level Special, KB-1A was Standard and KB-3  Was top of line Deluxe. KB-3 had two screw transom clamp while the Special and Standard models had the single screw fabricated steel transom clamp.

    Photos show 1940 and a 1941 single powerhead

    Front view of KB-3

    Top and front view of a KB-1A with a mixed  tan… top of rewind KB-3 and bottom from a KB-1A which does not have the chin because it las a rope start without cowl. Possibly factory mix, but, I picked it up as parts.



    • This reply was modified 1 week, 3 days ago by green-thumbs.
    Attachments:

    Buccaneer

    US Member - 1 Year
    Replies: 6452
    Topics: 958
    #271502

    Trying to figure out what model one has, if the two halves of the gas tank are
    from different models, could cause one to start drinking!

    Interesting from the Mercury chart above, that my KB-3 is shown just as “Single”
    and the KB-1A is shown as “Deluxe Single”.
    The later has a single transom clamp, no rewind, no cowls.
    the prior should have all of those amenities.

    Bob Grubb’s web site seems to suggest that the later model was a “deluxe”
    because it had the conventional carburetor, and the prior only had
    the poppet valve carb. Not sure if I buy that, but I know zilch on the subject!

    Prepare to be boarded!


    green-thumbs

    US Member - 2 Years
    Replies: 550
    Topics: 41
    #271519

    Sometimes my honestly held opinions do now hold water when confronted by the facts.

    That said,  it seems to me the bare bones KB-1 is the Special, the carburetor equipped KB-1A is likely the Standard and the fully dressed up KB-3  would be the Deluxe. That may or may not be how Kiekhaefer saw things.

    Louis


    Buccaneer

    US Member - 1 Year
    Replies: 6452
    Topics: 958
    #271520

    Sometimes my honestly held opinions do now hold water when confronted by the facts.

    That said,  it seems to me the bare bones KB-1 is the Special, the carburetor equipped KB-1A is likely the Standard and the fully dressed up KB-3  would be the Deluxe. That may or may not be how Kiekhaefer saw things.

    Louis

    Louis, your opinions on the model designations make sense to me!

    Prepare to be boarded!


    Buccaneer

    US Member - 1 Year
    Replies: 6452
    Topics: 958
    #271521

    Louis, is this the rubber wedge you refer to that goes between the gas tank and spark plug cover?
    The diagram is for a KD3 model, and I can’t find the corresponding parts ID sheet for it’s part number.

    KD3-Powerhead-rubber-block

    Prepare to be boarded!

    Attachments:

    green-thumbs

    US Member - 2 Years
    Replies: 550
    Topics: 41
    #271533

    The most useful tool in my tool box… a digital camera.

    Note the plumbing fitting have been removed from water jacket  Both spark plug covers are for the lower cylinder of a twin cylinder model. The spark plug cover for the upper cylinder of a twin and for single cylinder models is cut away to provide room tor the plumbing fitting. It may be possible to convert by careful work with a Dremel tool. Perhaps , s subject for a future project as Slipshod Engineering & Maching.





    Attachments:

    Buccaneer

    US Member - 1 Year
    Replies: 6452
    Topics: 958
    #271553

    Louis, a “Picture is worth 999 words”. Thanks, rubber block is
    now visualized!

    Prepare to be boarded!


    opposedtwin

    US Member - 2 Years
    Replies: 941
    Topics: 255
    #271620

    Here is an ad for the 1941 KB3 Torpedo

    Attachments:

    Buccaneer

    US Member - 1 Year
    Replies: 6452
    Topics: 958
    #271622

    Thanks for the ad Scott…… wish I had those cowlings!

    Prepare to be boarded!


    green-thumbs

    US Member - 2 Years
    Replies: 550
    Topics: 41
    #271634

    Cowls for single cylinder models are fragile castings. I believe a club member was making semi finished replacements at one time and perhaps still available. I hav

    Cowls for twins are very durable and not that hard to find id n9nuaveot with motor.

    I have 5 or 6 singles and one broken cowl. I also have 5 or 6 twins all wit6h cowls, undamaged except for a few extra holes.   May indicate relative scarcity and reason for it.

    Louis


    opposedtwin

    US Member - 2 Years
    Replies: 941
    Topics: 255
    #271660

    Buc,
    One will show up for you eventually. I have a kd3 with that cowl but am looking for one for my kd3s model.
    Keep yer eyeballs peeled!
    Scott
