Topic: 1954 B.F. Goodrich (Champion) Sea Flyer 5.5 hp

This topic has 27 replies, 5 voices, and was last updated 1 month, 3 weeks ago by JOHN D..

Viewing 10 posts - 1 through 10 (of 28 total)

1 2 3 →

Author

Posts
April 21, 2026 at 5:51 pm #316089
Buccaneer
Participant
US Member

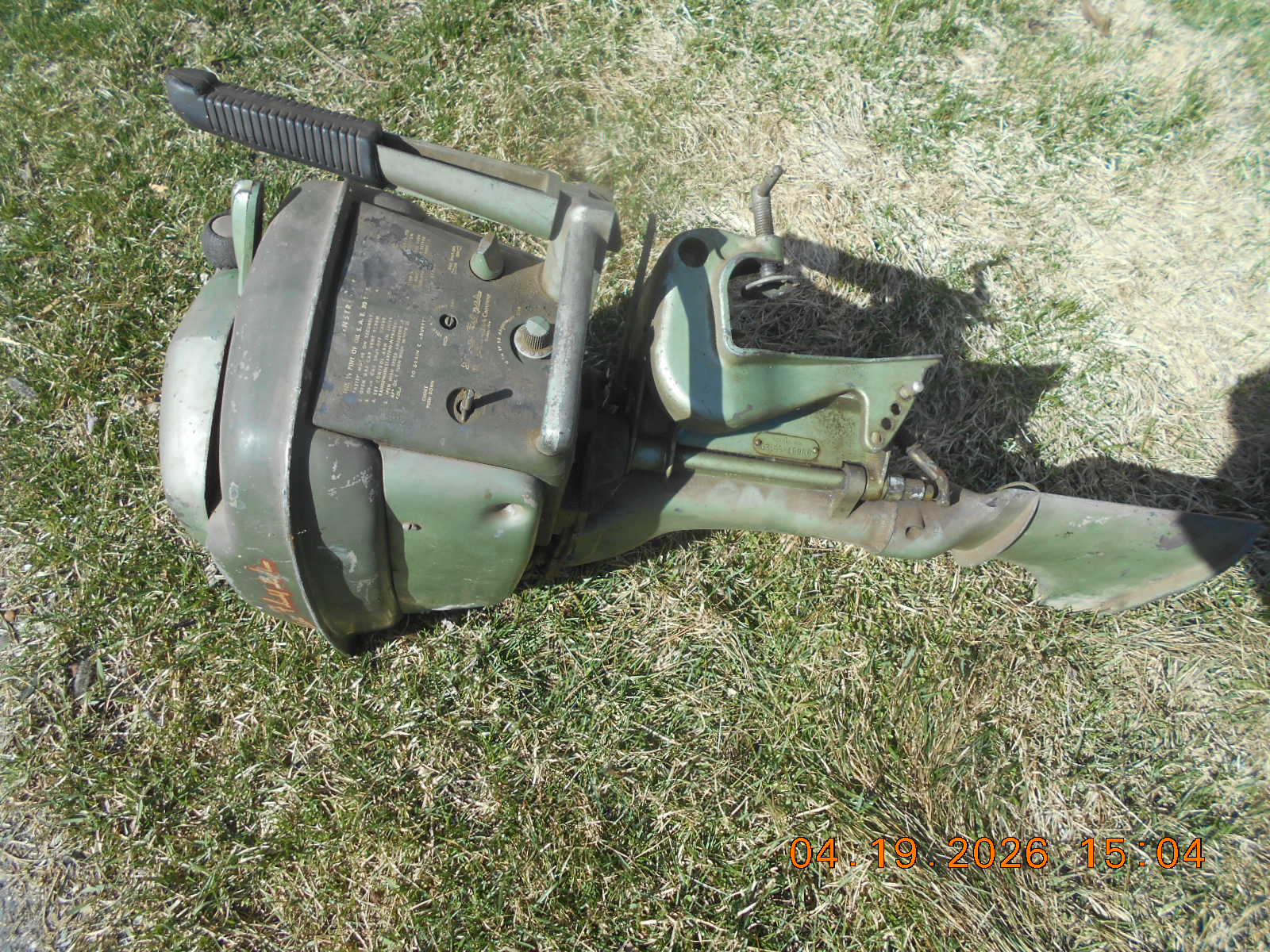

I bought the subject motor at Tomahawk several years ago,
even though it was missing the gearcase, driveshaft, etc.,
and froze up, just because I’d never seen one in person.

This was a “full” gear-shift model, and I’m guessing they had
troubles with the gearcases. I saw one listed on an old auction,
and it was also missing the gearcase!

I took it off the rack a couple of days ago, just to see if it would
have the same carb as a 46-47 Champion Blue Ribbon 4.2 hp
that I’m having issues with. It does not.

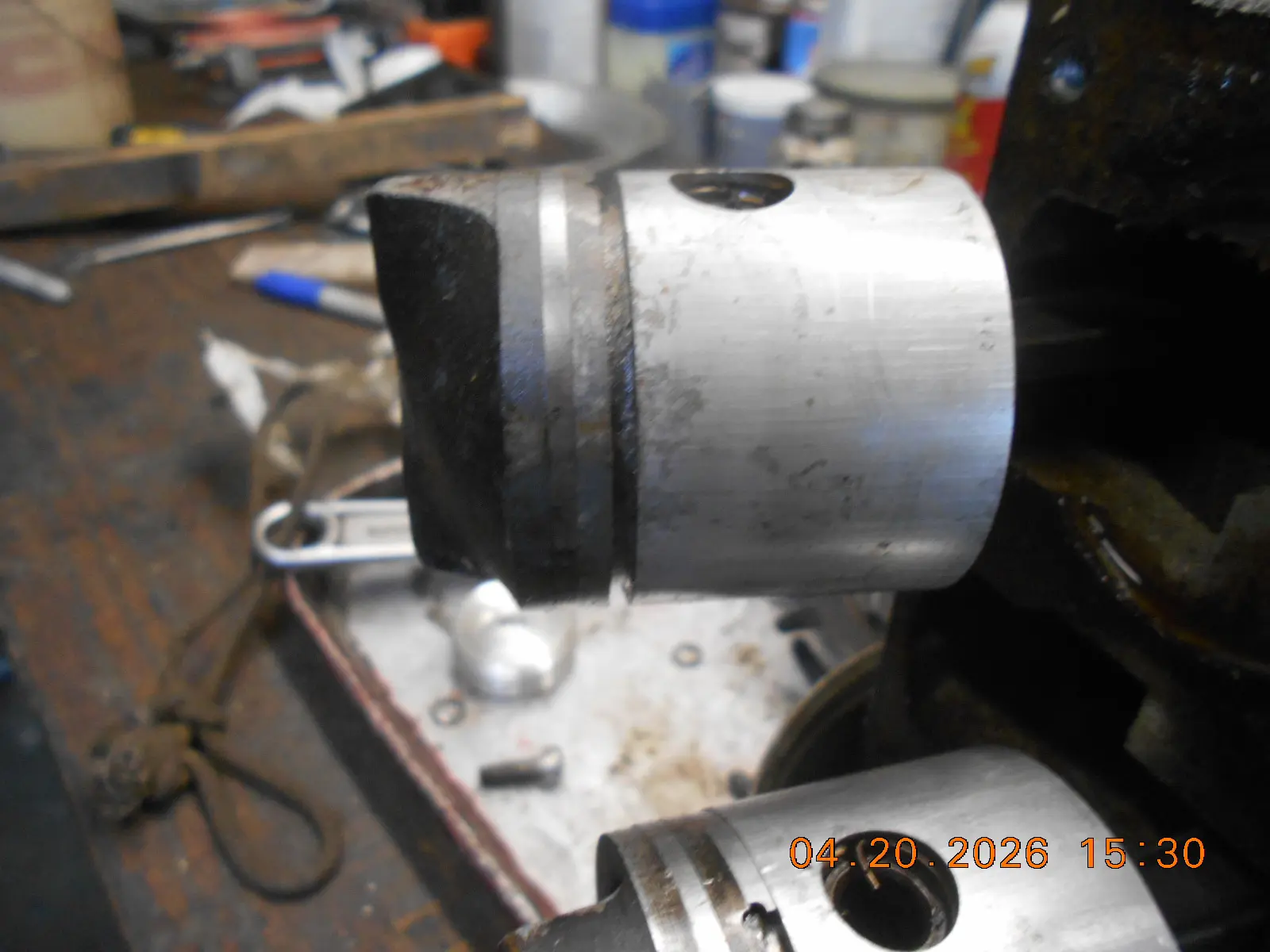

Anyway, the bottom piston was slightly frozen, and I got it
loose, but I was surprised to see it’s missing one of the piston
rings.

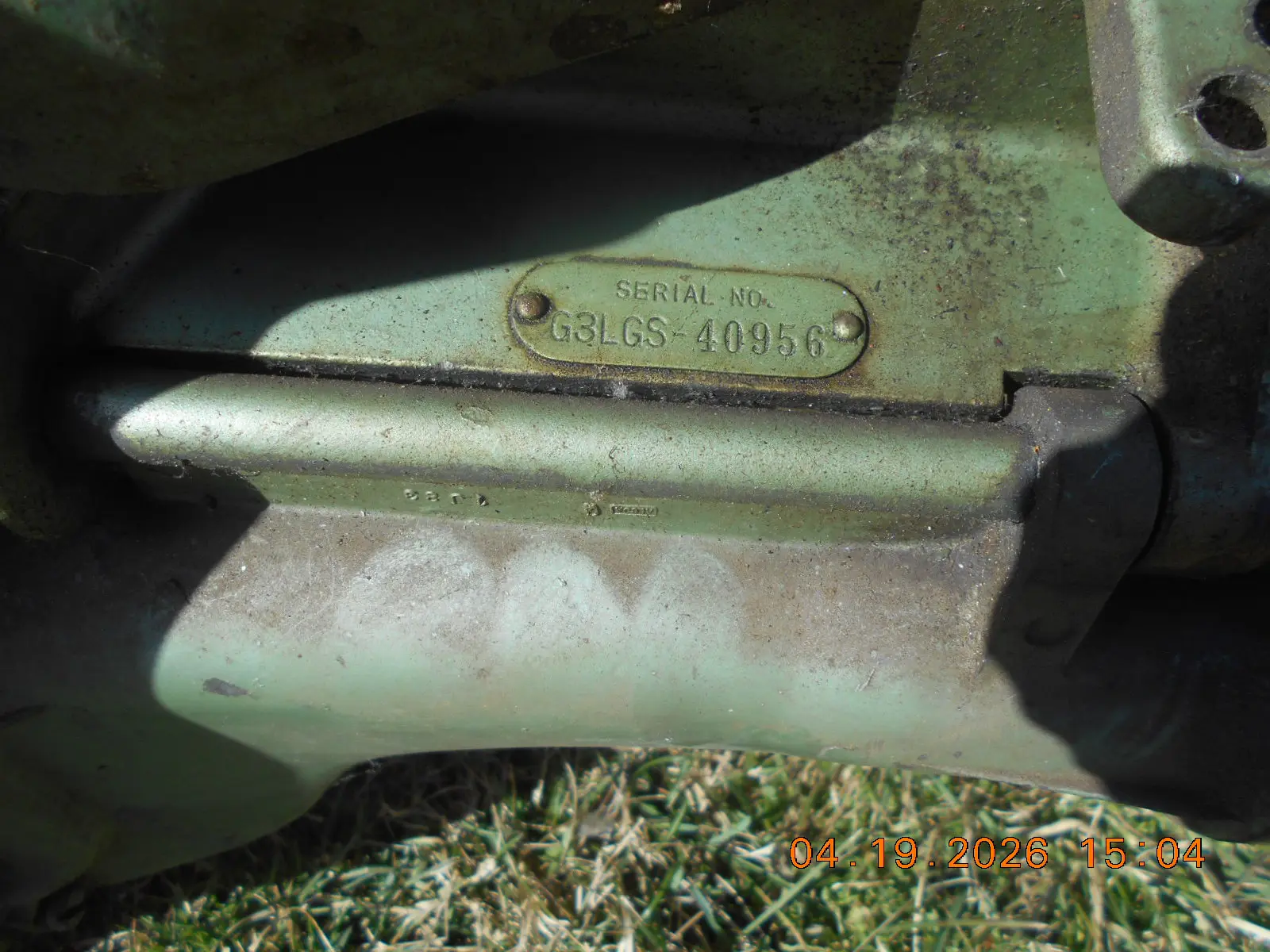

Anyone have a parts manual for this G3LGS model that would show
the piston ring part number? The rings are 1-7/8″ x .093 thick.

Thanks.

Prepare to be boarded!
April 21, 2026 at 7:59 pm #316100
JOHN D.
Participant
US Member
I have a 53 Voyager 5.5 (VL-GS). I think the rings can be bought at Otto,s engine works (ringspacers.com). You may have to file to clear the keeper pin. I may have some parts for your gearbox. The impeller, I adapted from a Honda impeller. I will scan the manual sometime tonight or tomorrow.
April 21, 2026 at 9:17 pm #316106
Buccaneer
Participant
US Member
JOHN D. wrote:

I have a 53 Voyager 5.5 (VL-GS). I think the rings can be bought at Otto,s engine works (ringspacers.com). You may have to file to clear the keeper pin. I may have some parts for your gearbox. The impeller, I adapted from a Honda impeller. I will scan the manual sometime tonight or tomorrow.

Thanks John!

Prepare to be boarded!
April 21, 2026 at 9:44 pm #316109
JOHN D.
Participant
US Member
I found the manual for the V3lgs. I will scan them tonight.
April 22, 2026 at 7:33 am #316141
Buccaneer
Participant
US Member
JOHN D. wrote:

I found the manual for the V3lgs. I will scan them tonight.

Wonderful, Thanks!

Prepare to be boarded!
April 24, 2026 at 8:25 am #316322
fastjohn
Participant
US MEMBER PAY BY CHECK
Tell us the Honda part number and how you modified it
April 25, 2026 at 3:38 am #316405
JOHN D.
Participant
US Member
That’s been about 12 years ago when I fitted the new impeller. I used the list of Sierra impellers to find one that could be adapted to work. My guess is the 9.9-15 hp motors.
April 25, 2026 at 3:50 am #316407
JOHN D.
Participant
US Member
I have scanned the booklet. How do I contact the original poster to send the files?
April 25, 2026 at 8:54 am #316418
Buccaneer
Participant
US Member
John, it is I that requested the manual.
It seems that I cannot PM you my email,
so, it’s
champion 1956 @ yahoo.com

Note: Remove all the spaces in the email address.

Prepare to be boarded!
April 25, 2026 at 12:49 pm #316428
seakaye12
Participant
US MEMBER PAY BY CHECK
JOHN D. wrote:

I have scanned the booklet. How do I contact the original poster to send the files?

You can use a website like iluvpdf.com to make a PDF from your original files. It’s free and works very very well.

Or just post the files here as the site allows (maybe a limit of three per post) and I can take care of the rest. PDF’s are the best format for such things. Easily shareable.

Thanks!
