May 24, 2019 at 11:44 am #175890
creekrunner
Participant
Question…….can anyone provide a picture of the rubber strap p/n 376432 in it location as it should be? My CD12 was missing this piece…..finally found one.
It’s obvious as to where the pin end needs to be. ( center hinge pin on the cowl) but for the life of me, I can’t determine as to what the other end is supposed to

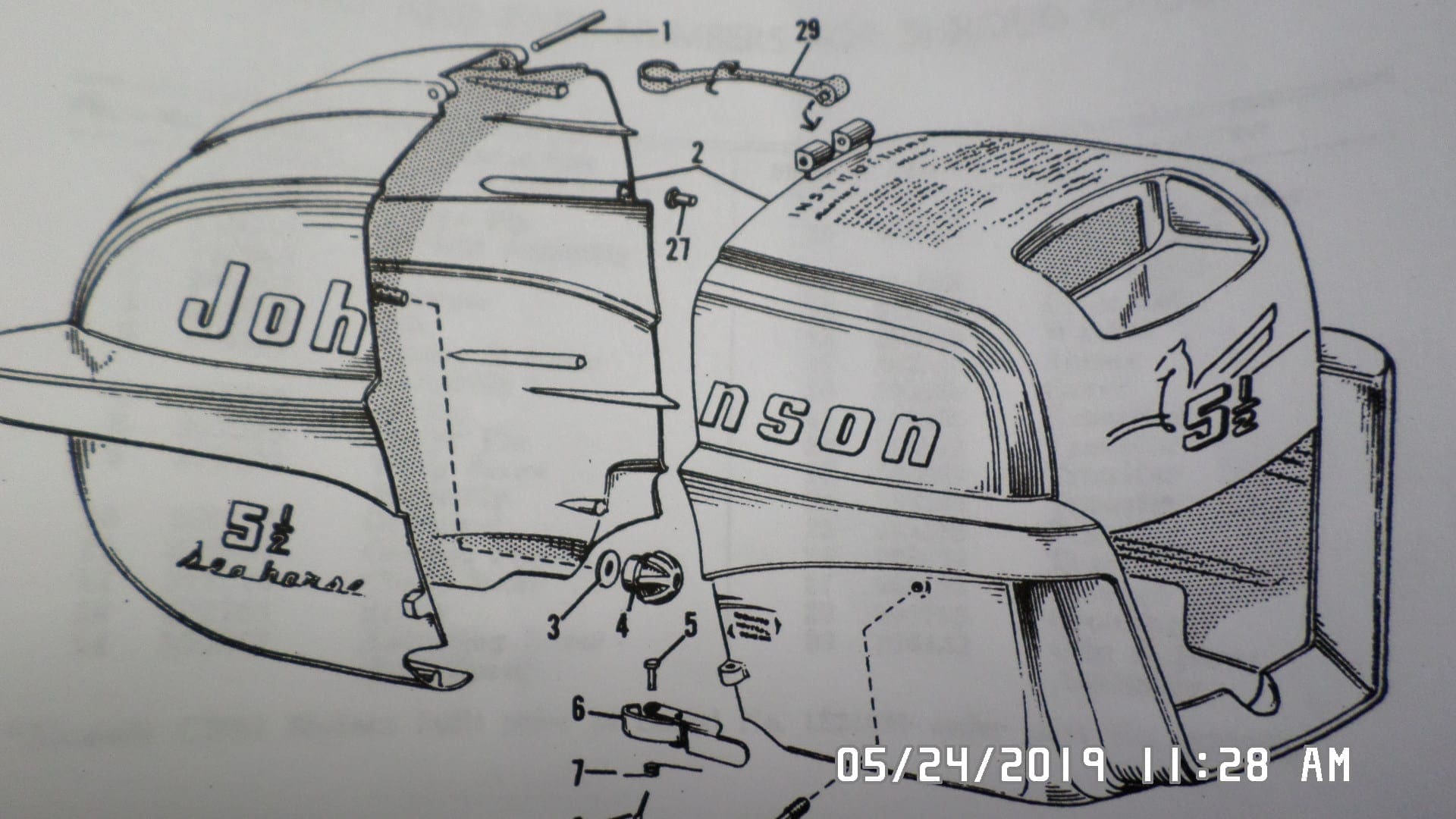

fasten to. This was a hard to find part. Any help appreciated. Ed Elliot provided me a complete parts catalog…….(thanks ED !) but doesn’t show this .
May 24, 2019 at 12:02 pm #175892
fleetwin
Participant
US Member - 2 Years
Do you have a picture? Not sure just what piece you are speaking about, perhaps someone else knows though….
May 24, 2019 at 12:11 pm #175895
Randy in Tampa
Participant

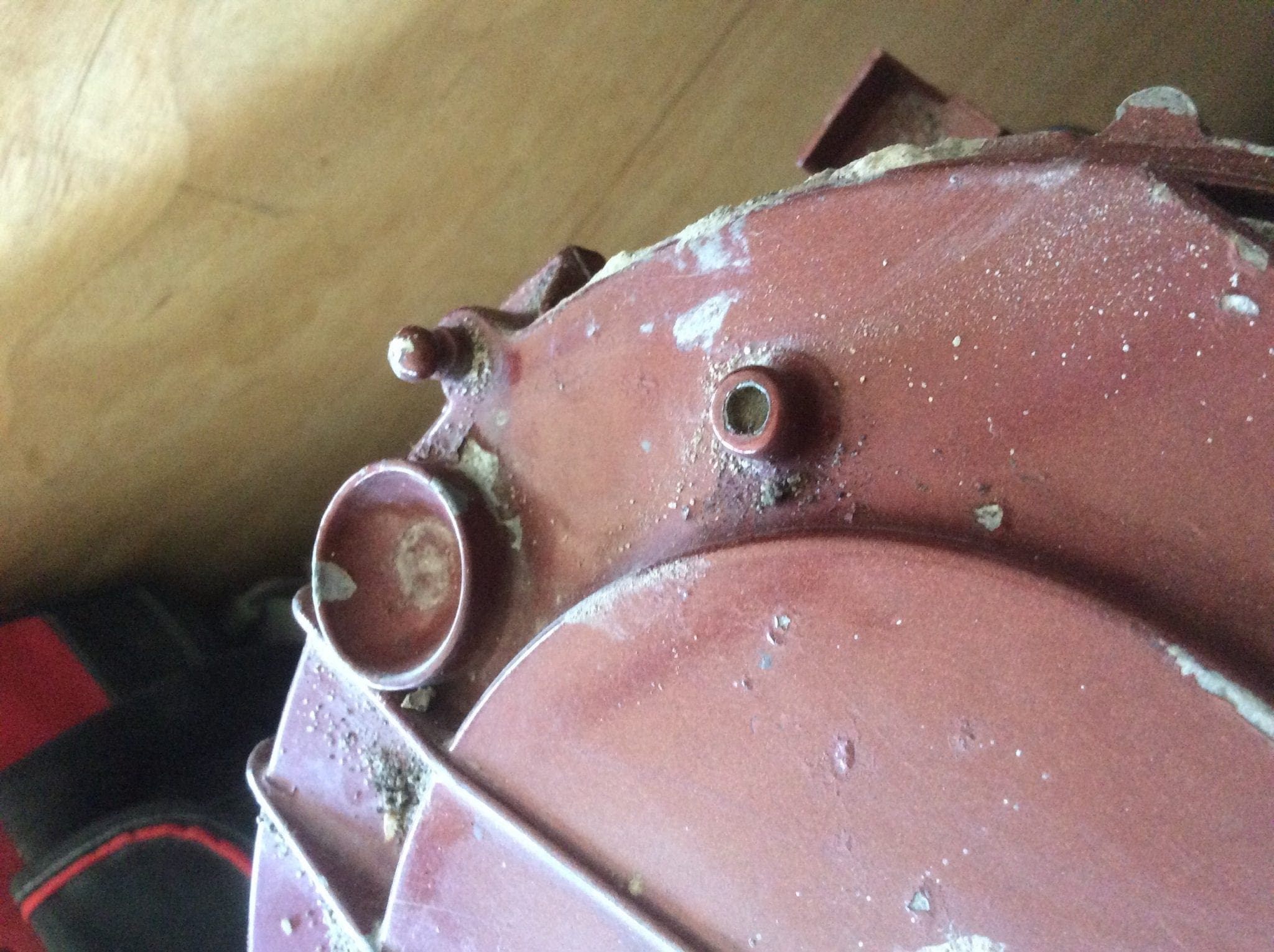

There should be a little knob sticking up on your request to Winder and you press the little hole on the other end on the knob

Rotary valve Johnson’s Rule!
- This reply was modified 4 years, 11 months ago by Mumbles.
May 24, 2019 at 12:39 pm #175899
creekrunner
Participant
my recoil is different…
- This reply was modified 4 years, 11 months ago by Mumbles.
May 24, 2019 at 1:42 pm #175904
frankr
Participant
US Member
Does your rubber strap have a wire hook in it? Perhaps your part isn’t really a 376432. I’m thinking the hook goes in a hole on the starter.
- This reply was modified 4 years, 11 months ago by frankr.
- This reply was modified 4 years, 11 months ago by Mumbles.
May 24, 2019 at 7:08 pm #175936
Mumbles
Participant

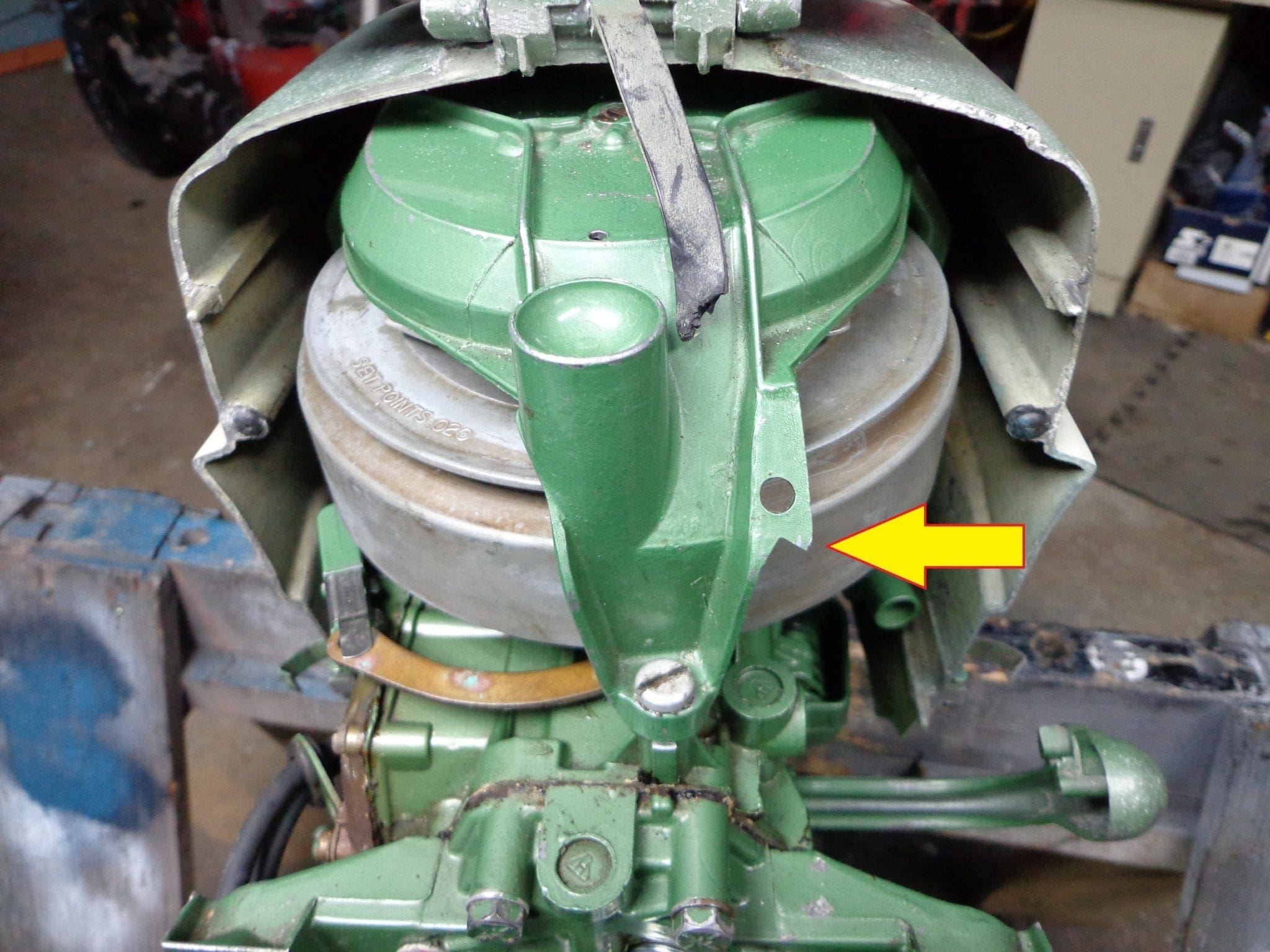

The strap in this photo is broken but there is a stiff wire hook which goes on the end of it and it hooks onto a tang on the starter housing.
May 24, 2019 at 7:20 pm #175943
creekrunner
Participant

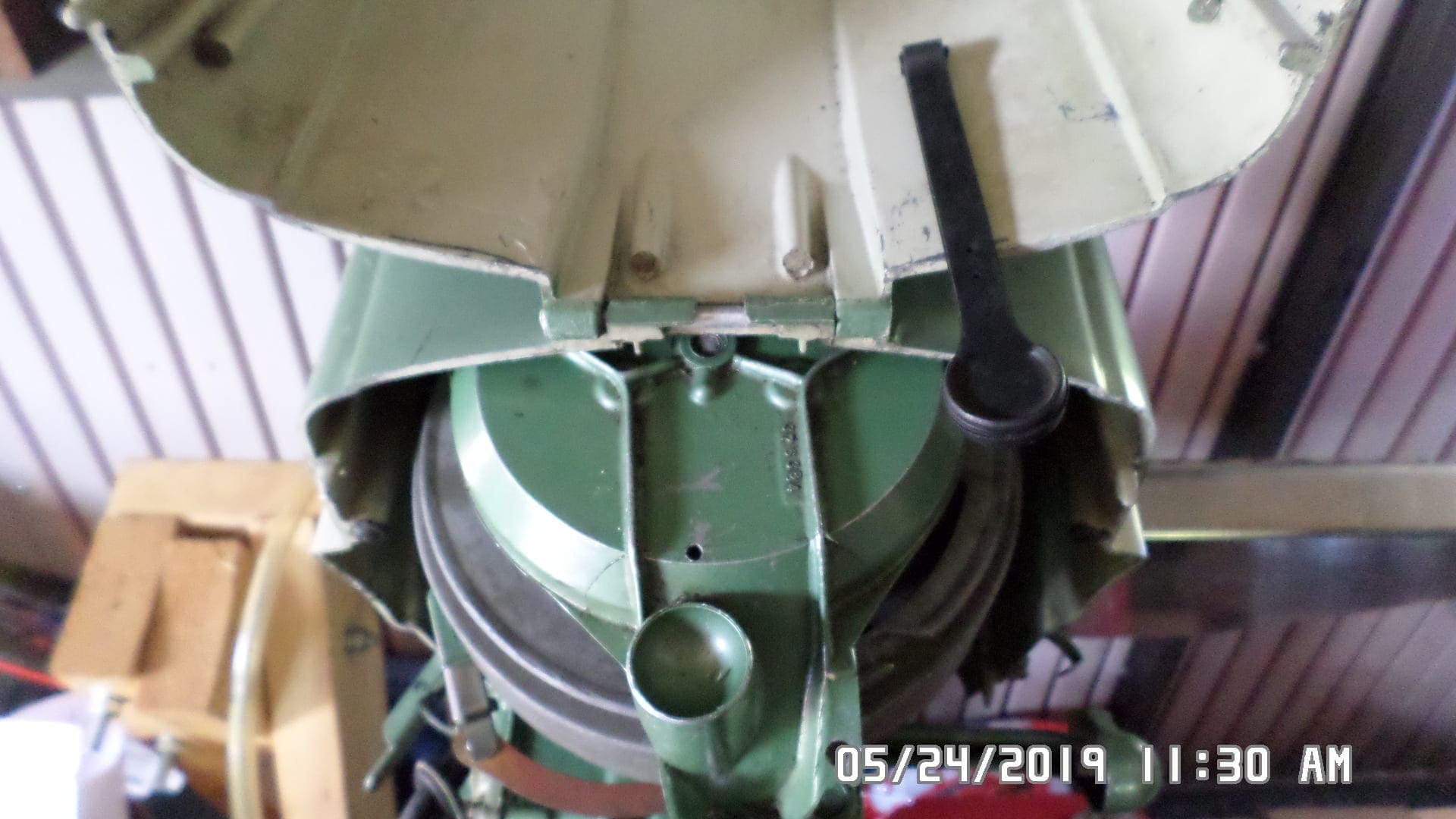

No, there’s no wire …strap that I have is shown in the pic I provided and as shown in the parts list…….but I can fabricate something that will work.
Thanks guys……..
