Topic: 1955 Evinrude 7.5 extra water tube? – Antique Outboard Motor Club,Inc

This topic has 6 replies, 5 voices, and was last updated 4 years, 1 month ago by russ.

Viewing 7 posts - 1 through 7 (of 7 total)

Author

Posts
April 5, 2020 at 9:57 am #199231
russ
Participant

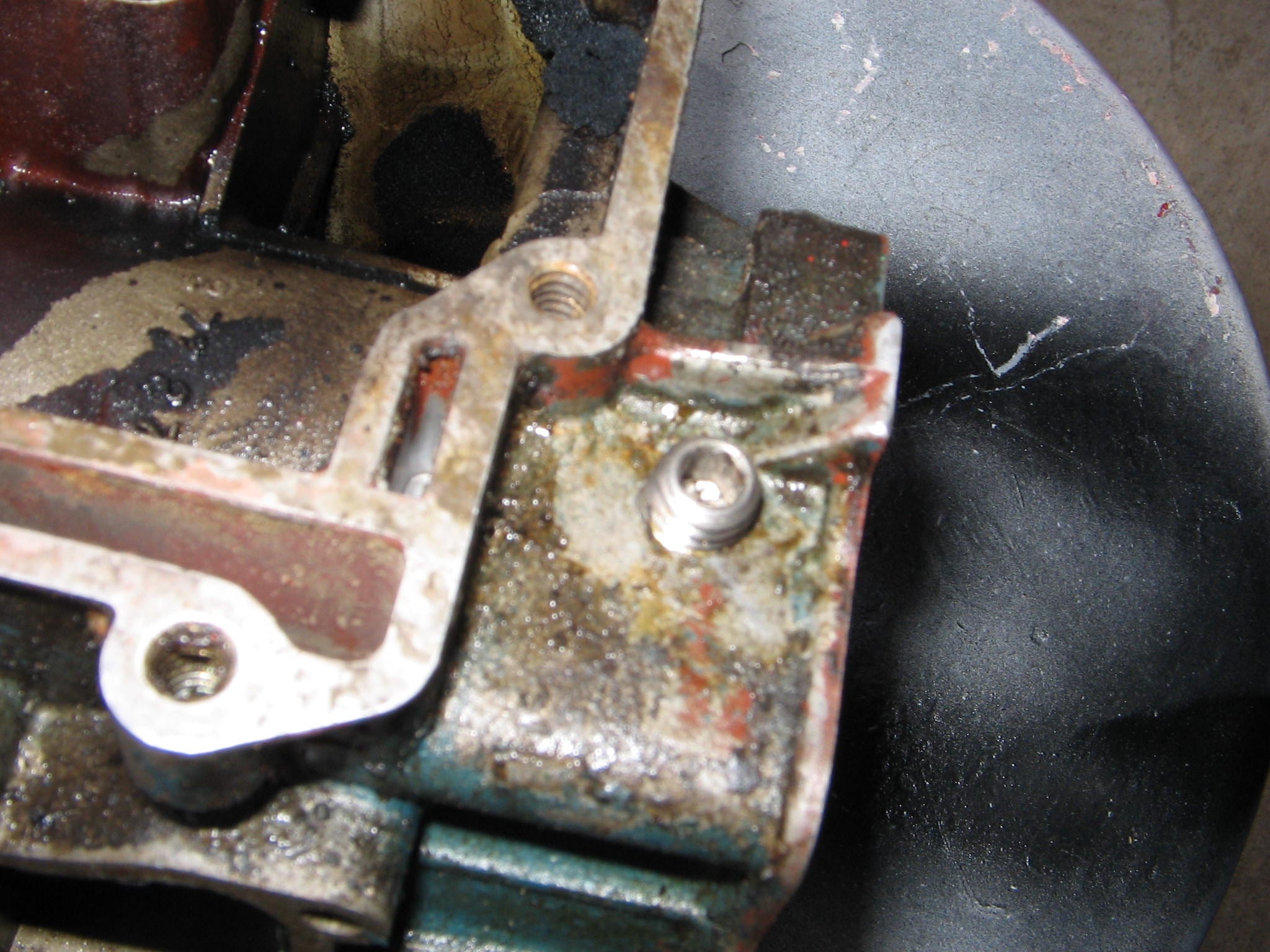

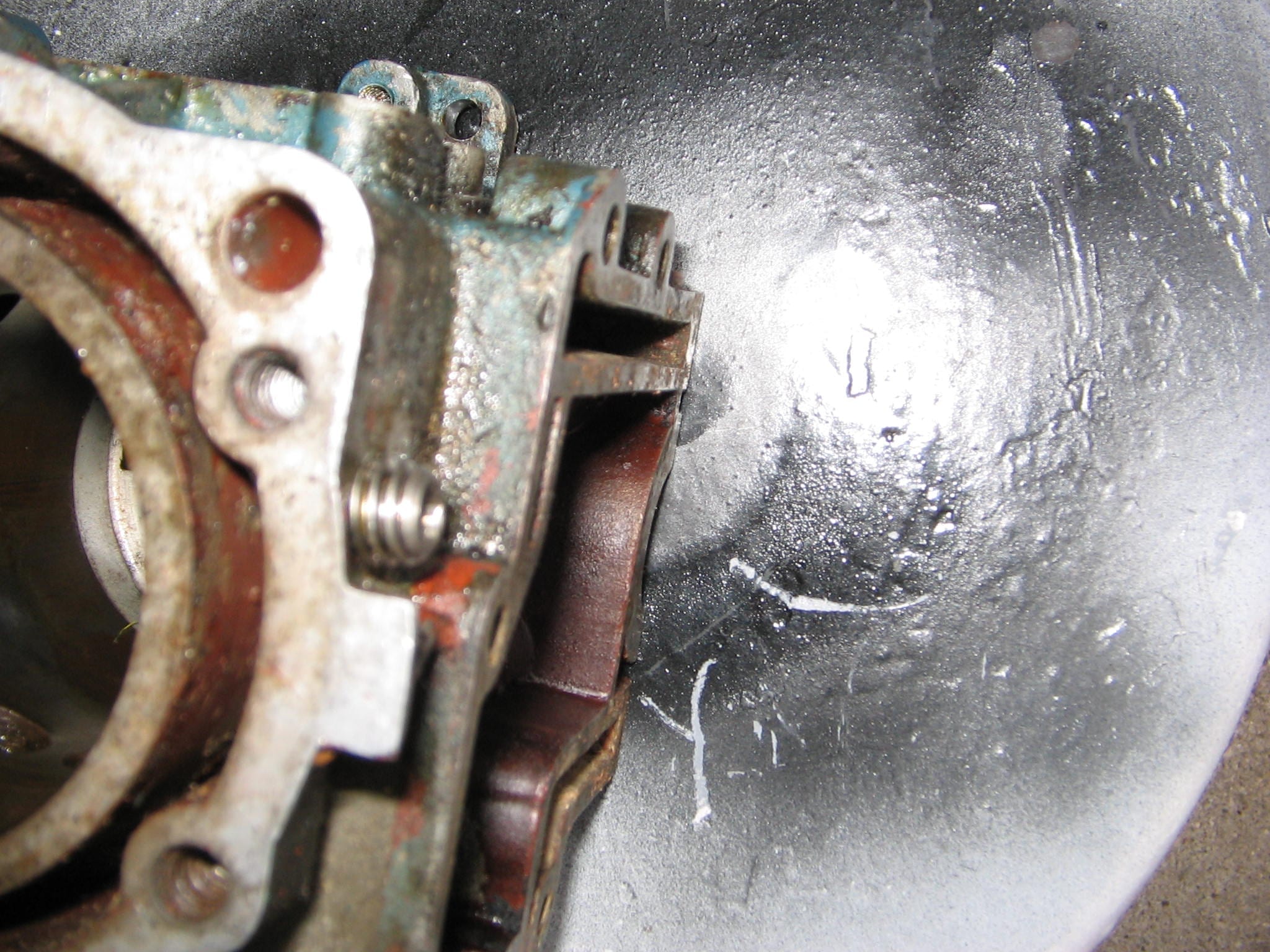

I pulled this motor apart because the pistons were both stuck.Do not know if this was the problem.Previous owner maybe wanted to keep it cooler. My question is it feasable or worthwhile to to clean this all up and and put back together with extra water jacket. Or is it possible to fix casing. Thanks for help Russ….
- This topic was modified 4 years, 1 month ago by Mumbles.
April 5, 2020 at 11:29 am #199244
seakaye12
Participant
US Member
Was a PO trying to add a tell-tale?
April 5, 2020 at 12:09 pm #199248
Mumbles
Participant
The block looks OK so I’d just clean it up and put some sealer on the threads and screw the plug back in and call it a day.
April 5, 2020 at 12:23 pm #199252
russ
Participant

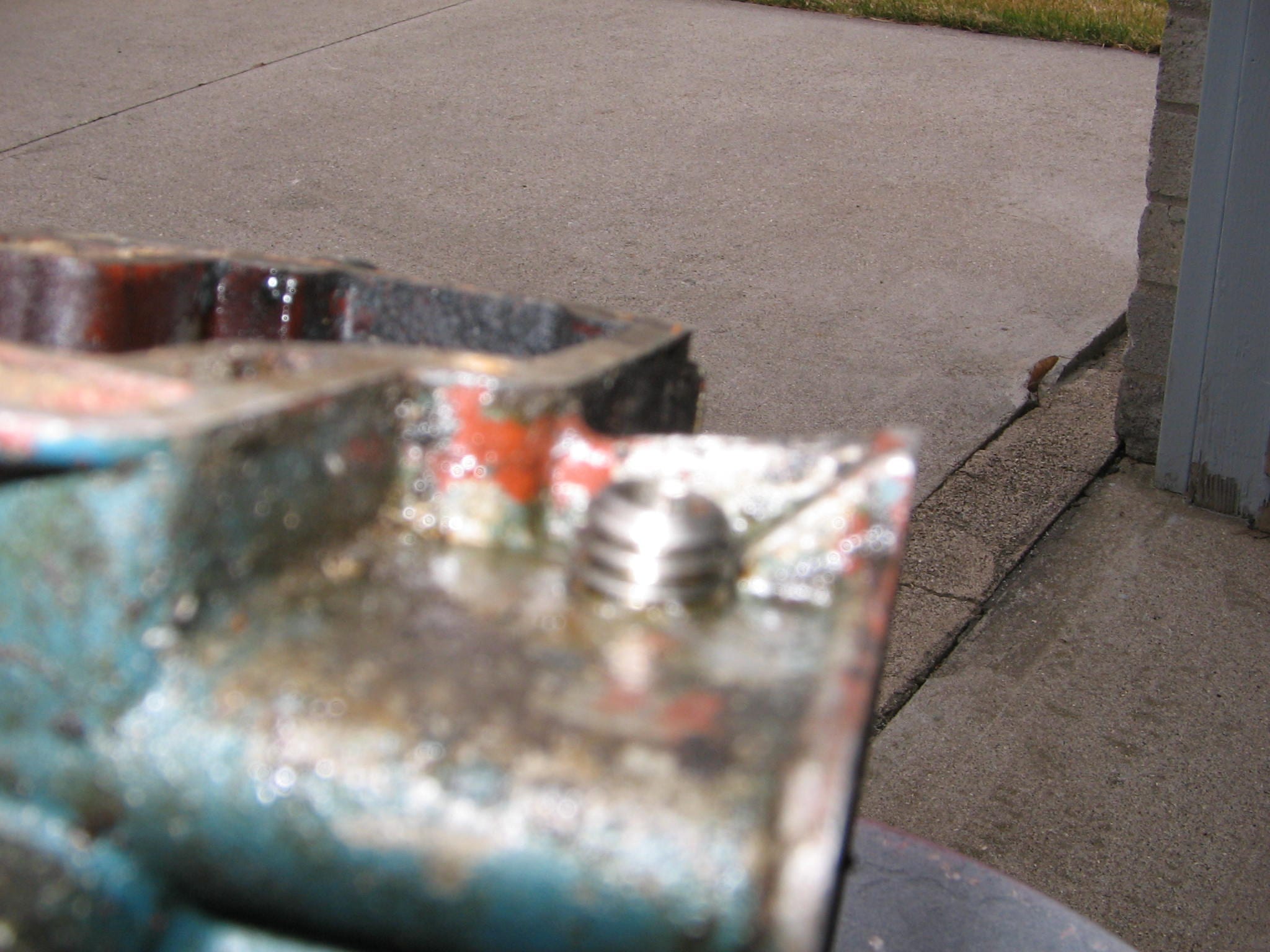

This is threaded into the block and is hollow. Looks like someone wanted to let more water in .I would like to put motor back together but do not know if I should remove this threaded tube or just leave it the way it is. Russ.
April 5, 2020 at 1:13 pm #199254
crosbyman
Participant
Canada Member - 2 Years
assuming the normal cooling water flow is ok !! just plug it with a short bolt (stainless) with blue locktite … and don’t worry about it …get that trolling wonder going asap. 🙂

choose proper base gasket they look a like !!

Joining AOMCI has priviledges 🙂
April 6, 2020 at 7:25 am #199319
fleetwin
Participant
US Member - 2 Years
russ wrote:

This is threaded into the block and is hollow. Looks like someone wanted to let more water in .I would like to put motor back together but do not know if I should remove this threaded tube or just leave it the way it is. Russ.

Russ, I am wondering why you are saying/thinking “someone wants to let more water in….” The hollow screw lets more water out of the block, unless I am missing something in the pictures, I’m guessing someone was trying to make some sort of overboard cooling telltale. That hole in the screw seems a bit too large and could compromise the cooling system a bit. If it were mine, I would plug the hole….
April 6, 2020 at 7:32 am #199321
russ
Participant
Thanks you all I am going to clean this up and plug it…
