Home Forum Ask A Member 1956 Evinrude Sportwin 10

Viewing 10 posts - 1 through 10 (of 10 total)
  • Author
    Posts
  • #217961
    chuckw
    Participant

      US Member - 2 Years

      My collection consists of Mercs, but I have a 56 Evinrude I had as a kid and want to replace the front carry handle which was broken. Does anyone have a parts diagram I can see to figure out how to remove the power head to get at the handle. (I assume I have to remove the power head). Thanks for any help.
      Chuck Webster
      Arlington, VT

      #217975
      Buccaneer
      Participant

        US Member - 1 Year (includes $3 online payment fee)

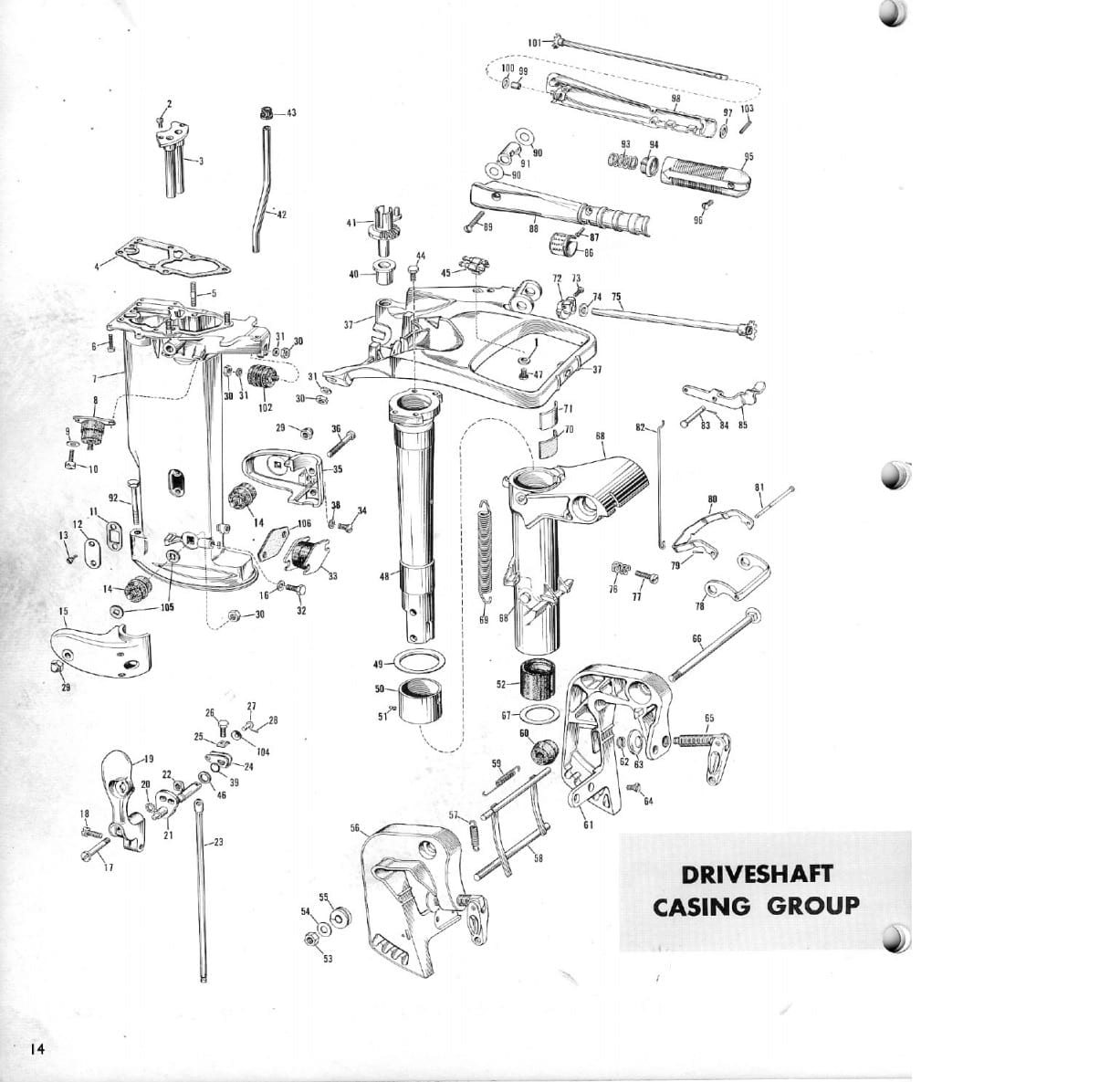

        This is a 56 Johnson QD 10 hp. Same thing??

        56-Johnson-QD-handle

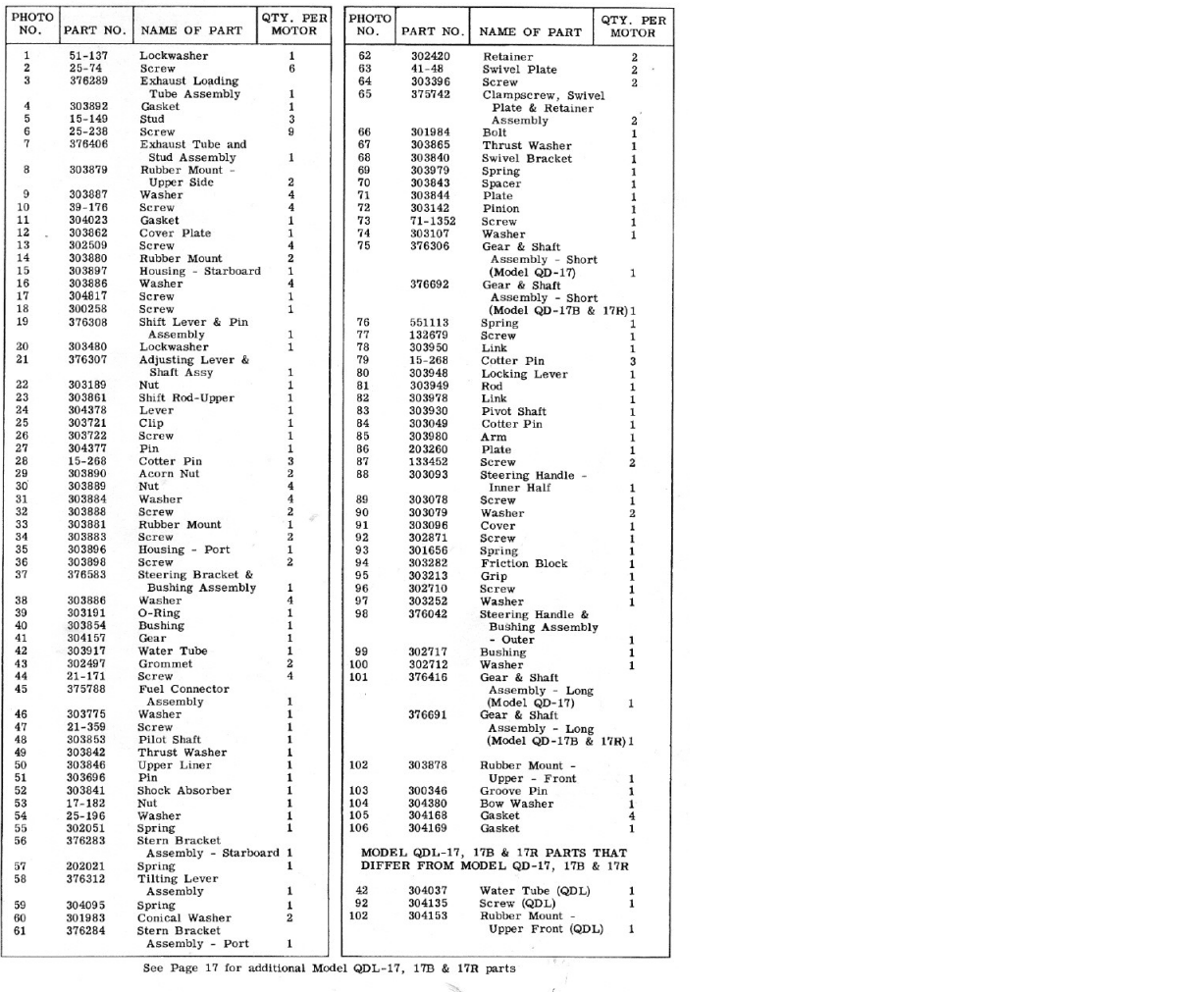

        56-Johnson-QD-handle-partys-list

        Prepare to be boarded!

        #217978
        fleetwin
        Participant

          US Member - 2 Years

          Well the good news is that you do not have to remove the powerhead to replace the steering handle. The bad news is that you have to be very careful not to break the upper and lower mounts when you disconnect them.
          There are mounts on either side just below the engine pan, and one hidden inside the steering handle under the forward engine pan. You can remove this pan without much trouble if you feel it will give you more access to the mount.
          There are mounts behind those clamshell covers just above the gearcase.
          Once the clamshell covers are removed along with the nuts holding the mounts, the powerhead/midsection/gearcase can be removed from the transom bracket/swivel housing…There are four bolts that hold the steering handle to the swivel tube. D

          #218156
          chuckw
          Participant

            US Member - 2 Years

            Thanks i have no luck getting the tower lowered. I have the power head off. There are two bolts on the steering handle that are impossible to reach.

            #218159
            fleetwin
            Participant

              US Member - 2 Years

              Don’t understand “no luck getting the two lowered….”. Are you referring to the steering handle, or the tiller handle? You removed the powerhead so there is no need to pull all the mounts apart now because you can easily get at the four bolts holding the steering handle (#37 376583), and removing the nuts from the three upper mounts. Use the diagram posted to tell us what screws you are having trouble with….D

              #218169
              chuckw
              Participant

                US Member - 2 Years

                I will try to post some pics soon, Thanks again.

                #218170
                frankr
                Participant

                  US Member - 1 Year (includes $3 online payment fee)

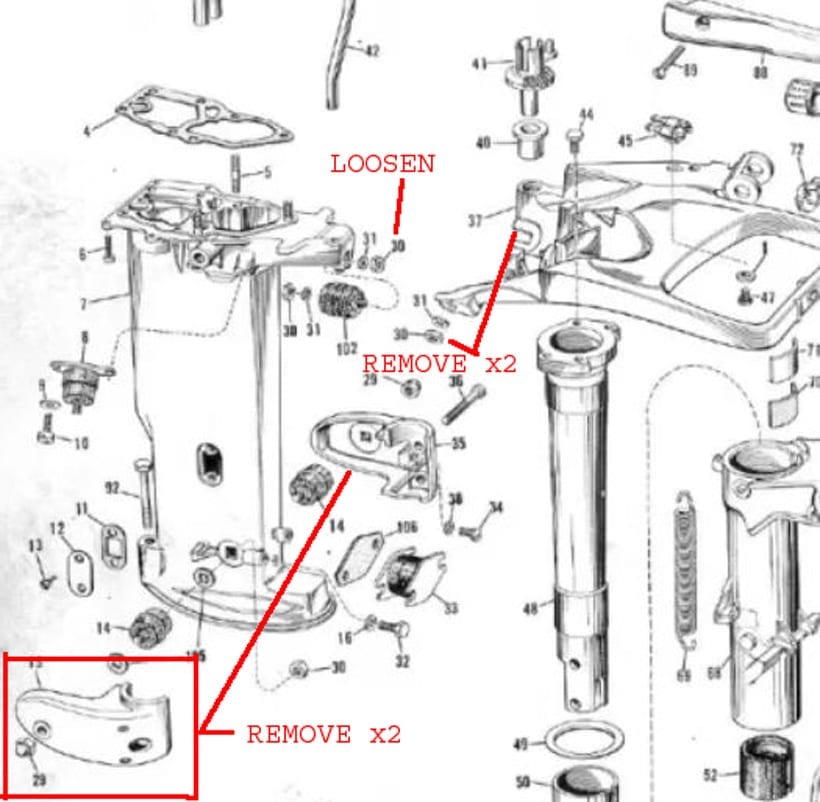

                  Do this——-(Powerhead removal was not necessary)

                  10hp-steering-bracket

                  #218287
                  billw
                  Participant

                    US Member - 2 Years

                    You’re a Merc guy? Heck, you should be able to do THIS operation with one hand tied behind your back!

                    Long live American manufacturing!

                    #218305
                    Mumbles
                    Participant

                      Two more screws on the lower mount, #34 in Franks diagram, have to be removed to before the covers will come off.

                      #218322
                      chuckw
                      Participant

                        US Member - 2 Years

                        Thanks for all the help and the diagrams. I got the steering bracket on and the tower back on. I checked the impeller, so now it is getting the gear foot on and then the powerhead, etc. (I appreciate the help, but most of my two cylinder Mercs are not as complicated. LOL)
