1956 Johnson 10 hp QD-18

Home › Forum › Ask A Member › 1956 Johnson 10 hp QD-18

Viewing 5 posts - 1 through 5 (of 5 total)
  • Author
    Posts
  • June 21, 2019 at 3:56 pm #177716
    jukeboxtim
    Participant

      Having a hard time figuring out where the spring on the cam follower connects to. I have it hooked to cam follower ok but don’t see where the other end connects .Photos would help. Thanks Tim

      • This topic was modified 6 years, 11 months ago by jukeboxtim.
      June 21, 2019 at 5:17 pm #177718
      Bob Wight
      Participant

        US Member

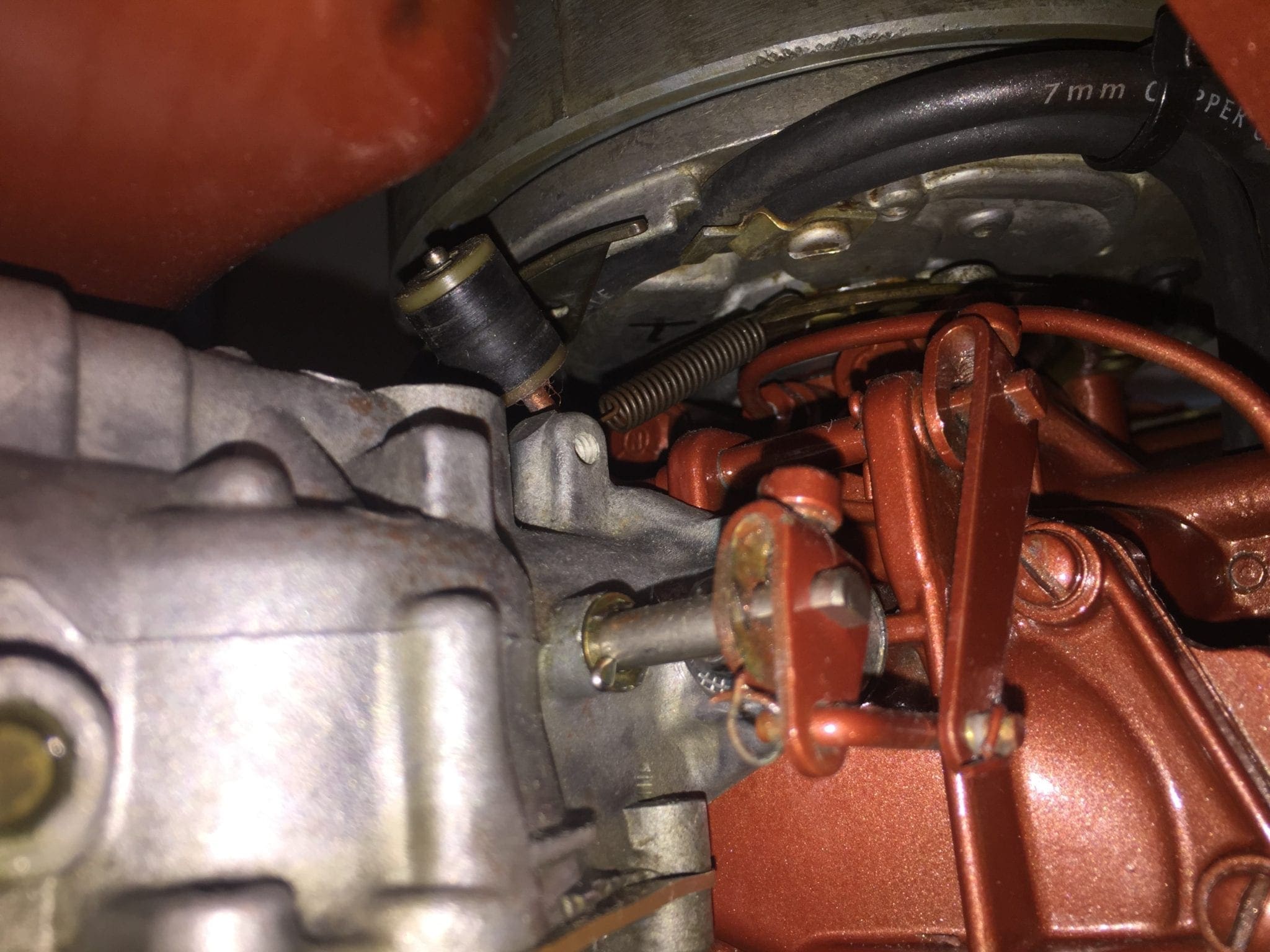

        A 1956 model would be a QD-17, so not sure if you have a QD-17 or QD-18. The cam follower spring on my 1958 10hp hooks to the magneto support plate (the brass ring under the mag plate). Photo included here.

        IMG_5503

        Bob

        1937 Champion D2C Deluxe Lite Twin
        1954 Johnson CD-11
        1955 Johnson QD-16
        1957 Evinrude Fastwin 18
        1957 Evinrude 3022
        1958 Johnson QD-19
        1958 Johnson FD-12
        1959 Johnson QD-20
        1982 Evinrude 25hp

        “Every 20 minute job is only a broken bolt away from a 3-day project.”
        "Every time you remove a broken or seized bolt an angel gets his wings."

        • This reply was modified 6 years, 11 months ago by Mumbles.
        1 user thanked author for this post.
        Stewart Mayer
        June 21, 2019 at 5:53 pm #177721
        jukeboxtim
        Participant

          Bob. Thanks for the quick response and great photo this helps greatly. Thanks Tim

          May 12, 2026 at 3:45 pm #318532
          Stewart Mayer
          Participant

            US Member

            Bob, I know this thread is many years old, but I wanted to say thank you.  Your photo above helped me solve my “where does that spring attach” question.  Very helpful.  Have a great week!

            May 12, 2026 at 8:49 pm #318563
            Bob Wight
            Participant

              US Member

              Stewart – no problem, glad I could be of help.   I’ve certainly had lots of questions over the years that other members have answered for me.

              Bob

              1937 Champion D2C Deluxe Lite Twin
              1954 Johnson CD-11
              1955 Johnson QD-16
              1957 Evinrude Fastwin 18
              1957 Evinrude 3022
              1958 Johnson QD-19
              1958 Johnson FD-12
              1959 Johnson QD-20
              1982 Evinrude 25hp

              “Every 20 minute job is only a broken bolt away from a 3-day project.”
              "Every time you remove a broken or seized bolt an angel gets his wings."
