  • August 4, 2017 at 12:48 pm #7820
    Steve D
    Participant

      The 10th Edition Service Manual doesn’t cover this year. I checked Seloc and Clymer and they both give different pick-up locations. Seloc says the follower should be on the starboard side of the mark. Clymer says the starboard edge of the follower should align with the mark. Anybody have the correct setting from the Johnson manual? Thanks.

      August 4, 2017 at 7:08 pm #62592
      garry-in-michigan
      Participant

        Lifetime Member

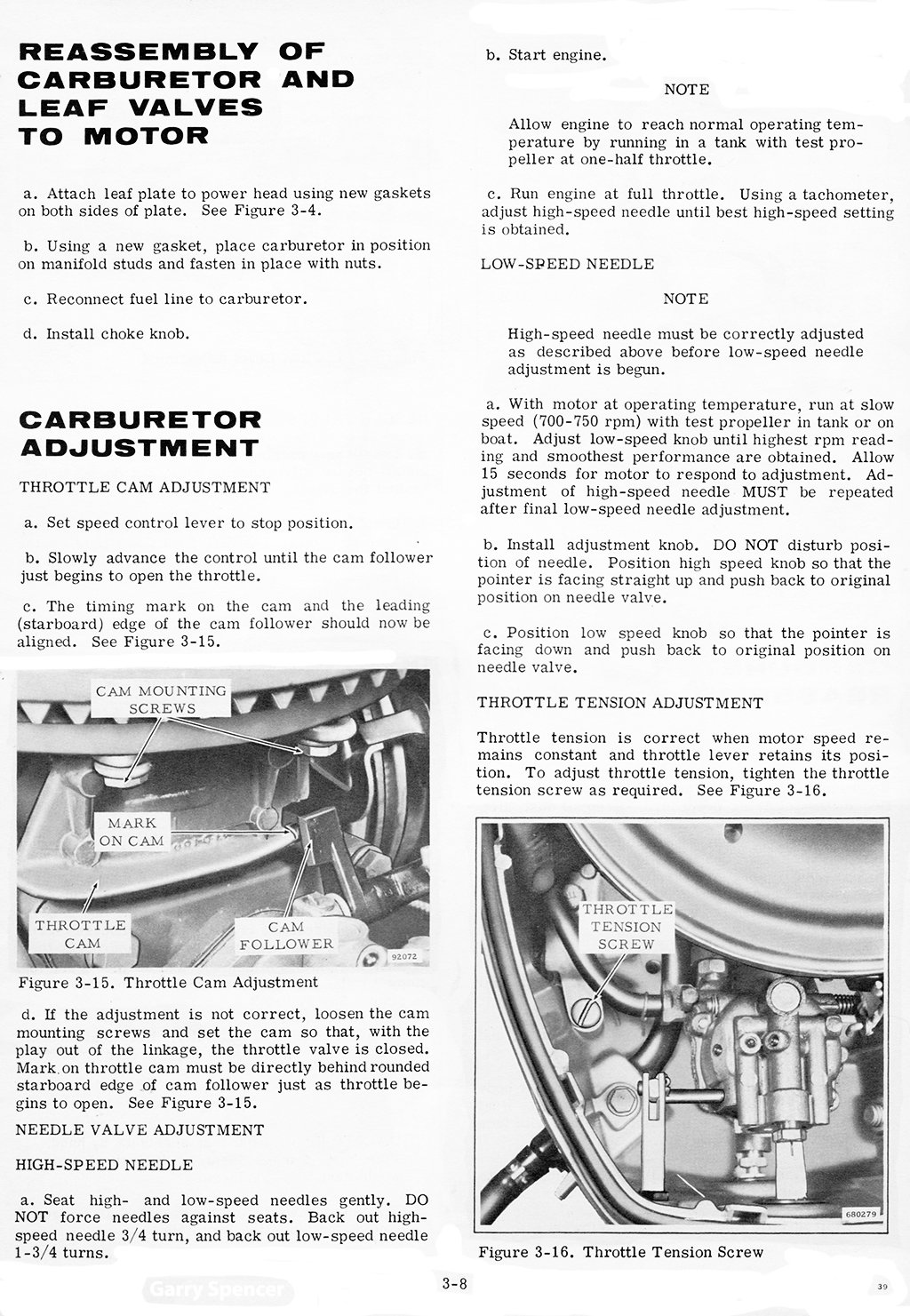

        From the 1969 four horse Johnson service manual . . . 😆

        August 4, 2017 at 7:26 pm #62593
        Steve D
        Participant

          Garry in Tampa comes through again! (It looks like Clymer was right). Thanks Garry.
