5.5hp Johnson CD question

Home Forum Ask A Member 5.5hp Johnson CD question

Currently, there are 0 users and 1 guest visiting this topic.
Viewing 11 posts - 1 through 11 (of 11 total)
  • Avatar
    ddwilson

    US Member - 2 Years
    Replies: 234
    Topics: 29
    #1000

    Just started working on a 1959 CD-16 I have had in storage for a while. When I started it
    just to see if it would start (3rd pull) looks like upper crank shaft seal is leaking (only set for 20yrs because lower unit leaking) Do you have to crack the case to change the seal or is there a way to pull it without taking the whole motor apart. I am completely resealing the lower unit and replacing the lower seal which sets under the motor.
    Doug

    Doug

    how is it motors multiply when the garage lights get
    turned off?

    Avatar
    garry-in-michigan

    Lifetime Member
    Replies: 3567
    Topics: 31
    #12588

    There is no seal as such on those models. A slinger ring throws the oil which seeps past the bushing into a slot above the bushing where it is then pulled back into the intake manifold. If the passage into the manifold gets plugged, the magneto gets flooded with oil.


    . . . . . 😉

    Avatar
    ddwilson

    US Member - 2 Years
    Replies: 234
    Topics: 29
    #12591

    Thanks Gary will take things apart and check it out has been in storage waiting on me to reseal the lower unit for about 20 yrs surprised me that it started on the third pull before even looking at the points and carb

    Doug

    how is it motors multiply when the garage lights get
    turned off?

    Mumbles
    Mumbles

    Canada Member - 2 Years
    Replies: 4453
    Topics: 258
    #12604
    quote ddwilson:

    Thanks Gary will take things apart and check it out has been in storage waiting on me to reseal the lower unit for about 20 yrs surprised me that it started on the third pull before even looking at the points and carb

    That’s a Johnson for you!

    Reliability and dependability built into each one!

    Avatar
    tom-c


    Replies: 94
    Topics: 34
    #12605

    I just acquired a ’56 Johnson CD-13. I’m sure it will need all the usual stuff, coils, points, carb kit etc. But the steering damper is totally loose and the adjustment screw is tightened all the way. What do I need to do to tighten up the steering?

    Mumbles
    Mumbles

    Canada Member - 2 Years
    Replies: 4453
    Topics: 258
    #12607

    That problem calls for a bit of a teardown.

    The powerhead, mid section and gear case can easily be removed as one unit before you can remove the swivel tube. Once the tube is out, you can get at the brass plate and rubber piece which push on the fibre top bushing. It’s usually the rubber piece which is worn causing the loose steering. I cut replacements out of a sheet of neoprene type material and clean and regrease everything while it’s apart. A piece of inner tube has worked before to.

    Steve D
    Steve D


    Replies: 566
    Topics: 57
    #12638

    I have a swivel bracket from a 1956 Evinrude 7-1/2 HP. I compared a few of the numbers with the CD-13 and they look to be the same. I think the parts Mumbles is referring to are 56 and 57. I can get the rubber piece out and send it to you or I can send you the whole bracket for the cost of shipping. Maybe you want to keep the extra parts around just in case.

    image hosting free

    upload image

    Avatar
    crosbyman

    Canada Member - 1 Year
    Replies: 1733
    Topics: 205
    #12642

    your a good man Steve D 🙂

    Joining AOMCI has priviledges 🙂

    Avatar
    crosbyman

    Canada Member - 1 Year
    Replies: 1733
    Topics: 205
    #12643

    Ooops forgot to ask… you wouldn’t have a spare 5.5 prop would you 🙂

    Joining AOMCI has priviledges 🙂

    Steve D
    Steve D


    Replies: 566
    Topics: 57
    #12646

    Thanks crosbyman, but no I don’t have that prop. I have a few other parts from 7-1/2 and 5-1/2 that had bad blocks/lower units that I’m parting out. If you need anything I can check.

    Avatar
    tom-c


    Replies: 94
    Topics: 34
    #12702

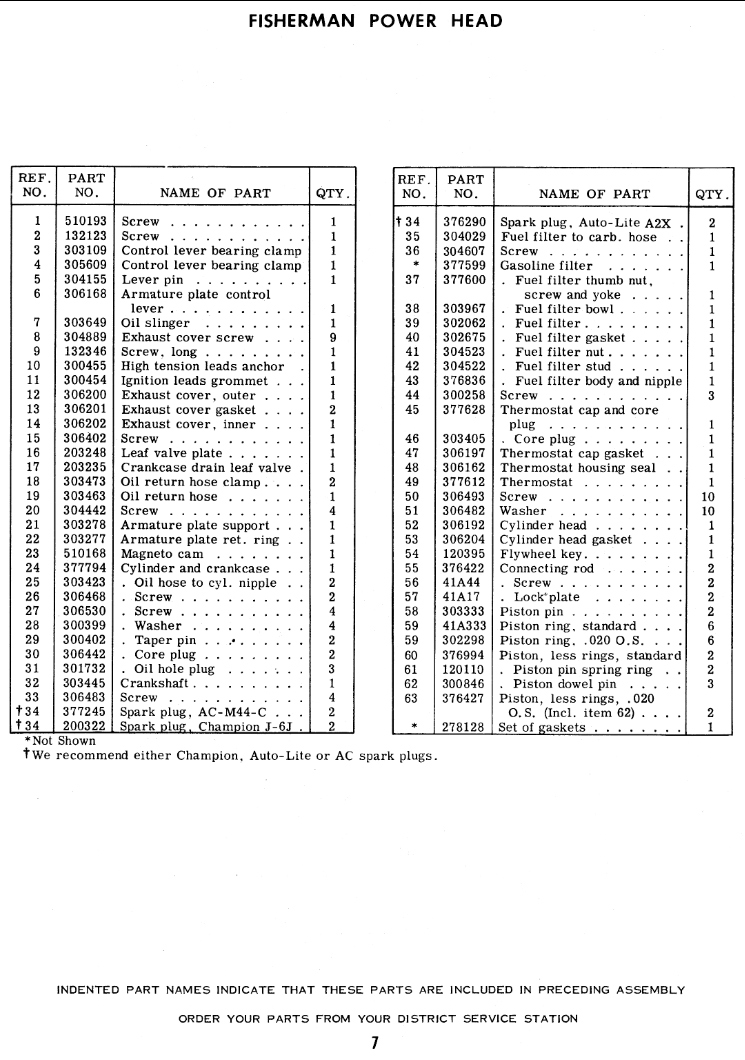

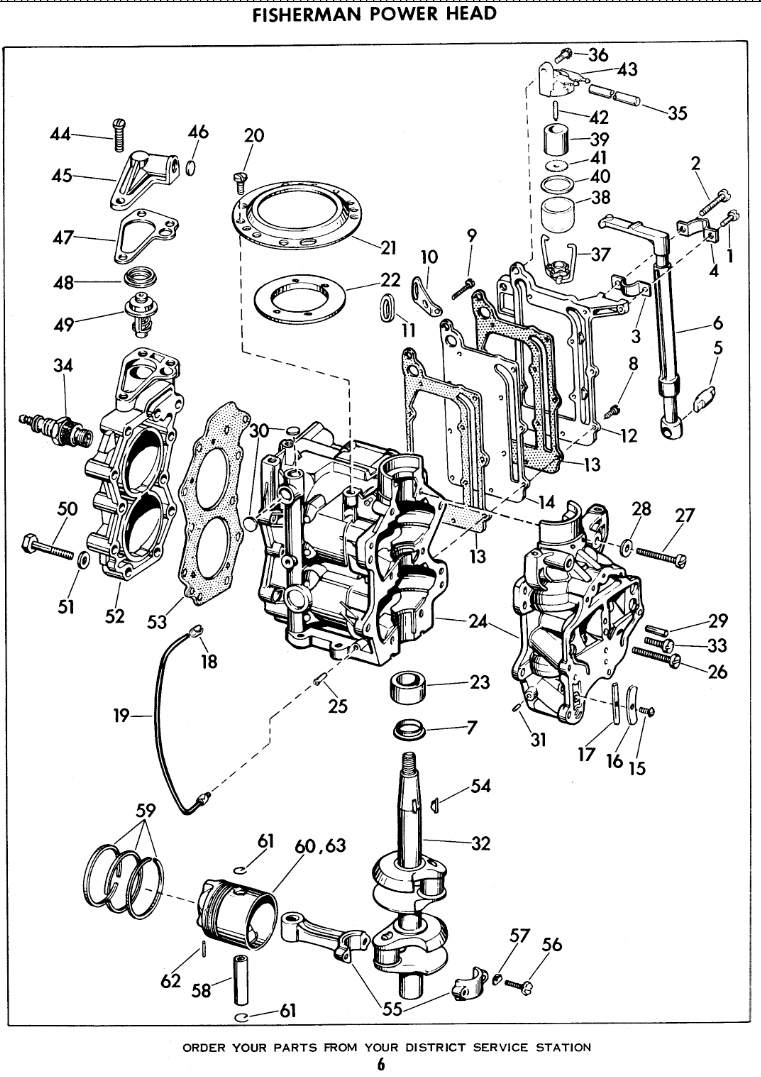

    I appreciate the offer, but let me get it apart first to see what I really need. That parts breakdown is exactly what i needed to see!
