5hp 1949 elto speedster #5101

[Bigo300]

Im in need of a parts list with item number for this model. In specific the coil and lamination. I’ve looked and looked but I can’t find the right parts for the outboard motor.

[Tubs]

I don’t know anything about them. Not a motor with a strong collector interest. There are later coils the can be adapted to work in earlier motors but can’t say if they could be used in yours. Here are 2 links https://www.aomci.org/forums/topic/elto-speedster-1949/ and https://www.aomci.org/forums/topic/1949-elto-sportster-5hp-pros-and-cons/

A "Boathouse Repair" is one thats done without having tools or the skills to do it properly.

[Buccaneer]

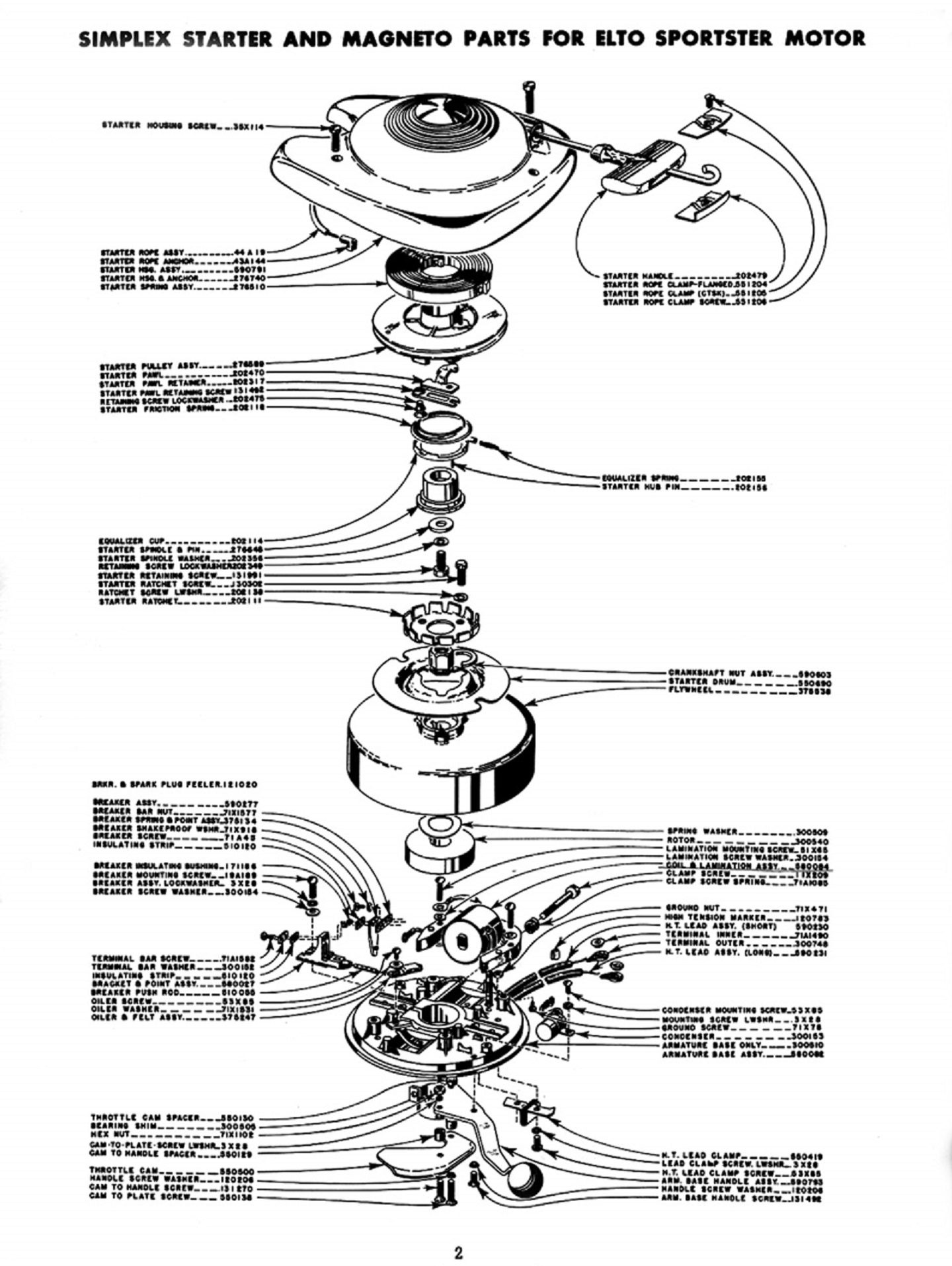

Are you sure it’s not an Elto Sportster 5 hp like in the diagram?
That one appears to be a common “pre-universal” magneto coil,
on many motors from the 1940’s.

Prepare to be boarded!

[MIKE SIMS]

1949 Speedster 5101 is 12 HP

[seakaye12]

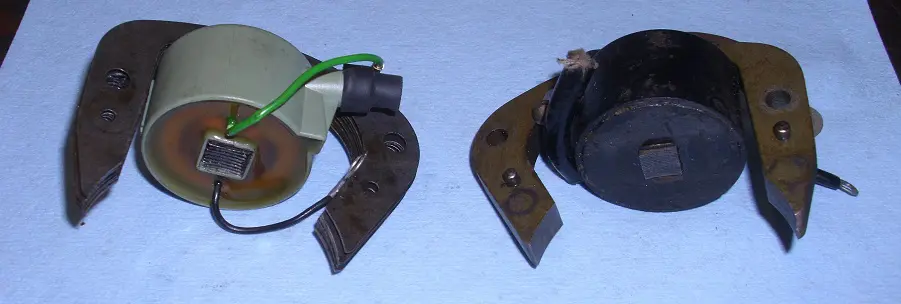

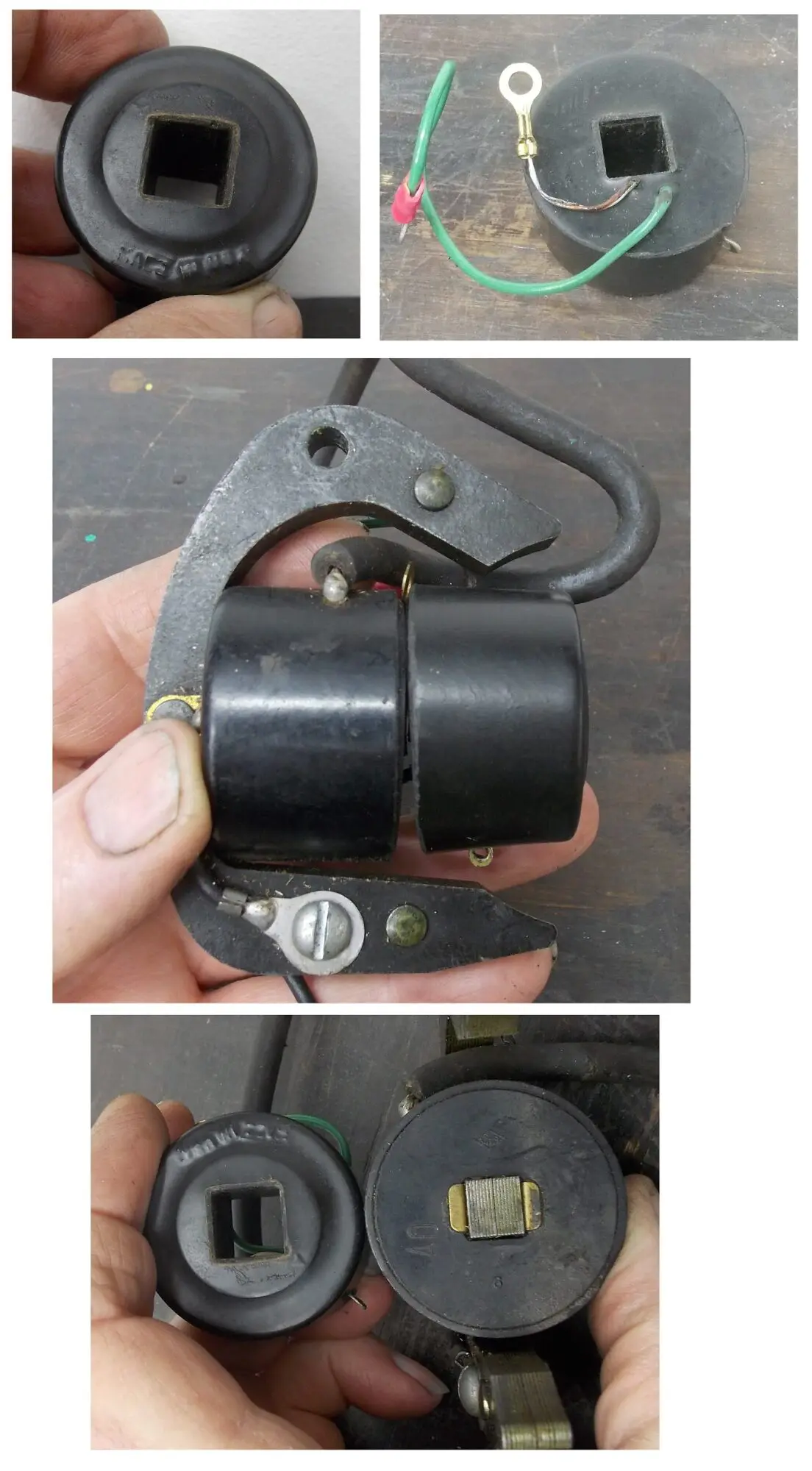

Does it look like these in the picture?



I attached a PDF file from a Member that might help you or others reading here.
