  • October 11, 2019 at 10:38 am #185013
    Good-Fishing
    Participant

      Cranking on the 55′ Evinrude trying to get it to tune in correctly, seems to have loosened up the starter housing somehow. I pulled it off the top and took off the screw in the middle then re tightened it. The spring and rope are fine. Now it will not engage unless the screw is slightly loose. If i tighten it down like it was, the crank wont move. What am I missing here? Feel free to respond with carb tuning suggestions also I have it running at low rpm just fine, trying to get it running smooth into high speed.
      Thank You.

      October 11, 2019 at 11:40 am #185019
      fleetwin
      Participant

        US Member - 2 Years

        OK, well I’m sure someone will chime in with a parts diagram, which will help explain things… I’m not sure I understand what you are saying though. Are you saying that the rope was not retracting fully? Are you saying that when you pulled the recoil rope the starter did not engage with the flywheel?
        Sounds like you didn’t get things lined up properly when you removed/reinstalled the recoil pulley screw, so now you can’t pull the rope out at all without loosening the screw slightly, do I have it correct? I can’ remember if these recoils used a shoulder screw which prevented over tightening….Or, if you simply tightened the screw “just snug enough to hold everything in place but allow the pulley to rotate freely”….The nut on top of the recoil was then tightened to keep the screw in place…
        Like I say, someone will chime in with a parts diagram…

        October 11, 2019 at 12:19 pm #185026
        Good-Fishing
        Participant

          When i originally removed it the screw was very tight but the pressure plate underneath holding the rope was a little loose.Leading to a hard start. So I loosened the screw then re tightened it and it wont allow me to pull it with it fully tightened down.

          October 11, 2019 at 12:24 pm #185028
          frankr
          Participant

            US Member

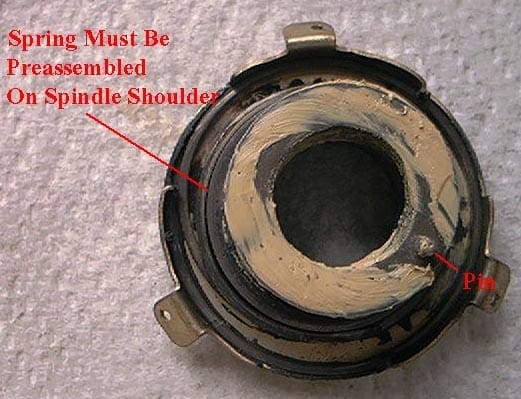

            Ha, good-fishing, I knew what you were going to say before even reading through it. The equalizer spring must be pre-assembled onto the shoulder of the spindle before inserting the spindle into the pulley. If it pops off, you gotta start over.

            Simplex-Starter-Equilizer-Spring

            • This reply was modified 4 years, 6 months ago by frankr.
            October 11, 2019 at 3:14 pm #185054
            garry-in-michigan
            Participant

              Lifetime Member

              The biggest fault of those starters was it being so easy to dislodge the friction spring from its place on the shoulder of the spindle . . . and then there is those tiny equalizer springs , , , Good eyes, steady hands and a tiny needle nosed pliers helps . . .

              October 13, 2019 at 1:57 pm #185191
              Good-Fishing
              Participant

                Thanks Guys! Its back in place!
