  • June 28, 2018 at 1:18 pm #10395
    drifter
    Participant

      Hello all,
      I am just starting work on an Evinrude Fleetwin (1954 model 7514).
      I have a parts manual for the 7518 Fleetwin but am concerned that there may be some p/n differences between the two – especially the lower unit seals.
      Could someone steer me to a 7514 parts manual?
      Thanks,
      Drifter

      June 28, 2018 at 1:35 pm #78609
      frankr
      Participant

        US Member

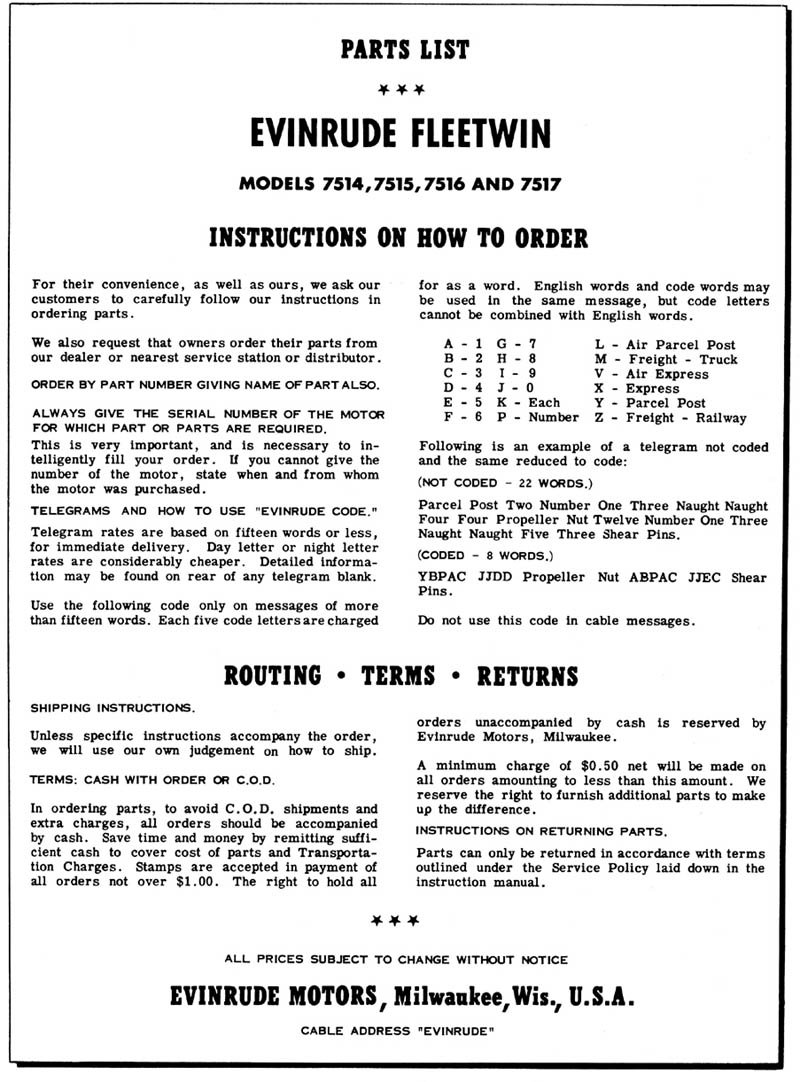

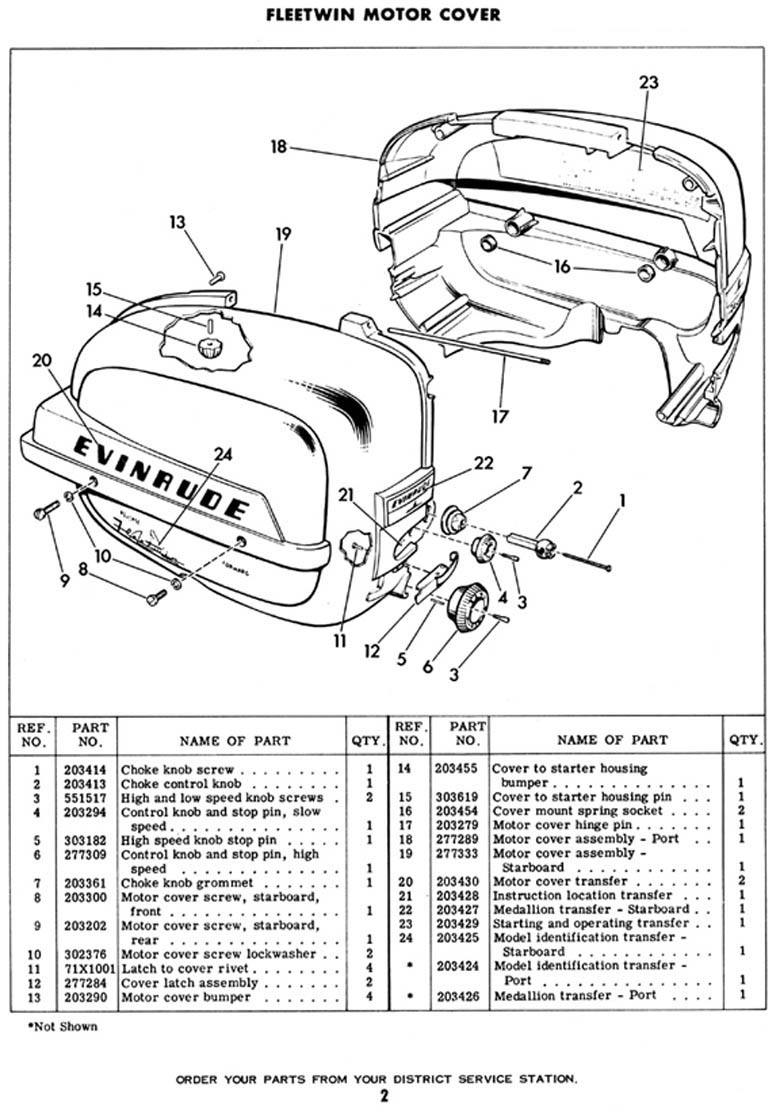

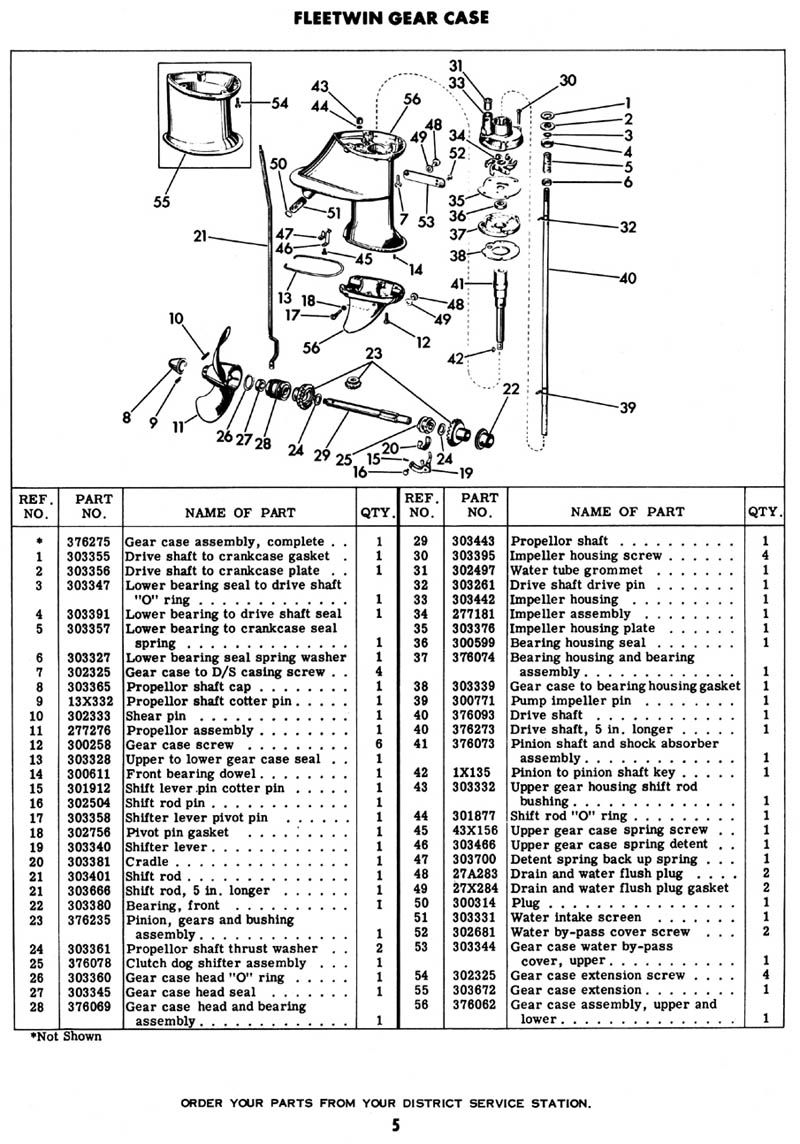

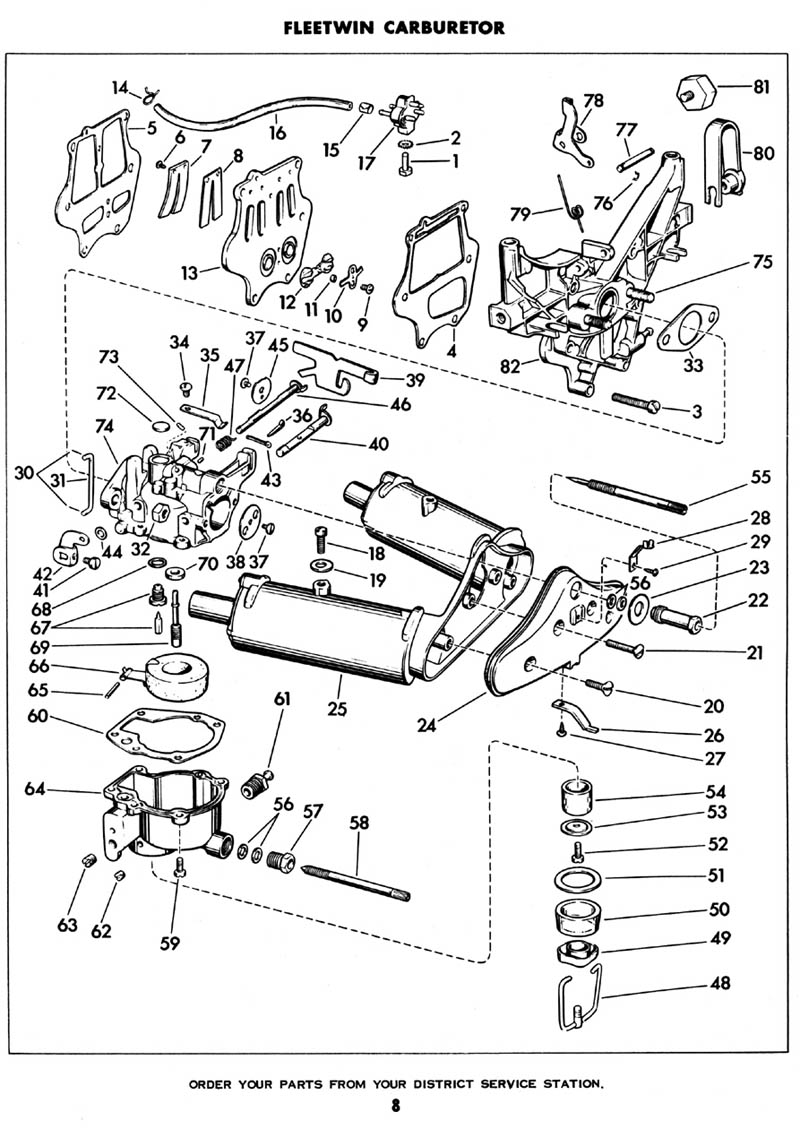

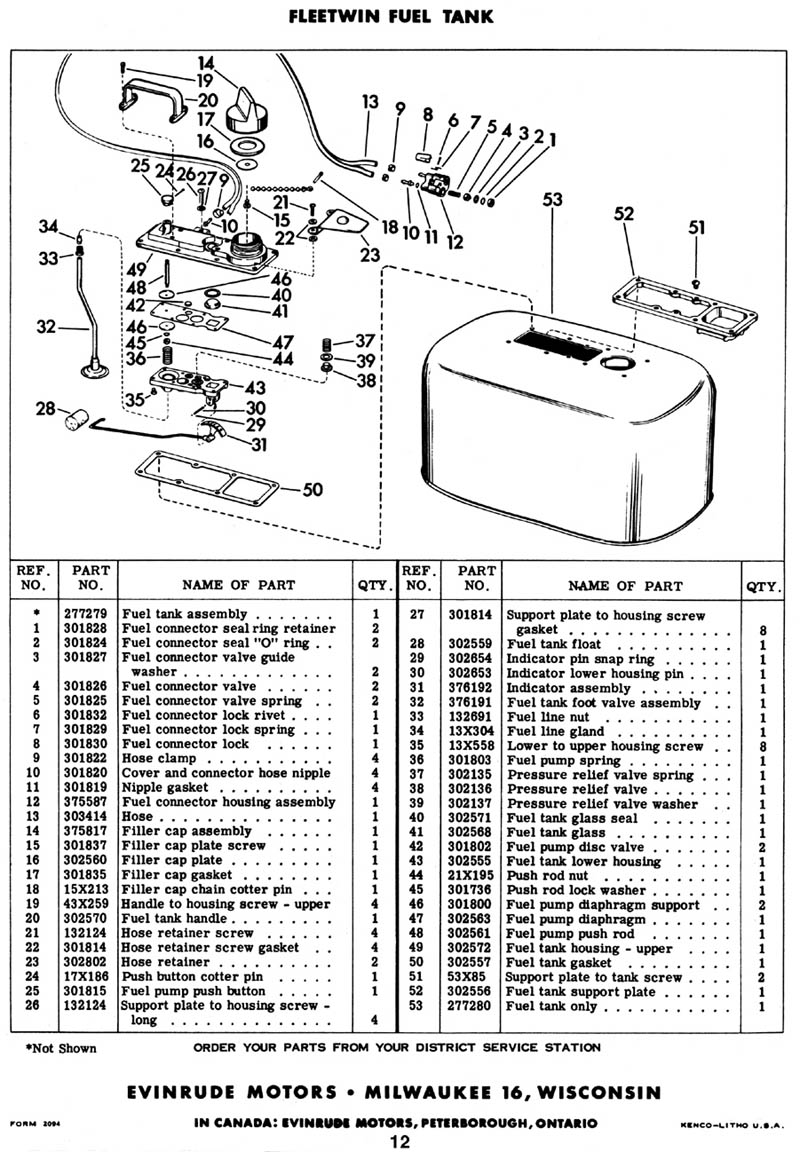

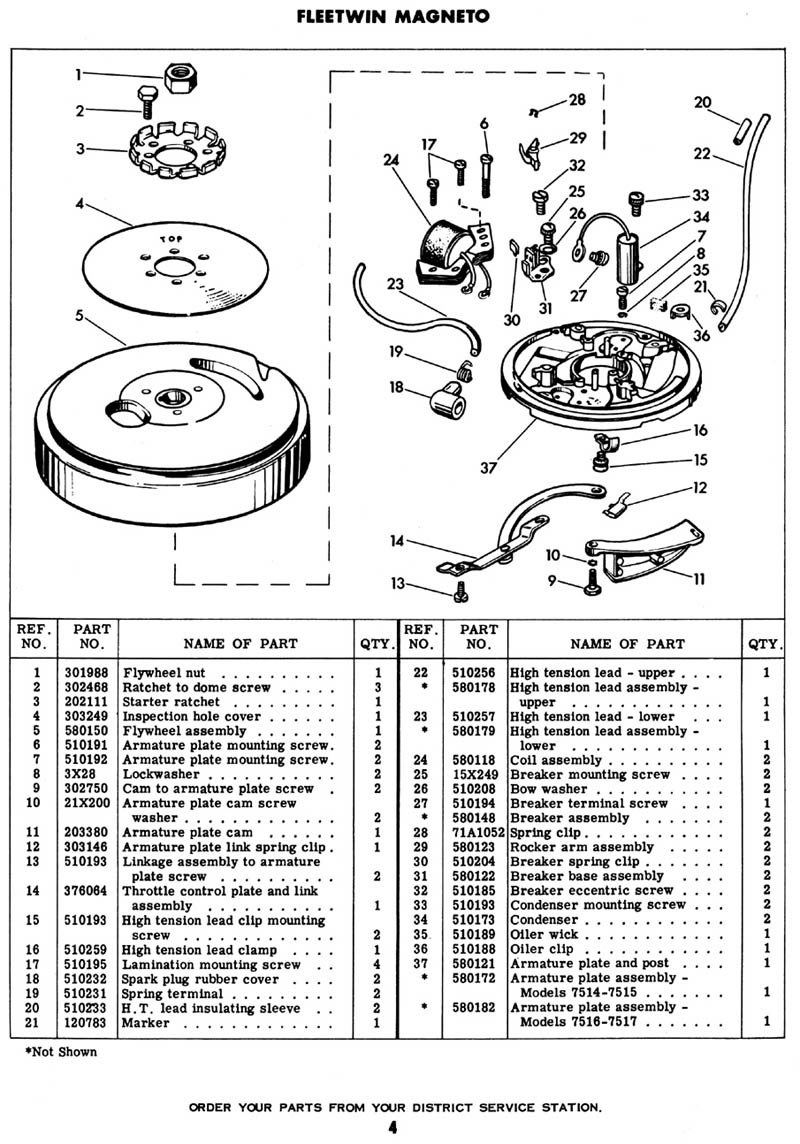

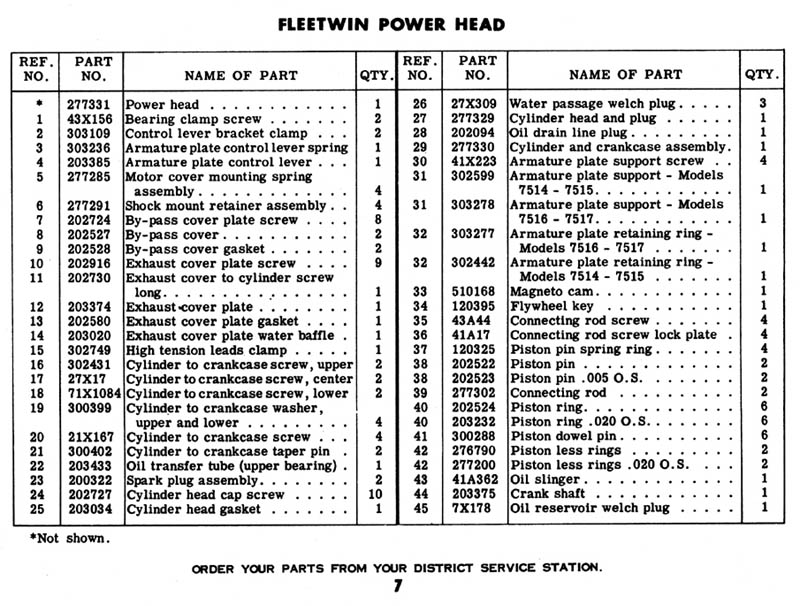

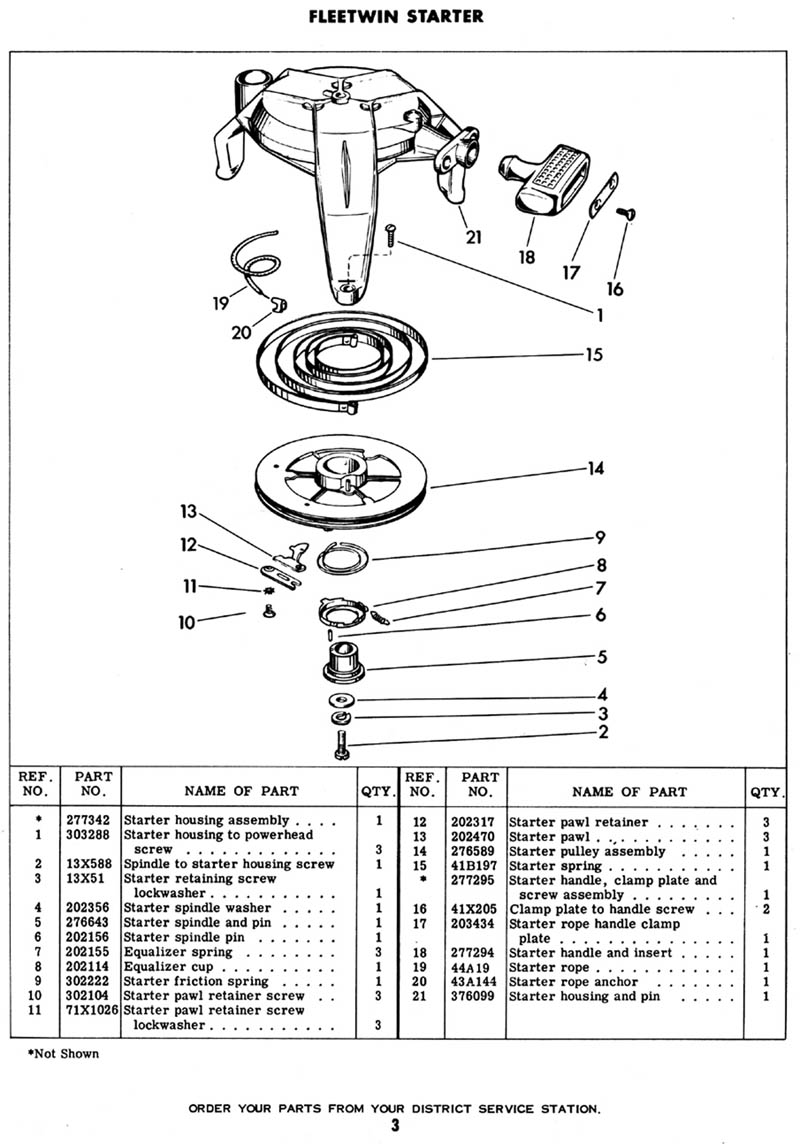

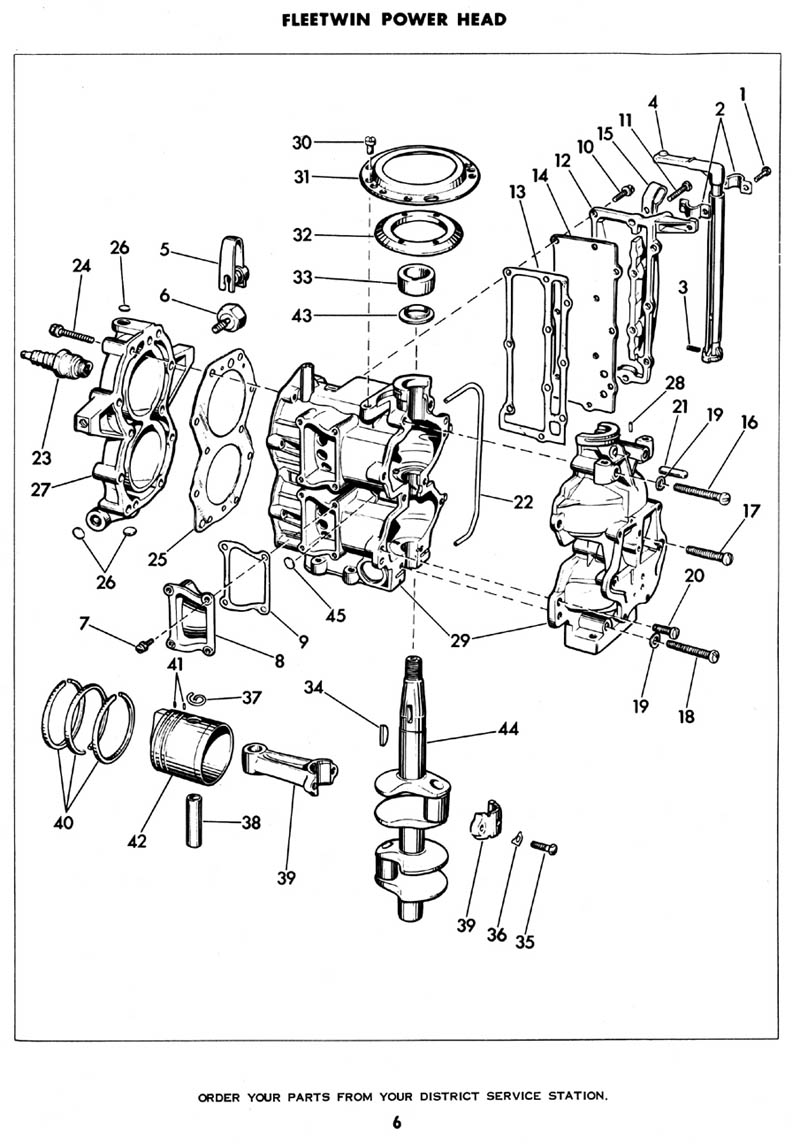

        Here ya go—-

        June 28, 2018 at 1:36 pm #78610
        frankr
        Participant

          US Member

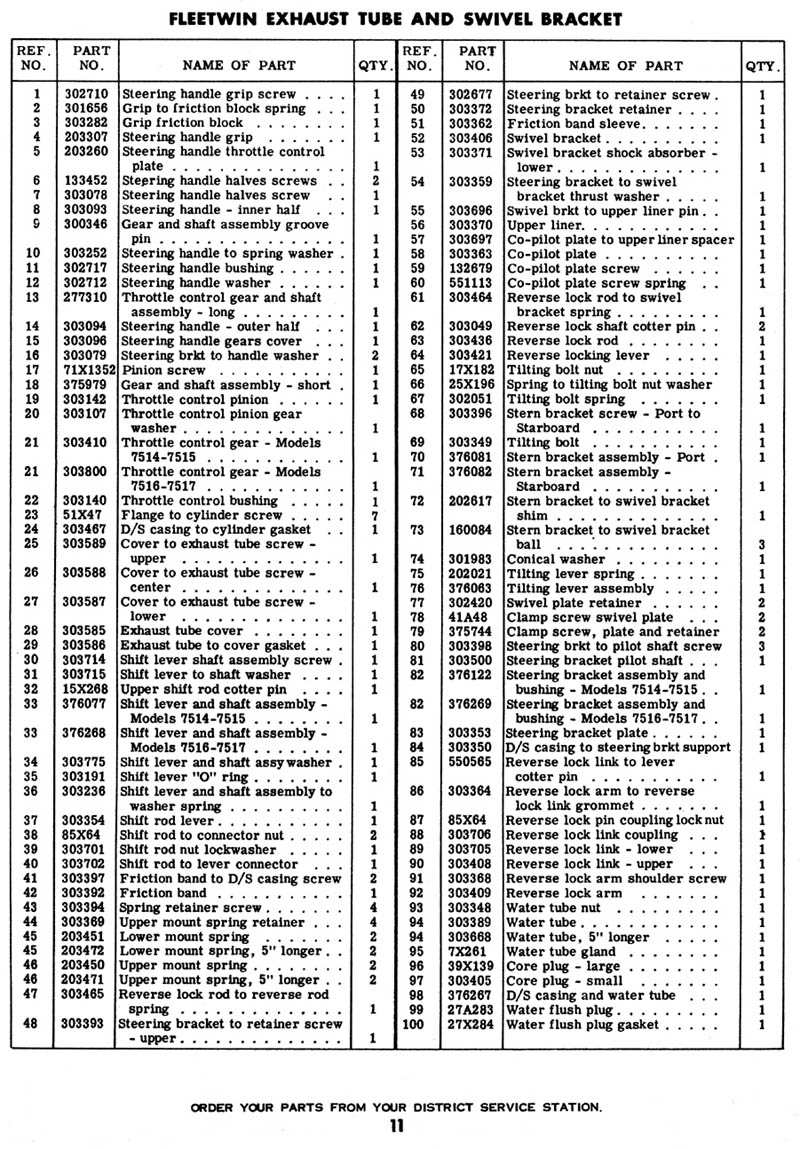

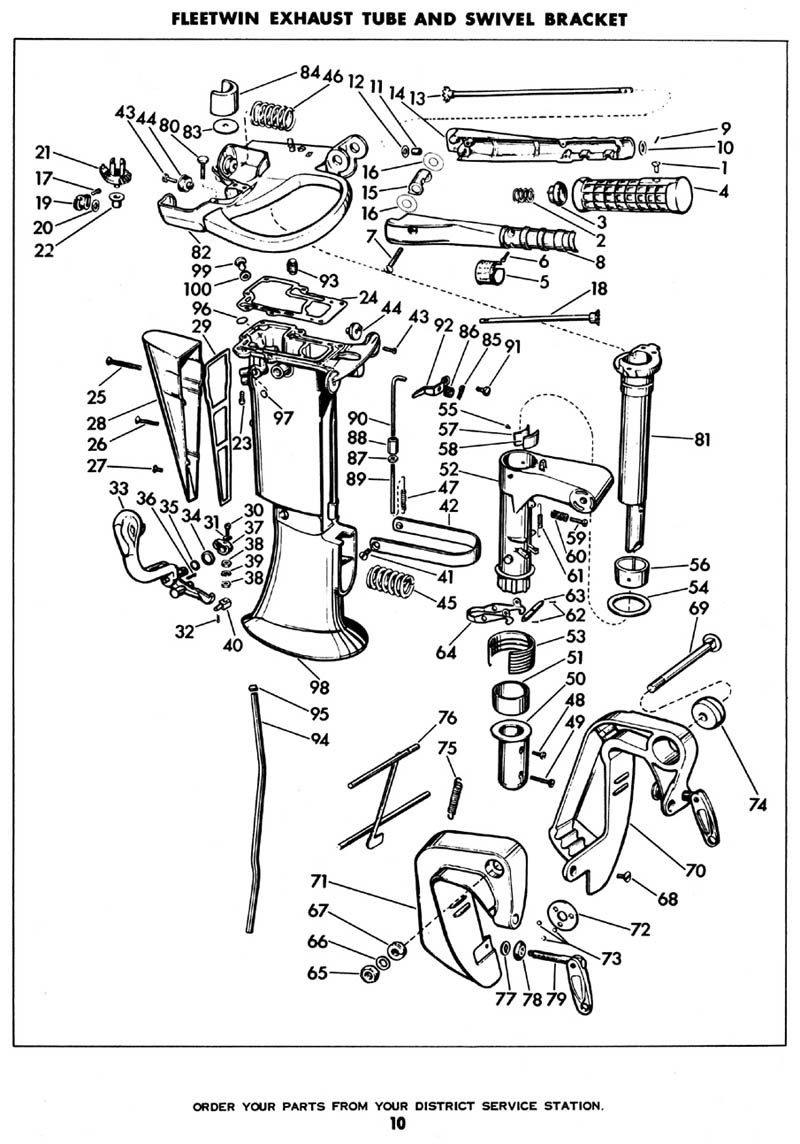

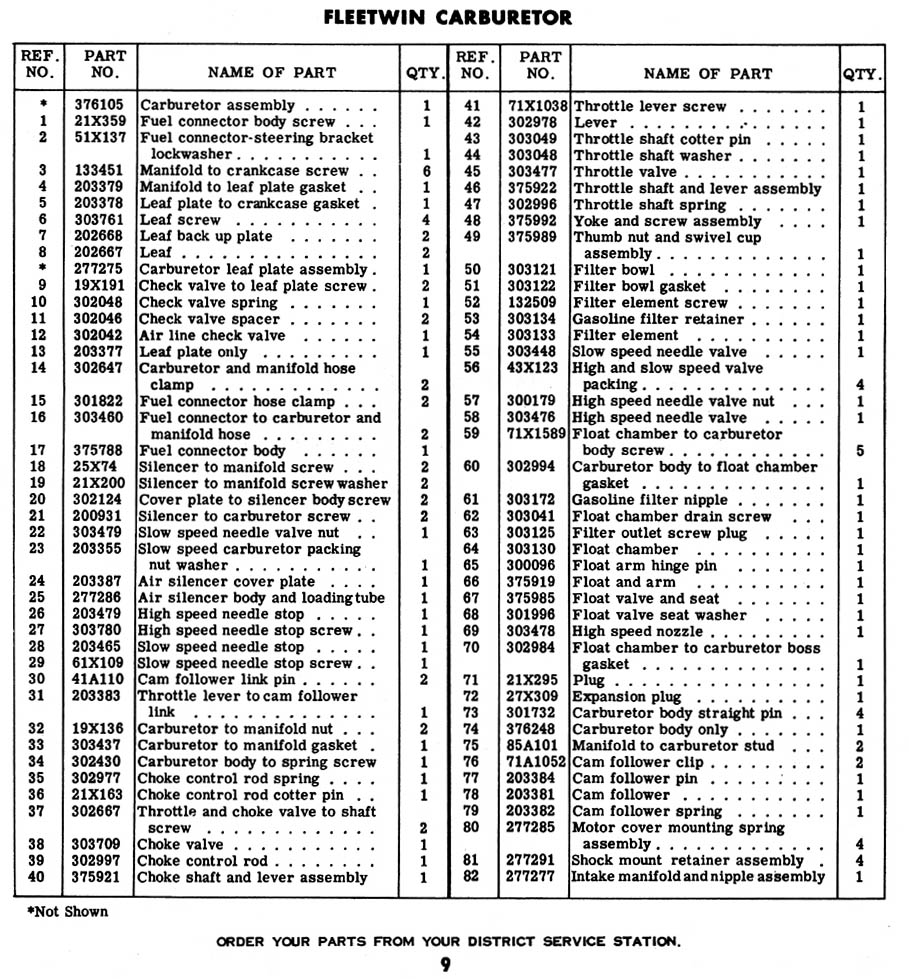

          The rest of it

          June 28, 2018 at 1:42 pm #78611
          drifter
          Participant

            Terrific.
            Thanks Frank.

            June 29, 2018 at 1:17 am #78644
            seakaye12
            Participant

              US Member

              This attached PDF is made from Frank’s images; combined into a PDF; should anyone prefer it that way.

              June 29, 2018 at 2:33 am #78647
              Buccaneer
              Participant

                US Member
                quote Seakaye12:

                This attached PDF is made from Frank’s images; combined into a PDF; should anyone prefer it that way.

                Nice job on the PDF. I think you found your calling….. put all the loose
                parts pages on AOMCI into PDF’s! 😎

                Prepare to be boarded!
