  • July 13, 2019 at 3:07 pm #178794
    drifter
    Participant

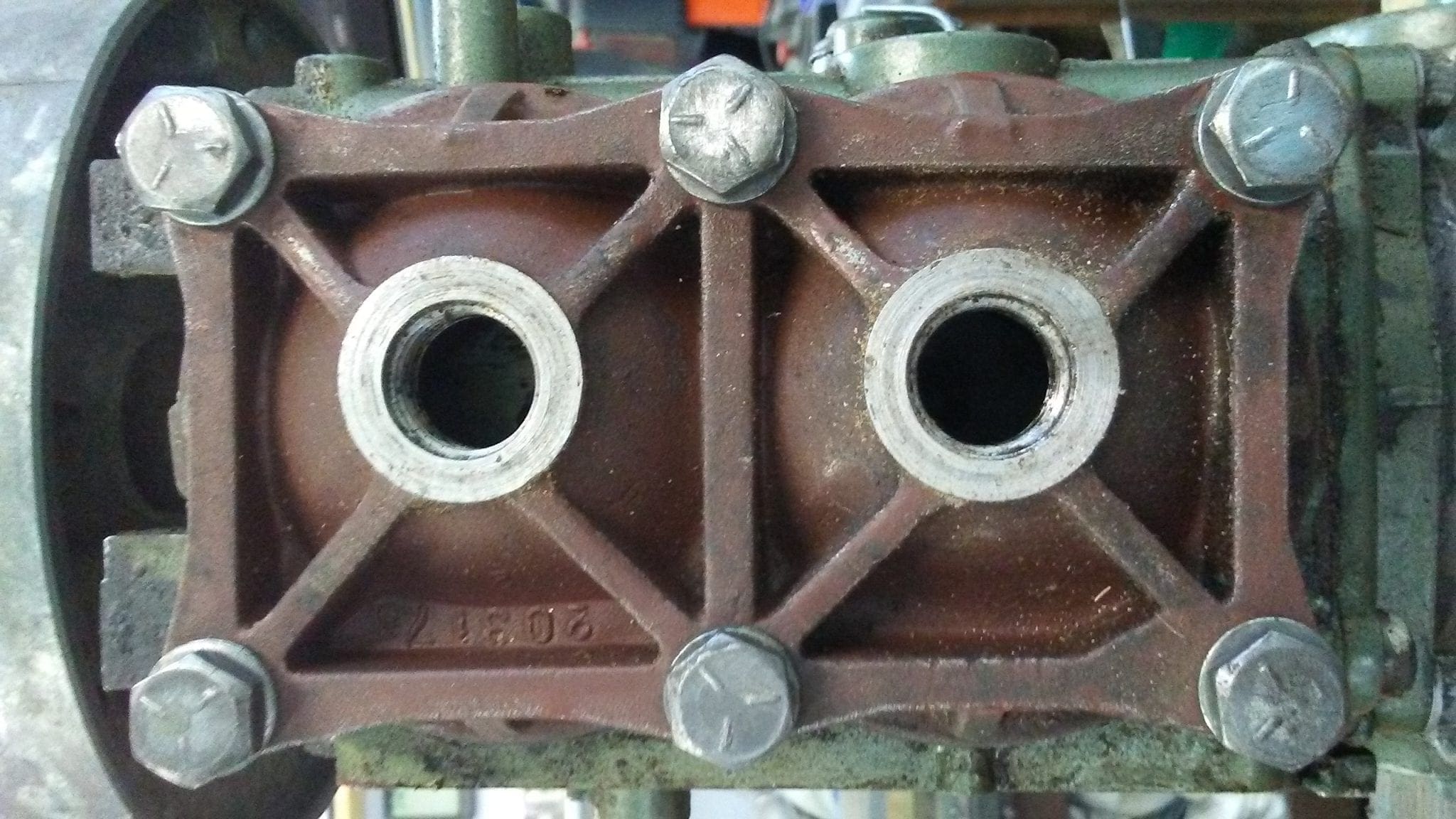

      Just begun to work on a badly mistreated/maintained JWF-22C 3hp Johnson folder. It’s worth saving since it’s a folder. One of the first things I noticed is that the cylinder head appears (to me at least) to have been installed backwards. Before removing it, the compression checked out at 74 PSI both cylinders (that was with 2 head gaskets installed???). I removed the head and turned it around to be what I think is the correct orientation with the plug holes oriented more to the right of center when viewing from the rear – as seen in the photo. Am I correct that the photo shows the correct orientation? Thanks

      20190713_101520

      • This topic was modified 4 years, 10 months ago by Mumbles.
      • This topic was modified 4 years, 10 months ago by RICHARD A. WHITE.
      July 13, 2019 at 3:54 pm #178797
      Mumbles
      Participant

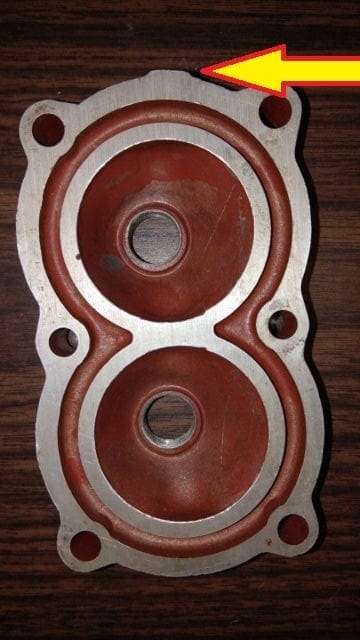

        That looks right. The easiest way to orient the head to the block is to keep the cast in bump to the top. Same goes for the head gasket.

        JW-22-Head

        July 14, 2019 at 9:55 am #178839
        drifter
        Participant

          Thanks Mumbles.
