Another Merc-o-tronic question

Home › Forum › Ask A Member › Another Merc-o-tronic question

Viewing 6 posts - 1 through 6 (of 6 total)
  • Author
    Posts
  • February 2, 2020 at 5:41 pm #193808
    mic57
    Participant

      US Member - 2 Years

      I just picked up a MOT 98 which has the battery negative wire just lying in the case disconnected. This is the unit with no circuit board and a vibrator. I was wondering if someone who has the same unit could look inside and tell me where the negative wire connects? I believe it connects to the pilot lamp but without a schematic would like to make sure.
      Thanks
      Mike

      February 2, 2020 at 6:10 pm #193809
      dave-bernard
      Participant

        US Member

        I would say yes since mine has a black and a green wire on the ground for the lamp.

        February 3, 2020 at 9:48 am #193828
        The Boat House
        Participant

          February 3, 2020 at 8:52 pm #193885
          mic57
          Participant

            US Member - 2 Years

            Thank you both for your replies. This is exactly what I need. Now I just need to wait for the new power supply.
            Mike

            February 3, 2020 at 8:59 pm #193886
            dave-bernard
            Participant

              US Member

              I use a 7.2 volt battery from a rc toy and charger usually less than $30.00.

              February 4, 2020 at 10:57 am #193928
              Mumbles
              Participant

                I’m pretty sure this was the 7.5V power supply I used.

                https://www.jameco.com/z/GSM60A07-P1J-MEAN-WELL-7-5V-6A-45W-Class-1-AC-DC-Single-Output-Medical-Power-Supply-with-2-1mm-Plug_2189732.html

                7.5V-Power-Supply

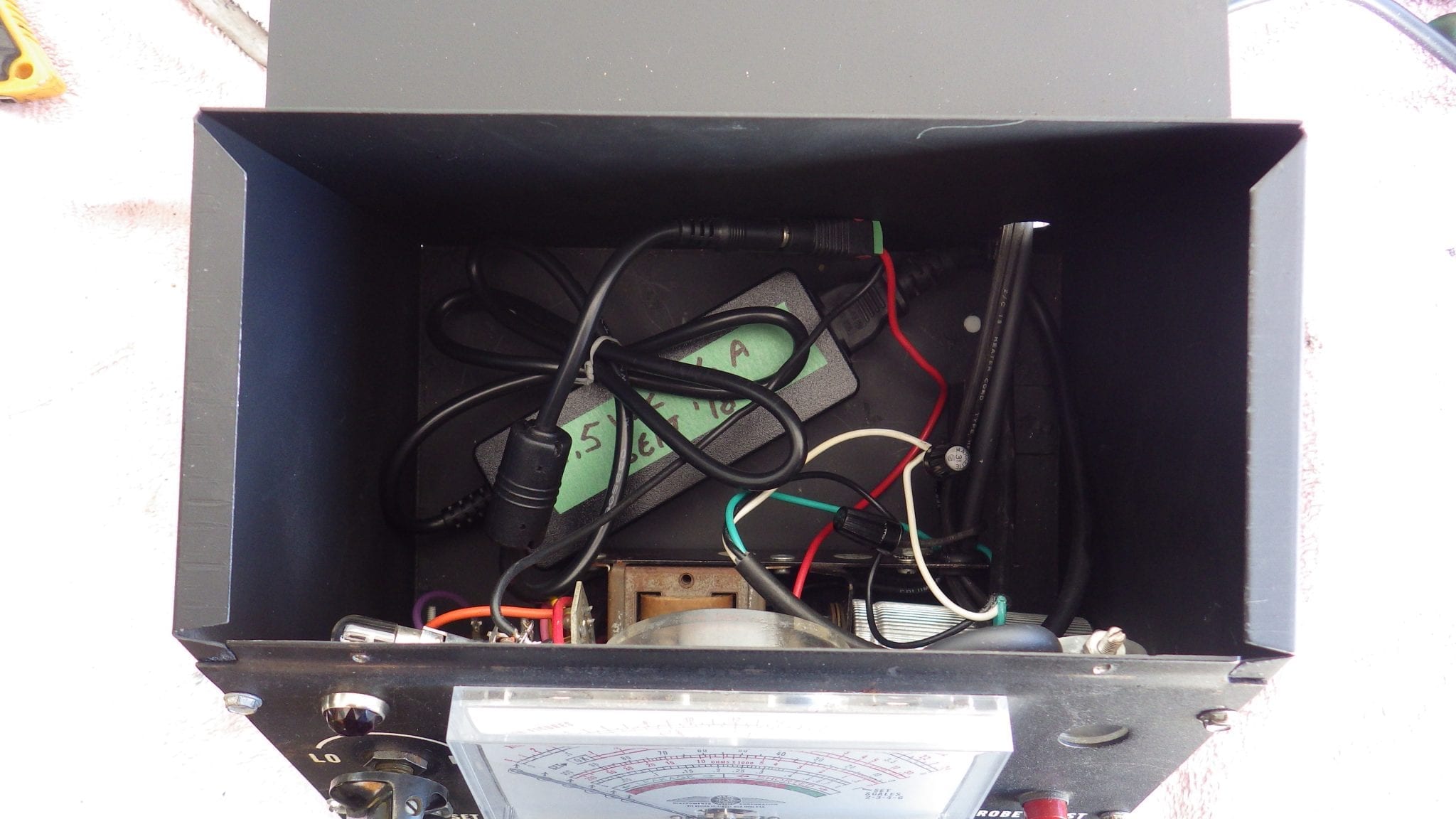

                Merc-O-Tronic-98-Cleanup-008
