Can Anyone Look Up “Where Used” OMC Float 277047?

[seakaye12]

Hello…..

I would like to know the application for a vintage OMC float Part Number #277047.

Does anyone have a “Where Used” book that shows such things?

Thanks!

[frankr]

I can tell you that it was used only in Evinrude motors. That’s all I know.

[Mumbles]

That appears to be a large float and possibly from a larger motor, such as a 35-40 horse or bigger.

Are you working on the big ones now Chuck?

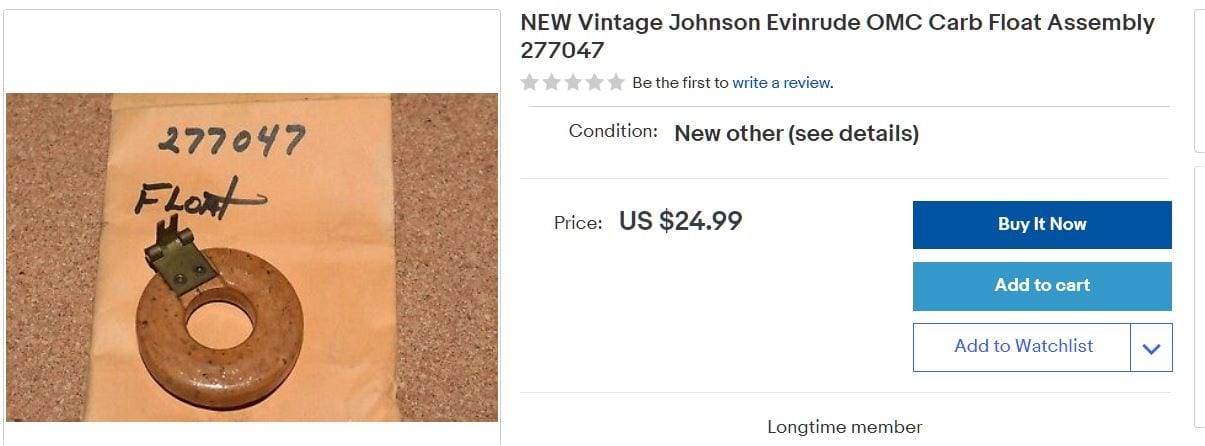

https://www.ebay.com/itm/NEW-Vintage-Johnson-Evinrude-OMC-Carb-Float-Assembly-277047/323335207556?epid=2292702668&hash=item4b4847ba84:g:sgoAAOSwsbBbQ925

• This reply was modified 3 years, 10 months ago by Mumbles.
• This reply was modified 3 years, 10 months ago by Mumbles.

[frankr]

A-HA. nothing like a picture. That float is for a 1950 Evinrude 14hp, serial number 3400-up

[seakaye12]

Mumbles; no not really. I try and stick with motors that I can pick up and move around.

That’s pretty amazing Frank that you can recognize that float from that picture. I have access to one and was wondering what it fits. It appears to be used with a horizontal needle…..much like the 1949 Johnson QD10. Similar in that one respect but obviously different.

BTW……anyone have a parts manual for the 1950 Evinrude 14HP Fastwin? Model Number 4438 and 4439 ????

[frankr]

Seeing if this works. I’ve never done a pdf before

Nope, didn’t work file was too big

[frankr]

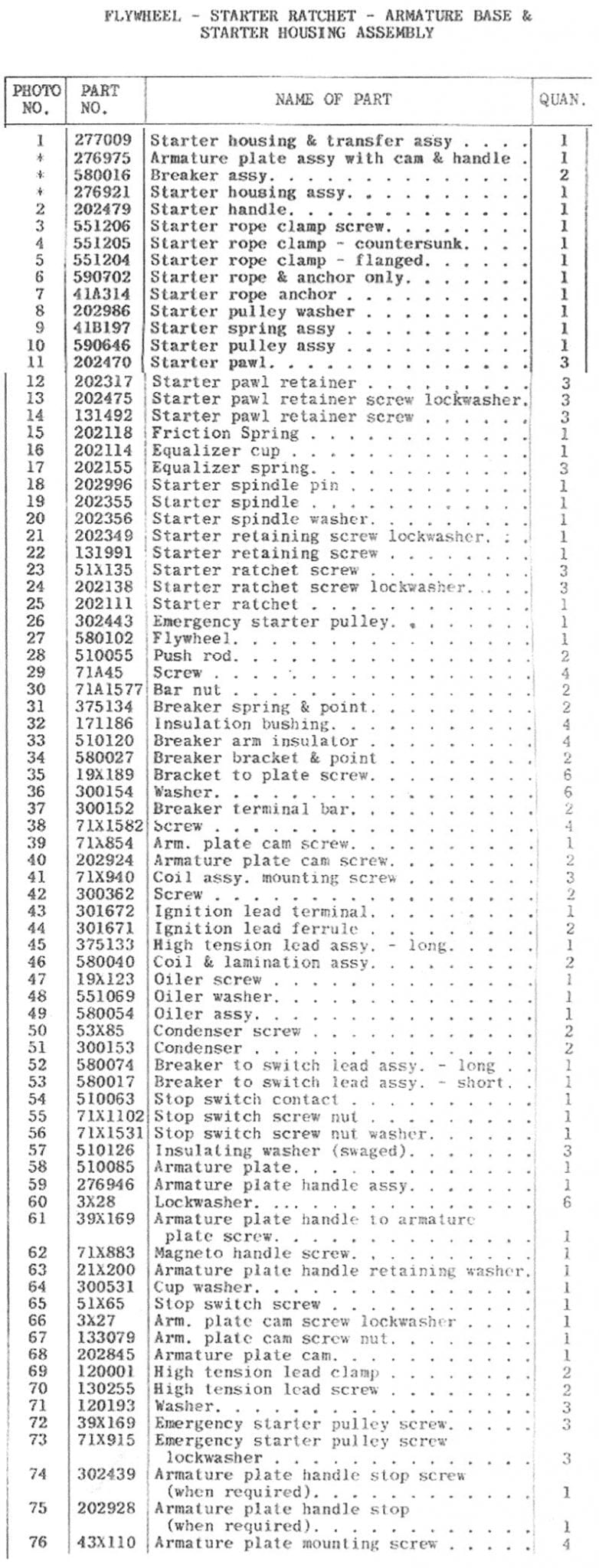

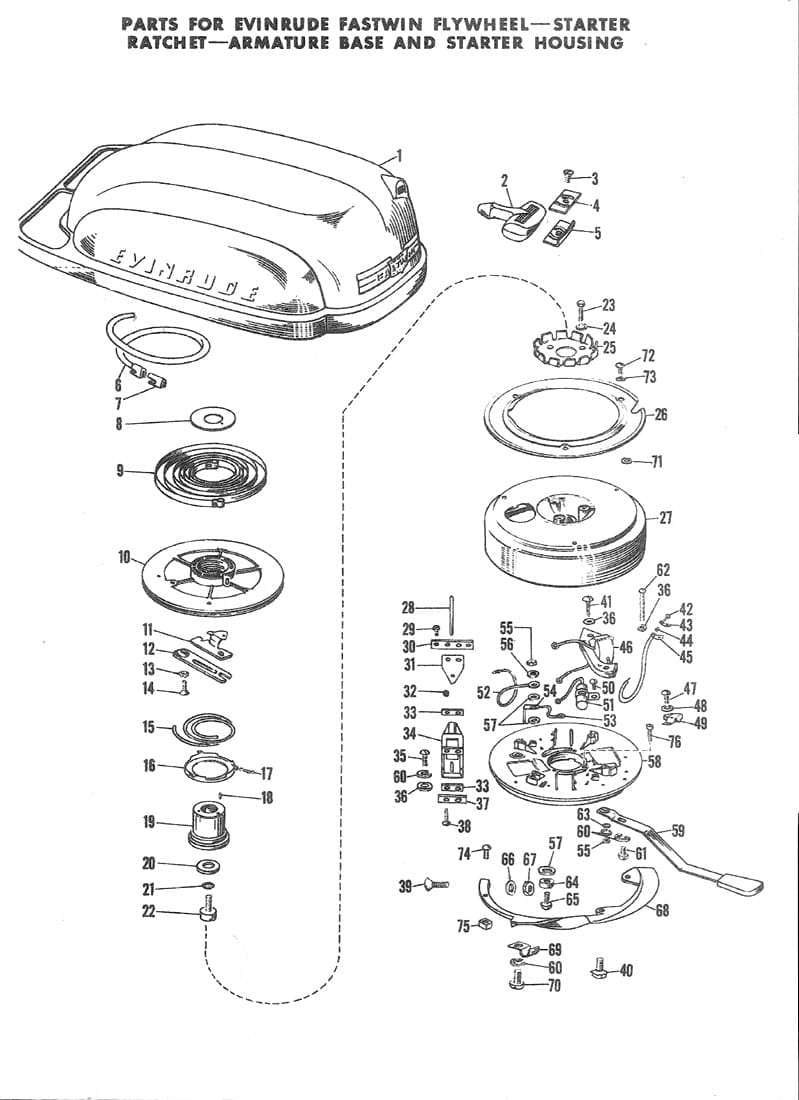

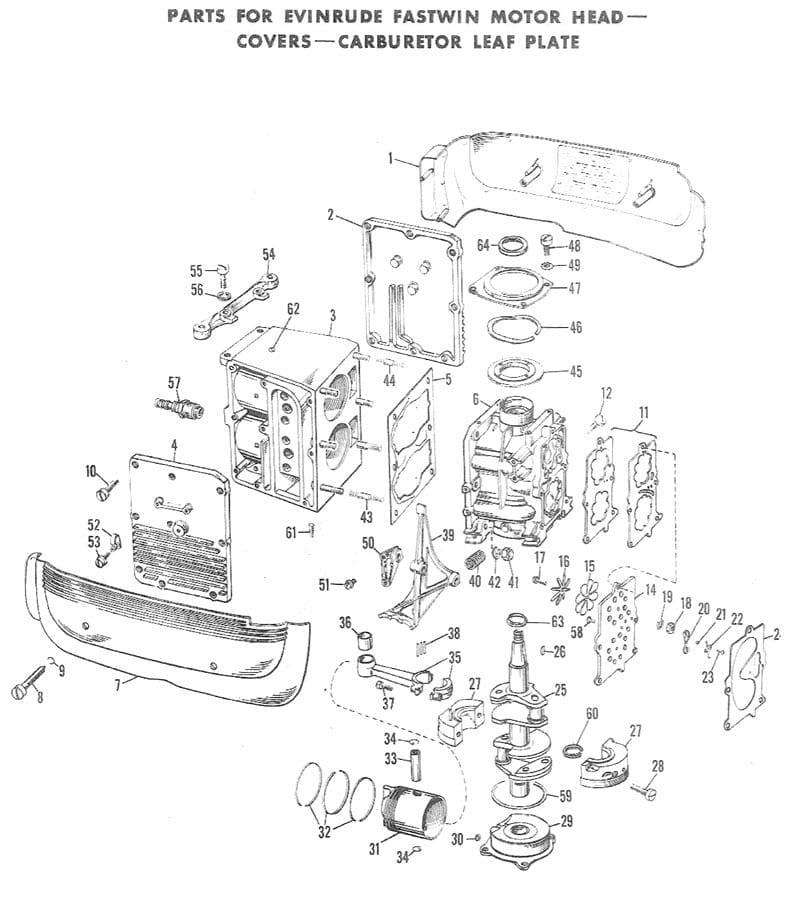

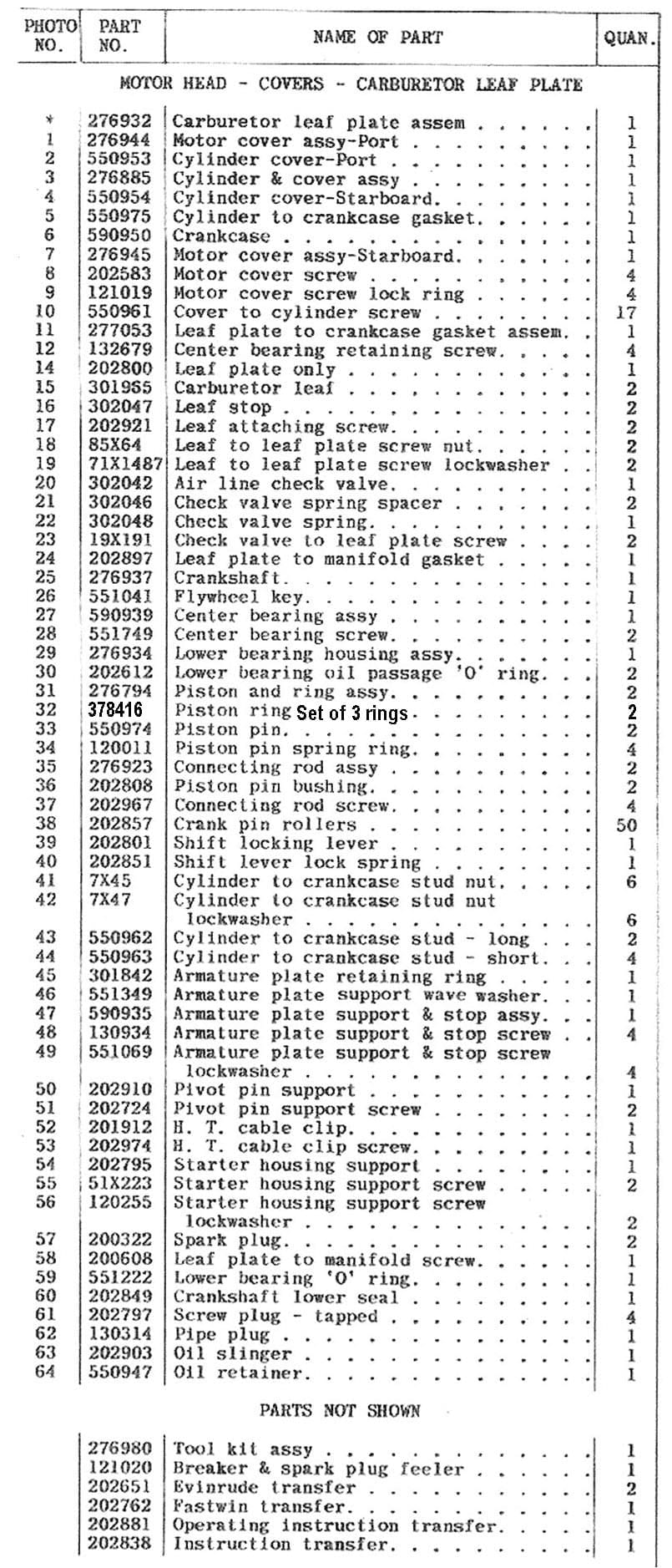

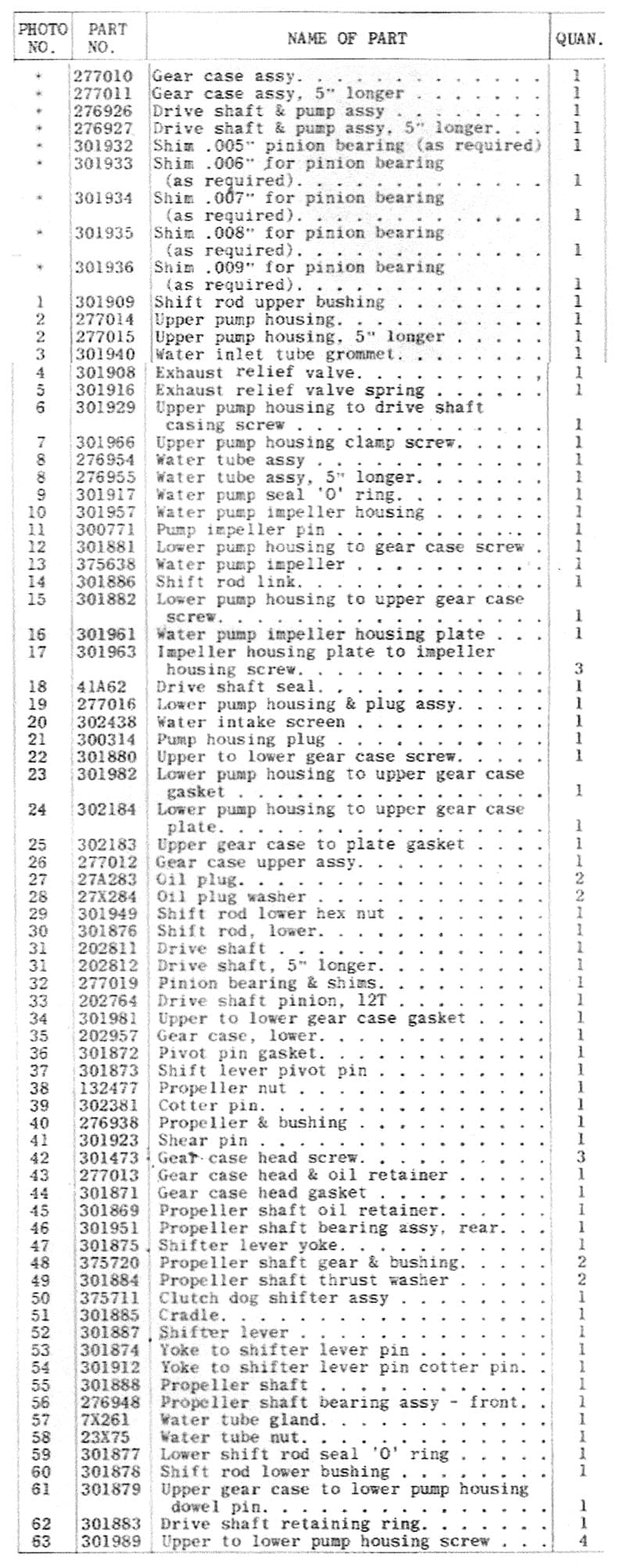

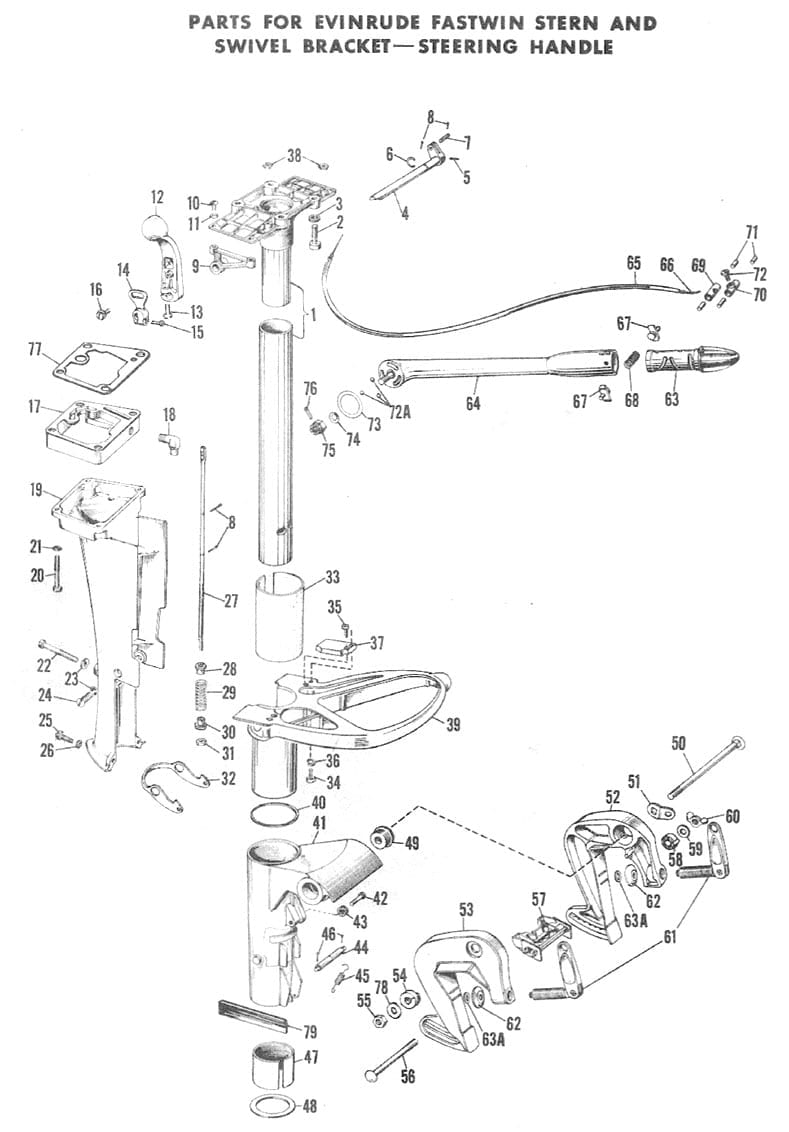

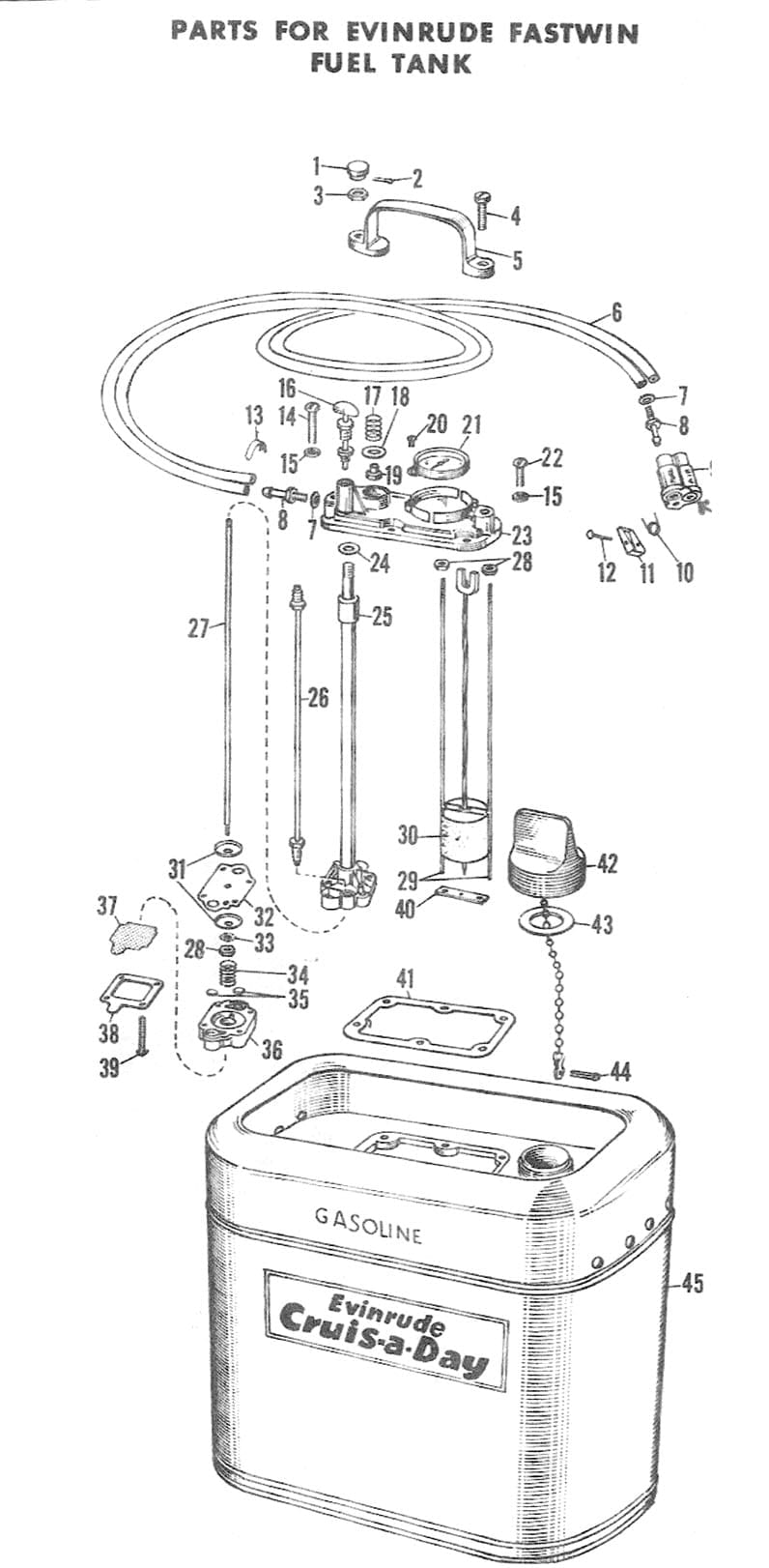

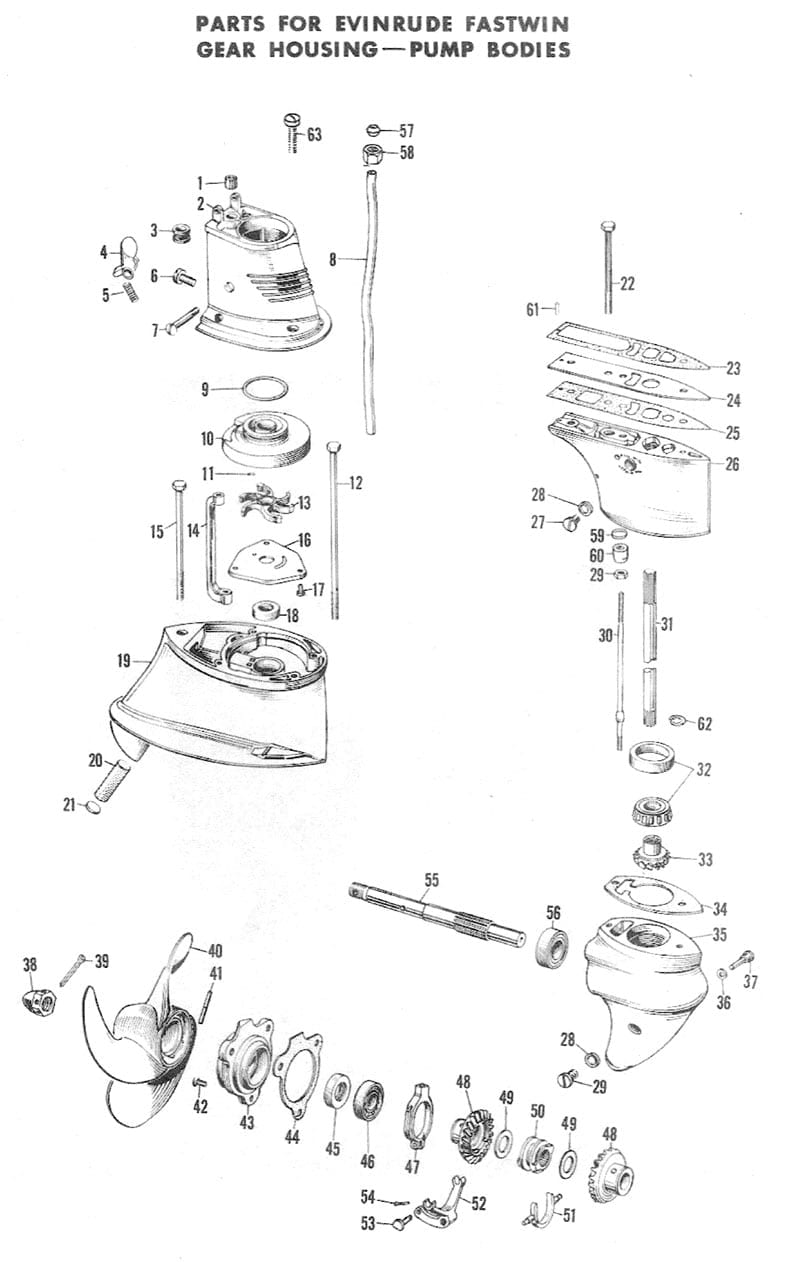

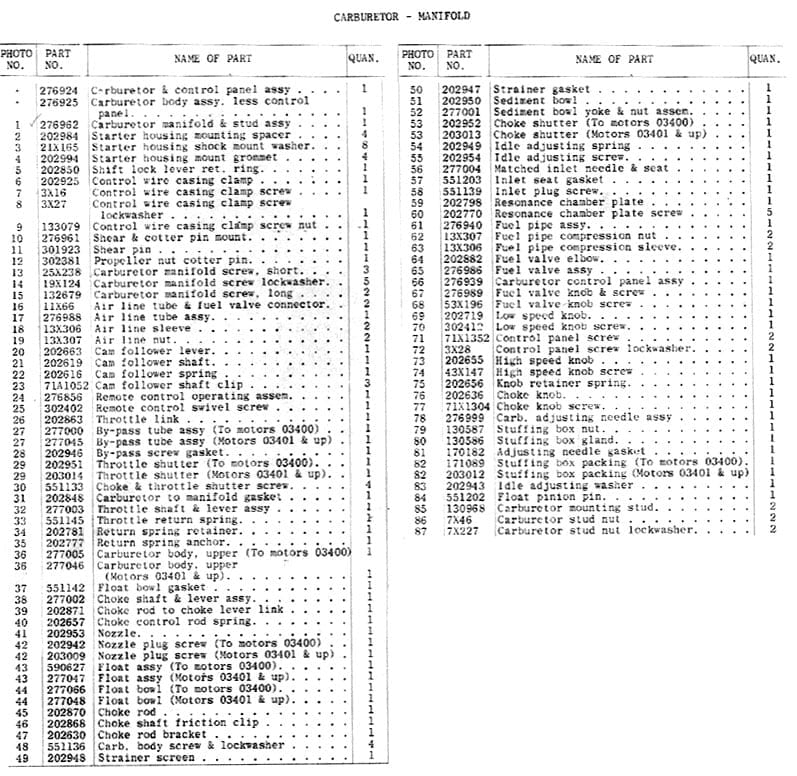

So…we do a bunch of jpg’s

• This reply was modified 3 years, 10 months ago by frankr.
• This reply was modified 3 years, 10 months ago by frankr.

[frankr]

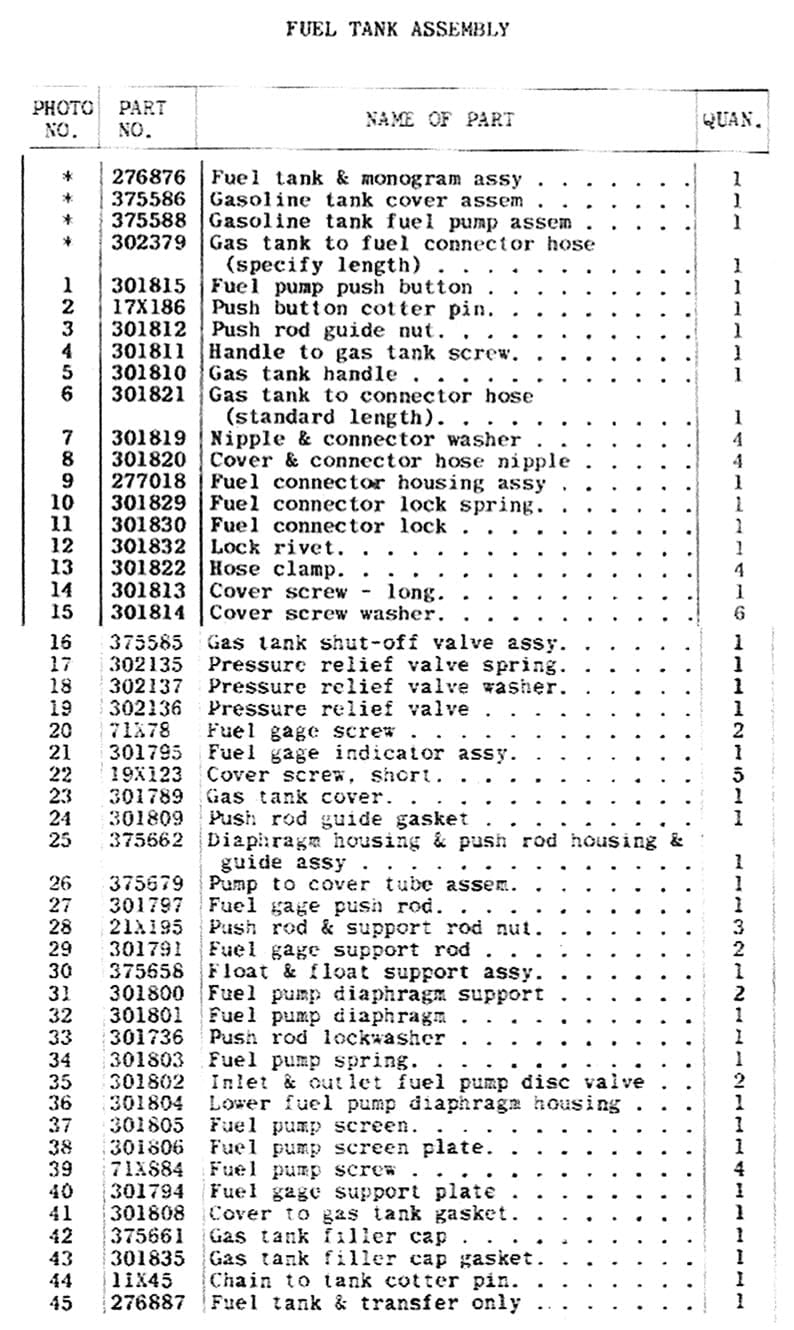

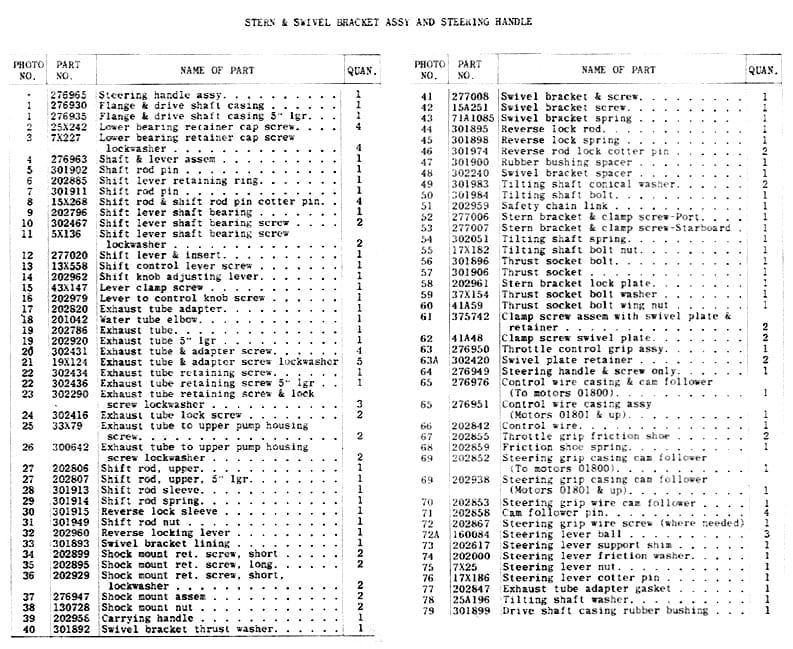

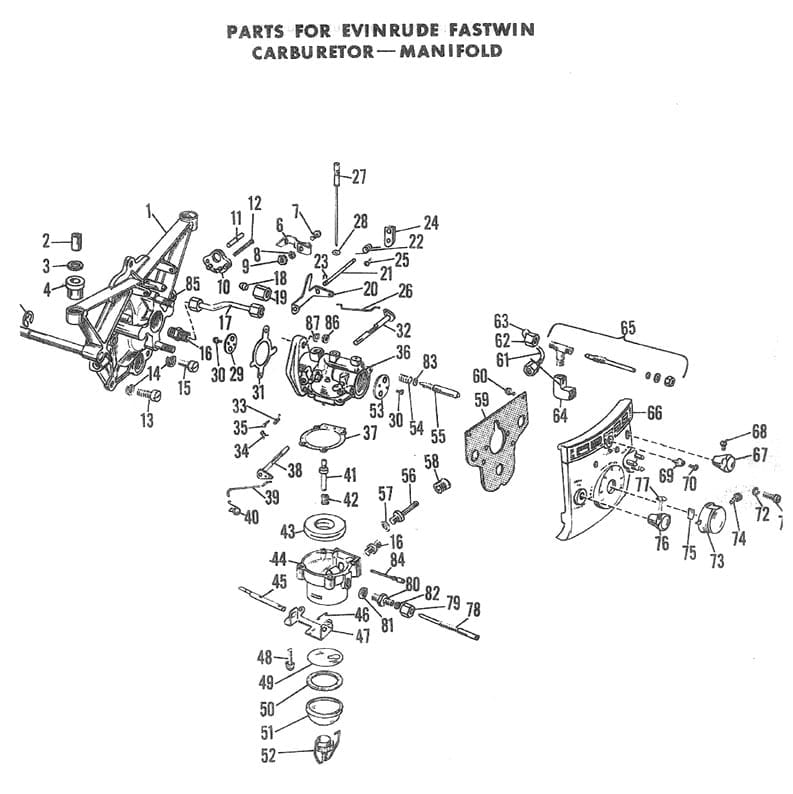

More….

[frankr]

And lastly

[frankr]

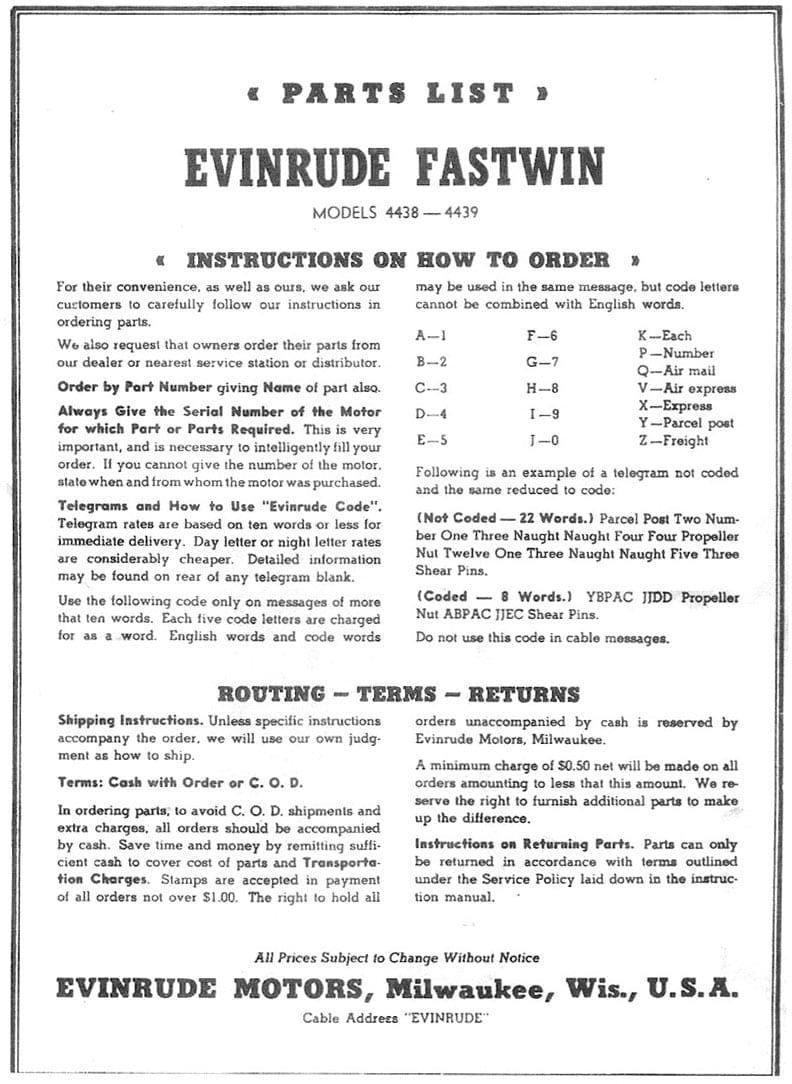

Cover page, if you want it.
