carb with part numbers that go nowhere

Home Forum Ask A Member carb with part numbers that go nowhere

Currently, there are 0 users and 1 guest visiting this topic.
Viewing 5 posts - 1 through 5 (of 5 total)

  • Beno


    Replies: 78
    Topics: 24
    #243807

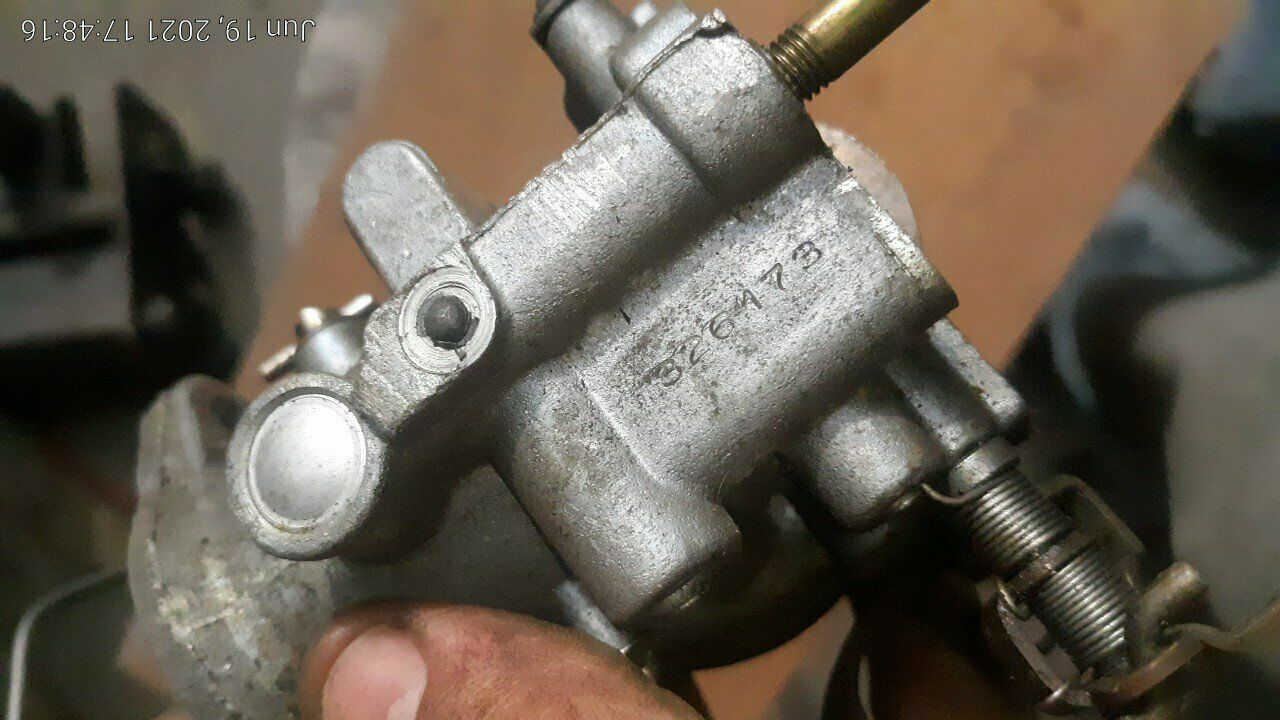

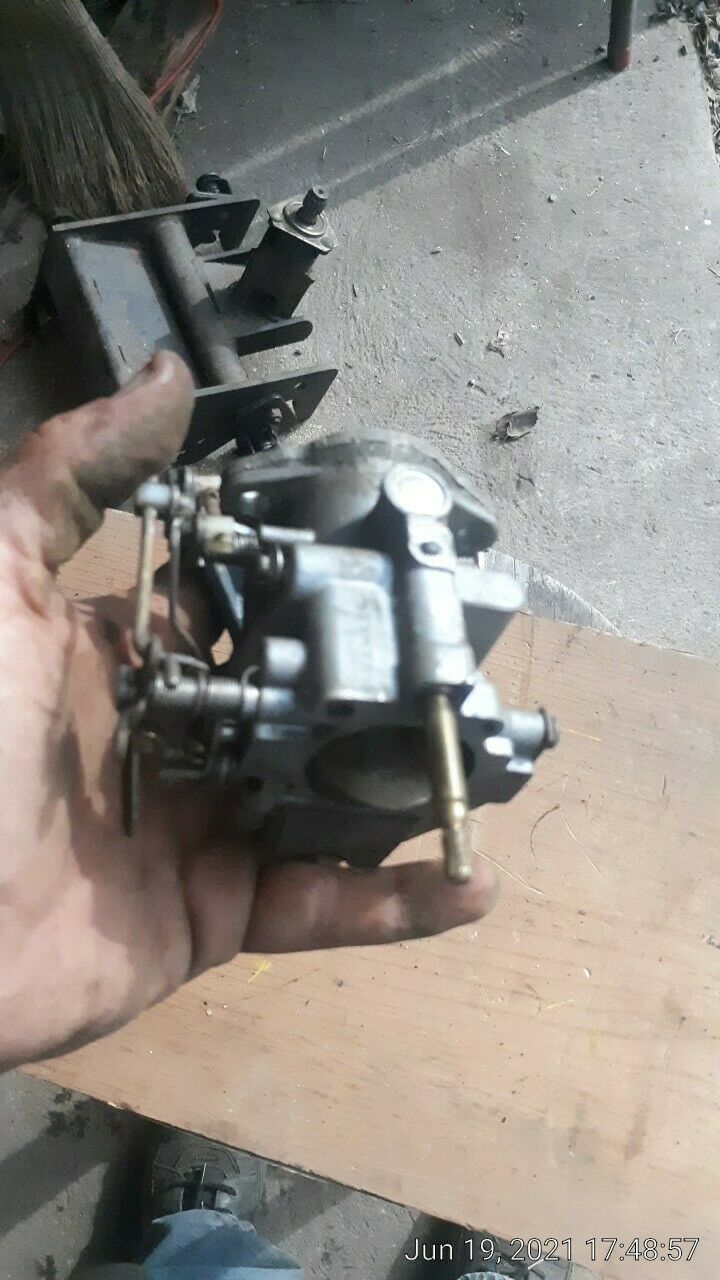

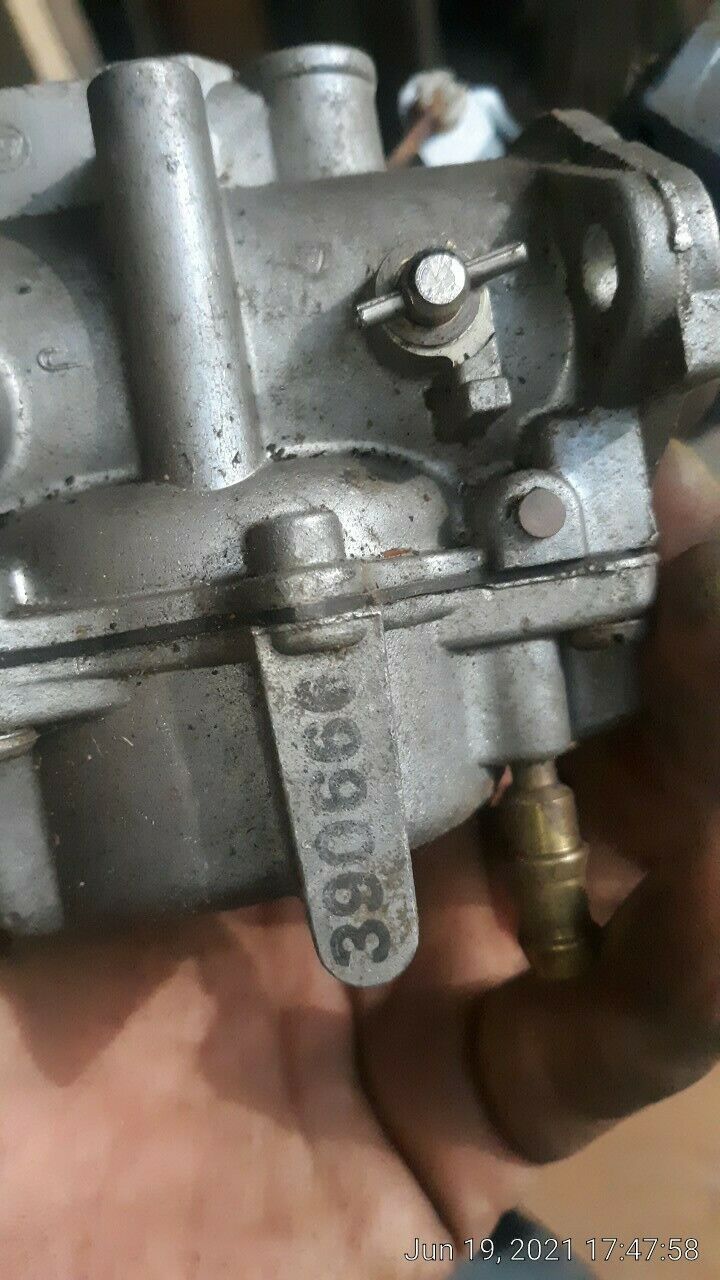

    I have this carb as shown it has 2 numbers on it.. neither of these numbers ever google back to anything except my own listing
    326173
    390666

    I think it’s 25hp.. evinrude?… I find the little “M” with squared off circles symbol typically makes is evinrudeish?

    I’m not really even sure it’s 25hp? anyone know?

    s-l1600-5

    s-l1600-1

    s-l1600

    s-l160asd0ss

    • This topic was modified 1 month, 2 weeks ago by Beno.
    • This topic was modified 1 month, 2 weeks ago by Beno.
    • This topic was modified 1 month, 2 weeks ago by Beno.
    Attachments:

    Mumbles

    Canada Member - 2 Years
    Replies: 5121
    Topics: 274
    #243839

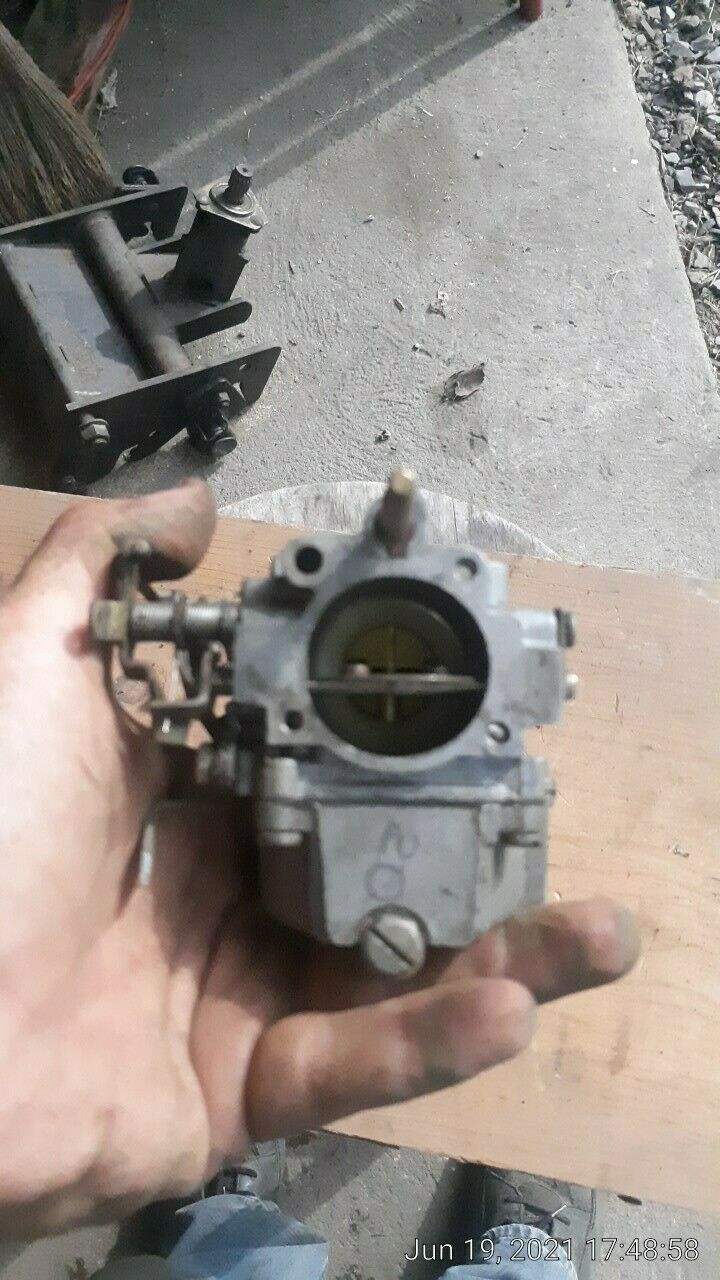

    It’s a 20 horse carb and am sure of that. The venturi is too small for a 25 and ’20’ is also stamped on the bowl. It’s hard to tell in the photo but is that a plastic venturi inside it? 25 horse carbs didn’t have it but the 20’s did.

    Carbs with the same number stamped on are being sold online as 20-25 horse carbs but that’s not right.


    fleetwin

    US Member - 2 Years
    Replies: 4030
    Topics: 41
    #243847

    Definitely a 22/32CI carb, 20-25hp, but I couldn’t find any of those part numbers either…


    Beno


    Replies: 78
    Topics: 24
    #244728

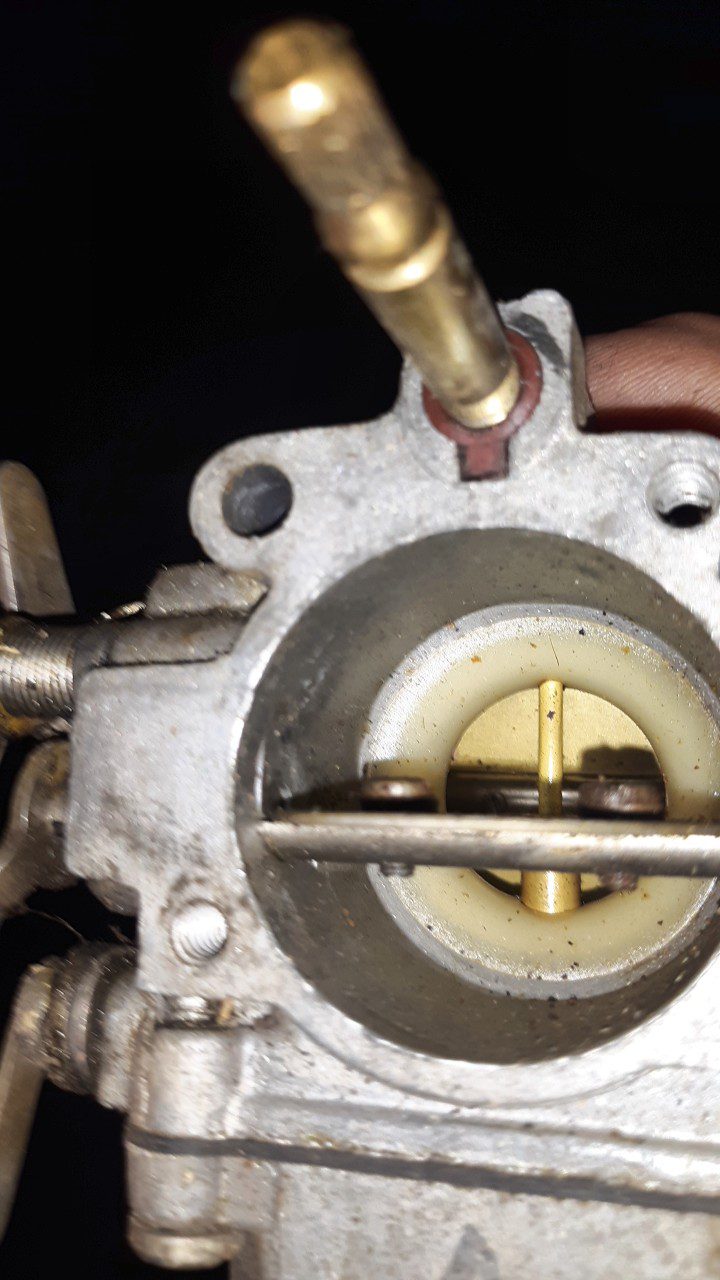

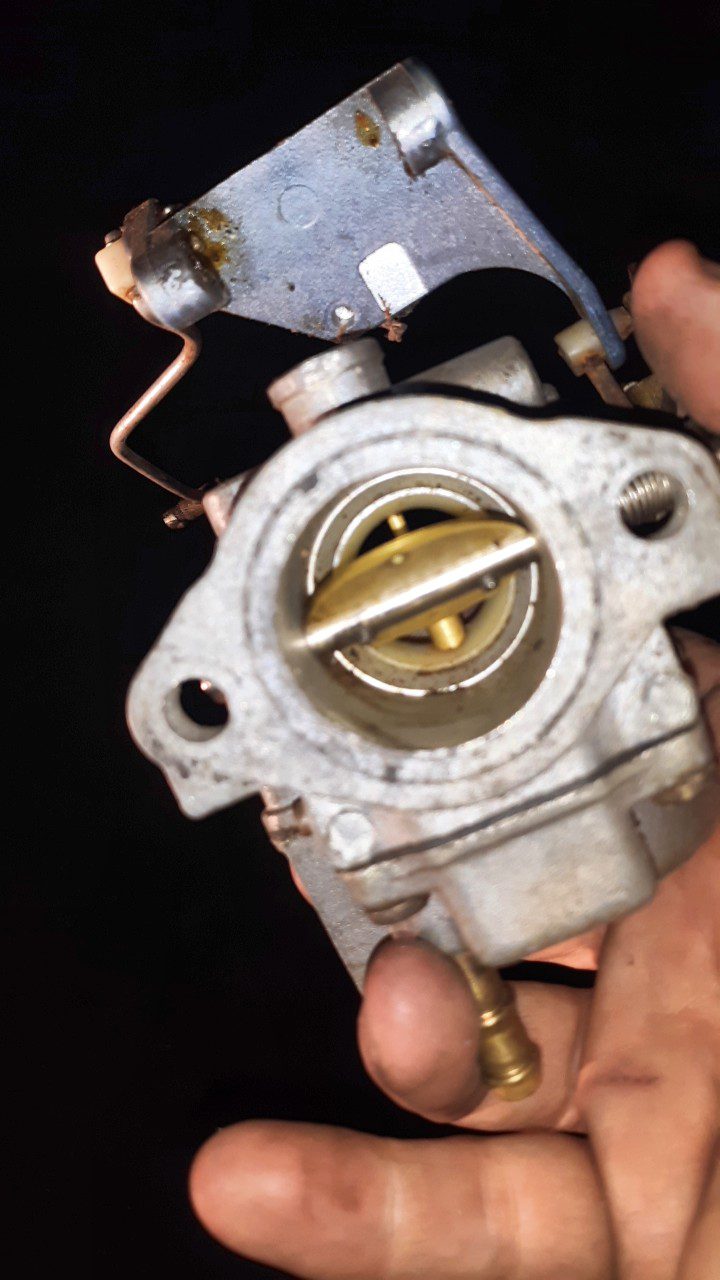

    Not sure if its a plastic venturi…

    IMG_20210811_002352_DRO

    IMG_20210811_002337_DRO

    Attachments:

    fleetwin

    US Member - 2 Years
    Replies: 4030
    Topics: 41
    #244739

    Well, it certainly looks like some sort of plastic inserted venturi, maybe just the photo, never seen that before….. And it is relatively new, after 1980, due to the idle tube located in the center of the high speed nozzle…

    • This reply was modified 1 month ago by fleetwin. Reason: correction
