Champion outboard info needed

Home › Forum › Ask A Member › Champion outboard info needed

Viewing 7 posts - 1 through 7 (of 7 total)
  • Author
    Posts
  • February 29, 2020 at 4:58 pm #196222
    jwwest21
    Participant

      Just bought a Champion Blue Ribbon outboard S# 2K207271 and would love to find out about it. Any help on year, hp, parts or manual greatly appreciated!!!

      February 29, 2020 at 5:11 pm #196223
      frankr
      Participant

        US Member

        Here ya go—

        1.-Front-Cover

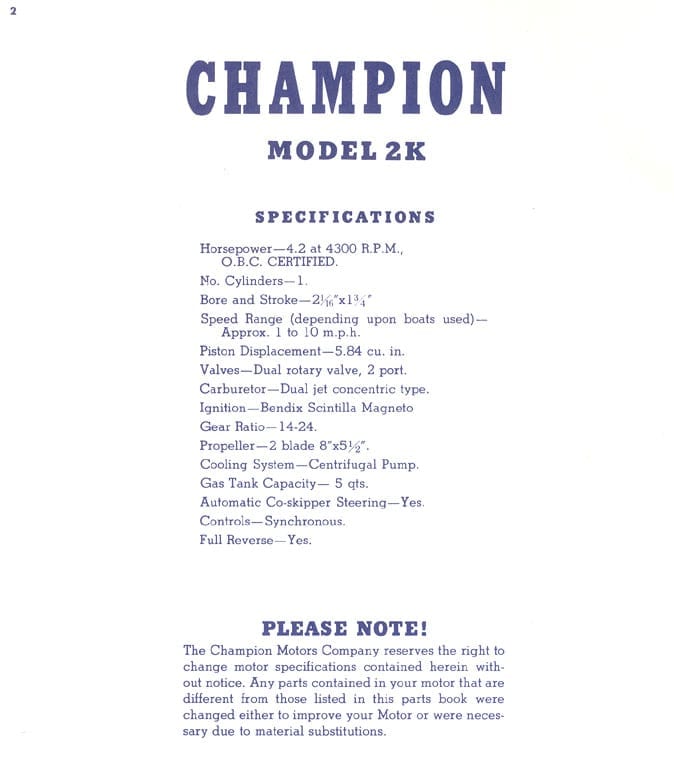

        2.-Specifications-Page

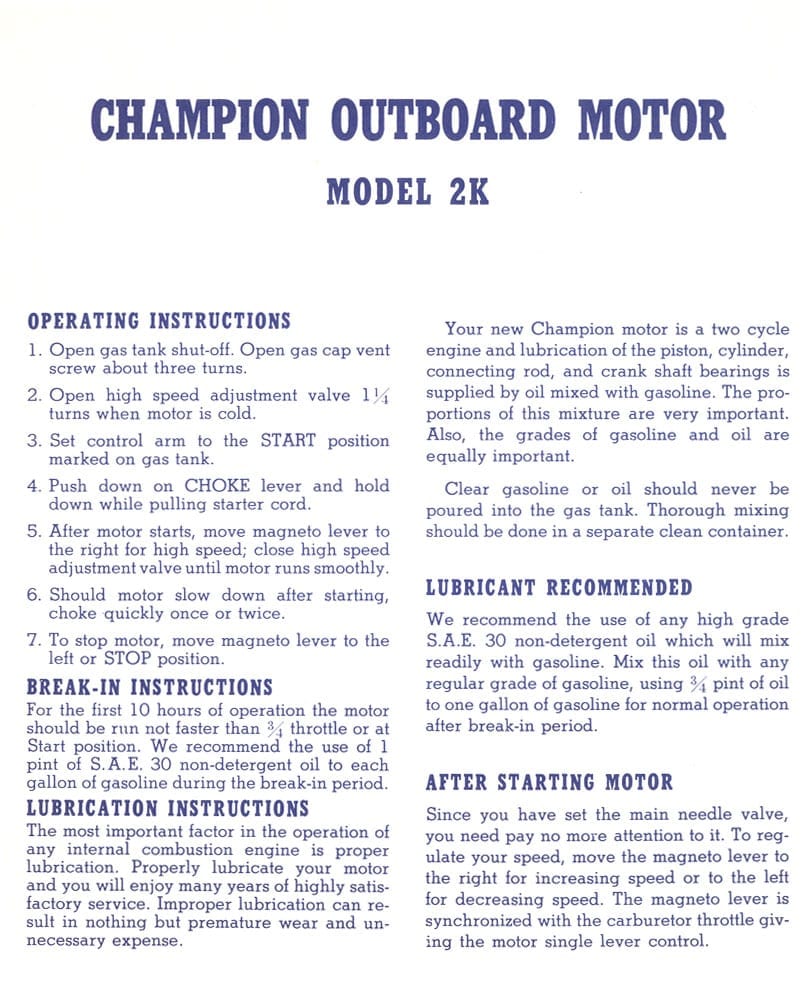

        3.-Instructions-1

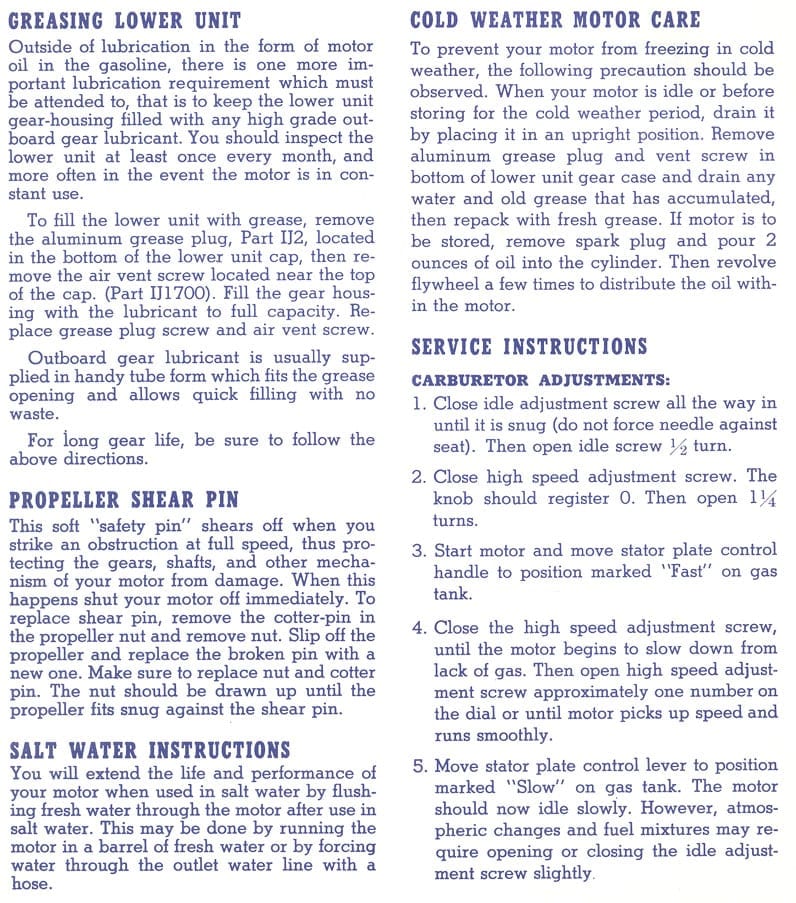

        4.-Instructions-2

        February 29, 2020 at 5:14 pm #196229
        frankr
        Participant

          US Member

          More:

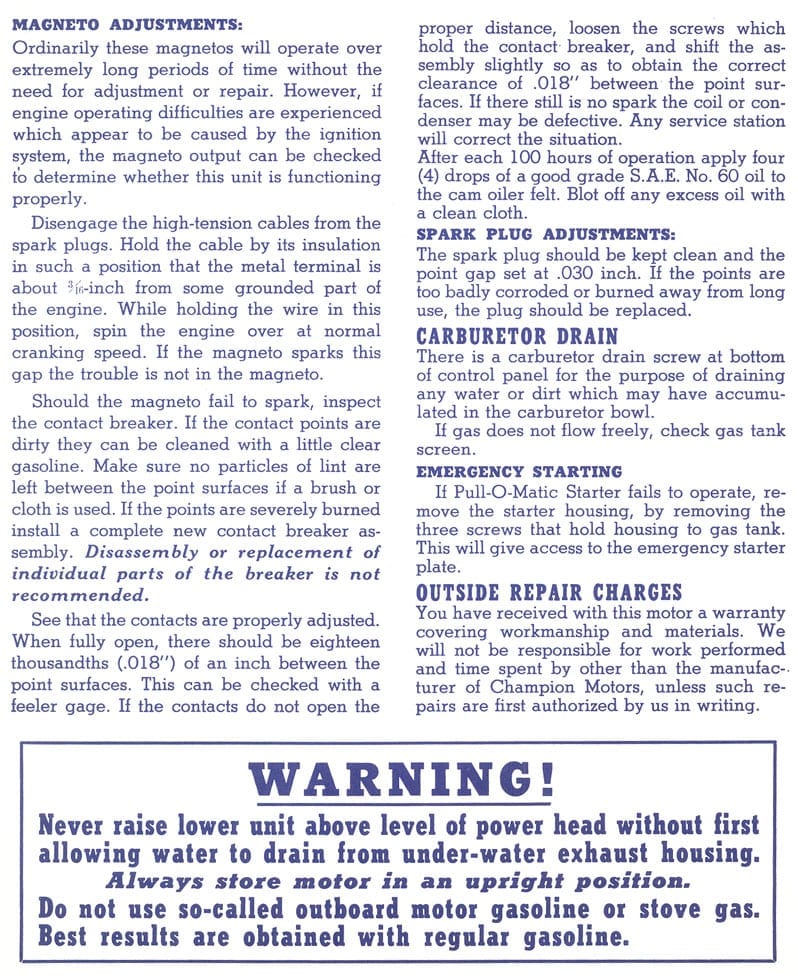

          5.-Instructions-3

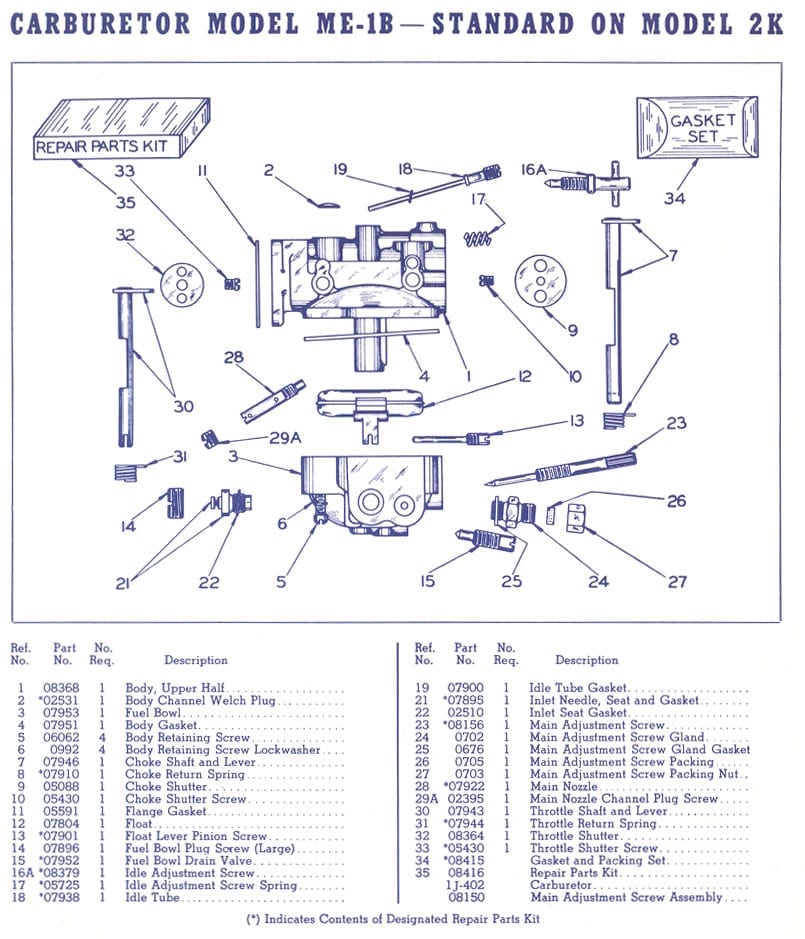

          6.-Carburetor

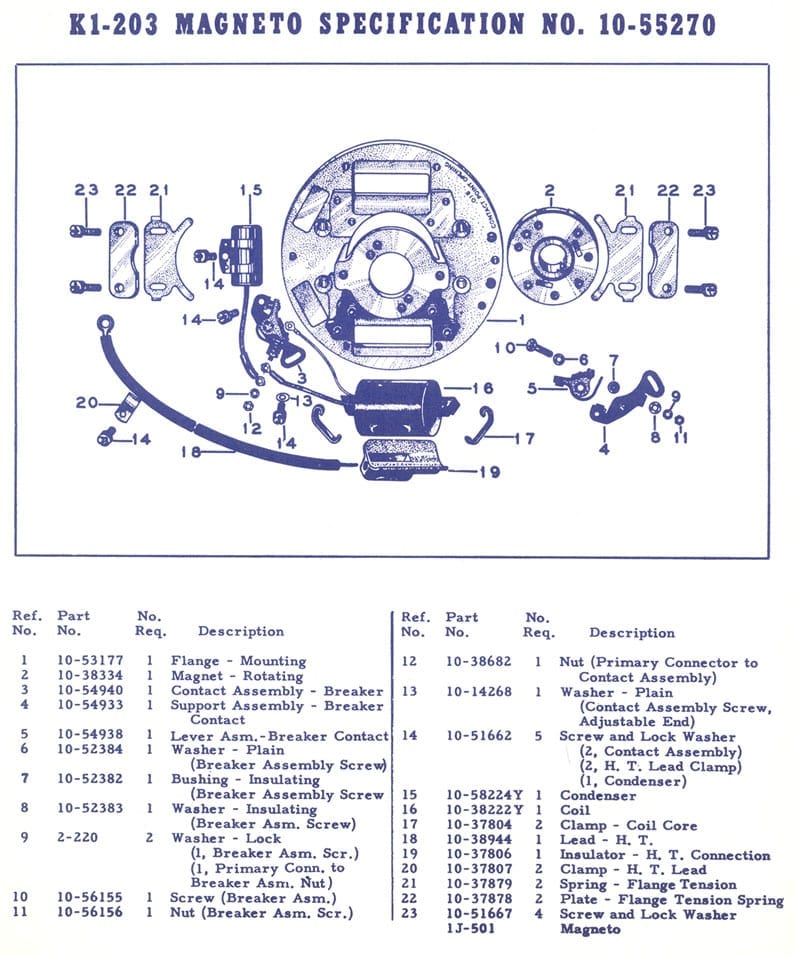

          7.-Magneto

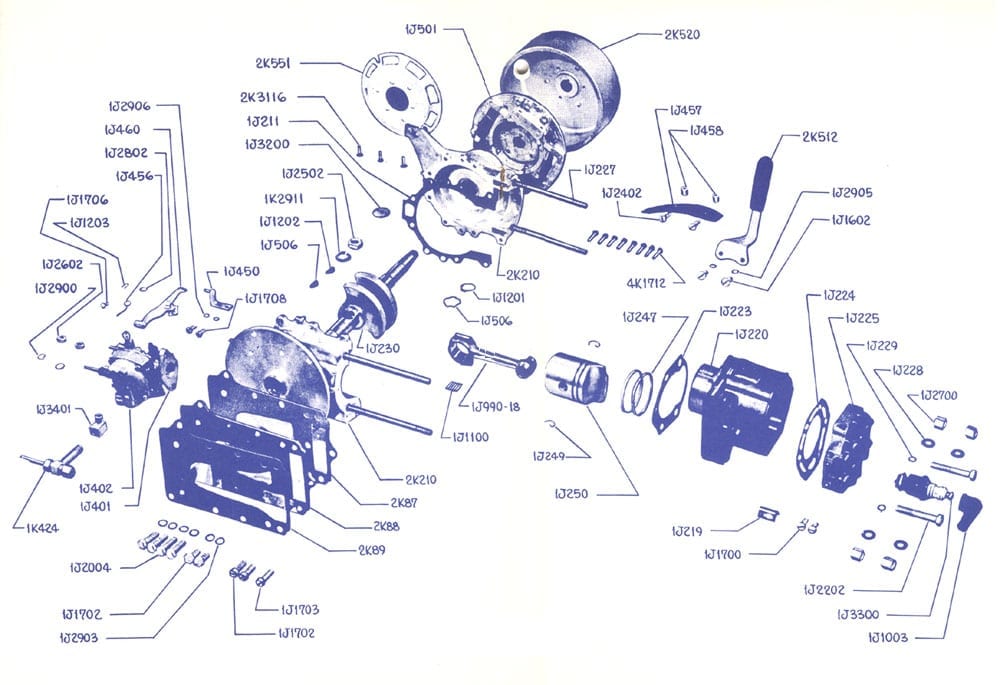

          8.-Powerhead

          February 29, 2020 at 5:17 pm #196237
          frankr
          Participant

            US Member

            And more

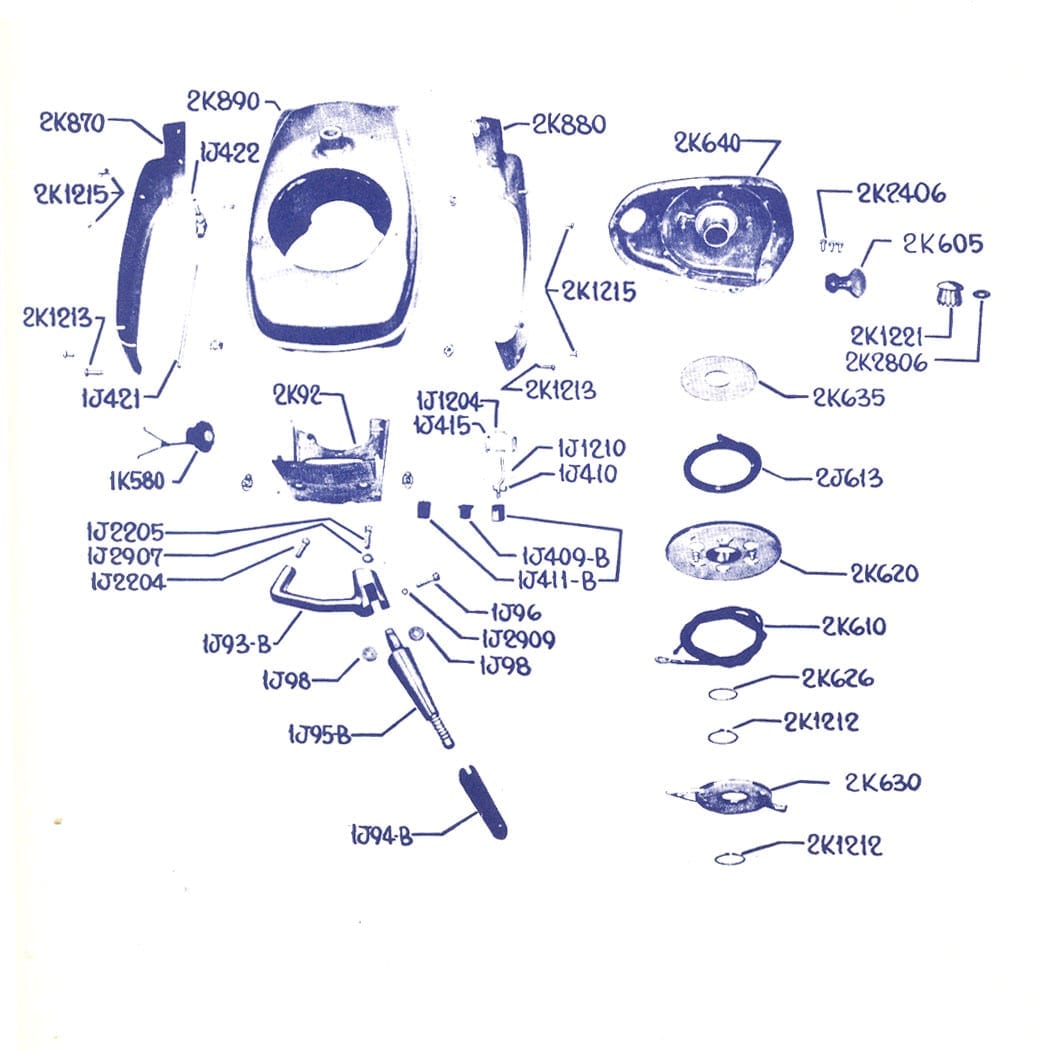

            9.-Tank-and-Recoil-Starter

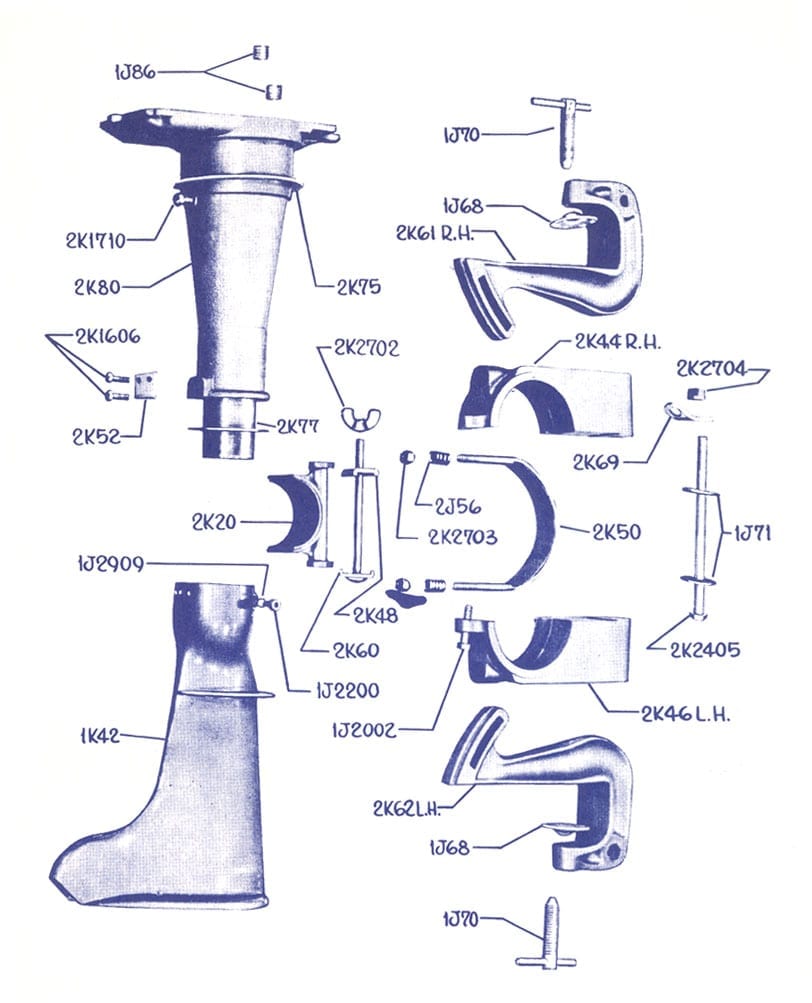

            10.-Exhaust-Housing-and-Brackets

            11.-Gearcase

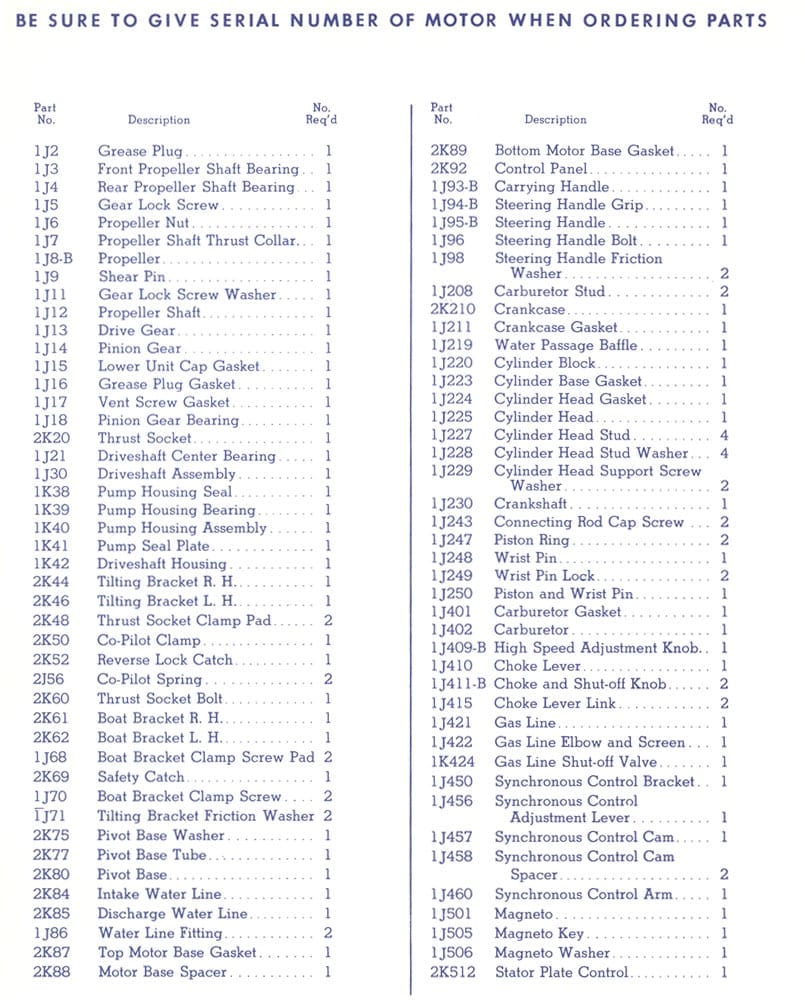

            12.-Numerical-Parts-List-1

            February 29, 2020 at 5:18 pm #196243
            frankr
            Participant

              US Member

              Lastly;

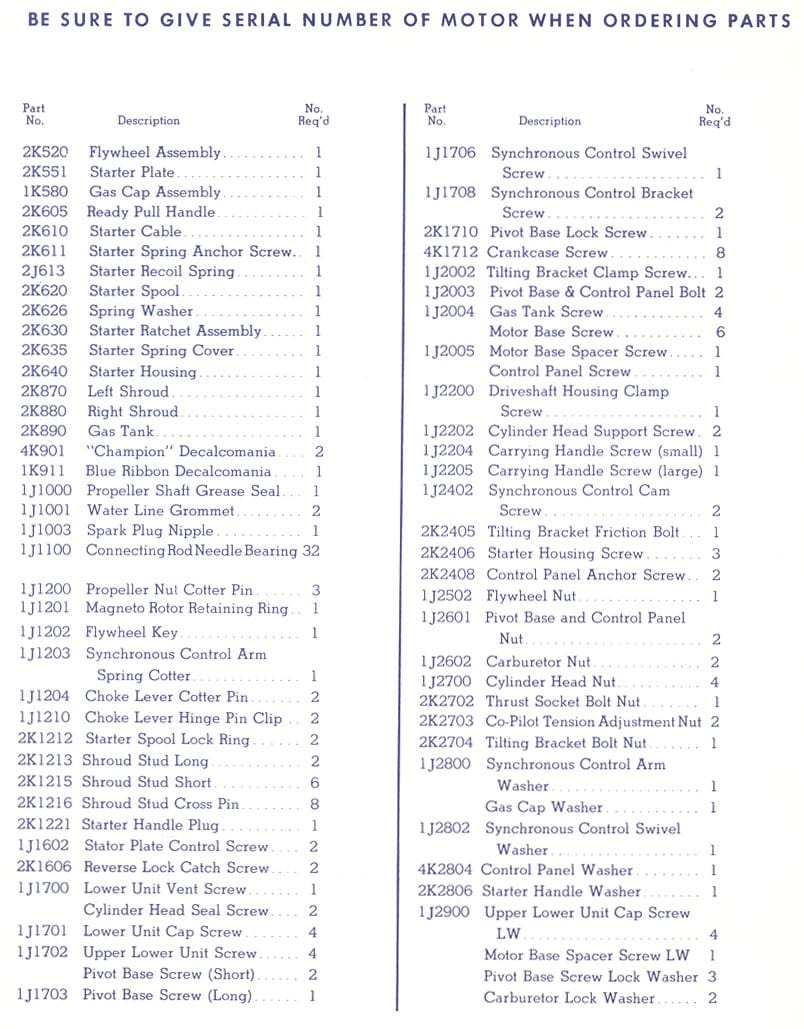

              13.-Numerical-Parts-List-2

              14.-Numerical-Parts-List-3

              March 1, 2020 at 11:45 am #196334
              jwwest21
              Participant

                Frank-
                A huge thank you Sir!
                Jim

                March 3, 2020 at 10:21 am #196512
                seakaye12
                Participant

                  US Member

                  Here are Frank’s pages as a PDF File
