Having a senior moment

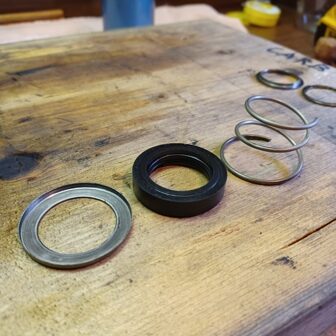

Does the retaining washer cup the carbon seal or the spring?

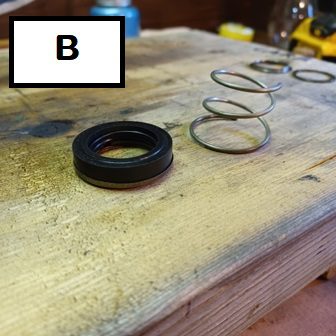

Does it go together like picture A or B ?

[outboardnut]

[Bob Wight]

Carbon seal goes in first, large washer on top of the carbon seal, then spring, then small washer, then retaining clip.

Bob

1937 Champion D2C Deluxe Lite Twin
1954 Johnson CD-11
1955 Johnson QD-16
1957 Evinrude Fastwin 18
1957 Evinrude 3022
1958 Johnson QD-19
1958 Johnson FD-12
1959 Johnson QD-20
1982 Evinrude 25hp

“Every 20 minute job is only a broken bolt away from a 3-day project.”
"Every time you remove a broken or seized bolt an angel gets his wings."

[Bob Wight]

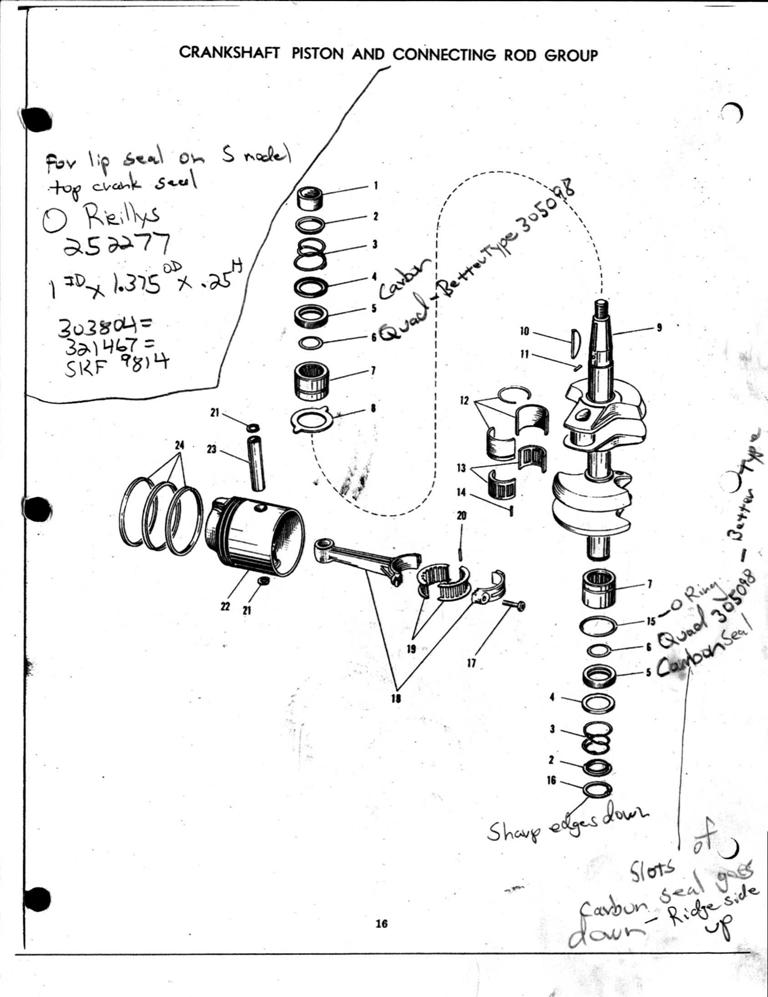

See sequence pics.

Bob

1937 Champion D2C Deluxe Lite Twin
1954 Johnson CD-11
1955 Johnson QD-16
1957 Evinrude Fastwin 18
1957 Evinrude 3022
1958 Johnson QD-19
1958 Johnson FD-12
1959 Johnson QD-20
1982 Evinrude 25hp

“Every 20 minute job is only a broken bolt away from a 3-day project.”
"Every time you remove a broken or seized bolt an angel gets his wings."

[Bob Wight]

Last 2 pics.

Bob

1937 Champion D2C Deluxe Lite Twin
1954 Johnson CD-11
1955 Johnson QD-16
1957 Evinrude Fastwin 18
1957 Evinrude 3022
1958 Johnson QD-19
1958 Johnson FD-12
1959 Johnson QD-20
1982 Evinrude 25hp

“Every 20 minute job is only a broken bolt away from a 3-day project.”
"Every time you remove a broken or seized bolt an angel gets his wings."

[outboardnut]

so in other words the flat side of the retaining washer goes against the carbon seal and the spring goes into the cup portion of the retaining washer

[frankr]

outboardnut wrote:

so in other words the flat side of the retaining washer goes against the carbon seal and the spring goes into the cup portion of the retaining washer

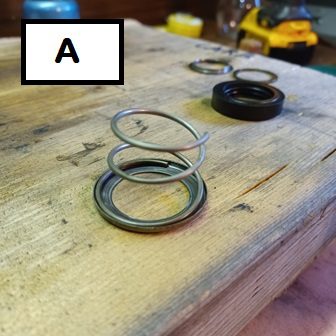

Yes, Picture #A.  Makes sense because the cup keeps the spring from sliding off sideways.
