Help with 58 Brooklure 5hp parts I.D.

[drifter]

I just picked up a nice 1958 Brooklure 5hp with a broken shift lever. I think the correct parts that make up the handle assembly are: 591583 shaft & arm, 277626 (handle), and 552498 (spring). Can someone please verify if those are the correct parts before I try the free classifieds?

Thanks,
Drifter

[frankr]

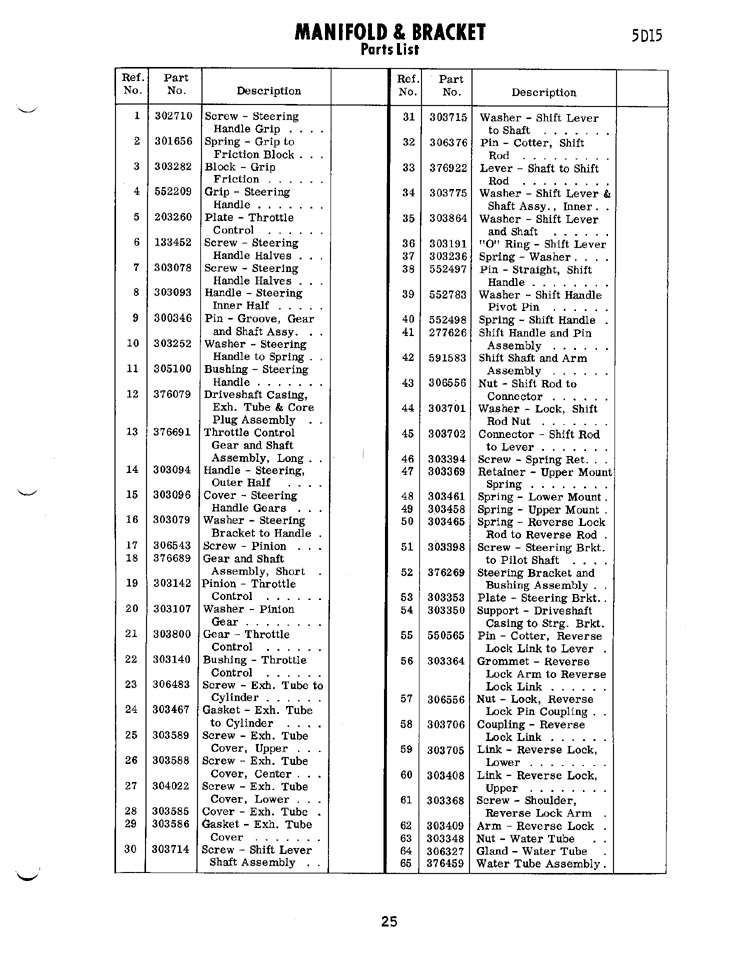

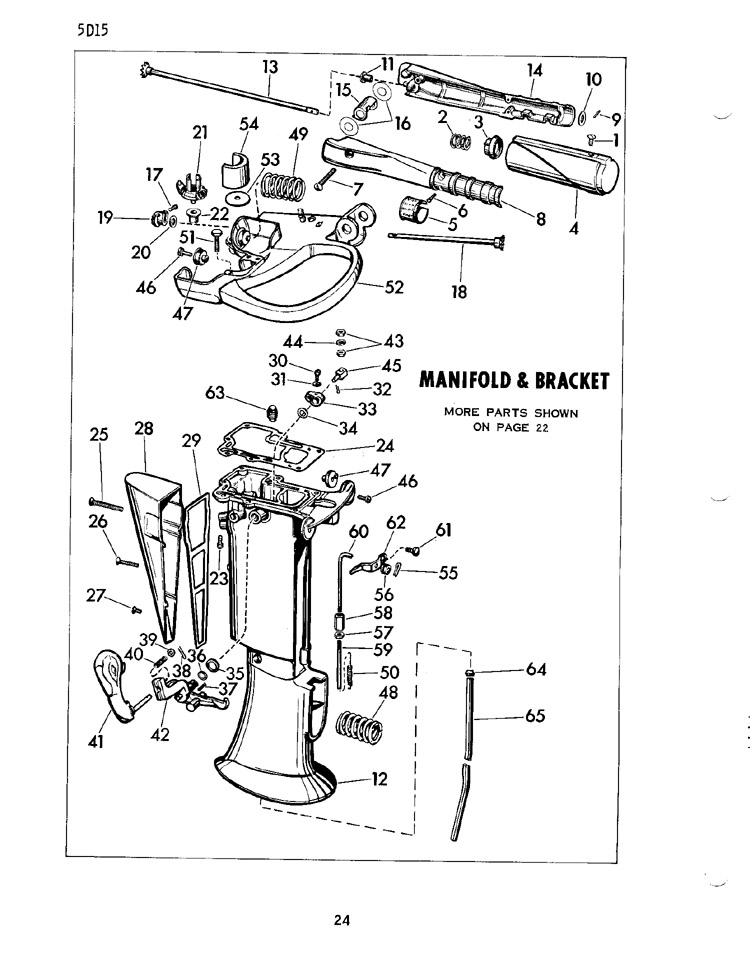

Here ya go—Don’t forget a new o-ring #36 so it doesn’t leak.

[drifter]

Thanks Frank. Yep, I have bunches of the "o" rings and will probably do a new bearing surface. I just don’t have the spring loaded shift handle in my parts bin.
