Kf7 carb

[Mallett]

so I got the kf7 on the flyer it started fine,I let it  warm up a for minute or three moved the timing advance up to fast, squeezed the hand throttle off we went, it was  great! Ran for a few minutes gave it the full throttle a couple of times it’s fast. Then it seemed to bog down not have the top end it starts and idles putts along. So probably need to clean the carb jets any advice before I dig in?

thanks

[Mallett]

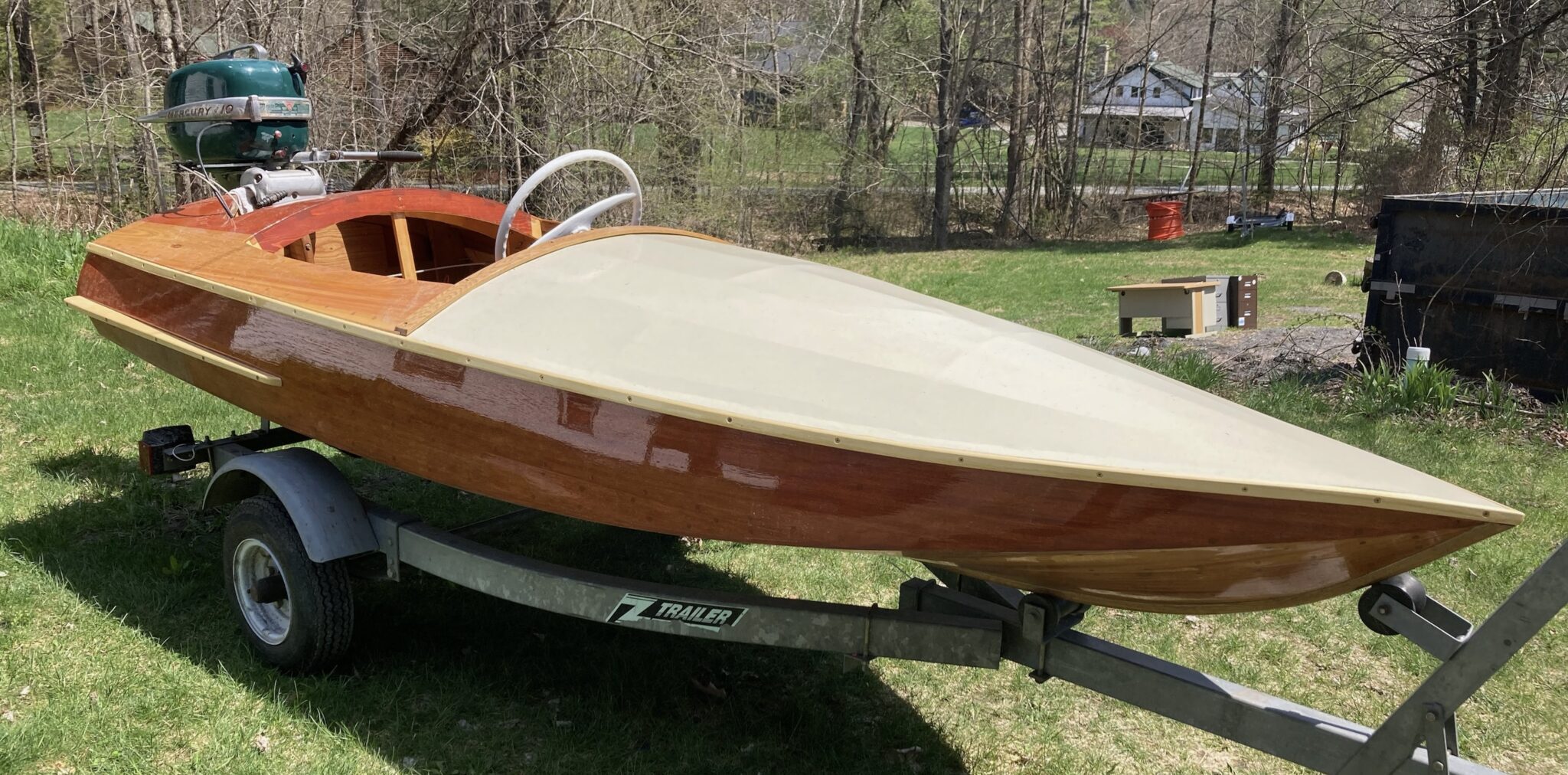

Here she is!



[Tubs]

Carb is simple enough except for the spring
on the choke plate. Takes a little practice getting
it back on. Old packing washers can disintegrate
leaving chucks plugging things up so that worth
checking but are you sure something hasn’t just
slipped or become disconnected?
Tubs.

A "Boathouse Repair" is one thats done without having tools or the skills to do it properly.

[labrador-guy]

Check the fuel filter in the tank also!

dale



[billw]

labrador-guy wrote:

Check the fuel filter in the tank also!

dale



Ditto.

Long live American manufacturing!

[dave-bernard]

And the fuel line.

[Mallett]

Tubs what’s the small adjustment screw to right of the fuel shutoff, and how does one adjust it properly?

[dave-bernard]

High speed adjustment run at full throttle and adjust to best running.

[Mallett]

Thanks tubs, that’s a nice looking carburetor. I don’t see a filter in the copper fuel line or the tank.

[Tubs]

The original filter is (or was) here. It could
have been removed. The ones I have had still
have the factory filter so I don’t have any
experience with actual substitutes. I’m sure some
more knowledgeable than me will help you
out there.
Tubs.

A "Boathouse Repair" is one thats done without having tools or the skills to do it properly.
