  • July 25, 2026 at 10:51 am #325103
    Alger Rutz
    Participant

      US Member

      I’m looking for specific dimensions on the Mercury 10HP KE7 Lightening. 1. Total overall height from top of cowl (no handle) to btm of skeg. 2. Top of Trans hsg to bottom of cavitation plate. 3. lwr unit from top to btm of skeg. 4, overall ength, height and width of green covers assembled.

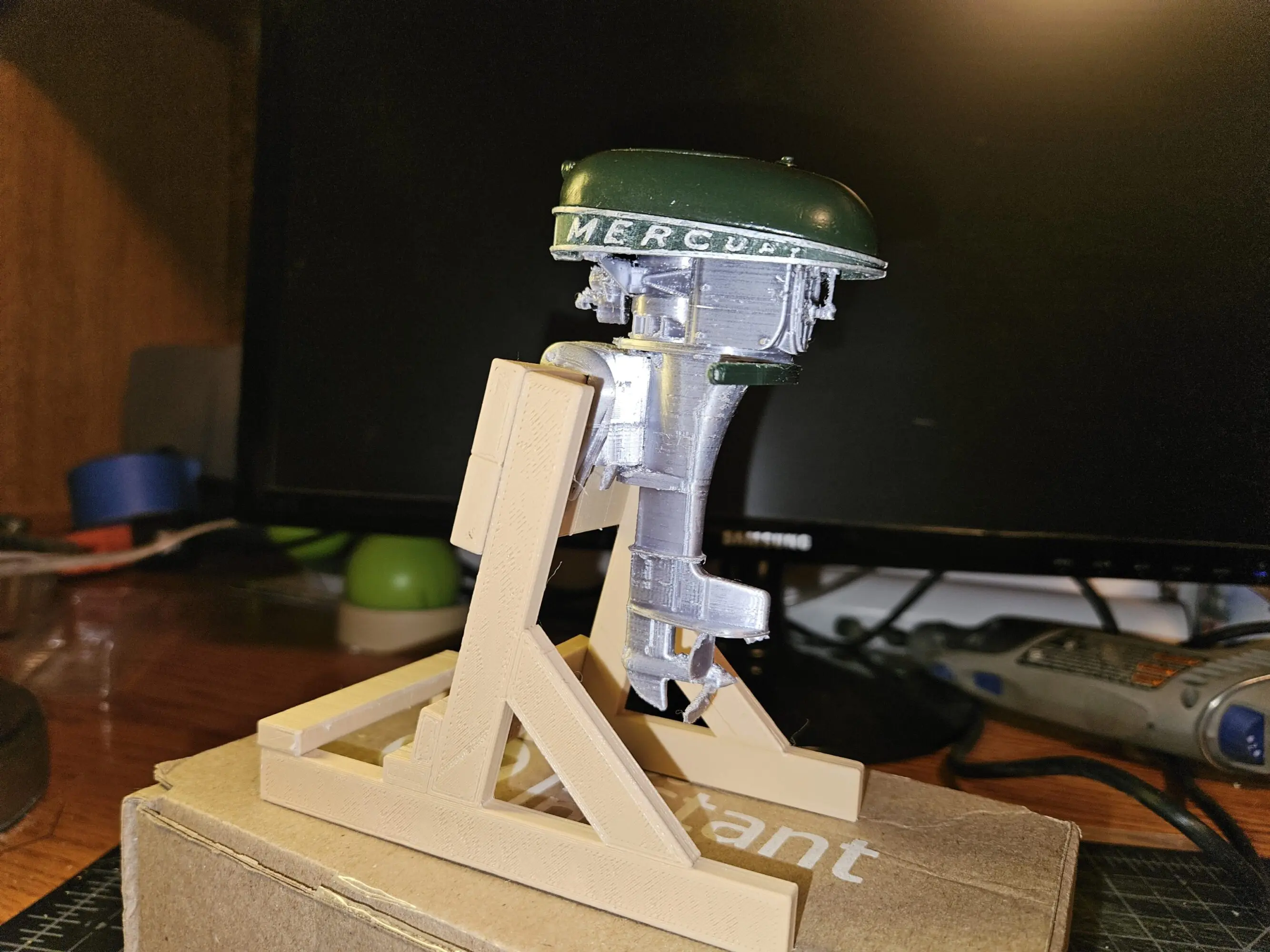

      I am creating a 1/8 scale 3d print of my old KE7 motor and need to fine tune the dim’s I have my ist proto model photo (attached) .

      Would appreciate any help.  Thanks,  ALKE7-proto1
