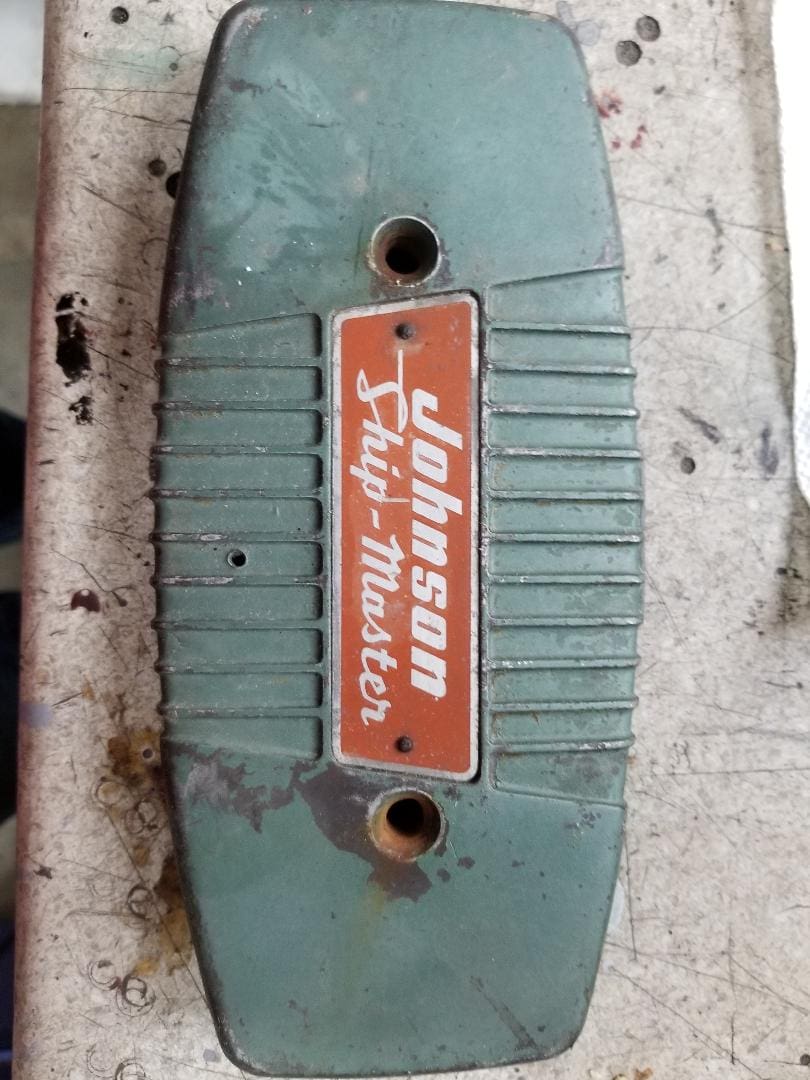

      Does anyone have a parts diagram of this ship master control? (pic attached)
      I need the little plastic detente piece on one of the levers and I can’t find it.

      Thank you for your help
      Bill

      johnson-remote

      October 1, 2019 at 3:27 pm #184424
      frankr
      Participant

        US Member

        Same as this Bo’sun, different name plate.

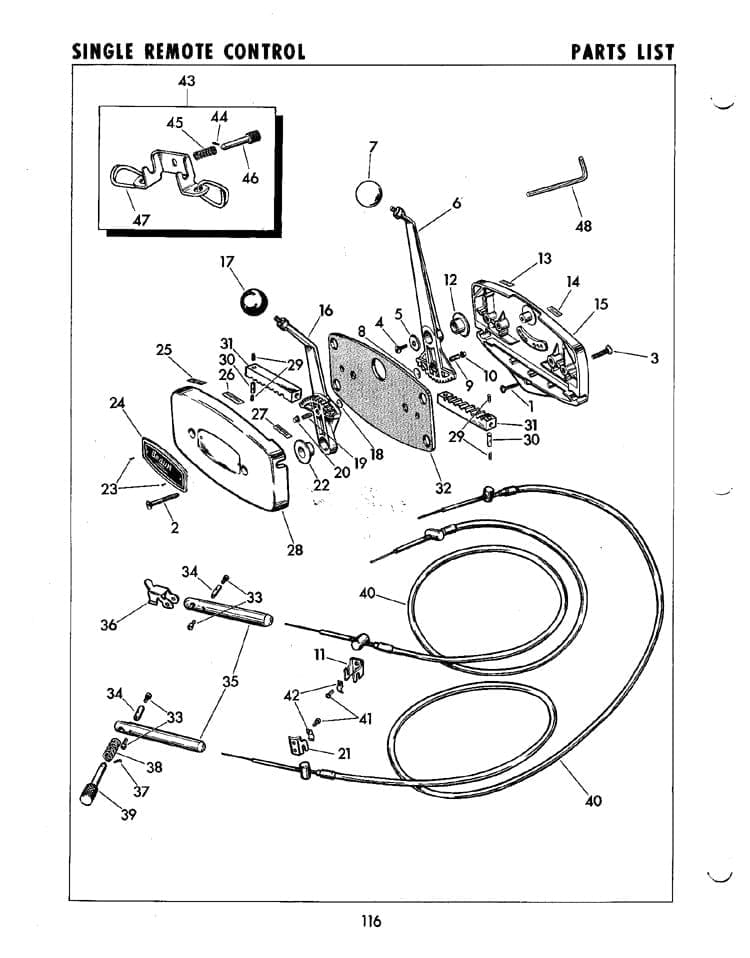

        Single-Remote-Control

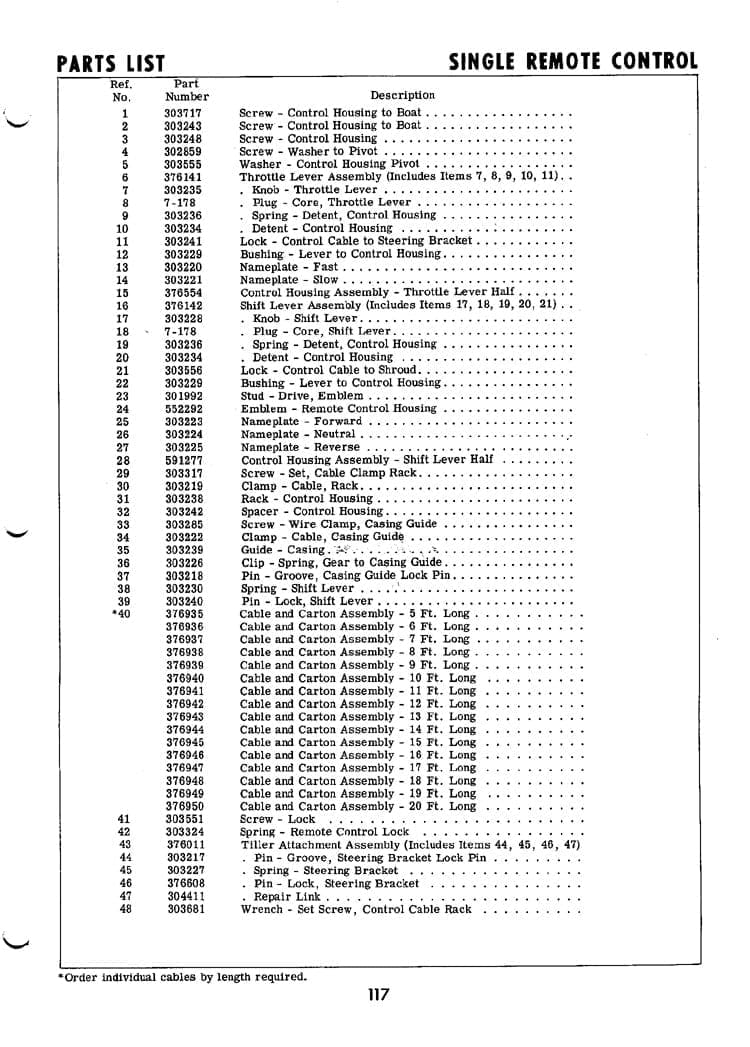

        Single-Remote-Control-Parts-List

        October 1, 2019 at 4:18 pm #184427
        huntleybill
        Participant

          US Member - 2 Years

          Perfect. Thank you so much.
