      People here pretty much know everything about outboard motors. Does anybody know of a table of weights of complete motors? I’m thinking mainly of older OMC machines but broader data would be even more useful.

      July 26, 2020 at 4:38 pm #209970
      Bob Wight
      Participant

        US Member

        Here’s one for Johnson motors.

        Bob

        1937 Champion D2C Deluxe Lite Twin
        1954 Johnson CD-11
        1955 Johnson QD-16
        1957 Evinrude Fastwin 18
        1957 Evinrude 3022
        1958 Johnson QD-19
        1958 Johnson FD-12
        1959 Johnson QD-20
        1982 Evinrude 25hp

        “Every 20 minute job is only a broken bolt away from a 3-day project.”
        "Every time you remove a broken or seized bolt an angel gets his wings."

        1 user thanked author for this post.
        analogman
        July 26, 2020 at 5:12 pm #209976
        Mumbles
        Participant

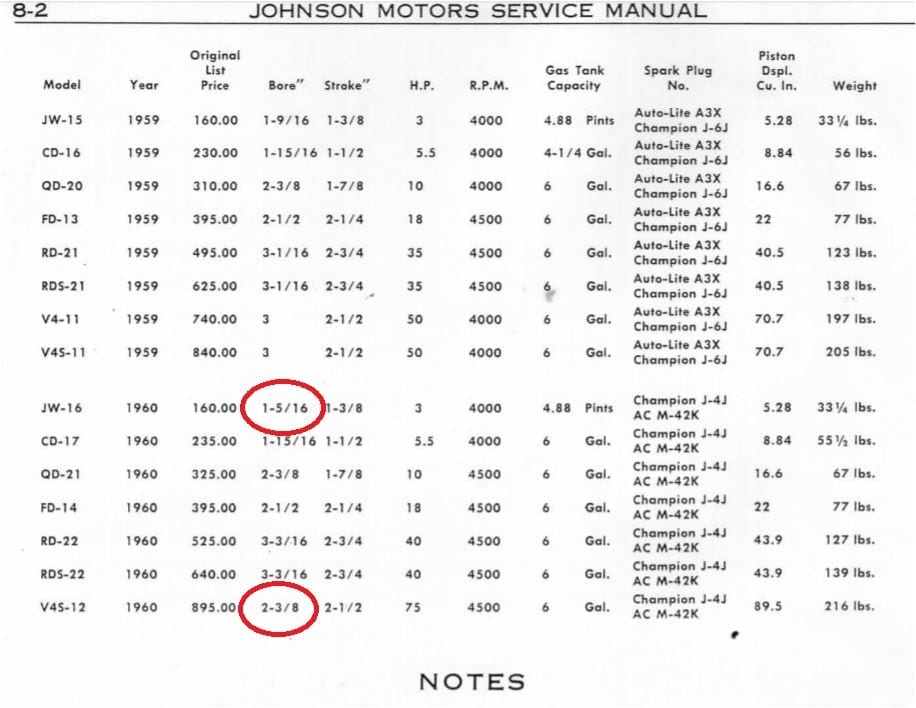

          Not weight related but I did find a couple of bloopers in the ’59 – ’60 specs.

          Johnson-Specs-59-60-Copy

          July 26, 2020 at 7:49 pm #209992
          need2fish
          Participant

            Amazing ! They made the bores smaller but kept the HP the same !

            July 26, 2020 at 8:42 pm #210000
            DAVID
            Participant

              US Member

              changed the stroke and same cid.

              July 26, 2020 at 10:03 pm #210008
              Mumbles
              Participant

                Yep, those 60’s motors are grossly under square for hi RPM!
