  • frankr

    US Member - 1 Year (includes $3 online payment fee)
    Replies: 6715
    Topics: 51
    #257017

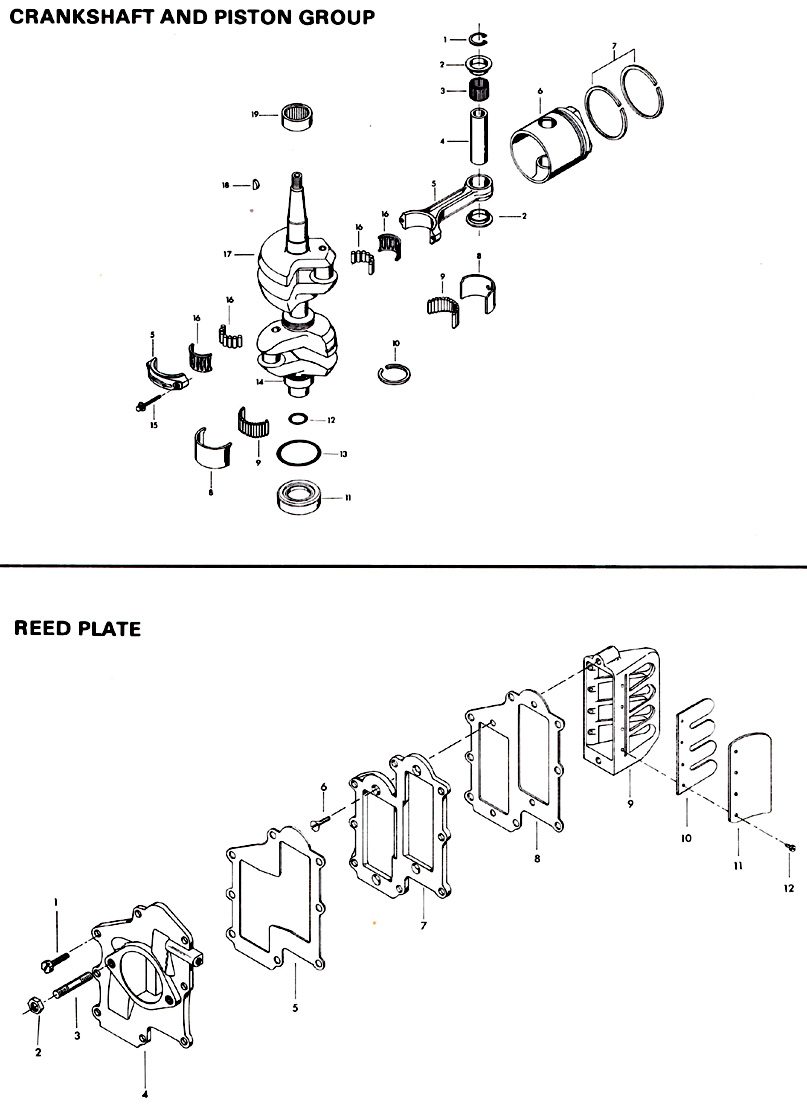

    img013-1

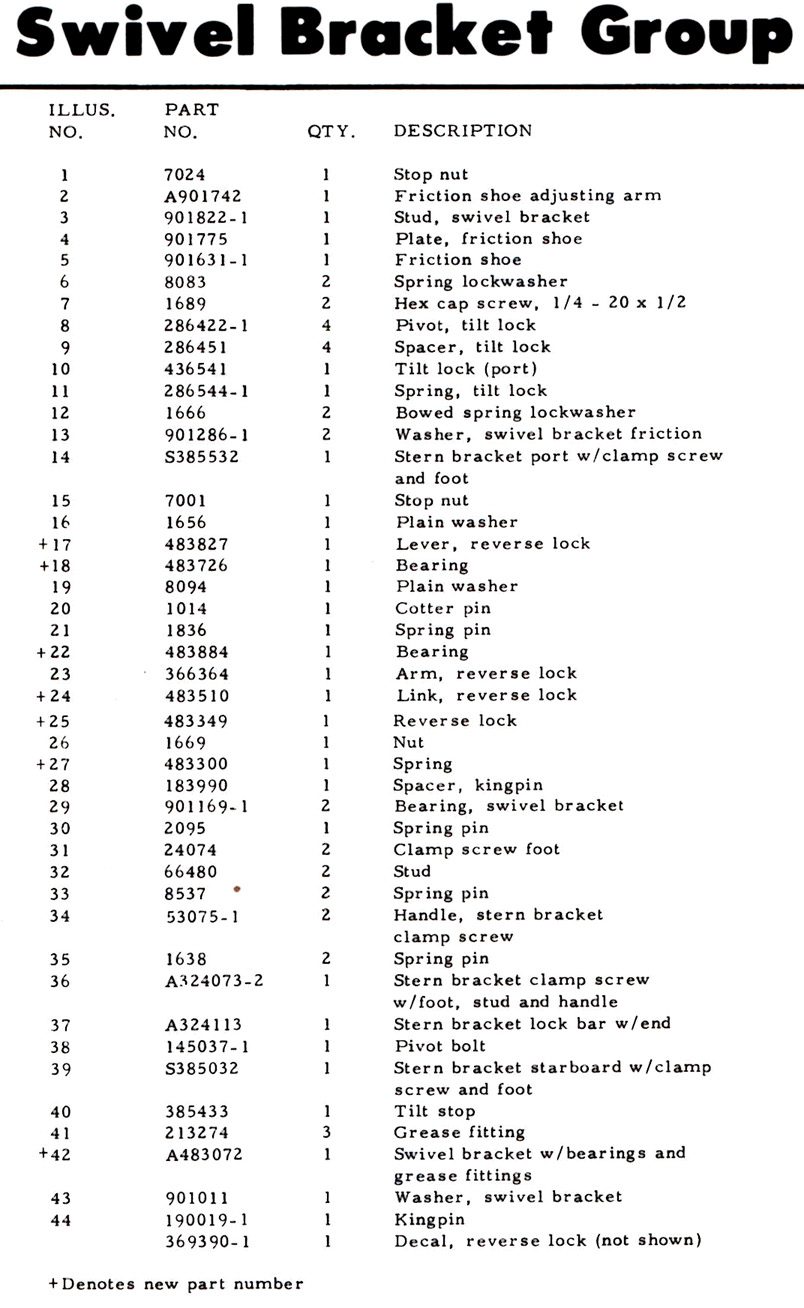

    img014-1


    frankr

    US Member - 1 Year (includes $3 online payment fee)
    Replies: 6715
    Topics: 51
    #257023



    frankr

    US Member - 1 Year (includes $3 online payment fee)
    Replies: 6715
    Topics: 51
    #257029

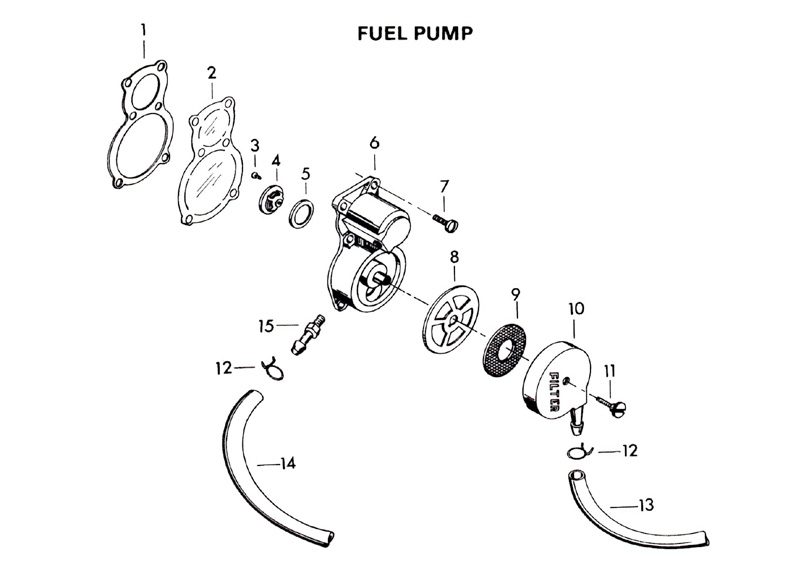

    img008-1-1

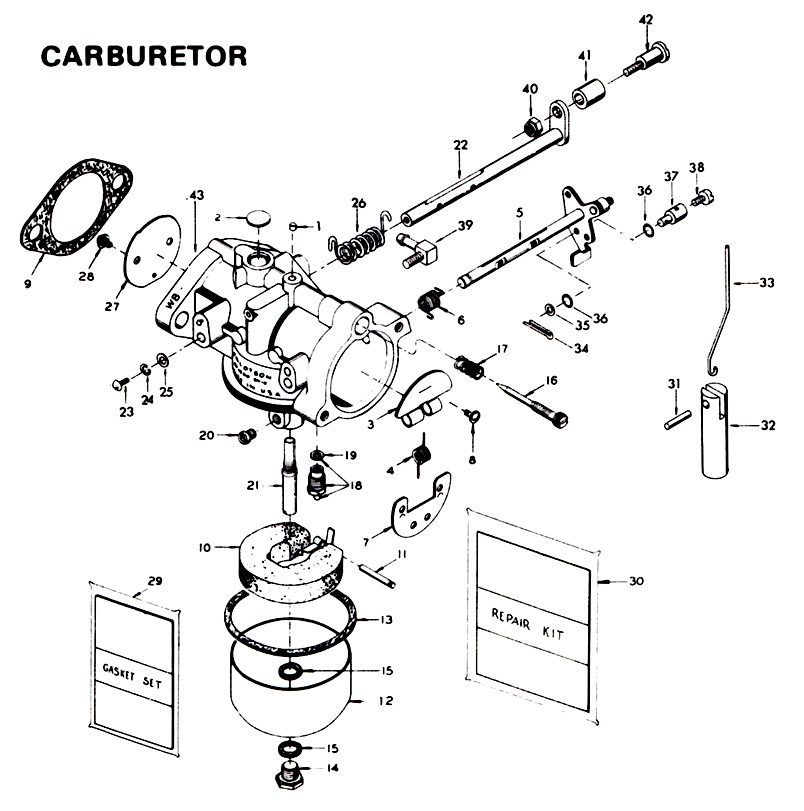

    img009-1-1

    1 user thanked author for this post.

    rmhxruss


    Replies: 145
    Topics: 6
    #257066

    Thanks for these posts. Would like to see em all. Chrysler seems hard to find info on.


    seakaye12

    US Member - 1 Year (includes $3 online payment fee)
    Replies: 1117
    Topics: 108
    #257133

    Yes….Thanks so much Frank. They are great quality scans as yours always are. Greatly Appreciated!

    Do you have time for the 15’s  and 45?

    BTW….if anyone would prefer a PDF of these catalogues I have posted the 20 and 25 below.


    frankr

    US Member - 1 Year (includes $3 online payment fee)
    Replies: 6715
    Topics: 51
    #257139

    Chuck, I don’t know how to convert to PDF, but if you are interested in doing so, and will share them with others, I’ll copy them all on a USB drive and mail it to you.  Address in the directory is good, right?


    retiredoz

    US Member - 1 Year (includes $3 online payment fee)
    Replies: 565
    Topics: 27
    #257161

    I have parts lists for the Commodore series (2,7.5,10,18) produced ’62-64.  Also service manual for all models ’56-’60, 3.5 thru 50 hp models ’63-’64, and the West Bend Shark-O-Matic.


    seakaye12

    US Member - 1 Year (includes $3 online payment fee)
    Replies: 1117
    Topics: 108
    #257171

    Chuck, I don’t know how to convert to PDF, but if you are interested in doing so, and will share them with others, I’ll copy them all on a USB drive and mail it to you.  Address in the directory is good, right?

    Great idea Frank; I would be happy to do that. I can share here and I can also get them up on the Southern California Chapter Website. The address in the directory is correct.

    Do you have Service Manuals as well?

    Chuck


    seakaye12

    US Member - 1 Year (includes $3 online payment fee)
    Replies: 1117
    Topics: 108
    #257172

    I have parts lists for the Commodore series (2,7.5,10,18) produced ’62-64.  Also service manual for all models ’56-’60, 3.5 thru 50 hp models ’63-’64, and the West Bend Shark-O-Matic.

    Good to know; I assume that they are not in digital form and would need to be scanned?


    frankr

    US Member - 1 Year (includes $3 online payment fee)
    Replies: 6715
    Topics: 51
    #257176

    Chuck, I also have about 20 more Sea King parts books, same general era, un-scanned, in paper form.  Do you want them too?

    Frank
