Home › Forum › Ask A Member › Wiring diagram needed for external wiring on a ’56 Mark 25E
- This topic has 8 replies, 5 voices, and was last updated 6 years, 3 months ago by mercuryspecialist.
-
AuthorPosts
-
January 22, 2018 at 1:40 am #9053
I have a wiring harness for a Mark 25E that needs re-doing. I am looking for the wiring diagram. Does anyone have one I can get a copy of?
Thank you for your time

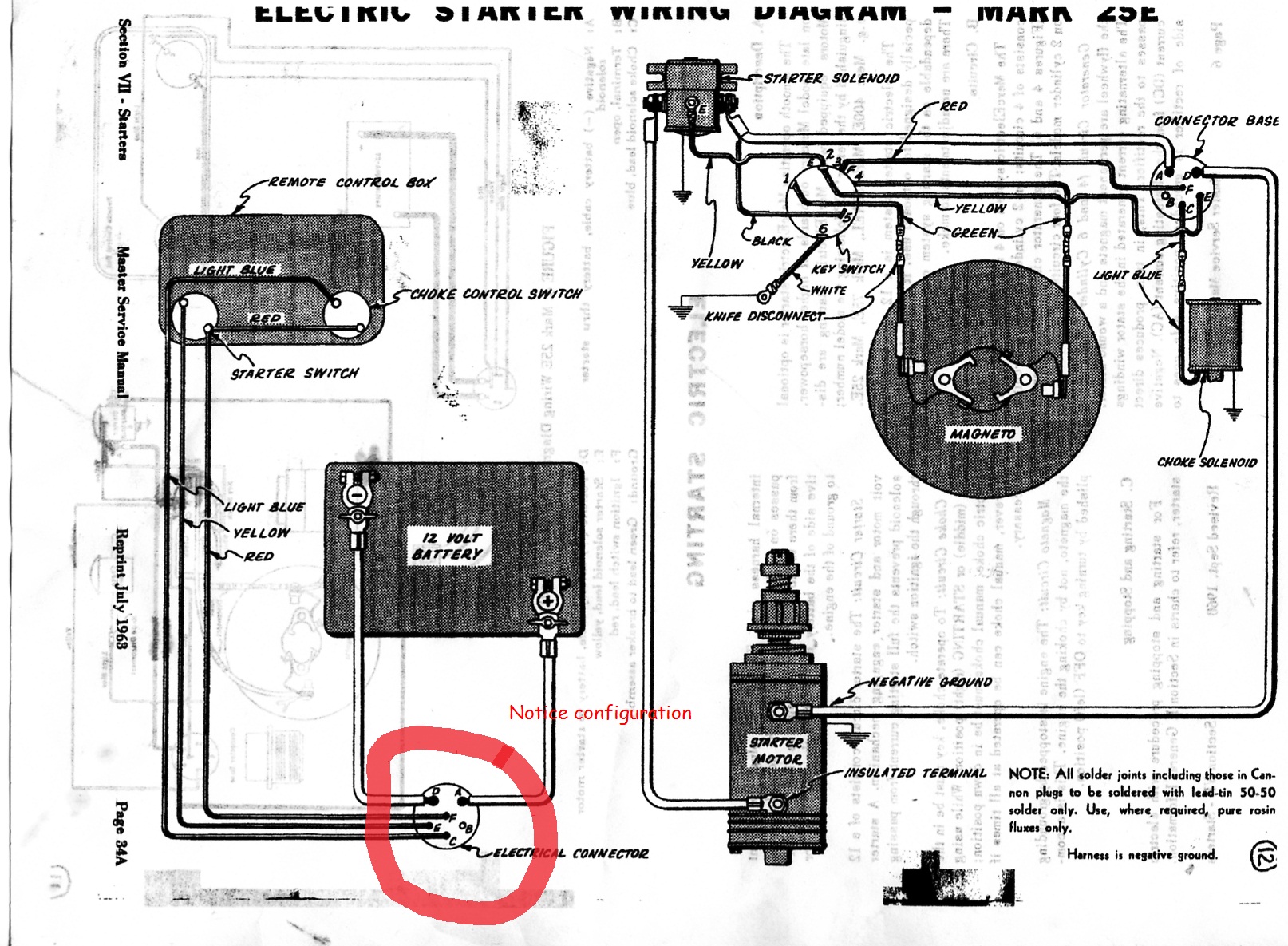

BillJanuary 22, 2018 at 1:51 am #70027January 22, 2018 at 2:33 am #70030Yup…this is it! Thank you.
January 22, 2018 at 6:43 am #70036January 22, 2018 at 11:12 am #70038Thanks Garry, I will save the colorized version
http://www.richardsoutboardtools.com
classicomctools@gmail.comJanuary 25, 2018 at 12:48 am #70148Bill, I thought you had a swing starter on that one you are working on. I have the 55 with the swing starter on mine. You took Photos of it at the Paul Miller meet. Both of the Starter terminals are on the bottom. Positive ground!!!!!
Bob Kolar
MotorheadsJanuary 25, 2018 at 12:55 am #70149On a Mark25E? There is hardly enough room for wiring,let alone a starter that moves…..Got pics?
http://www.richardsoutboardtools.com
classicomctools@gmail.comJanuary 25, 2018 at 1:10 am #70151Nice Job Gary, I am l am going to start looking for my crayons now. Bill, I am doing My 1955 25E this week. I will post a picture on the AOMCI facebook. I don’t want to hijack Bills thread.
Bill Give me a call
Bob Kolar
Motorhead of ILJanuary 26, 2018 at 8:55 am #70218To be "perfect", the large positive (+) cable of the remote control harness, nor both large cables from each side of the starter solenoid were black colored insulation, not the red depicted. The terminals of the remote control wiring harness were however stamped with (+) and (-).
The starter mechanism, which is separate of the starter motor, does have an arm which swings a small amount horizontally to engage the flywheel ring gear on the 1955 model (also seen on 1956 Mark 30E, 1954 Mark 50E, and 1955 Mark 55E). Although the service manual does have another diagram showing the positive ground, when compared, they only differ in that (as was pointed-out above) the wire leads attach to terminals on the "swing arm" starter’s lower end cap, and that the remote control large cables are reversed as to which terminal of the battery they connect to. I probably can answer any questions, but please post them in a thread, as I seldom login, so it may be quite sometime before I could respond. E-mails are welcomed, but posting of our business e-mail may not be wanted, but if allowed, it is: info@fergusonpoolemarine.com.Regards,
Joe Poole, Jr. -
