Topic: 1930 Elto Senior Speedster Water Pump Impeller

This topic has 10 replies, 5 voices, and was last updated 5 years, 11 months ago by Buccaneer.

Viewing 10 posts - 1 through 10 (of 11 total)

1 2 →

Author

Posts
May 21, 2018 at 11:10 pm #9997
Buccaneer
Participant
US Member
Is this water pump impeller on "backwards"?
Looking at the steel rotor, one would think
it would work better as a "scoop" if it were turned
over, instead of a kind of positive displacement.

Attachments:

Prepare to be boarded!
May 22, 2018 at 5:16 am #76541
garry-in-michigan
Participant
Lifetime Member
Nope – than’s the way they were. Virtually unchanged on the larger outboards (Elto Fleetwin, Evinrude Sport Four, Speeditwin +) until they went to rubber impellers in the early 1950s . . . 😎
– – – – 1941 Speeditwin – – – –
May 22, 2018 at 11:53 am #76551
Buccaneer
Participant
US Member
Thanks Garry, from what I’m learning about this Speedster,
it sounds like it’s water cooling system is force ram first,
then the impeller booster.

Prepare to be boarded!
May 22, 2018 at 1:11 pm #76559
squierka39
Participant
US Member
The impeller is more of a squishing than a scooping. Look at how the newer OMC rubber ones work. When in place they are also flexing back, not scooping.
May 22, 2018 at 2:58 pm #76561
Buccaneer
Participant
US Member
quote SquierKA39:

The impeller is more of a squishing than a scooping. Look at how the newer OMC rubber ones work. When in place they are also flexing back, not scooping.

I would imagine someone found many moons ago,that the rubber impeller with contact on
all sides was more efficient than a steel impeller, with much less contact .
I don’t remember learning this fact, but what brand came out with the
rubber impeller first?

Prepare to be boarded!
May 22, 2018 at 3:01 pm #76562
pm-t2
Participant
Canada Member - 2 Years
might have been Mercury, they were using them pre-war.

Not sure when the wobbler type of water pump went into use. I’m not too well schooled on that sort of thing.

PM T2
May 22, 2018 at 6:30 pm #76573
wbeaton
Participant
Canada Member - 2 Years
Good question. Johnson TD/TN series and Martin both use wobble pumps in the 1940’s.

Wayne
Upper Canada Chapter

uccaomci.com
May 23, 2018 at 3:06 am #76594
garry-in-michigan
Participant
Lifetime Member

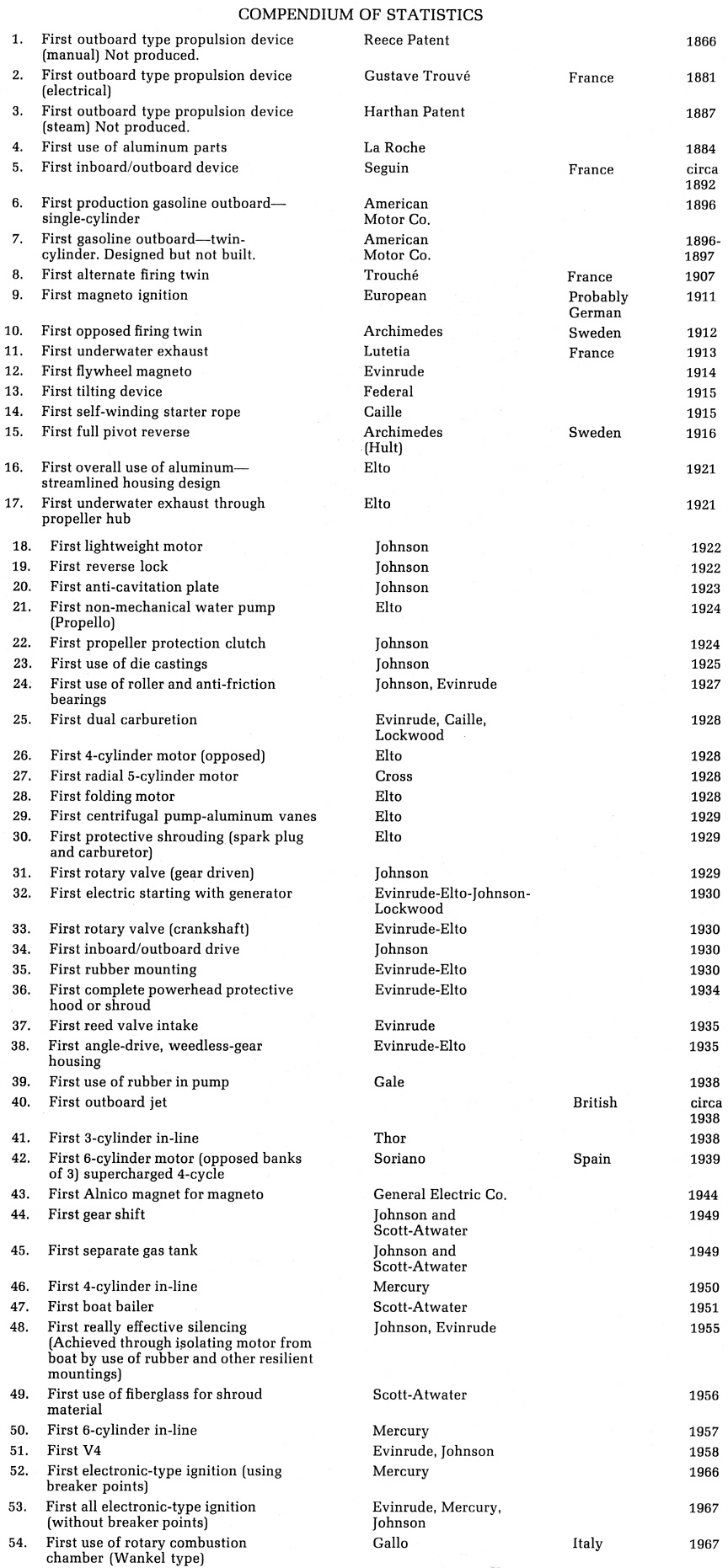

See number 39 – – – 😎
May 23, 2018 at 12:29 pm #76603
Buccaneer
Participant
US Member
quote Garry in Tampa:

See number 39 – – – 😎

Thanks again to the Outboard National Archives, and chair head, Garry Spencer!
1938 it is!
I’m guessing first came the "wobbler" style rubber pump,
gotta wonder when the first, "modern style" rubber vaned
impeller came about. 🙂

Prepare to be boarded!
May 24, 2018 at 2:42 am #76635
garry-in-michigan
Participant
Lifetime Member

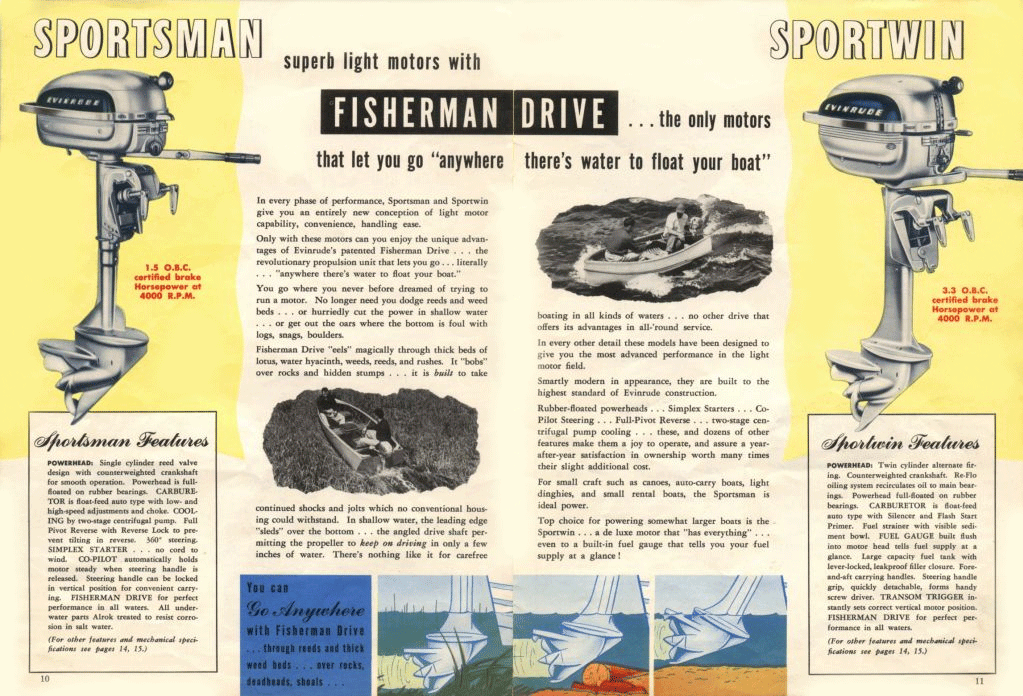

The first Evinrudes with a rubber veined impeller were these 1948 models . . .
