October 29, 2017 at 12:42 pm #66757
jerry-ahrens
Participant
US Member
I’ts nice to see someone working on the early alternate firing motors. It seems like I never see those running at a meet. I heard a story once, that the Johnson brothers got the idea to build the alternate firing powerhead, after observing how smooth the V-45 motor ran with the compression release activated. Pretty interesting..
Those engines were really a ”milestone” motor for the outboard industry, when compared to the old opposed firing models.
October 29, 2017 at 4:28 pm #66763
Buccaneer
Participant
US Member
Interesting side story Jerry!
I hope mines is one of those "good runners".
Got the crankcase and cylinder "blasted"
this morning. Back to the garage!

Prepare to be boarded!
October 29, 2017 at 7:03 pm #66769
pm-t2
Participant
Canada Member - 2 Years

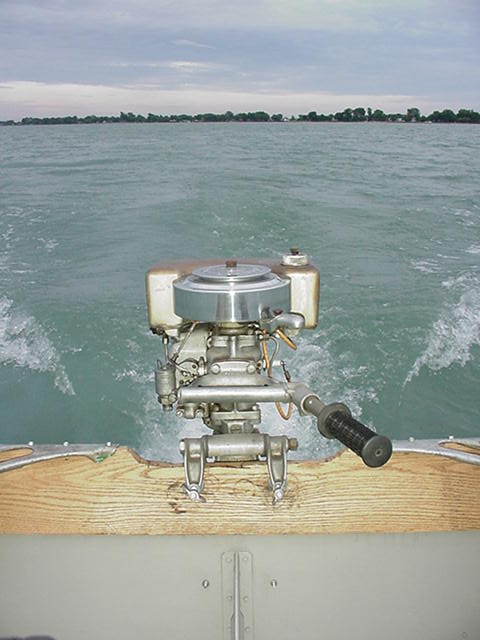

alternate firing twin running at a one-man wet meet in Lake St. Clair. This was a good running one-pull motor that has since moved on to somebody elses collection.

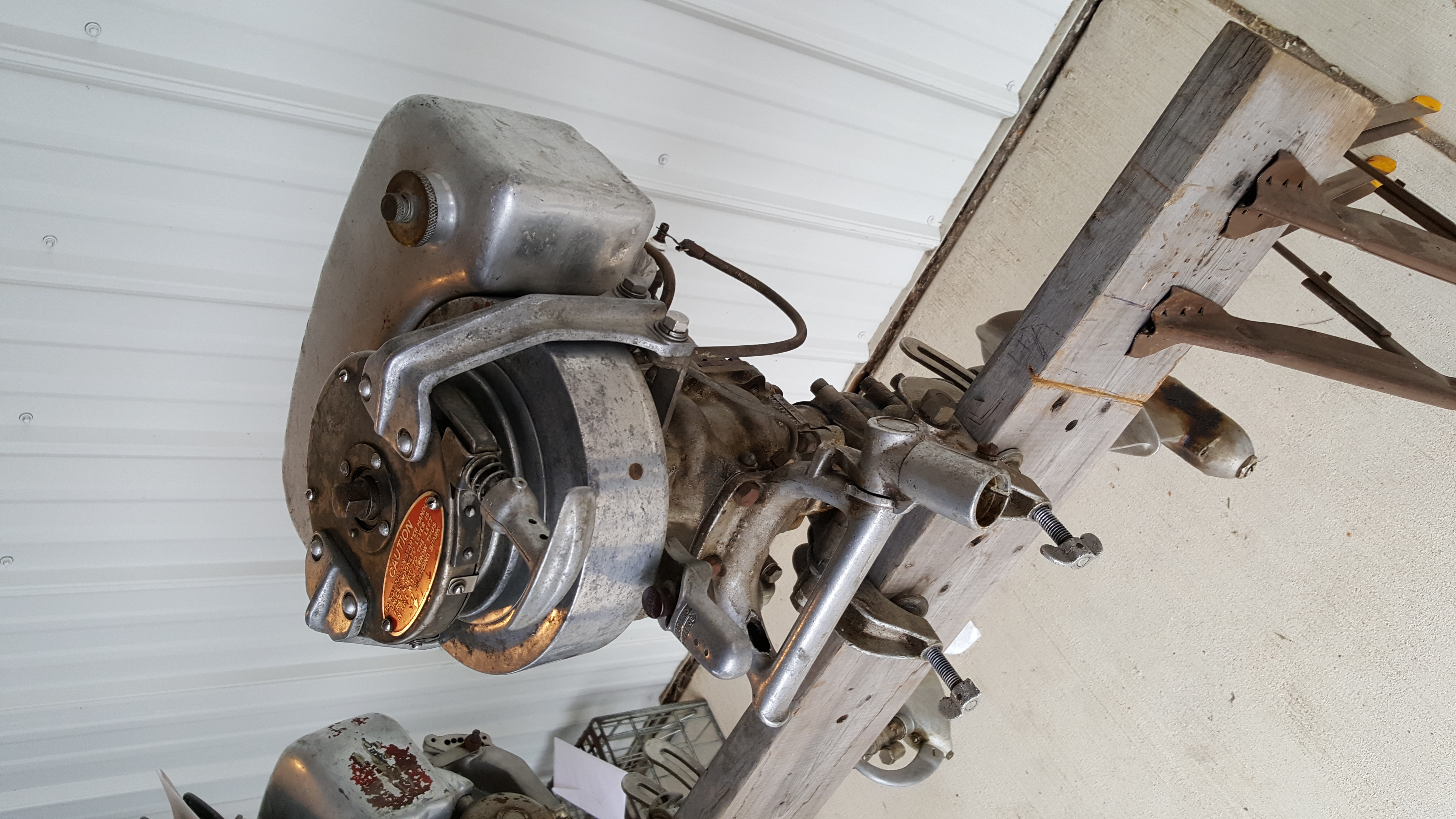

I just got another A-70, this one needs help to run, low compression and probably needs centre main work too. To be honest – The rewind starter was the main attraction

PM T2
October 29, 2017 at 8:29 pm #66773
squierka39
Participant
US Member
That’s pretty cool, missed out on a ree-coil K a few years ago. I think they only made that for a few short years, Maybe on the 65 and 70 models?
October 29, 2017 at 8:41 pm #66774
squierka39
Participant
US Member

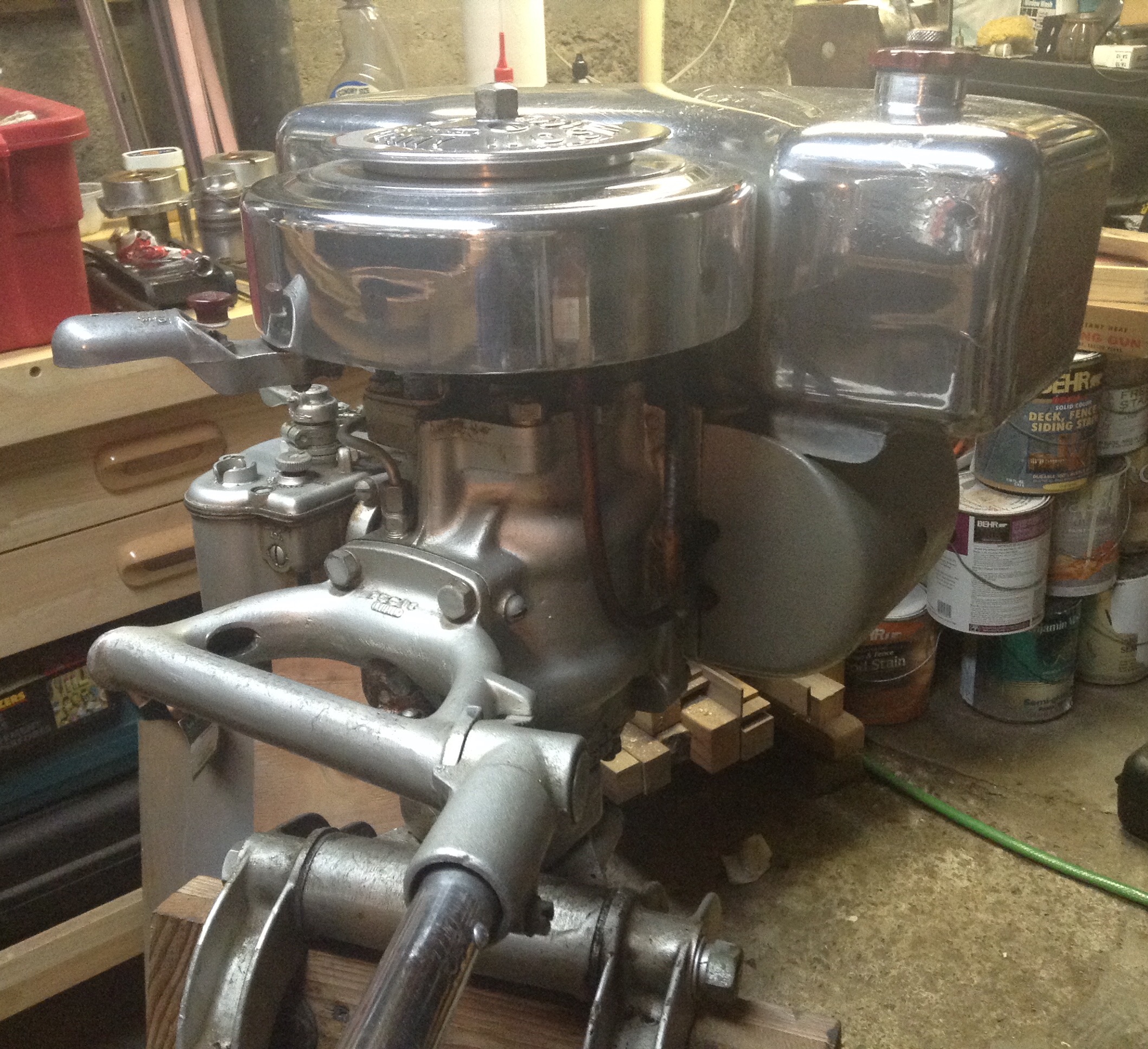

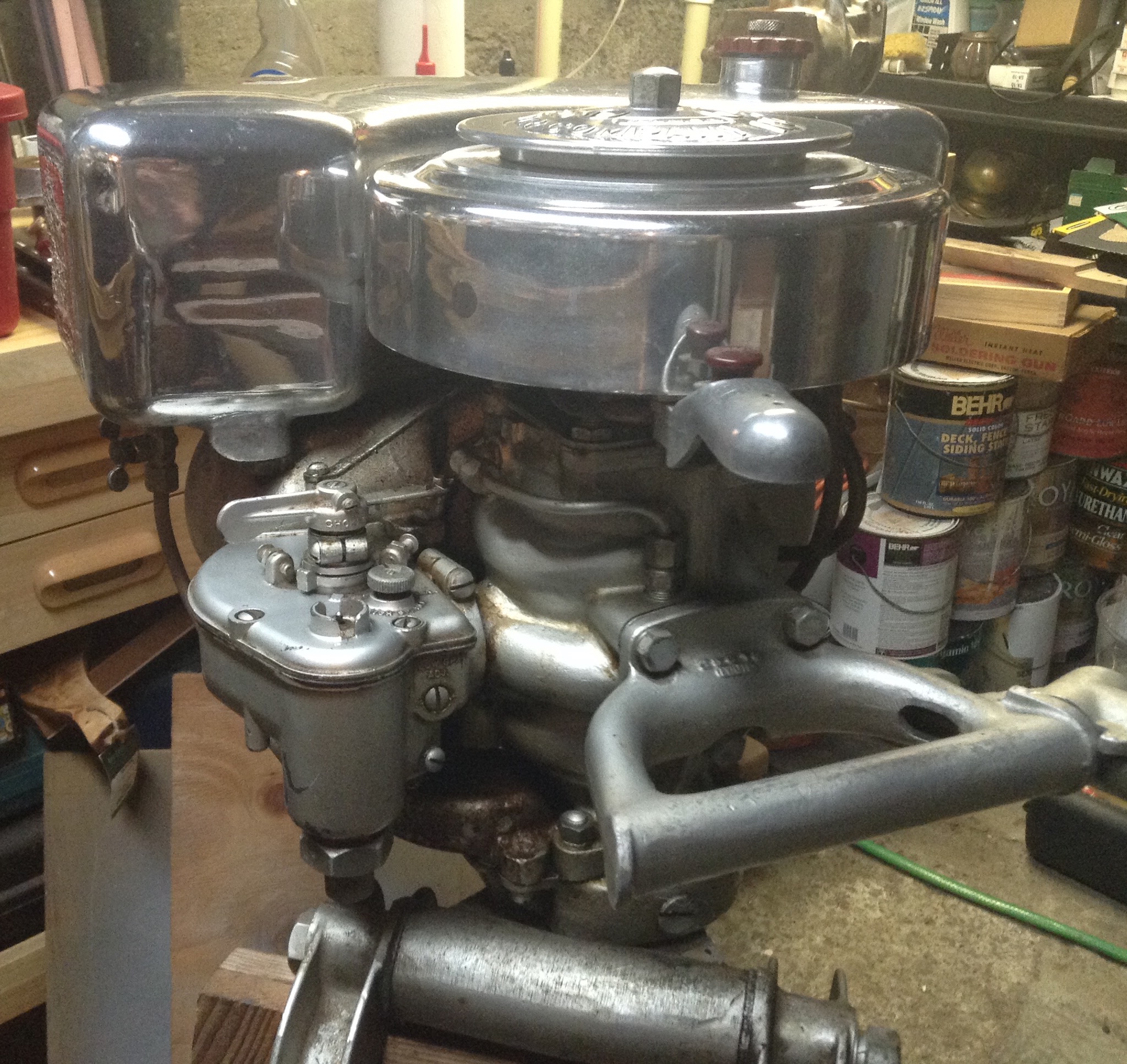

Here is my KA39, unrestored. Runs great.
October 29, 2017 at 10:40 pm #66777
Buccaneer
Participant
US Member
Mr. KA-39, Nice looking motor! Wish my fuel tank
looked like yours. I found the timing marks you
mention. Thanks for mentioning them. With the
plug holes 90 degrees to the cylinder, I couldn’t
use my TDC gauge and buzz box method anyway.

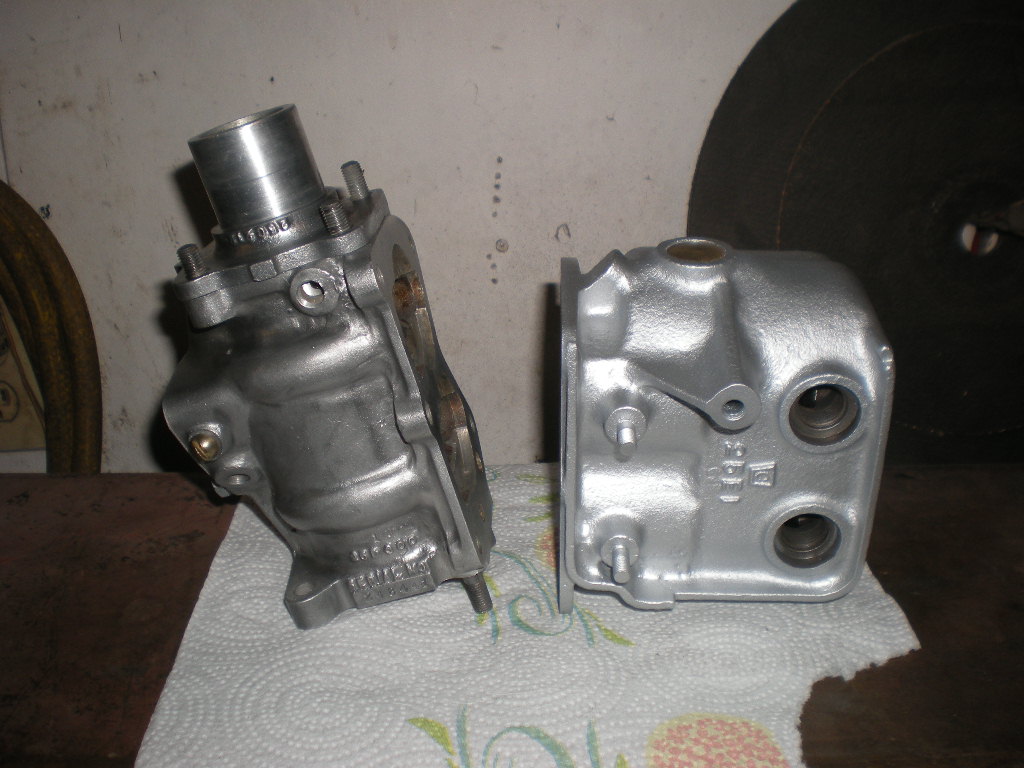

Cylinder painted up a while ago, and made
the gasket for it. The original was only .010
thick. Best I could come up with was some
heavy kraft / masking paper at .008 thick.
My thinnest gasket material is .015.
Will coat it with some grease and hope for the
best. 😉

Attachments:

Prepare to be boarded!
October 30, 2017 at 1:12 am #66784
squierka39
Participant
US Member
KS-15 that I had just finished and my KA-39 displayed in the rain. Notice the KS has a painted tank, correct for that year and even with dents it’s not to bad.
October 30, 2017 at 1:28 am #66785
Buccaneer
Participant
US Member
I have a 1932 K-50, 1940 KA-10,
and a 1941-42 KS-15, waiting to be worked
on. I’ll probably be asking for advise when
the time comes!
Yours are "Sweet". Will have to search YouTube and
see what the "sound like".

Prepare to be boarded!
October 30, 2017 at 2:25 am #66788
pm-t2
Participant
Canada Member - 2 Years
quote SquierKA39:

That’s pretty cool, missed out on a ree-coil K a few years ago. I think they only made that for a few short years, Maybe on the 65 and 70 models?

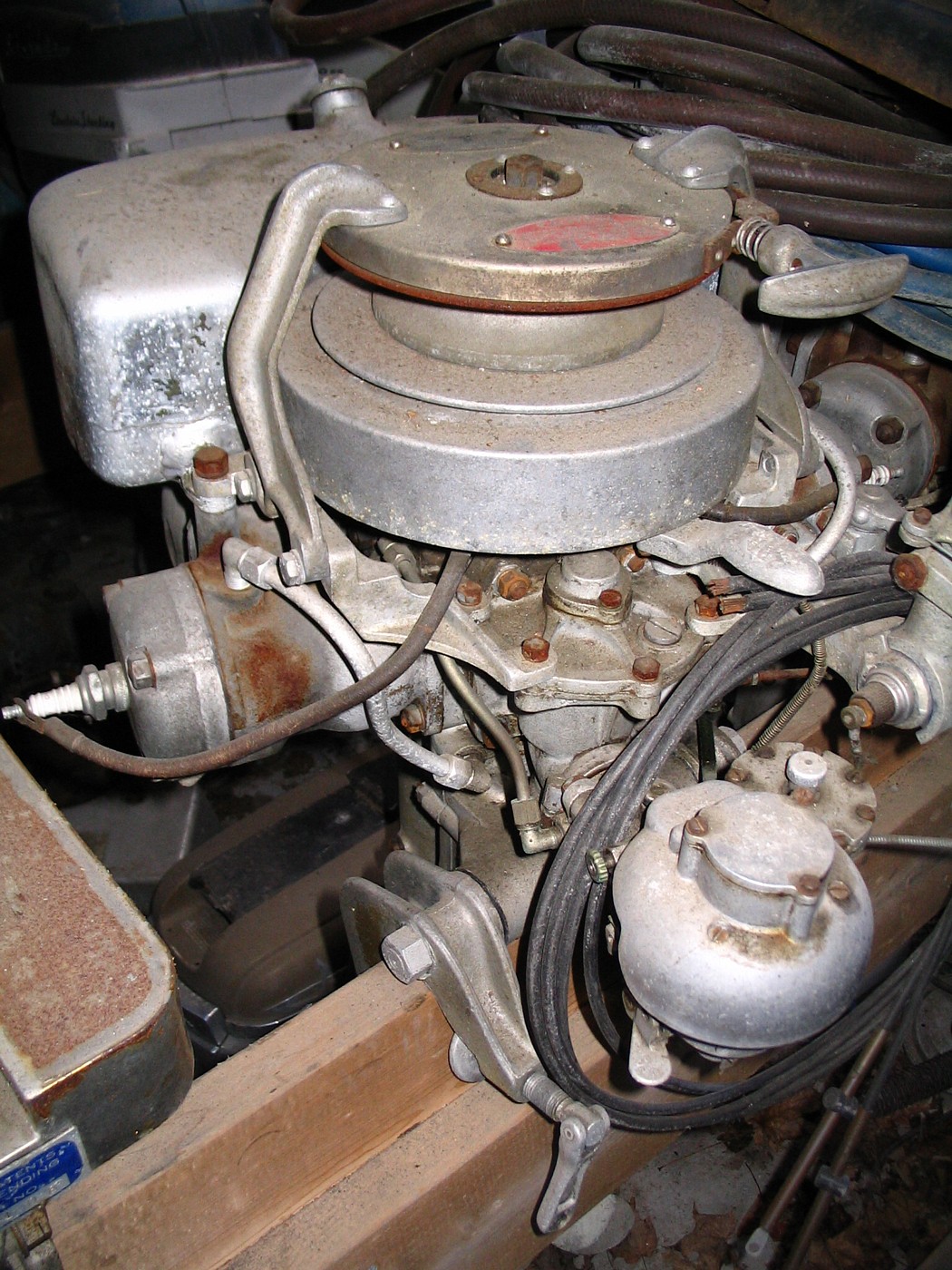

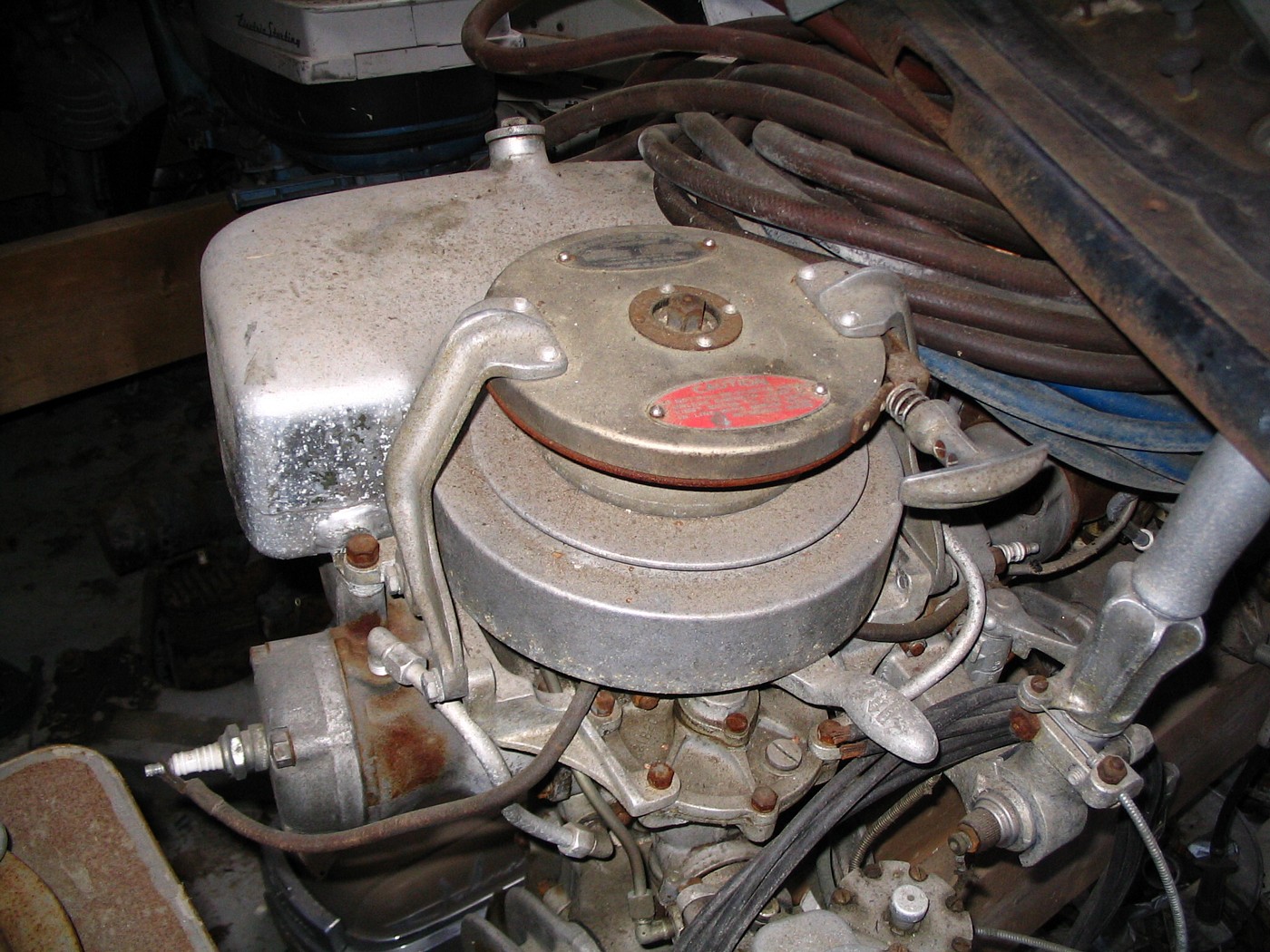

nope, have also seen them on earlier motors, like this S-45

PM T2
October 30, 2017 at 1:09 pm #66796
Buccaneer
Participant
US Member
Did the accessory "Re-Coil" starter include a different
starter / rope plate with dogs, or does it engage the
flywheel nut, or ???

Prepare to be boarded!
