Topic: 1940 Champion Playboy D2F – Replacement Condenser?.

This topic has 5 replies, 5 voices, and was last updated 5 years, 11 months ago by frankr.

Viewing 6 posts - 1 through 6 (of 6 total)

Author

Posts
May 9, 2018 at 1:19 am #9866
scsulliv
Participant
Does anyone have any information on what the microfarad capacitance rating of the condenser is for the 1940 Champion Playboy D2F outboard?

Or – does anyone know a suitable replacement condenser thay i could use to avoid burning up the points?

Where to find replacement points for it would be good to know, too.

I’ve got an old D2F outboard that I’d like to get running again. I’m not sure if it needs a condenser, but it’s been around 20 years since I last had it running, and i don’t want to risk ruining the points.

Thanks!
May 9, 2018 at 2:35 am #75603
green-thumbs
Participant
US Member - 2 Years
Who made the magneto? Model? Outboard makers usual practice was to source magnetos from a firm specializing in ignition systems. The model of magneto is usually stamped on the
magneto plate. Stevens and Merc-O-Tronic manuals may give mfd values.
A specific and correct answer is probably out there in ancient magneto service manual
Louis
May 9, 2018 at 2:49 am #75607
garry-in-michigan
Participant
Lifetime Member
That 5.5 horse outboard was made by Scott Atwater. They bought the carburetors and magnetos from others. I believe if it has a Phelon magneto the capacitor would be around 17 micro farads – if a Bendix/Scentilla, it would be around 19 micro farads. If I am wrong, rest assured, I will quickly be corrected. . . 😆

😆
May 9, 2018 at 10:21 am #75619
scsulliv
Participant
I haven’t taken my engine apart yet, but i do have a spare magneto, which was made by Wico.
May 9, 2018 at 2:39 pm #75624
Mumbles
Participant

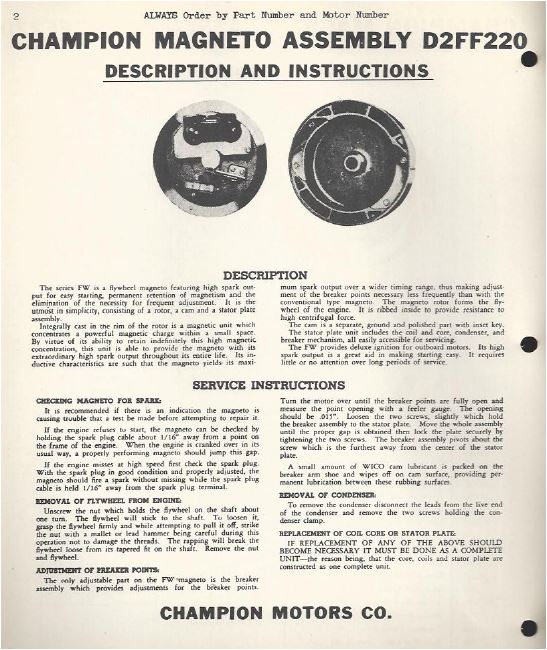

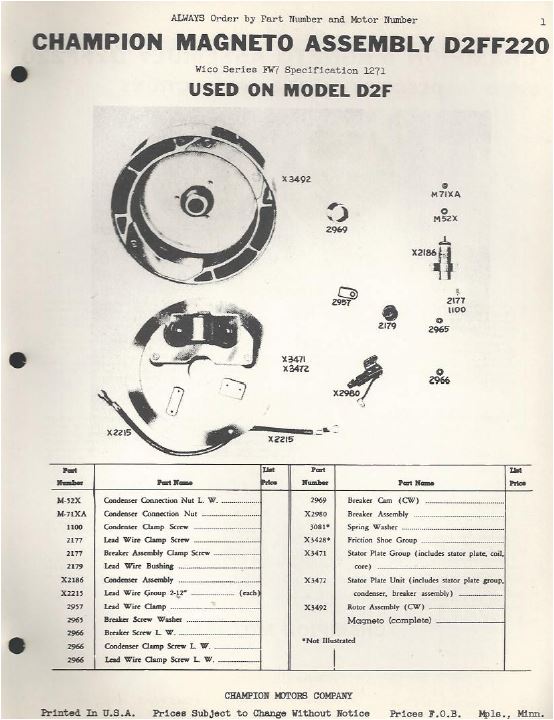

Your motor does use a Wico magneto and the original P/N for the condenser is X2186.

Now to find the uF rating for that cap.

Attachments:
May 9, 2018 at 3:04 pm #75626
frankr
Participant
US Member

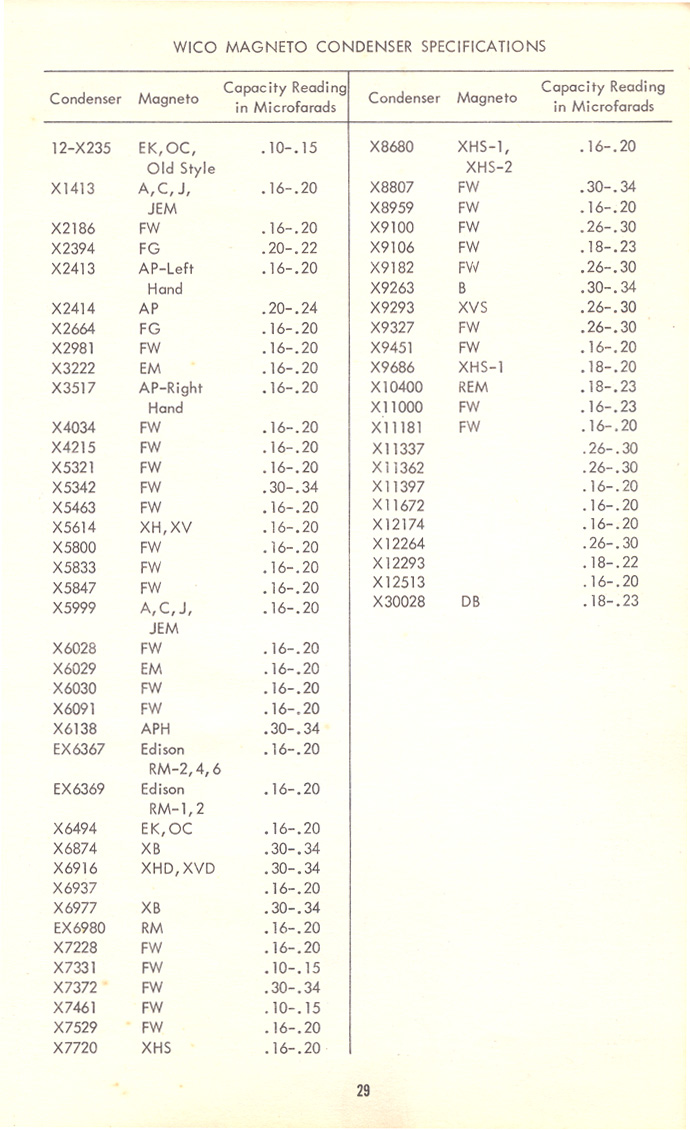

0.16mfd – 0.20mfd
