1940 Johnson DT-10 5 hp water ram?

Home › Forum › Ask A Member › 1940 Johnson DT-10 5 hp water ram?

Viewing 9 posts - 1 through 9 (of 9 total)
  • Author
    Posts
  • August 13, 2017 at 1:02 pm #7889
    Buccaneer
    Participant

      US Member

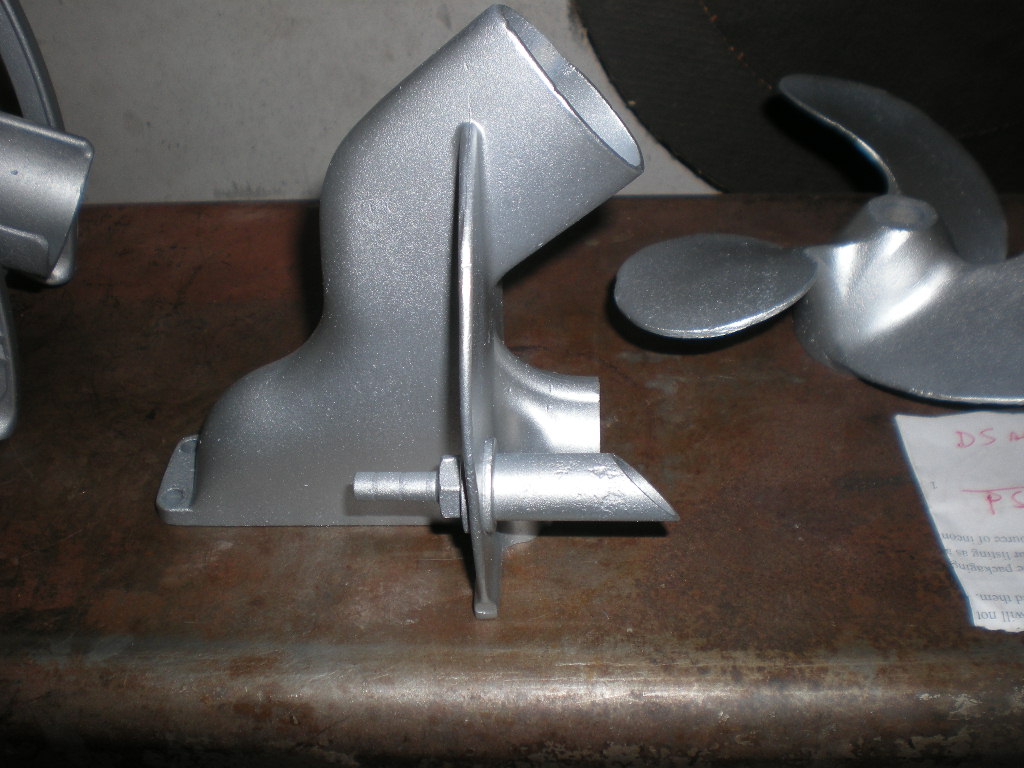

      There’s a water ram tube on the cavitation plate on the DT-10
      I’m working on. It wasn’t hooked up to anything, nor do I see
      where it could have hooked up, as the water pump discharge
      is all "internal" up to the power head. The
      piston pump appears in good shape.
      The ram scoop / tube looks like it’s factory made.
      Were these sold as accessories and how could it have
      been hooked up?

      Attachments:

      Prepare to be boarded!

      August 13, 2017 at 2:18 pm #62983
      baron0418
      Participant

        US Member

        The way the tube is angled, that would not be a ram, but would create suction if anything. I doubt that is factory. Most likely someone’s idea for a bailer

        August 13, 2017 at 3:42 pm #62988
        Buccaneer
        Participant

          US Member

          I was thinking "ram" thinking the prop would force
          water up the tube. The prop is very close to it.

          Prepare to be boarded!

          August 13, 2017 at 4:12 pm #62990
          The Boat House
          Participant

            Might be someone own vacuum/suction bailer design
            similar to this.

            August 13, 2017 at 6:29 pm #62992
            Buccaneer
            Participant

              US Member

              The Titantic should have had one……. a BIG one!

              Prepare to be boarded!

              August 13, 2017 at 8:59 pm #63001
              garry-in-michigan
              Participant

                Lifetime Member

                Push a rubber tube on it – believe me, It’s a boat bailer . . . 😉

                August 13, 2017 at 10:15 pm #63004
                Buccaneer
                Participant

                  US Member

                  Rubber tube it is Garry! Hope I get the old Johnson
                  running so I can try it out! Thanks.

                  Prepare to be boarded!

                  August 13, 2017 at 11:49 pm #63012
                  kamkaotm
                  Participant

                    I have a ’39 L38 with drilled holes on the plate and had zero idea what they were for. This answers that question. Anyone know where I could get a copy of a shop manual for an L38? Thanks.

                    August 14, 2017 at 12:27 am #63023
                    The Boat House
                    Participant

                      quote kamkaotm:

                      I have a ’39 L38 with drilled holes on the plate and had zero idea what they were for.

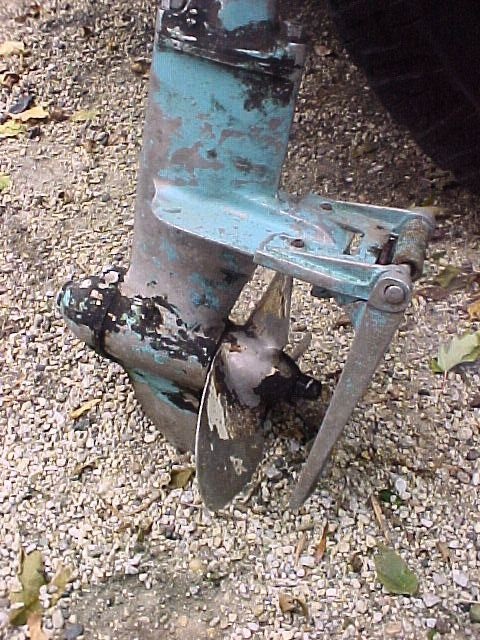

                      Holes could be for a trolling plate
