February 8, 2017 at 2:15 pm #6300
Buccaneer
Participant
US Member

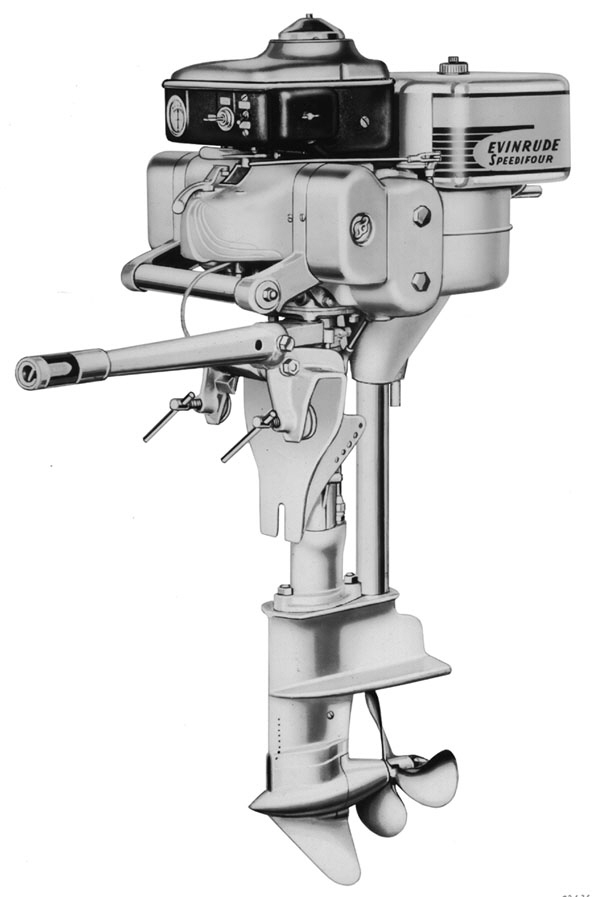

I found this photo (of Gary’s) in the Green Board, and
it intrigued me, but I could find no information about it.
Was it electric start, or rather had DC output for boat
lights, etc? It looks like it had an amp meter on it.
Any "real" photos "out there"?

Attachments:

Prepare to be boarded!
February 8, 2017 at 3:46 pm #52642
bill-loveland
Participant
Chris is the expert on these, but I have some familiarity with them. It is an electric start outboard – the flywheel is replaced by the rotating mass of the electric motor/starter/generator. I’m sure somebody will point you to the threads that have pics. The ammeter displays the current generated while it’s running, to keep the battery fully charged. The flywheel magneto/coils/points system is replaced with a battery driven coil/points system.
February 8, 2017 at 7:31 pm #52655
garry-in-michigan
Participant
Lifetime Member
It functions as an electric motor below 1,500 RPM and a RPM dependent switch turns it into a generator around 1,700 RPM. If you have a long no wake zone to navigate you better have a BIG battery or two. With a battery ignition when the battery is dead, the motor is dead. This 12 volt electric starter was offered on several models of Evinrude, Elto and Johnson. Evinrude also offered it as a trolling motor. . . 😆
February 8, 2017 at 10:12 pm #52667
Buccaneer
Participant
US Member
Thanks for the replies. It sounds like the generator spins the motor over
for starting and charging once running, which I could have envisioned.
However, it being an electric outboard below 1500 rpm’s I never fathomed!
Are the pistons moving while operating as an electric trolling motor?
If not, what kind of an affair disengages the pistons / engine from the
electric motor? Very interesting photos.
Thanks!

Prepare to be boarded!
February 9, 2017 at 1:21 am #52674
nali
Participant
It s a beauty 🙂
February 9, 2017 at 1:22 am #52675
bill-loveland
Participant
Yes, the whole internal rotating mass is in play. The port side cylinders have a compression release, so there’s that. But it still is rolling the starboard side cylinders over compression.
February 9, 2017 at 2:01 am #52678
garry-in-michigan
Participant
Lifetime Member

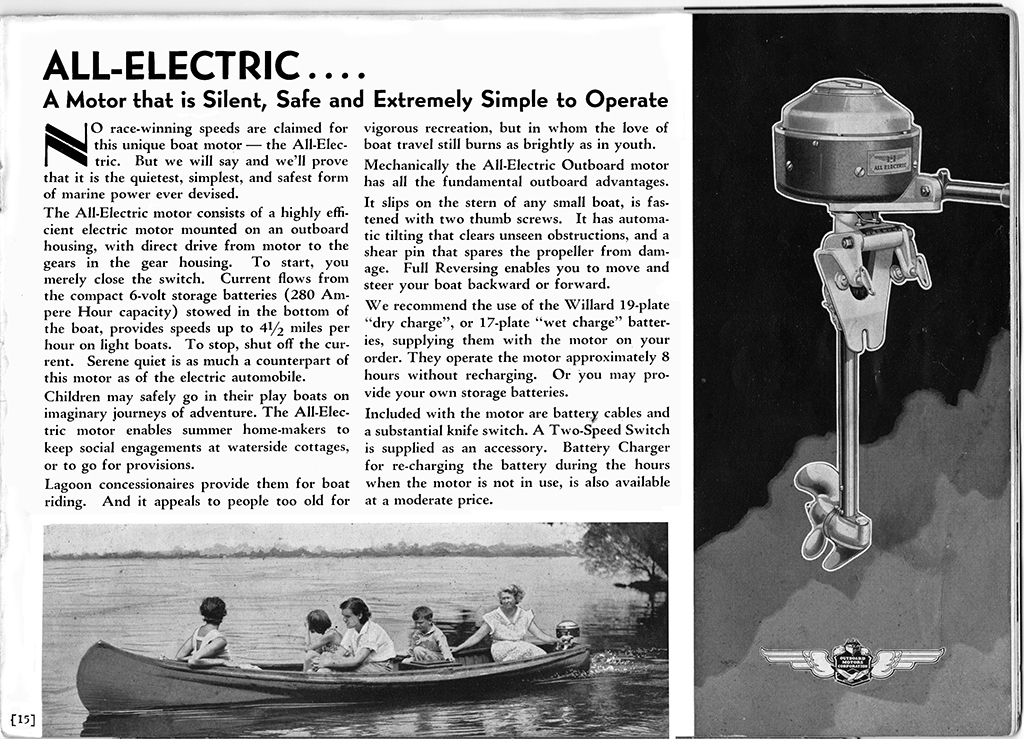

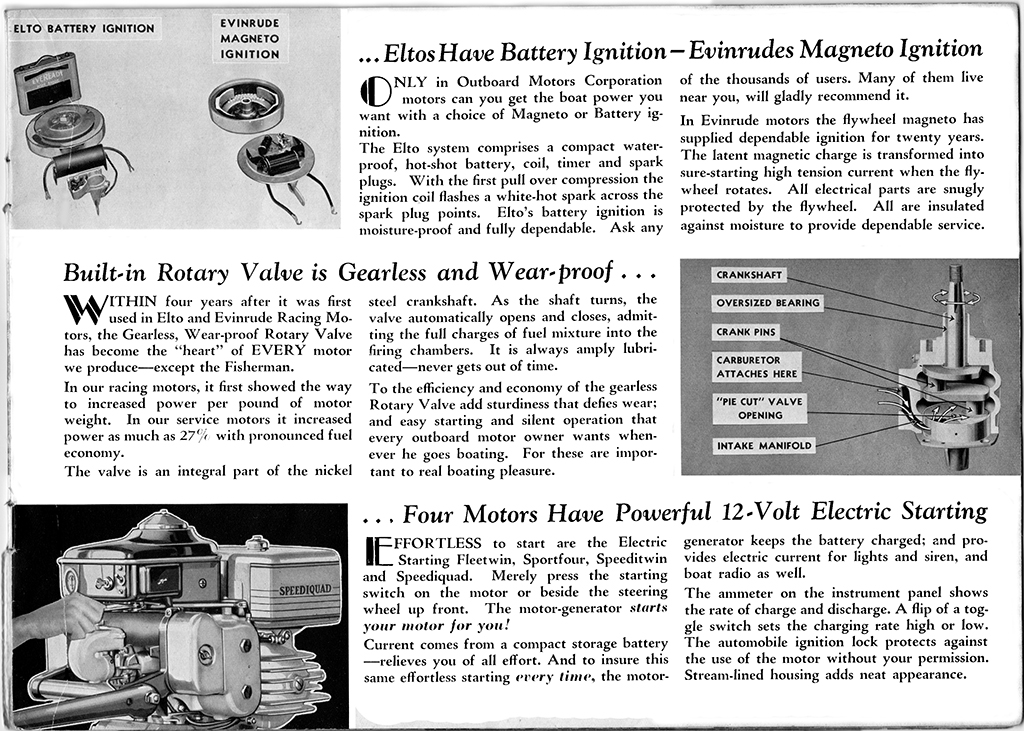

A couple pages from the 1934 catalog . . . 😀
February 9, 2017 at 4:00 am #52686
Buccaneer
Participant
US Member
Interesting catalog pages Garry. I have my doubts about
the "All Electric" motor batteries lasting 8 hours though.
I wonder how many of those electric start Speeditwins, etc.,
survive?

Prepare to be boarded!
February 9, 2017 at 4:16 am #52687
1aquaholic
Participant
Wow! I’ve never seen one of these! Awesome! Garry, you sir are a living encyclopedia of outboards! Thank you for sharing your vast knowledge! I ALWAYS enjoy reading whatever you post! I can always count on learning something new whenever you post!
Thank you sir, you are truly a treasure!
1Aquaholic
Greg Schneider
February 9, 2017 at 5:17 am #52689
nali
Participant
Gsrry knows everything 😛
