Home Forum Ask A Member 1948 Sea King motor questions.

Viewing 10 posts - 1 through 10 (of 13 total)
  • Author
    Posts
  • #9556
    jimmye
    Participant

      I have a 1948 Sea King (I Believe it is a ’48) Model # 94GG9003A, I bought at a yard sale, and had a friend clean up and I used it on a small pond I lived on in Vermont. I recently moved to the Raystown Dam area in Pennsylvania and am putting together an electric boat, using an old 1960 aluminum row boat, 2 Sears, Ted Williams, Shakespeare trolling motors, which will be hooked up to a solar panel on a canopy, and that will trickle charge the batteries to run the old trolling motors as they discharge, having hooked them up in a series. I haven’t run the old Sea King in years, and want to just clean out the gunk and get it running again as a back up, since the lake is pretty big, and if there is a catastrophic failure with the electrical, I don’t want to row home.

      My Brother in law tells me to run pure octane through it to start it up. The old guy at the maria who won’t touch it says run kerosene through the cylinders to loosen up rust. It’s not seized up. It’s just been sitting ( In my living room, as I didn’t want it getting cold) for a few years.

      My question for the forum is: What would you recommend to put it back in service? And I don’t mind the dents in the tank, but I would like to repaint it.

      I imagine high temp engine paint for the motor, metallic silver for the lower unit, and red enamel for the tank? My real concern is that I don’t screw up the engine. Or where do I get a nice vintage maroon?

      Do I really need to drain and replace the lower unit lube? It doesn’t seem to have leaked out at all.

      #73470
      crosbyman
      Participant

        Canada Member - 2 Years

        if you want to skip LU oil $$$ ….you have a long way to go !

        change the oil
        change the the impeller
        change the plugs
        change and clean and anything suspect … points condensers filters etc…
        pull the prop inspect for monofilament

        Joining AOMCI has priviledges 🙂

        #73471
        jimmye
        Participant

          And where would one find an impeller for this? I suppose it would be easy to scan it and 3-D print it. Has anyone ever had success with 3-D printing impellers?

          #73482
          crosbyman
          Participant

            Canada Member - 2 Years

            try AOMCI classified ads on this site ,

            I doubt scanned and printed impellers would have the necessary flexibility to do the job. Yo may be able to adapt another brand’s impeller to fit your motor.

            Somebody here will suggest something I am certain

            ask these guys
            http://www.ahlstrandmarine.com/online-s … otor-parts

            p.s. search the web… it is your friend

            Joining AOMCI has priviledges 🙂

            #73484
            garry-in-michigan
            Participant

              Lifetime Member

              Built by the Gale Products devision of OMC . . . I believe replacement water pump rotors for the 5 and 12 horse models are being reproduced by an AOMCI member. . . 😀


              The 5 horse is very popular.

              #73499
              nabmd
              Participant

                US Member

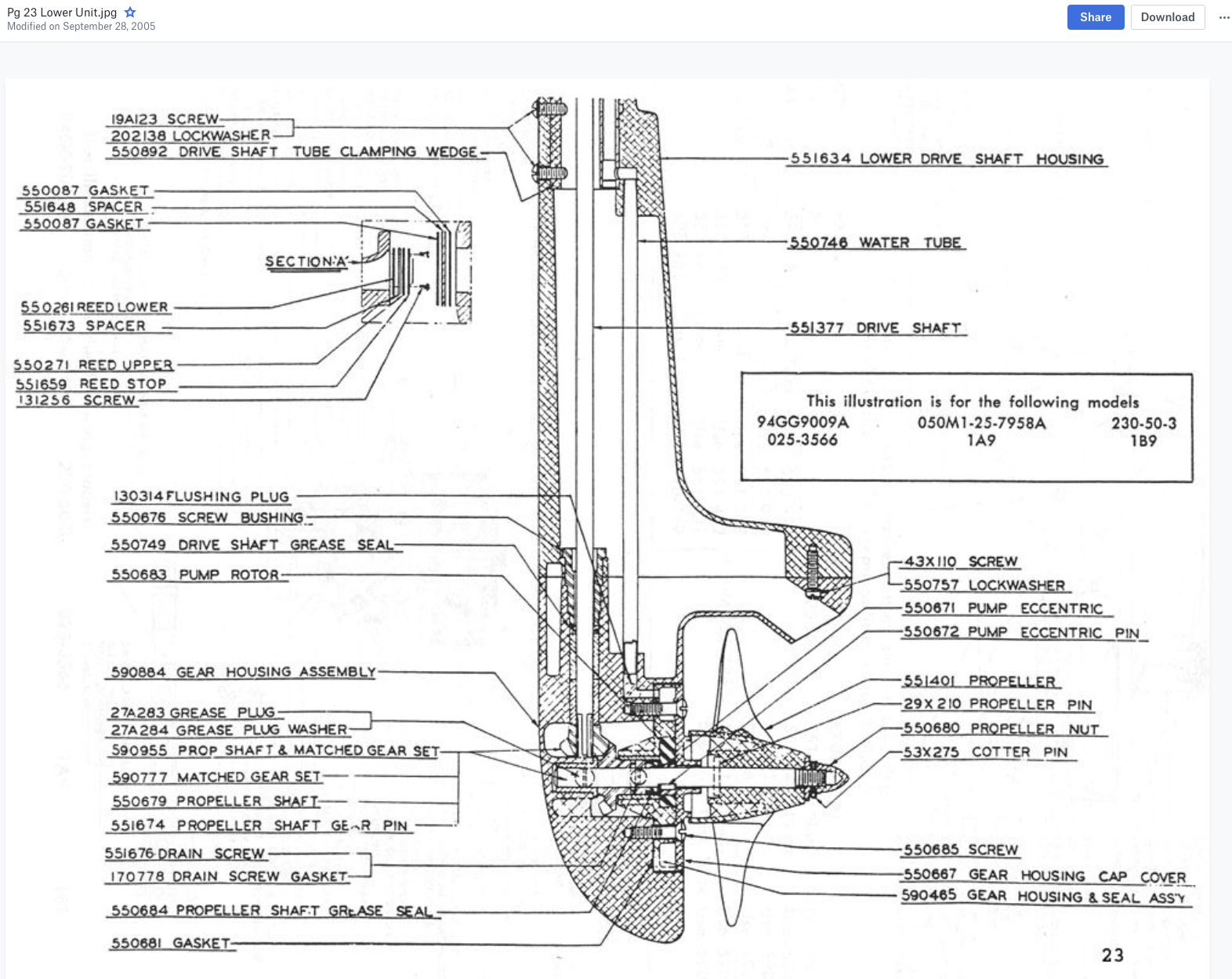

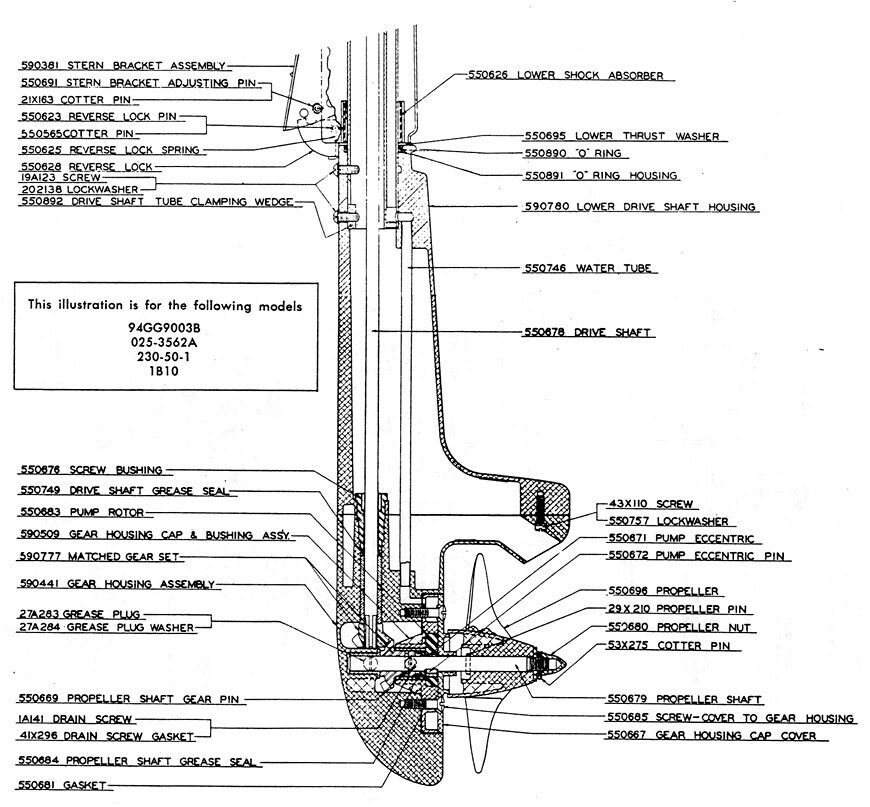

                The ’94’ at the beginning of the model # inverts to 19’49’ for the model year. I have the 1948 model, but not nearly as nice as Garry’s! I also have the bigger brother, 5HP. I recall someone mentioning that the red primer paint is almost an exact match for the red, then just put clear coat on it. Just be sure to use the same company for all the paint.

                #73506
                garry-in-michigan
                Participant

                  Lifetime Member

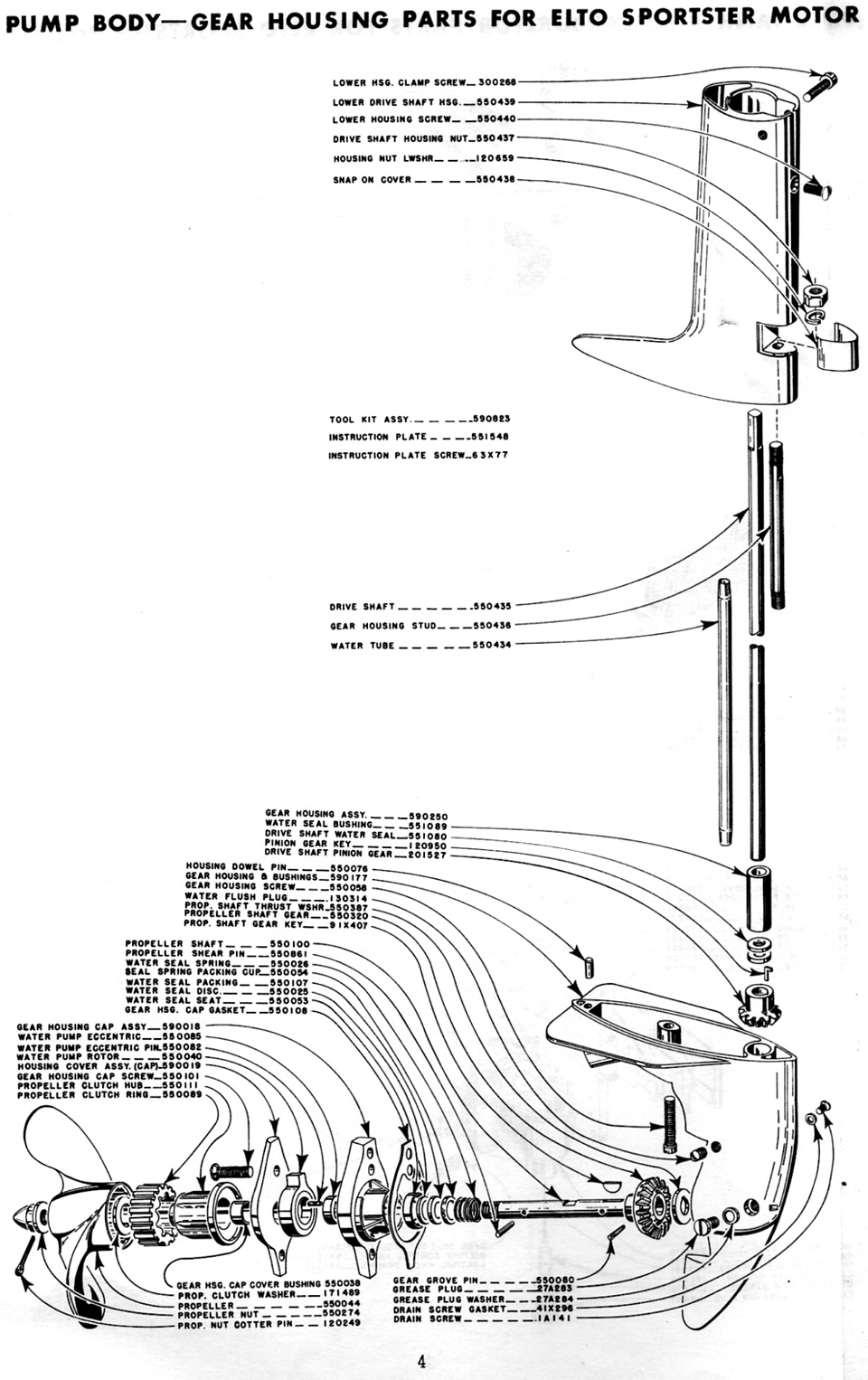

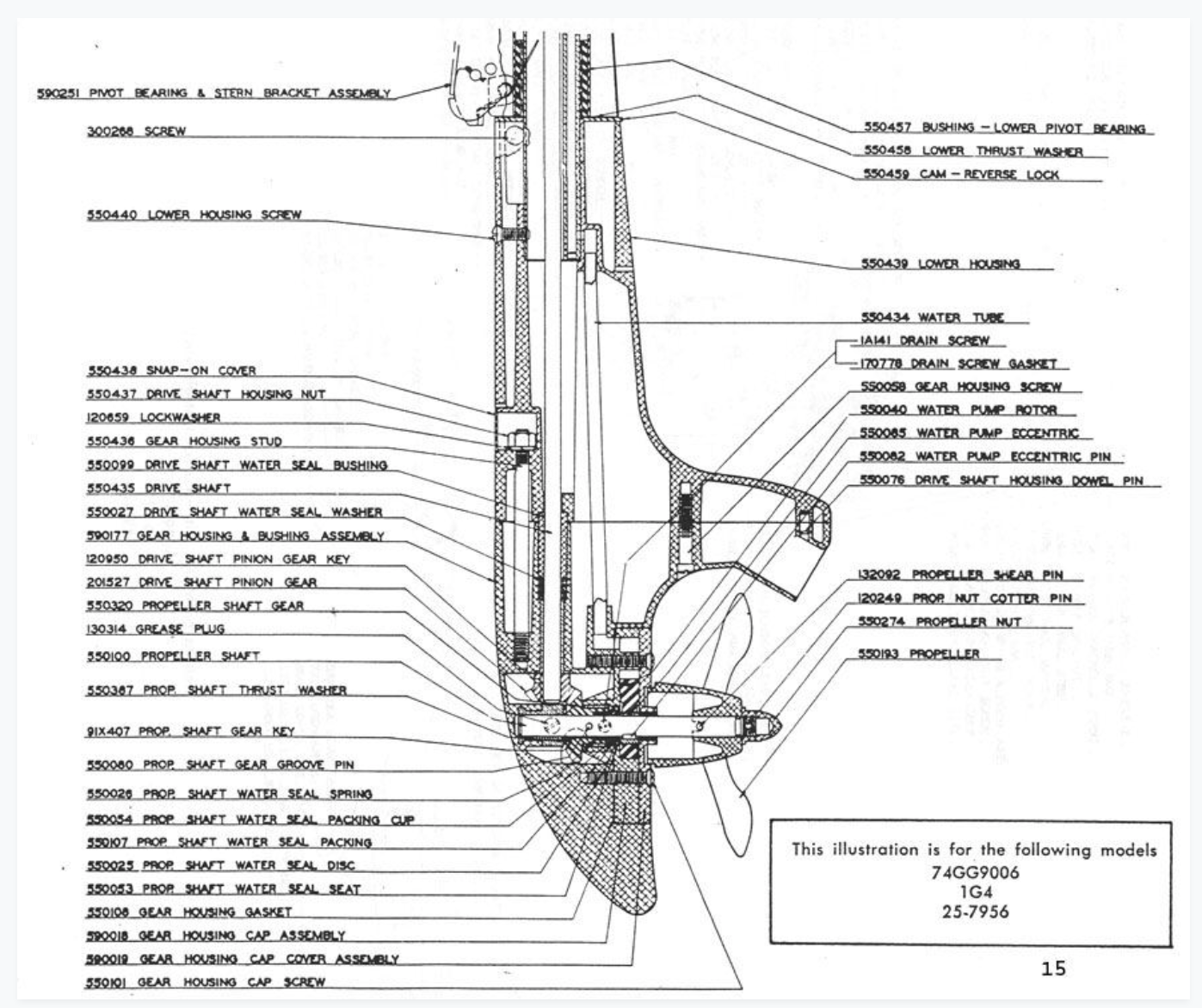

                  OK – the 1947-48 three horse pump was the same as the five horse. . .

                  The 1949 three was different . . .

                  #73758
                  jimmye
                  Participant

                    The one on the boat looks like my 1.5 HP and you folks are a wealth of information. Thank you. I found a maroon rattle-can locally. The tank is dented up but I’ll try to gently tap them out. Anyone ever take one apart and put it back together after knocking dents out? Or is that not advisable?

                    #73761
                    frankr
                    Participant

                      US Member

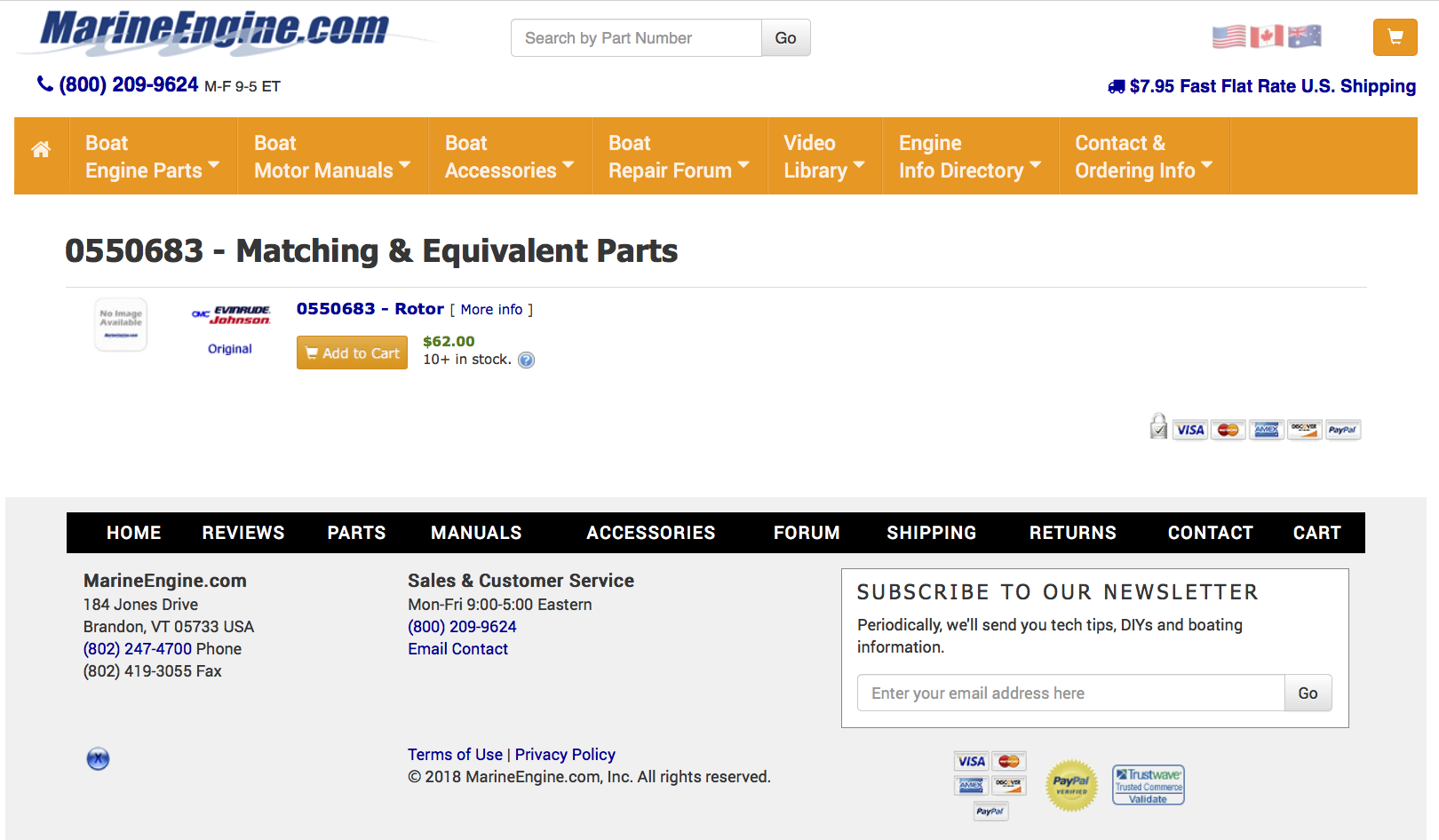

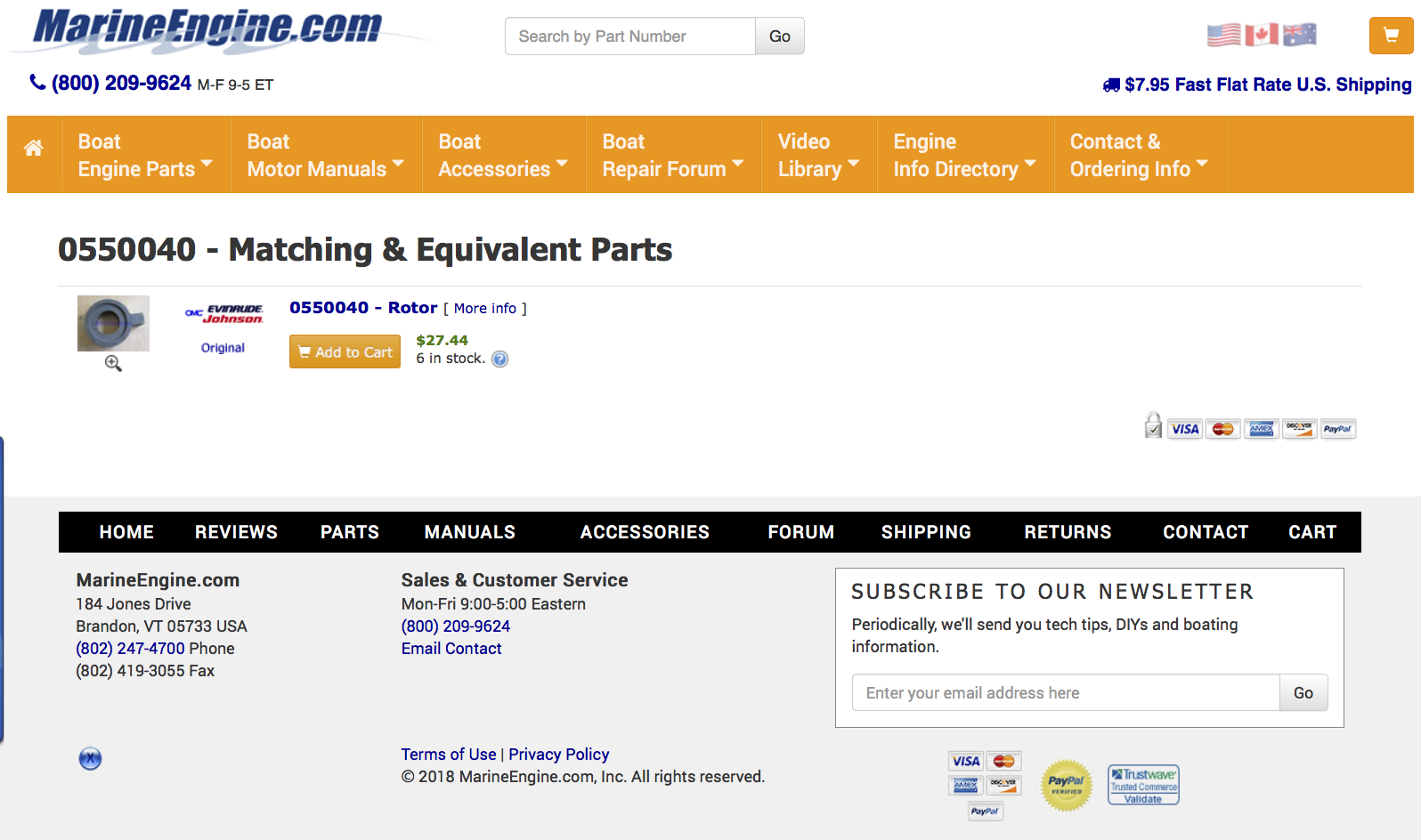

                      Your motor is a 1949 1.5hp. Don’t pay that awful price at m.e. for a water pump rotor. Get one from club member Brian Wilcox at a heck of a lot less money.

                      email Baron0418@att.net. please note the b must be a capital.

                      or call 810-794-7685 before 8 pm est please

                      #73792
                      garry-in-michigan
                      Participant

                        Lifetime Member

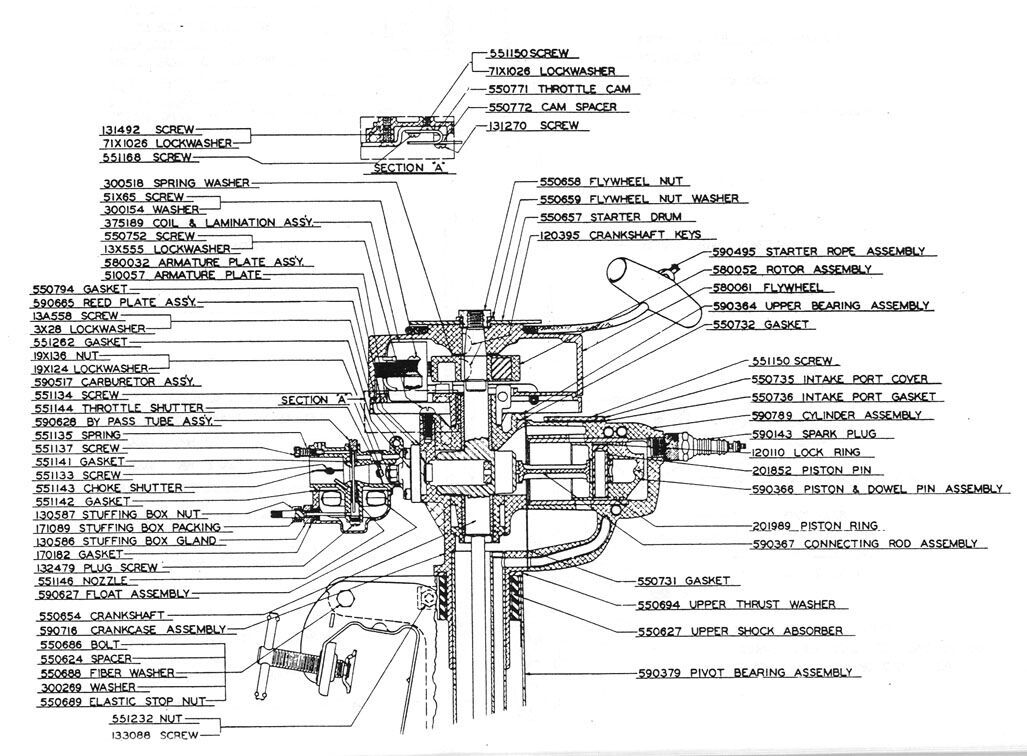

                        OK – we got it now – same powerhead as the 1949 Evinrude Sportsman . . . 😎
