  • October 5, 2018 at 4:49 am #11449
    dillon
    Participant

      Got a sweet 1954 CD11 back up and running but it looks like I’m missing a part. Well there are 2 and I have the right side, the part on the inside that the front 1/2 of the lid outside thumb screw screws into. The part mounts with one screw. Does anyone know the part number or where I might find one of these? I cant even find a parts manual online. I have a parts manual on the way but media mail just don’t cut it. Any help would be much appreciated.
      thanks, dillon

      October 5, 2018 at 10:31 am #84022
      Steve D
      Participant

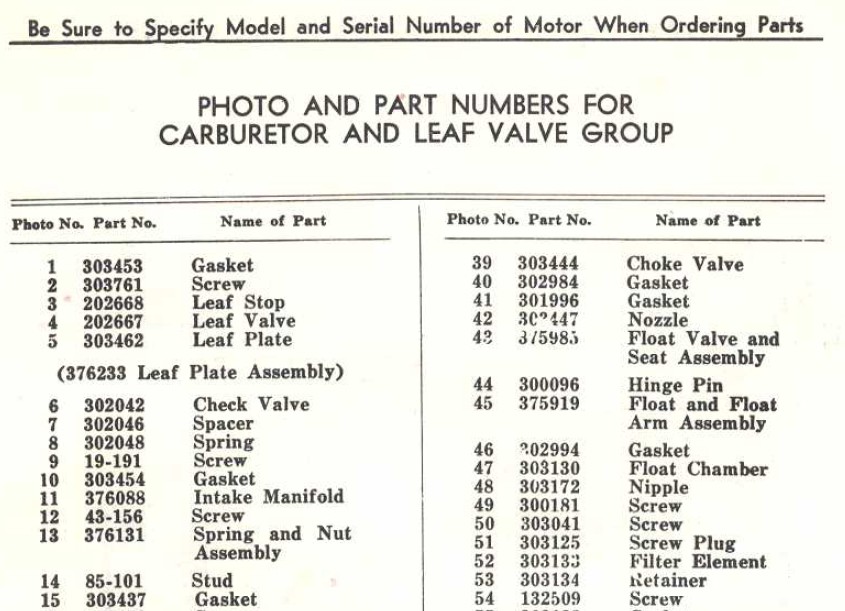

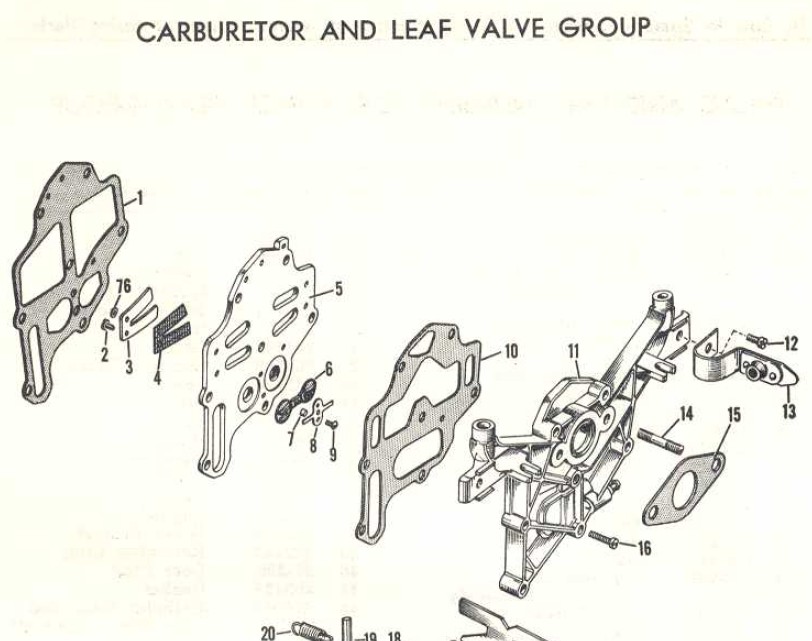

        If you’re referring the "Spring and Nut Assembly" #376131, on the Carburetor Group page then there’s 2 available on ebay right now.
        https://ebay.to/2DZej54
        The Parts manual attached is compliments of Garry.

        October 5, 2018 at 12:45 pm #84023
        dillon
        Participant

          Thank you Steve
